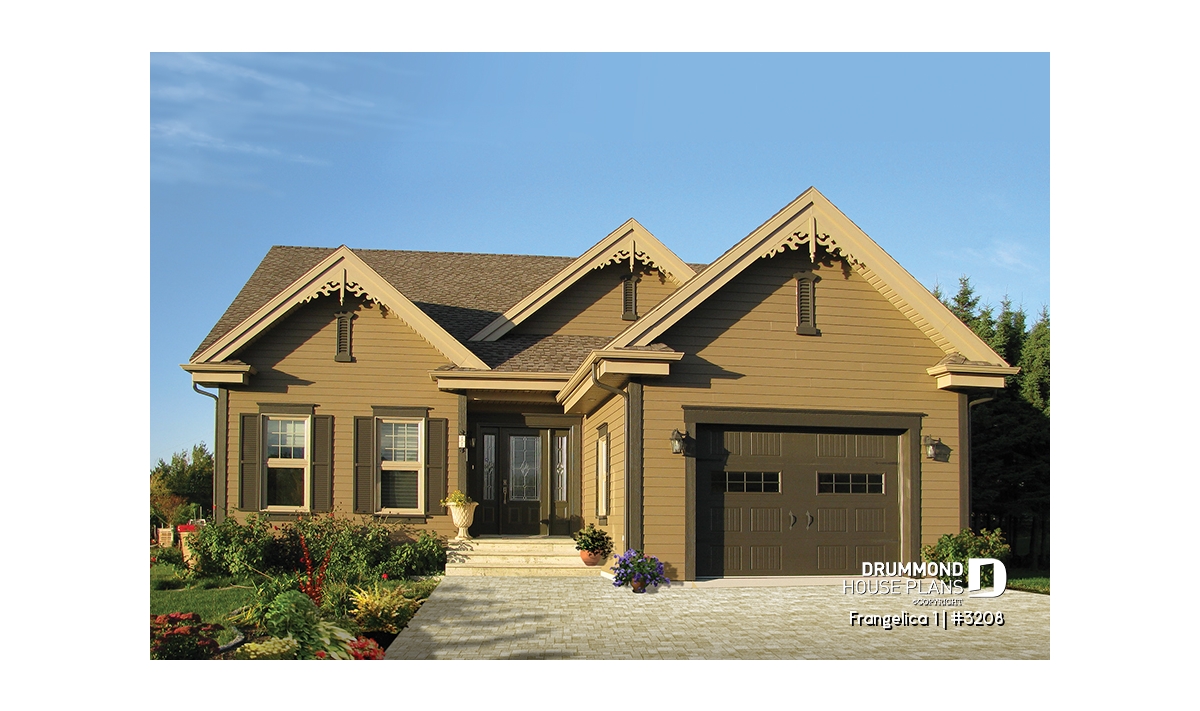

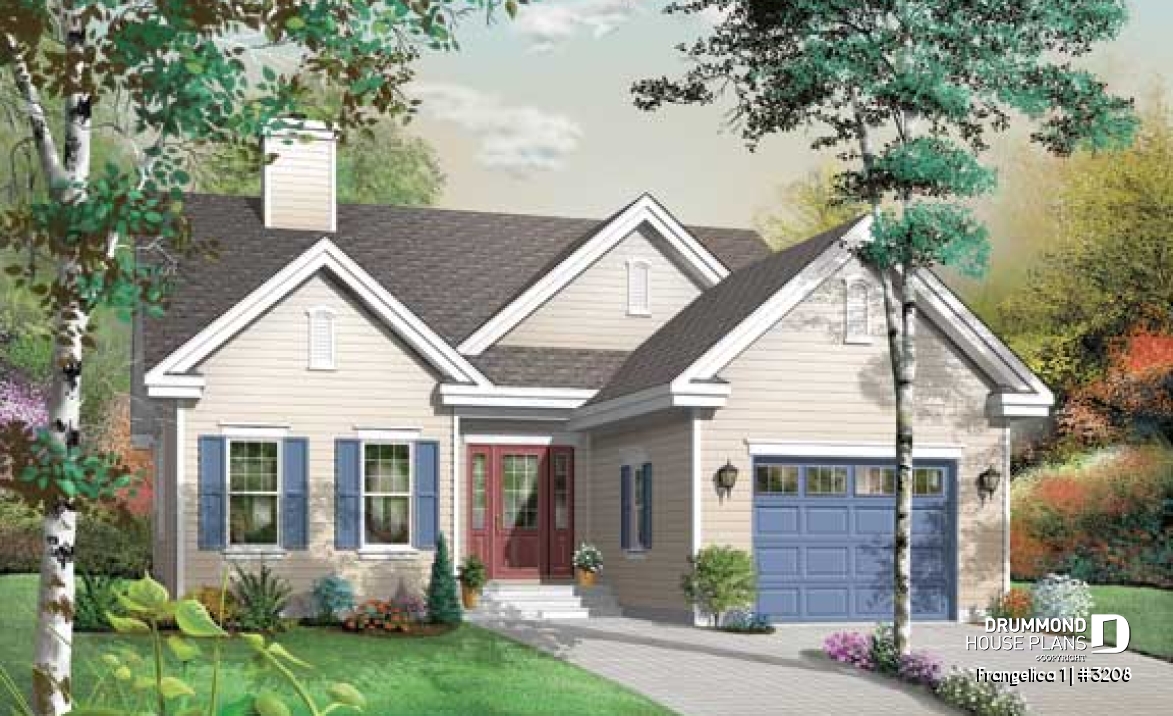

House plan Frangelica 1 (3208)

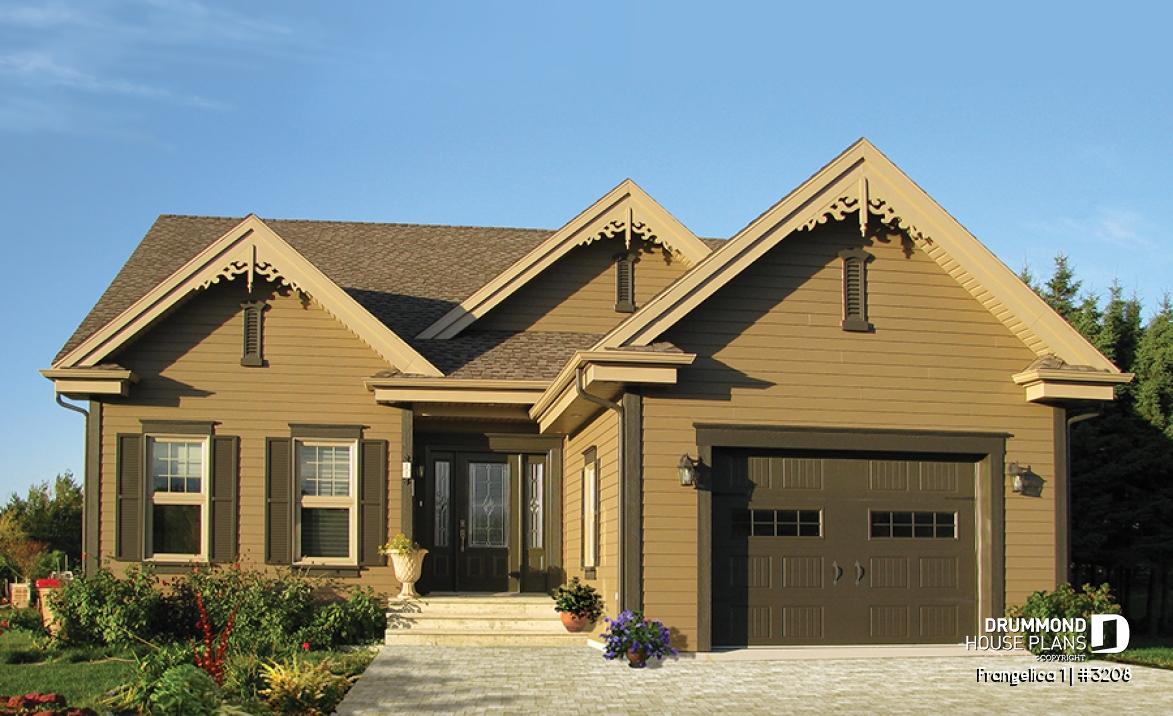

First home buyer house plan, 3 bedrooms, garage, sunken living room, walk-in pantry, walk-in closet in master
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'10" x 10'2" | ~ 8'0" |
| Kitchen | 10'8" x 13'0" | ~ 8'0" |
| Pantry | 5'0" x 2'0" | ~ 8'0" |
| Dining room | 15'8" x 11'0" | ~ 8'0" |
| Living room | 12'0" x 14'4" | ~ 9'0" |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 6'4" x 5'6" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 11'0" | ~ 8'0" |
| Closet | 4'8" x 2'0" | ~ 8'0" |
| Storage | 6'0" x 1'4" | ~ 8'0" |
| Linen | 1'6" x 1'6" | ~ 8'0" |
| Foyer | 7'8" x 6'0" | ~ 9'0" |
| Closet | 4'0" x 2'0" | ~ 9'0" |
| Garage | 14'0" x 20'4" | ~ 9'6" |
| Porch | 8'0" x 4'0" | N/A |
| Deck | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1393 sq.ft. |
| 1st level | 1393 sq.ft. |
| Width | 36'0" |
| Depth | 56'0" |
| Ridge height from top of foundation | 23'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Small and low-budget ranch house plan with 3 bedrooms and garage
.
Distinctive elements
9 Ft ceiling, sunken foyer and living room, see-thru fireplace between family & dining rooms, corner bathtub, access to garage from foyer and service door on the left side.
Plan feature(s)
Fireplace, Walk-in master bed., Pantry, Lunch counter, Narrow lot, Separate bath and shower, Sunken living room
Plan architectural style(s)
. Country, . Traditional, . American, . Ranch, . Farmhouse, . Modern rustic
Similar plans
Previously Viewed Plans
Questions and comments
June 05
SB
Thank you so much for your quick response. Are all your home plans turn-key? This is such an excellent price!
June 05
Customer service
Good day
The plans are ready to build with but local municipalities may, in some cases, require additional certification by a local professional such as an architect or engineer.
The best way to ensure that you don't have any unwanted surprises is to speak to the local municipality as well as the builders and materials suppliers in your area since the estimates are for construction outside of your area.
Regards
Deb
April 14
SB
Cost to build Northern Ont located north of Sudbury
April 14
Customer service
Good day and thank you for your interest in this plan.
Although we do no actual construction, the ballpark estimate to build this model in Quebec (Canada) starts at around $200,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec was updated on January 10th 2014 and is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
