3031-V1 (Fairfield 2)

  • Add this plan to your favorites
  • Add to compare
  • Question on this plan
  • Print this plan
  • Send this plan by email
  • Reverse this plan

3 unit apartment building plan (triplex house plan) 3 bedrooms per unit, veranda on main floor

  • Add this plan to your favorites
  • Add to compare
  • Reverse this plan

Bedrooms

3

Bath(s)

1

Half B.

-

Living area

3774 sq.ft.

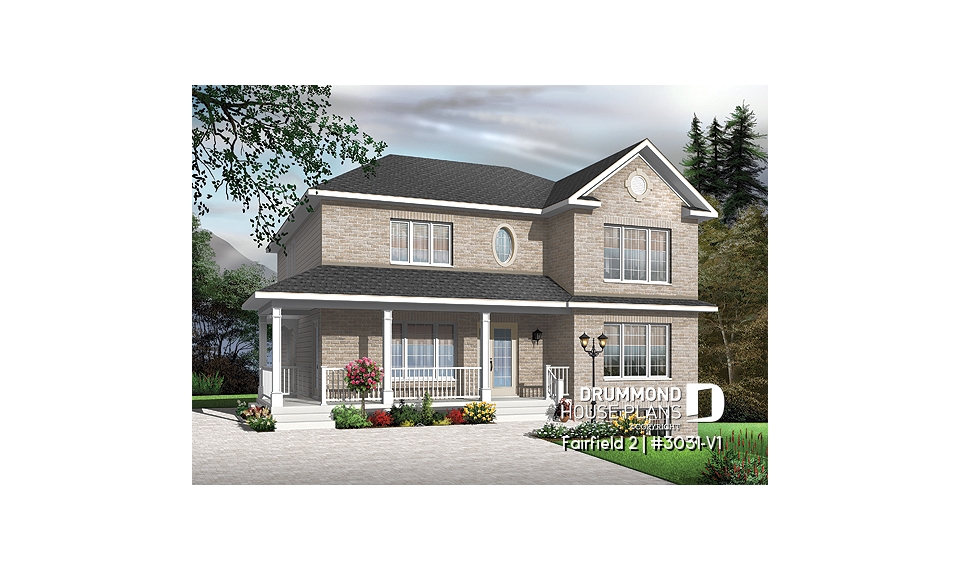

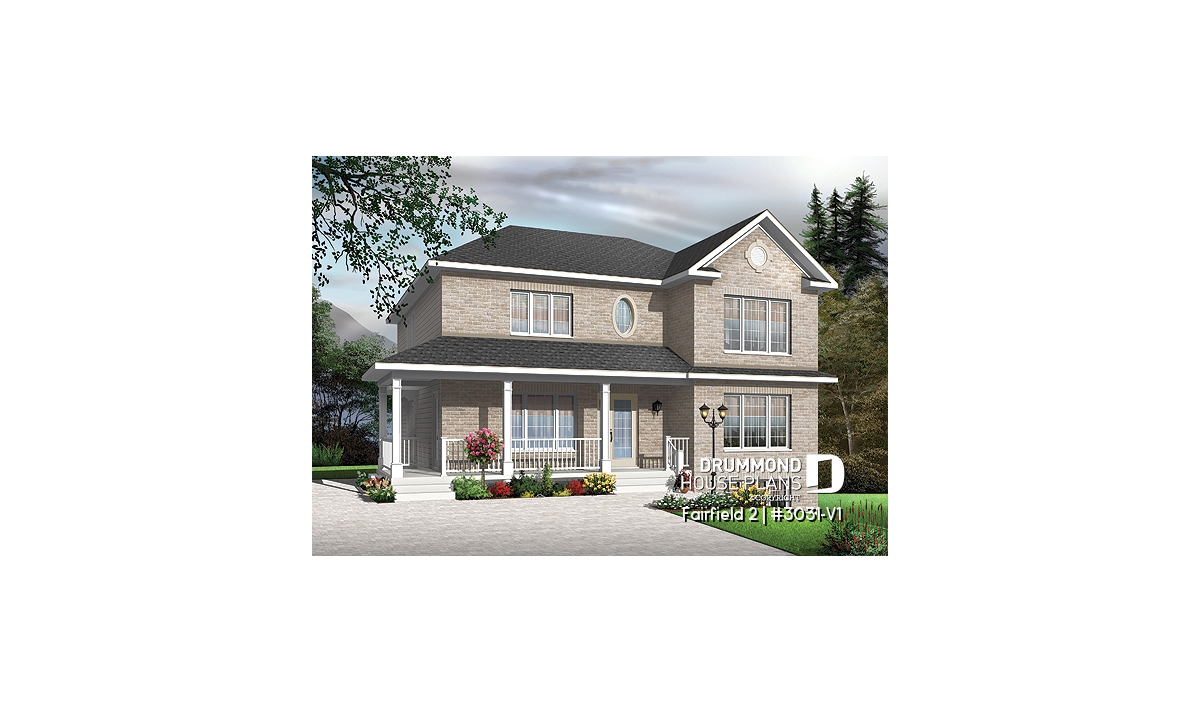

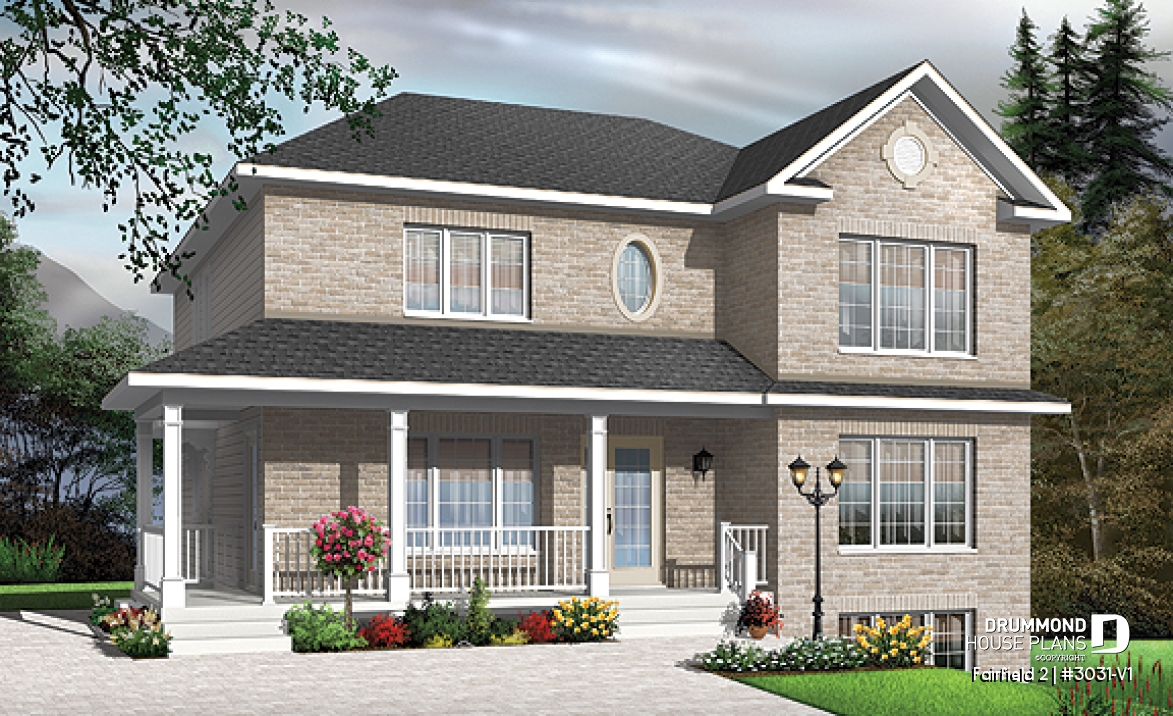

  • front - BASE MODEL - 3 unit apartment building plan (triplex house plan) 3 bedrooms per unit, veranda on main floor - Fairfield 2

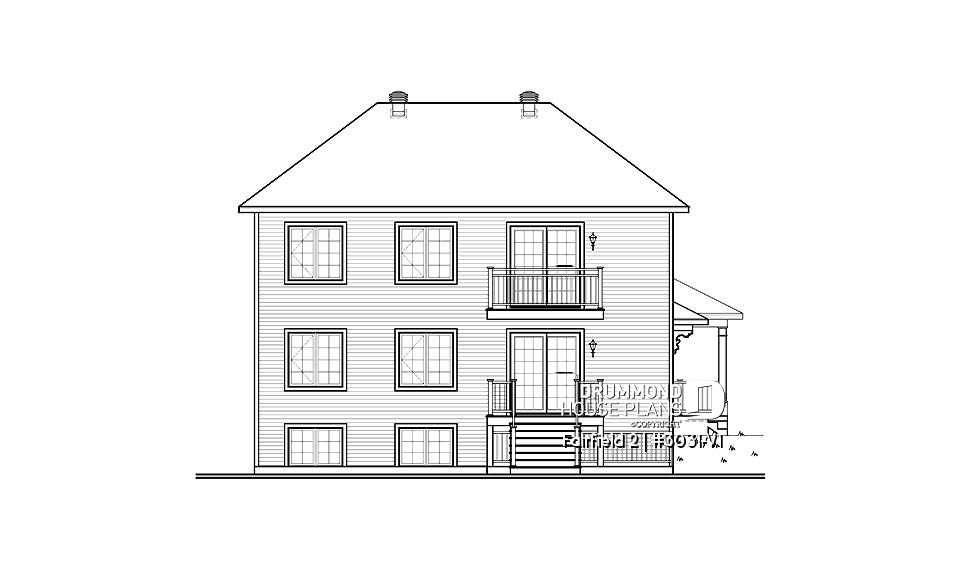

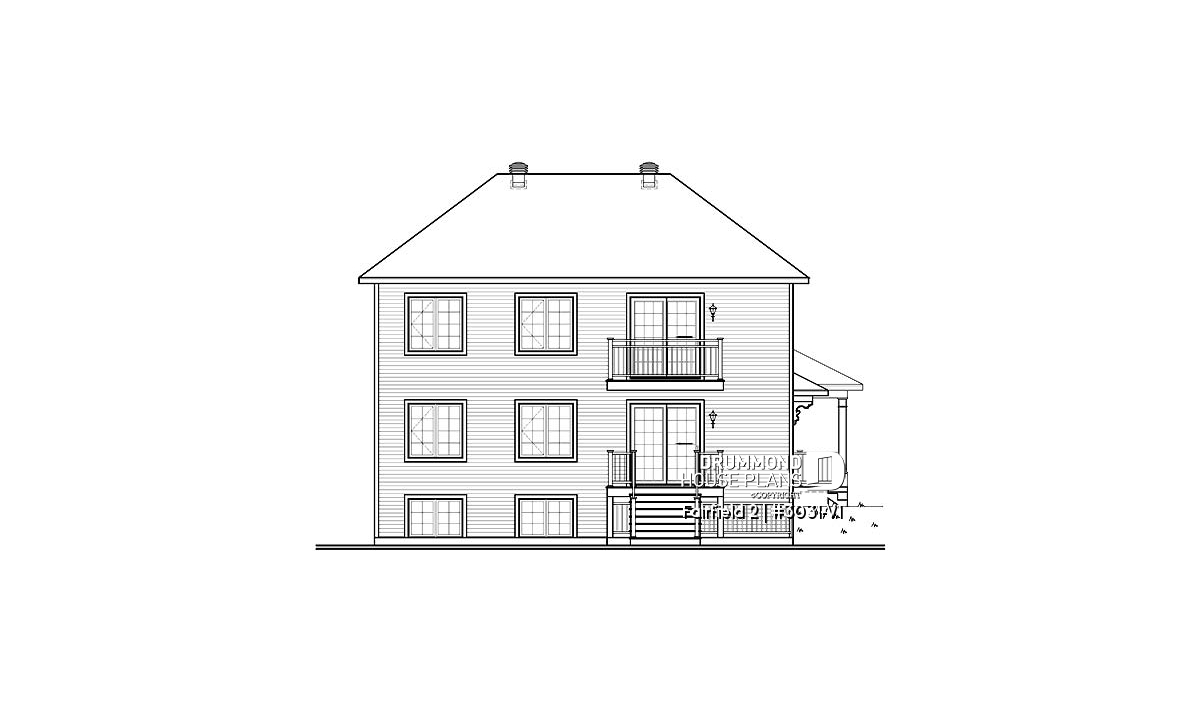

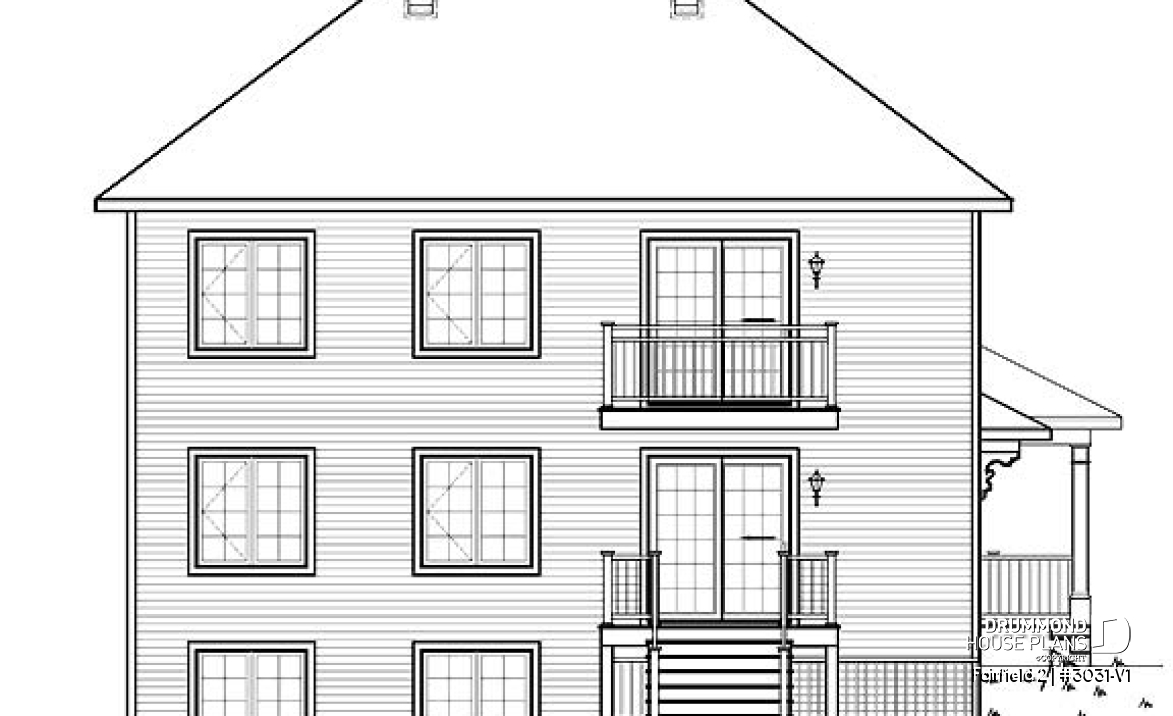

  • rear elevation - Fairfield 2

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3031-V1
Vignette rear elevation - 3031-V1

View by floor

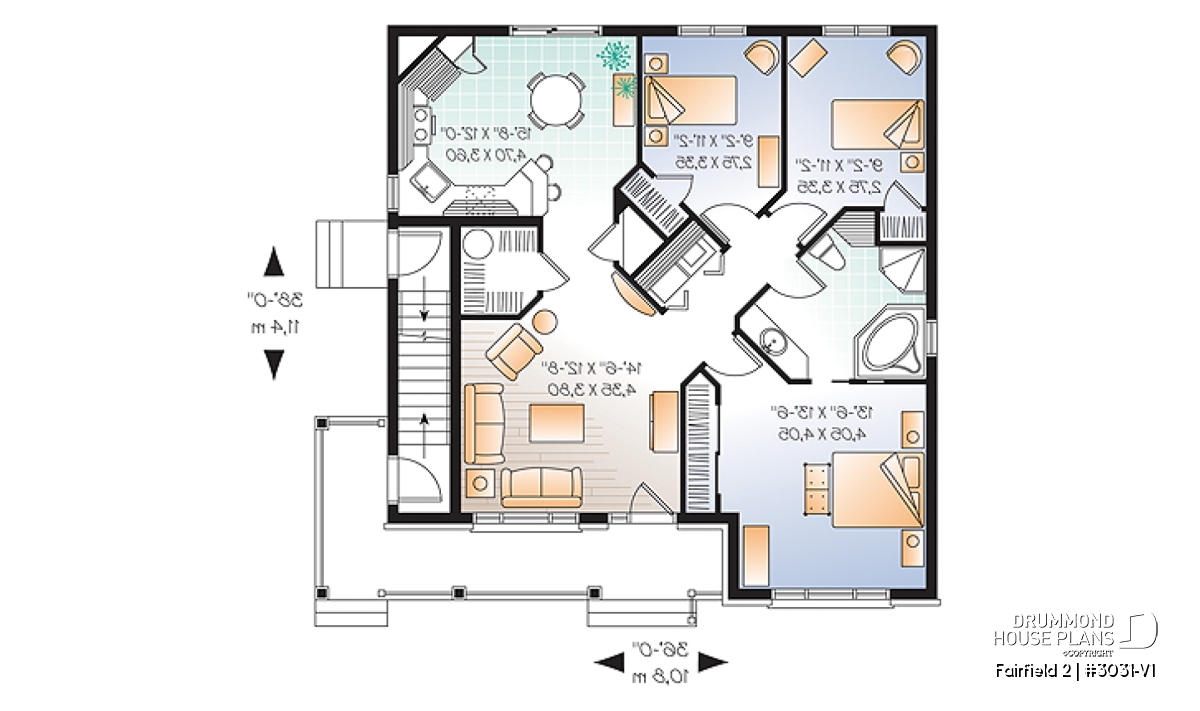

  • 1st level

    1st level - 3 unit apartment building plan (triplex house plan) 3 bedrooms per unit, veranda on main floor - Fairfield 2

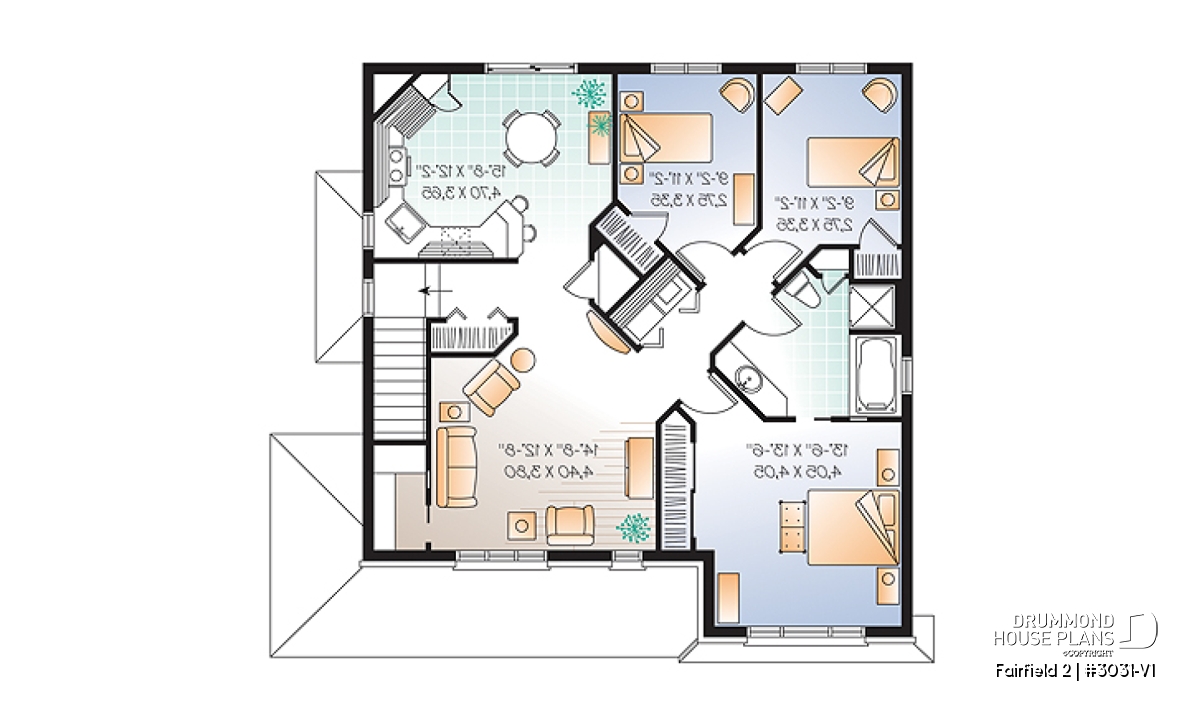

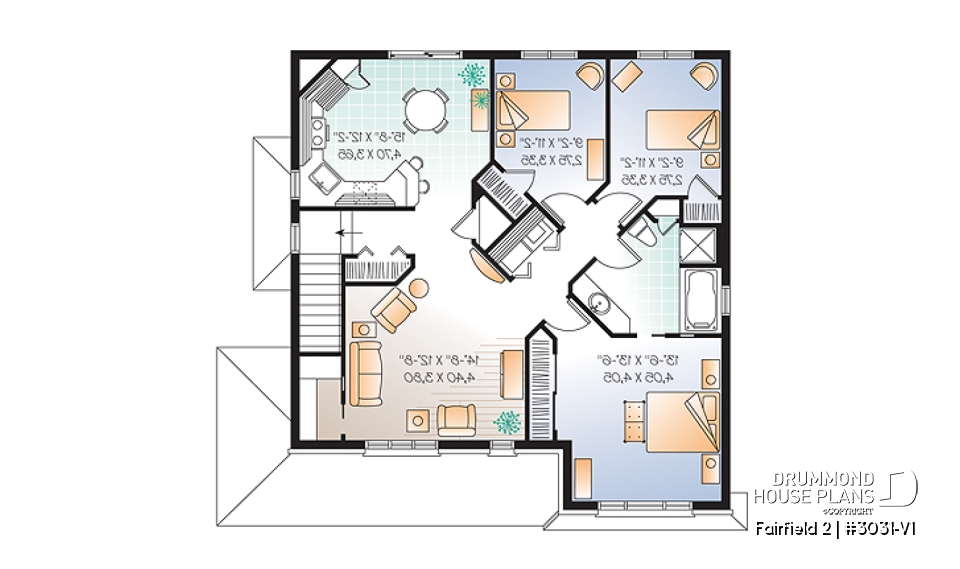

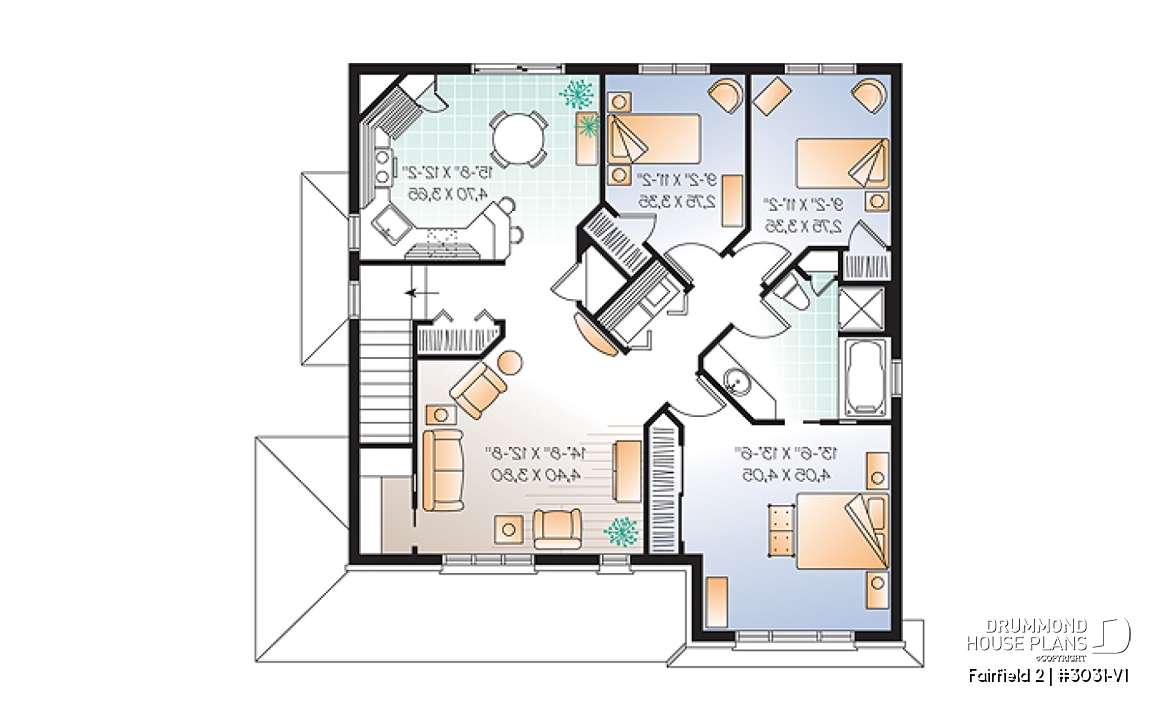

  • 2nd level

    2nd level - 3 unit apartment building plan (triplex house plan) 3 bedrooms per unit, veranda on main floor - Fairfield 2

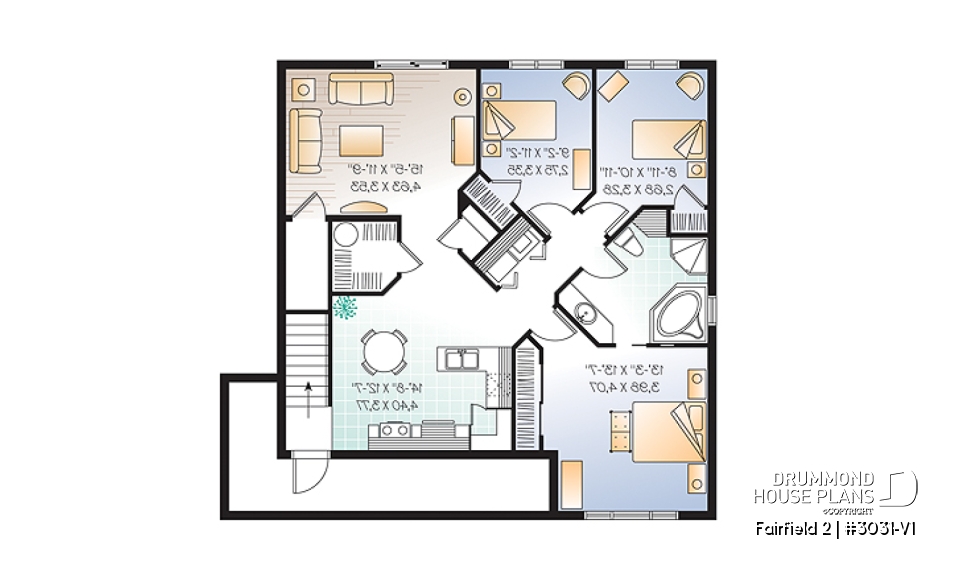

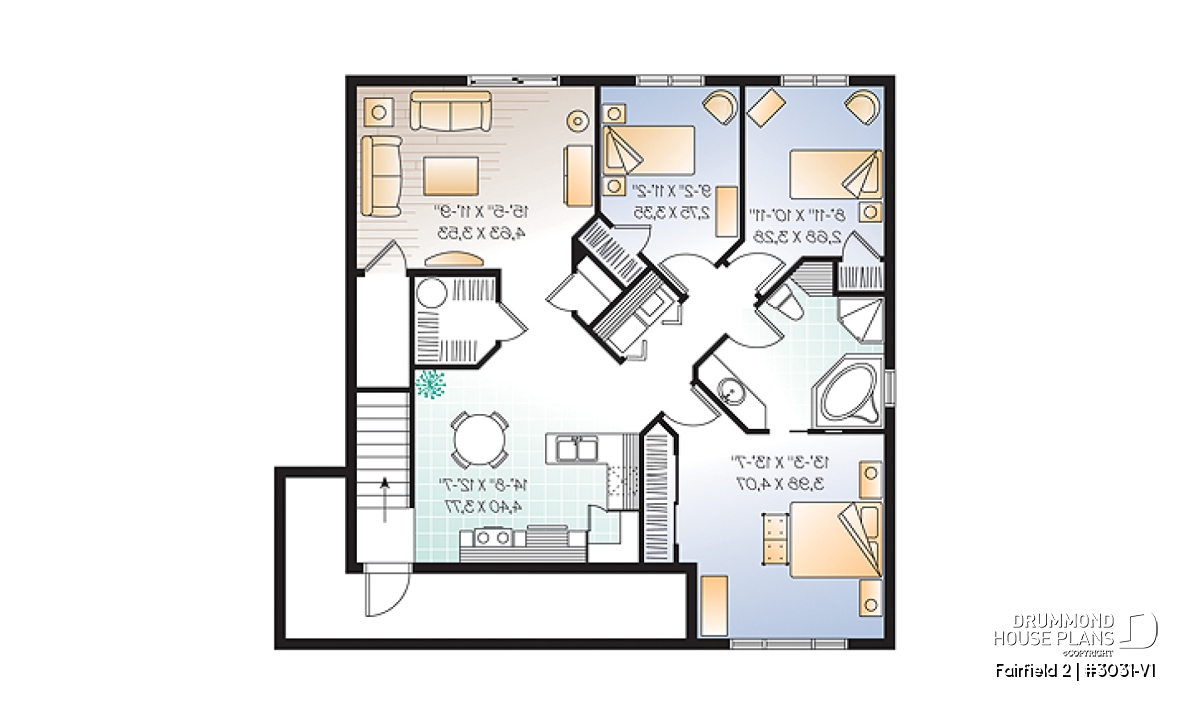

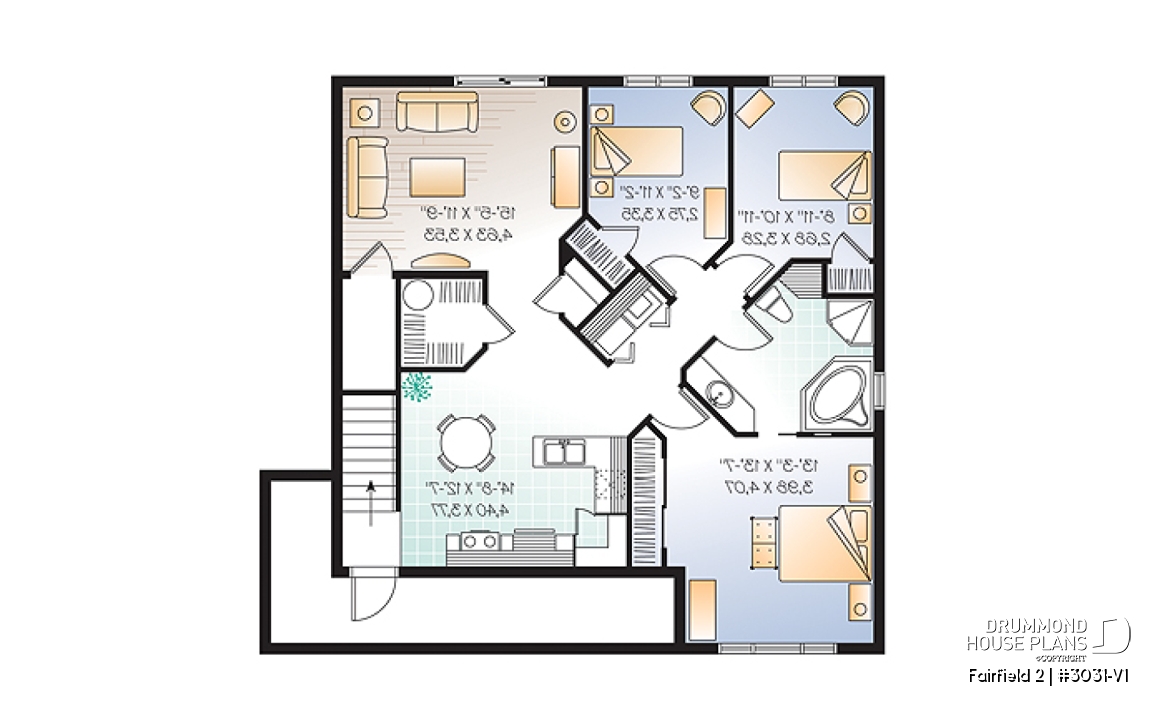

  • Basement

    Basement - 3 unit apartment building plan (triplex house plan) 3 bedrooms per unit, veranda on main floor - Fairfield 2
Vignette 1st level - 3031-V1
Vignette 2nd level - 3031-V1
Vignette Basement - 3031-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

Basement
Rooms Sizes Ceiling
Kitchen 14'8" x 12'7" ~ 8'0"
Living room 15'5" x 11'9" ~ 8'0"
Full bathroom 12'0" x 8'8" ~ 8'0"
Bedroom 13'3" x 13'7" ~ 8'0"
Bedroom 8'11" x 10'11" ~ 8'0"
Bedroom 9'2" x 11'2" ~ 8'0"
Laundry room 5'6" x 2'8" ~ 8'0"
Linen 3'0" x 4'6" ~ 8'0"
Cold room 21'0" x 3'8" ~ 0'0"
Storage 4'4" x 3'3" ~ 0'0"
1st level
Rooms Sizes Ceiling
Kitchen 15'8" x 12'0" ~ 8'0"
Living room 14'6" x 12'8" ~ 8'0"
Full bathroom 12'0" x 8'8" ~ 8'0"
Bedroom 13'6" x 13'6" ~ 8'0"
Bedroom 9'2" x 11'2" ~ 8'0"
Bedroom 9'2" x 11'2" ~ 8'0"
Laundry room 5'6" x 2'8" ~ 8'0"
Linen 3'0" x 4'6" ~ 8'0"
2nd level
Rooms Sizes Ceiling
Laundry room 5'6" x 2'8" ~ 8'0"
Kitchen 15'8" x 12'2" ~ 8'0"
Living room 14'8" x 12'8" ~ 8'0"
Foyer 6'0" x 3'6" ~ 8'0"
Full bathroom 12'3" x 9'0" ~ 8'0"
Bedroom 13'6" x 13'6" ~ 8'0"
Bedroom 9'2" x 11'2" ~ 8'0"
Bedroom 9'2" x 11'2" ~ 8'0"
Linen 3'0" x 4'6" ~ 8'0"
Storage 3'6" x 7'7" ~ 8'0"

General specifications

Total living area 3774 sq.ft.
1st level 1258 sq.ft.
2nd level 1258 sq.ft.
Basement 1258 sq.ft.
Width 36'0"
Depth 38'0"
Ridge height from top of foundation 31'3"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement with walkout
i
Builder price code ME

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths -
Garage type -
Living bonus space -
i
Bonus storage -
i

Units specifications

UNIT 1 UNIT 3 UNIT 3
Total living area 1258 sq.ft. 1258 sq.ft. 1258 sq.ft.
Basement - - 1258 sq.ft.
1st level 1258 sq.ft. - -
2nd level - 1258 sq.ft. -
Width 36' 0" 36' 0" 36' 0"
Depth 48' 0" 48' 0" 48' 0"
Ridge height from top of foundation 31' 3" 31' 3" 31' 3"
Exterior wall 2 X 6 2 X 6 2 X 6
Foundation type Finished basement with walkout Finished basement with walkout Finished basement with walkout
Bedroom(s) 3 3 3
Full baths 1 1 1
Half baths - - -
Garage type - - -
Living bonus space - - -
Bonus storage - - -
Find a builder

General specifications

Total living area 3774 sq.ft.
Basement 1258 sq.ft.
1st level 1258 sq.ft.
2nd level 1258 sq.ft.
Width 36'0"
Depth 38'0"
Ridge height from top of foundation 31'3"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement with walkout i
Builder price code ME

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

Units specifications

UNIT 1 UNIT 3 UNIT 3
Total living area 1258 sq.ft. 1258 sq.ft. 1258 sq.ft.
Basement - - 1258 sq.ft.
1st level 1258 sq.ft. - -
2nd level - 1258 sq.ft. -
Width 36' 0" 36' 0" 36' 0"
Depth 48' 0" 48' 0" 48' 0"
Ridge height from top of foundation 31' 3" 31' 3" 31' 3"
Exterior wall 2 X 6 2 X 6 2 X 6
Foundation type Finished basement with walkout Finished basement with walkout Finished basement with walkout
Bedroom(s) 3 3 3
Full baths 1 1 1
Half baths - - -
Garage type - - -
Living bonus space - - -
Bonus storage - - -

Buy this plan

From : 1529$

i

Modify this plan

Get a quote
i

Description

Basement, 1st level or 2nd level: 5 1/2 appartment including: Living room, kitchen-dinette, three bedrooms, bathroom and laundry area.

Other useful information on this plan

3 bedroom triplex house plan

.

Distinctive elements

Three nice 5 1/2 appartments with an angle wall and remarquable bathroom.
Diversified storage for each appartment including a cold room in the basement.

Plan feature(s)

Walk-in closet, Abundant fenestration

Plan architectural style(s)

Traditional, American, European

Other useful information on this plan

Full description

3 bedroom triplex house plan

.

Distinctive elements

Three nice 5 1/2 appartments with an angle wall and remarquable bathroom.
Diversified storage for each appartment including a cold room in the basement.

Plan feature(s)

Walk-in closet, Abundant fenestration

Plan architectural style(s)
