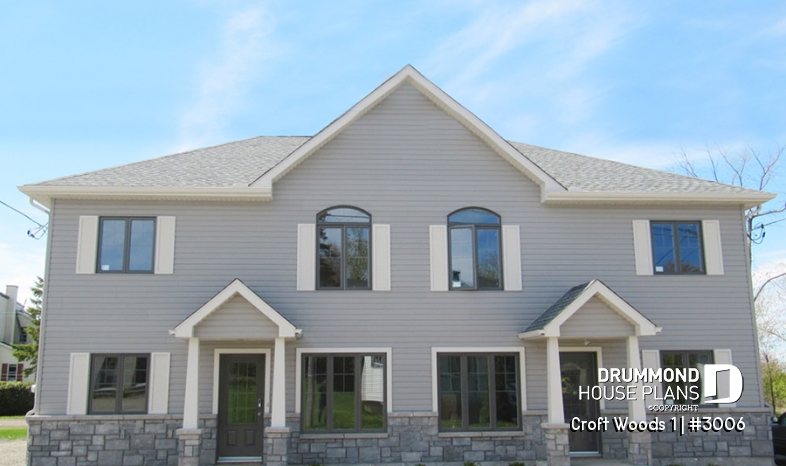

House plan Croft Woods 1 (3006)

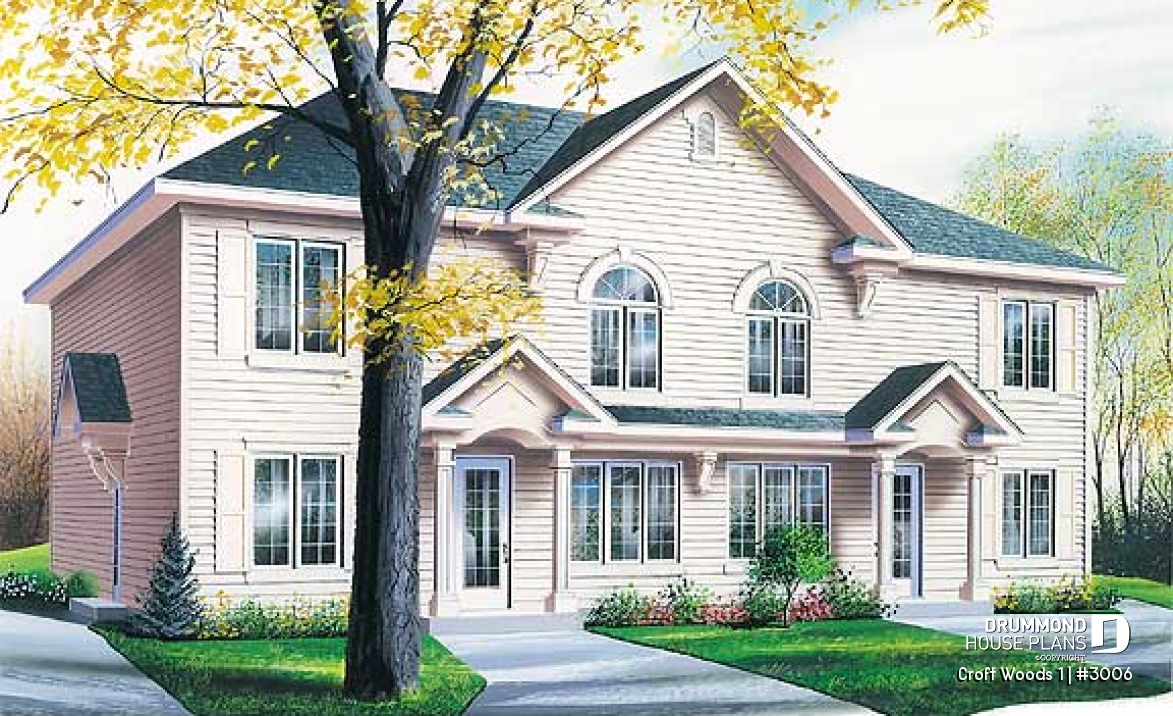

4 unit apartment building plan, 2 bedrooms and laundry room on each apt., kitchen island and more!
View the size of the rooms and height of the ceilings

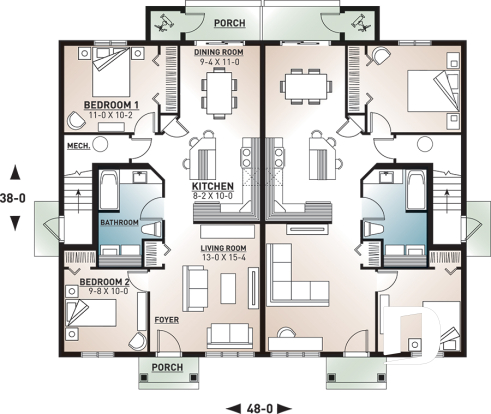

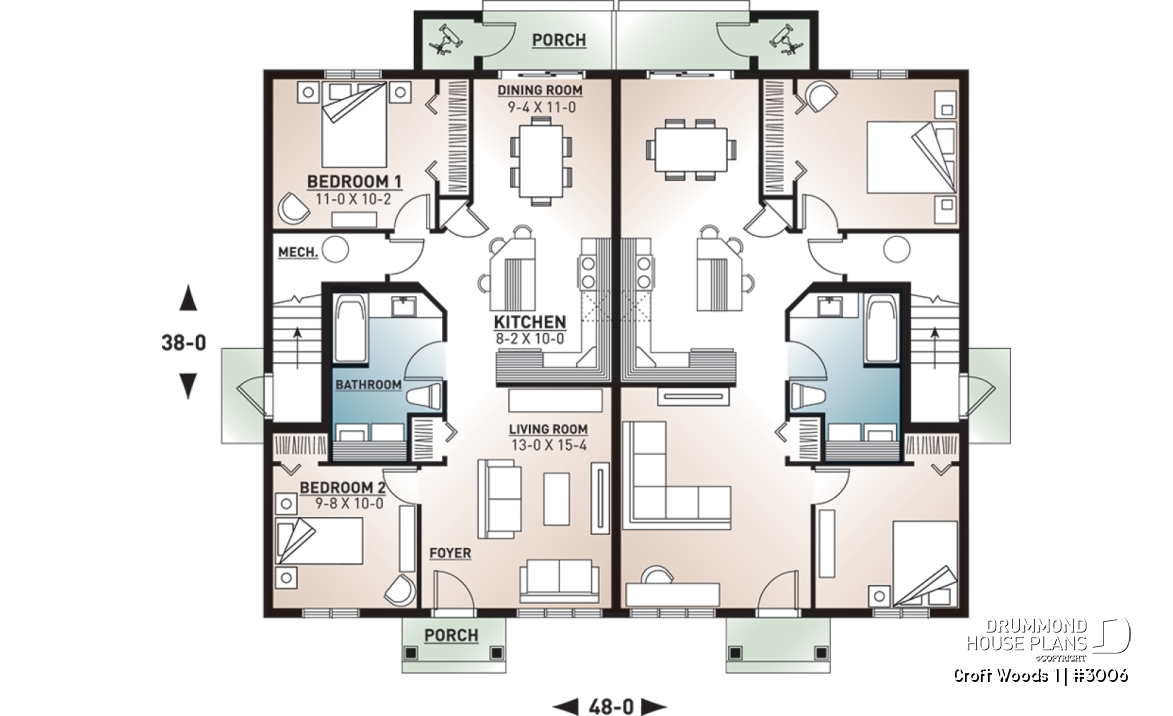

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 11'10" | ~ 8'0" |
| Kitchen | 8'2" x 10'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Dining room | 9'4" x 11'0" | ~ 8'0" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
| Closet | 2'2" x 2'10" | ~ 8'0" |
| Bedroom | 11'0" x 10'2" | ~ 8'0" |
| Bedroom | 9'8" x 10'0" | ~ 8'0" |
| Closet | 3'6" x 2'2" | ~ 8'0" |
| Covered deck | 9'0" x 4'0" | N/A |
| Storage | 3'8" x 3'6" | ~ 8'0" |
| Covered porch | 7'0" x 3'0" | N/A |
| Covered porch | 3'0" x 7'0" | N/A |
| Bedroom | 11'0" x 10'2" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Bedroom | 9'8" x 10'0" | ~ 8'0" |
| Closet | 3'6" x 2'2" | ~ 8'0" |
| Kitchen | 8'2" x 10'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Covered porch | 3'0" x 7'0" | N/A |
| Covered porch | 7'0" x 3'0" | N/A |
| Storage | 3'8" x 3'6" | ~ 8'0" |
| Dining room | 9'4" x 11'0" | ~ 8'0" |
| Full bathroom | 7'8" x 11'10" | ~ 8'0" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
| Closet | 2'2" x 2'10" | ~ 8'0" |
| Covered deck | 9'0" x 4'0" | N/A |
| Storage | 7'7" x 3'4" | N/A |
| Storage | 7'7" x 3'4" | N/A |

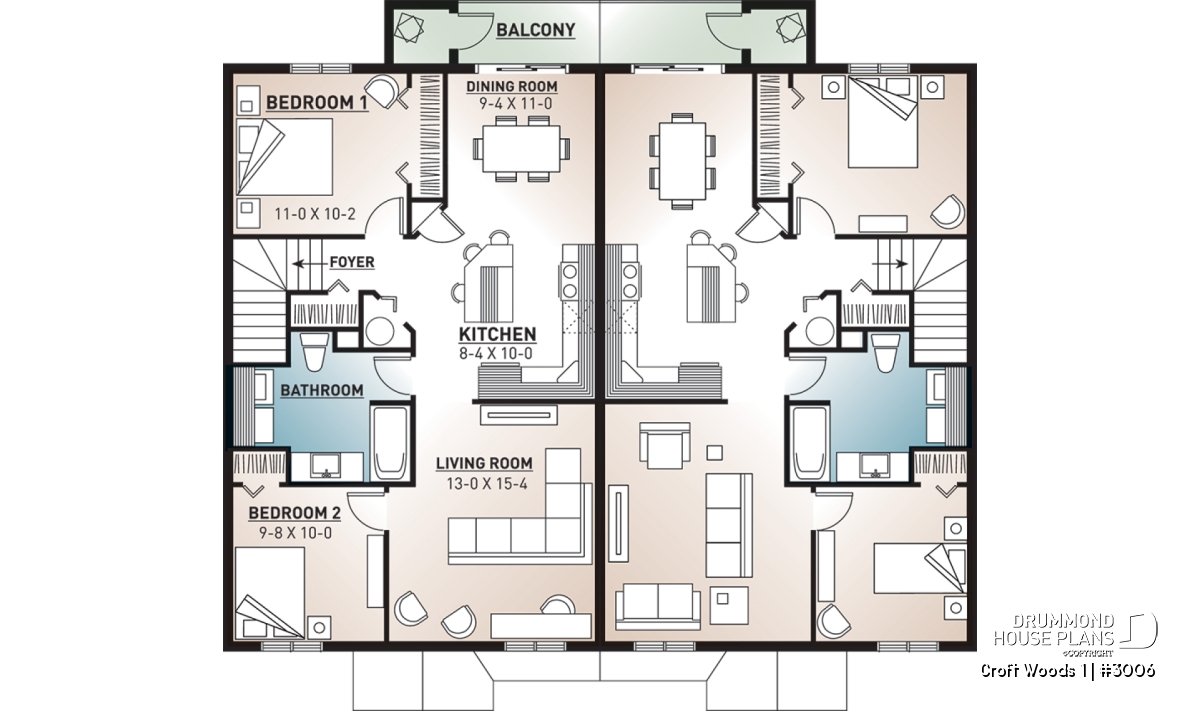

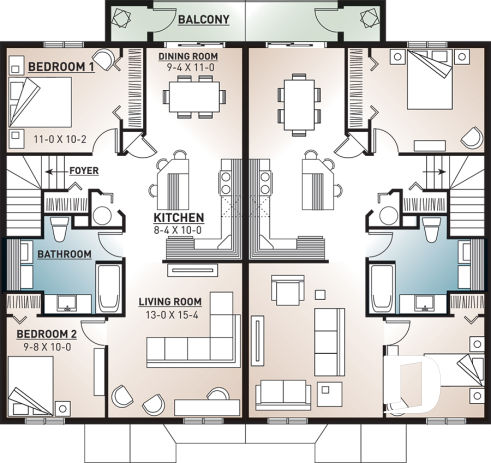

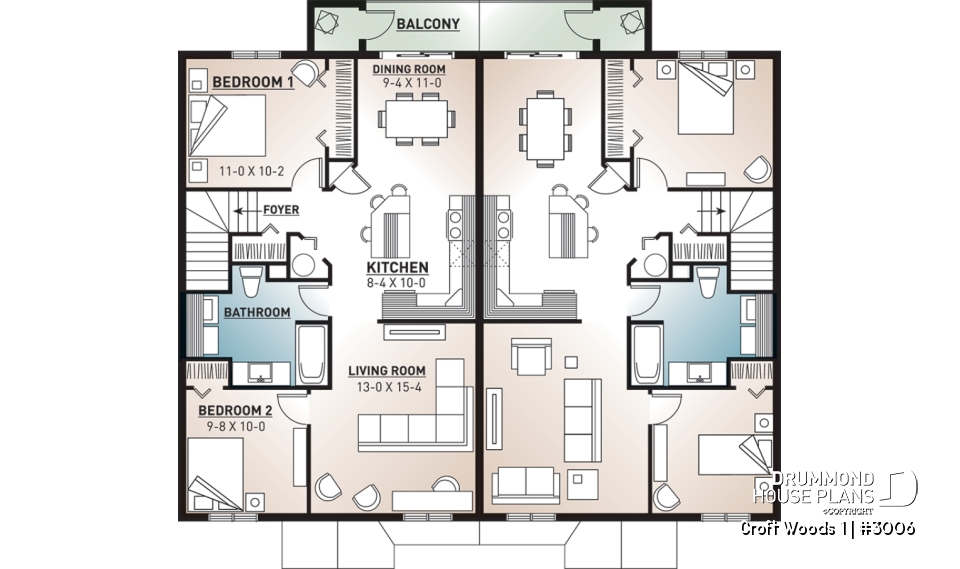

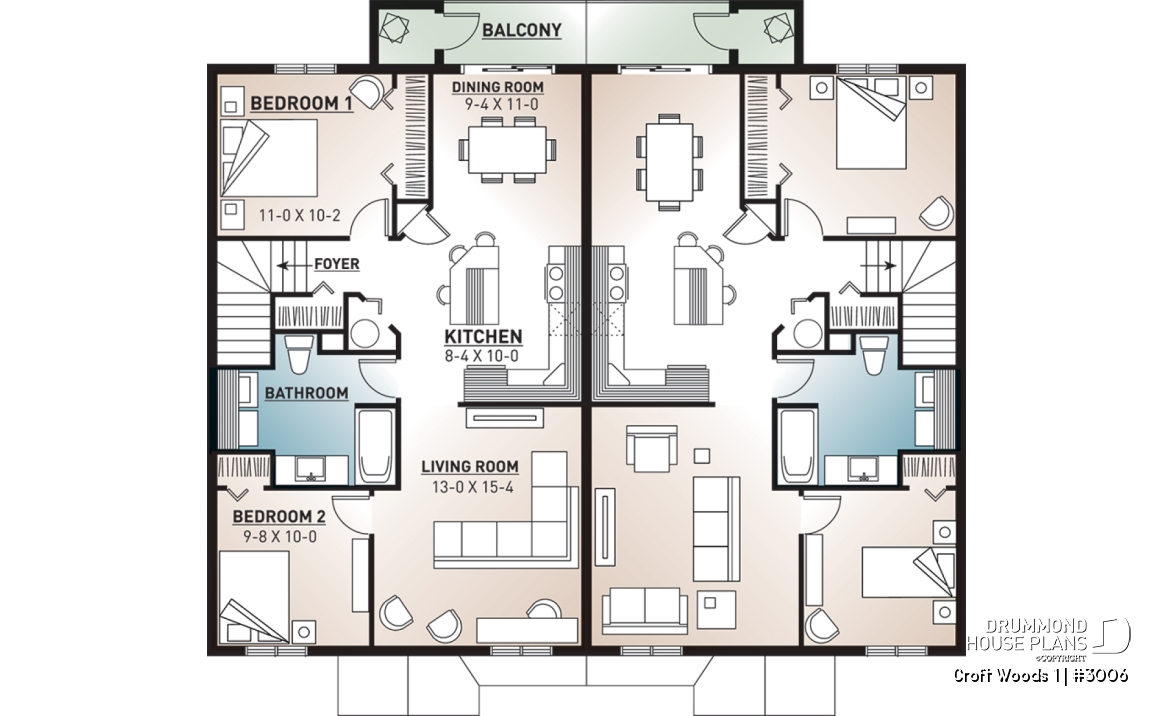

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 10'2" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Bedroom | 9'8" x 10'0" | ~ 8'0" |
| Closet | 3'4" x 2'0" | ~ 8'0" |
| Kitchen | 8'2" x 10'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Storage | 3'8" x 3'6" | ~ 8'0" |
| Dining room | 9'4" x 11'0" | ~ 8'0" |
| Full bathroom | 11'0" x 8'4" | ~ 8'0" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
| Balcony | 9'0" x 4'0" | N/A |
| Foyer | 6'0" x 3'4" | ~ 8'0" |
| Closet | 4'4" x 2'0" | ~ 8'0" |
| Storage | 3'0" x 3'4" | ~ 8'0" |
| Balcony | 9'0" x 4'0" | N/A |
| Bedroom | 11'0" x 10'2" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Bedroom | 9'8" x 10'0" | ~ 8'0" |
| Closet | 3'4" x 2'0" | ~ 8'0" |
| Kitchen | 8'2" x 10'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Foyer | 6'0" x 3'4" | ~ 8'0" |
| Closet | 4'4" x 2'0" | ~ 8'0" |
| Storage | 3'0" x 3'4" | ~ 8'0" |
| Storage | 3'8" x 3'6" | ~ 8'0" |
| Dining room | 9'4" x 11'0" | ~ 8'0" |
| Full bathroom | 11'0" x 8'4" | ~ 8'0" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
General specifications
| Total living area | 3648 sq.ft. |
| 1st level | 1824 sq.ft. |
| 2nd level | 1824 sq.ft. |
| Width | 48'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 27'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | ME |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 84 sq.ft. |
Units specifications
Other useful information on this plan
Country style 4 unit apartment building plan
.
Distinctive elements
Abundant fenestration, storage area, covered front porches.
Plan feature(s)
Panoramic view, Island, Gound floor laundry room, Split bedrooms
Plan architectural style(s)
. Country, . Traditional
