3521 (Cleo)

Manor style house plan with 3 bedroom, home office and mezzanine

Bedrooms

3

Bath(s)

1

Half B.

1

Living area

2021 sq.ft.

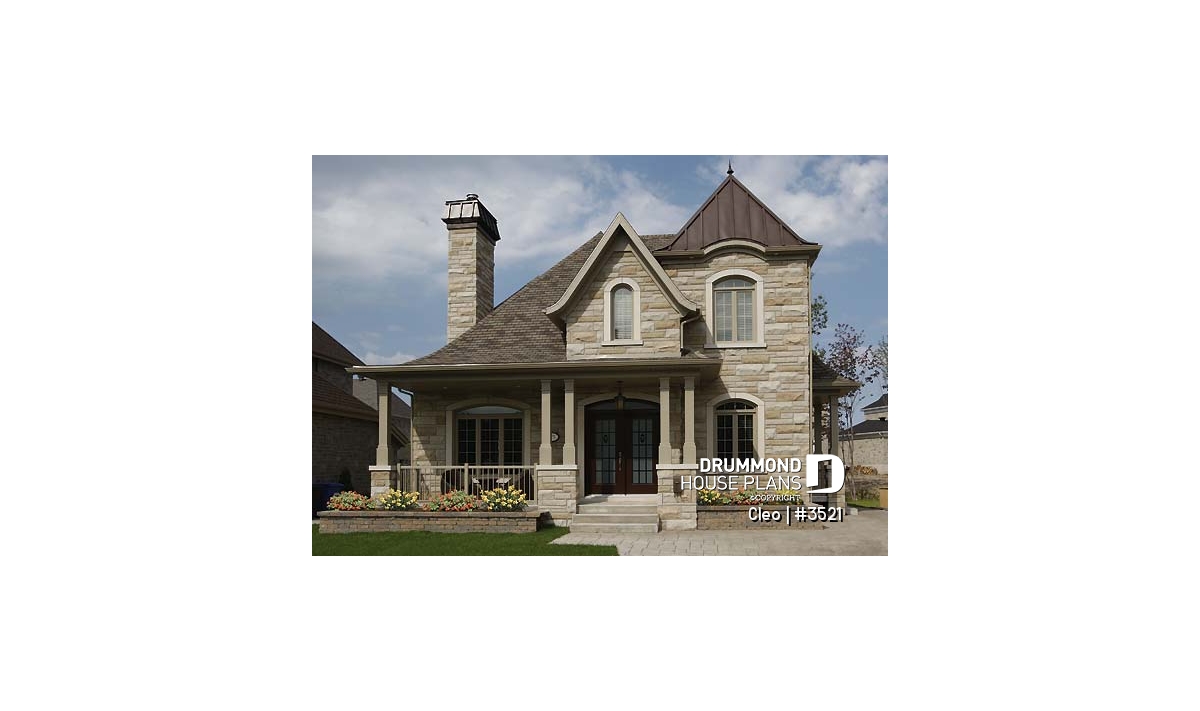

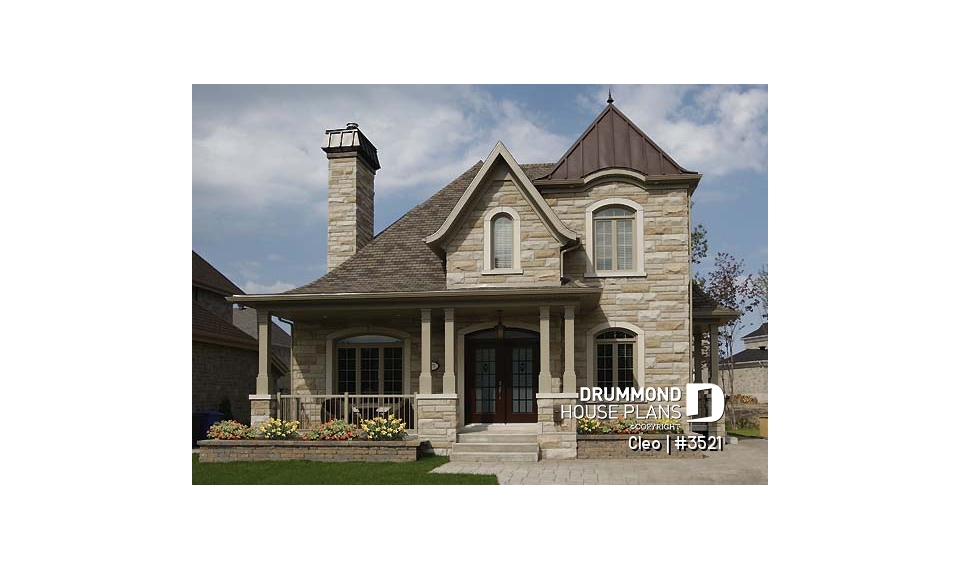

  • front - BASE MODEL - Manor style house plan with 3 bedroom, home office and mezzanine - Cleo

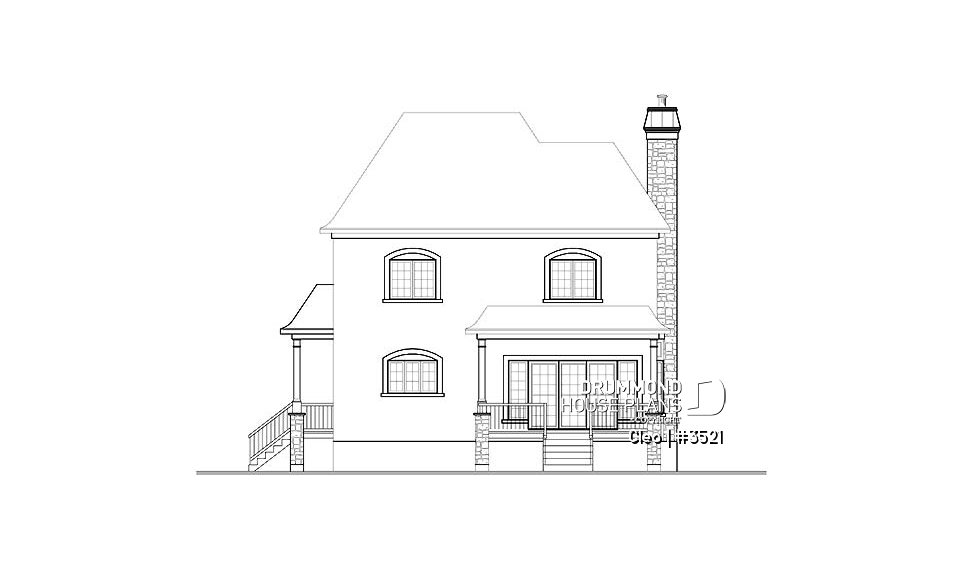

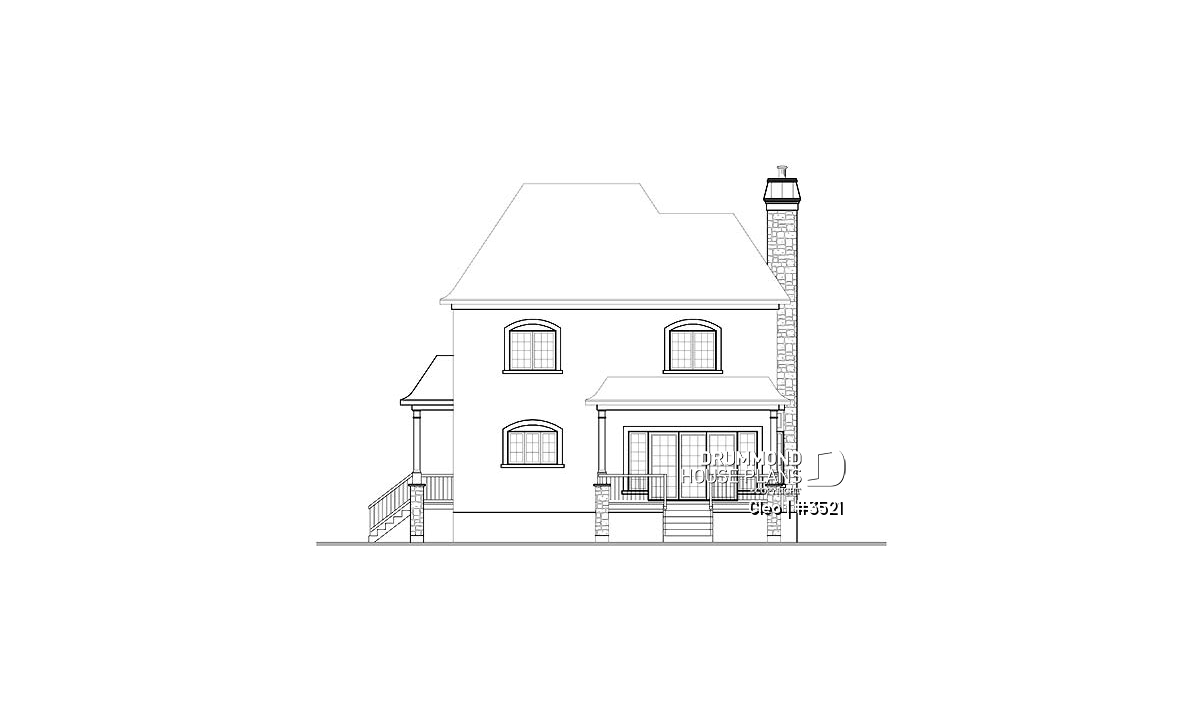

  • rear elevation - Cleo

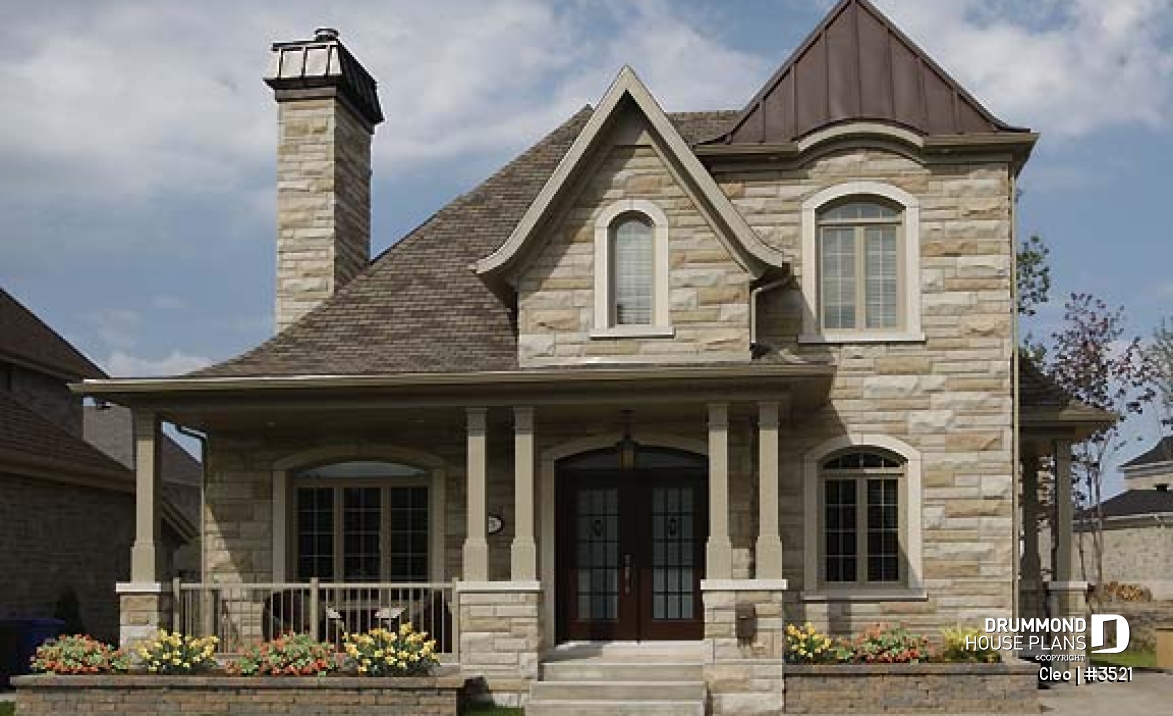

front - BASE MODEL

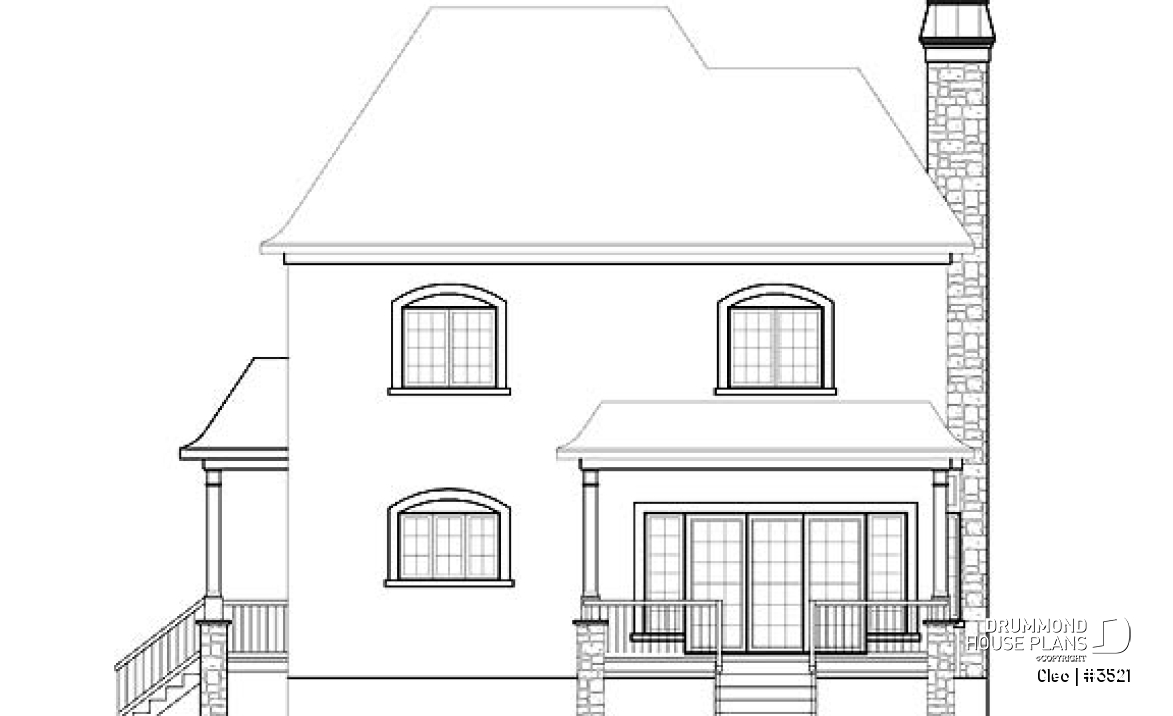

rear elevation

Vignette front - BASE MODEL - 3521
Vignette rear elevation - 3521

View by floor

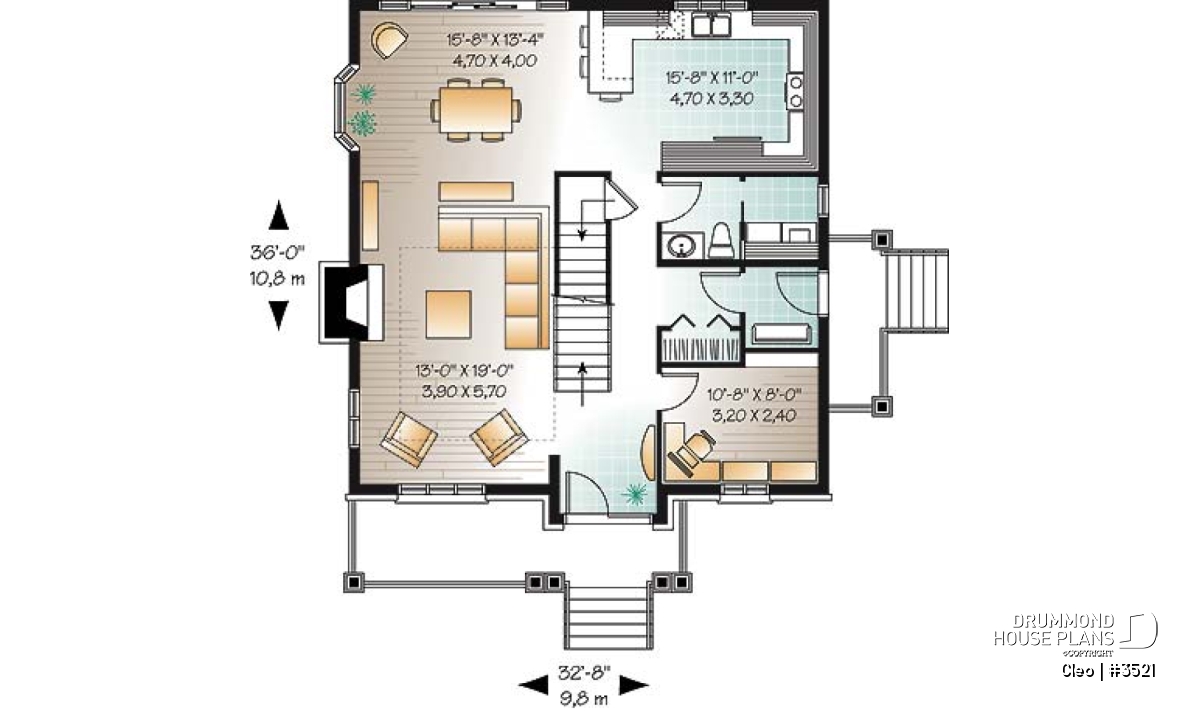

  • 1st level

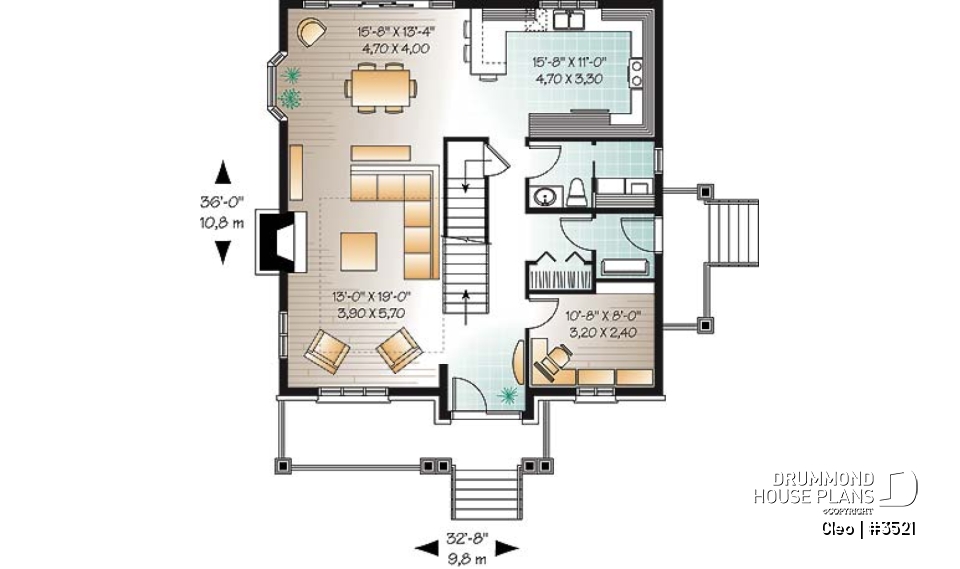

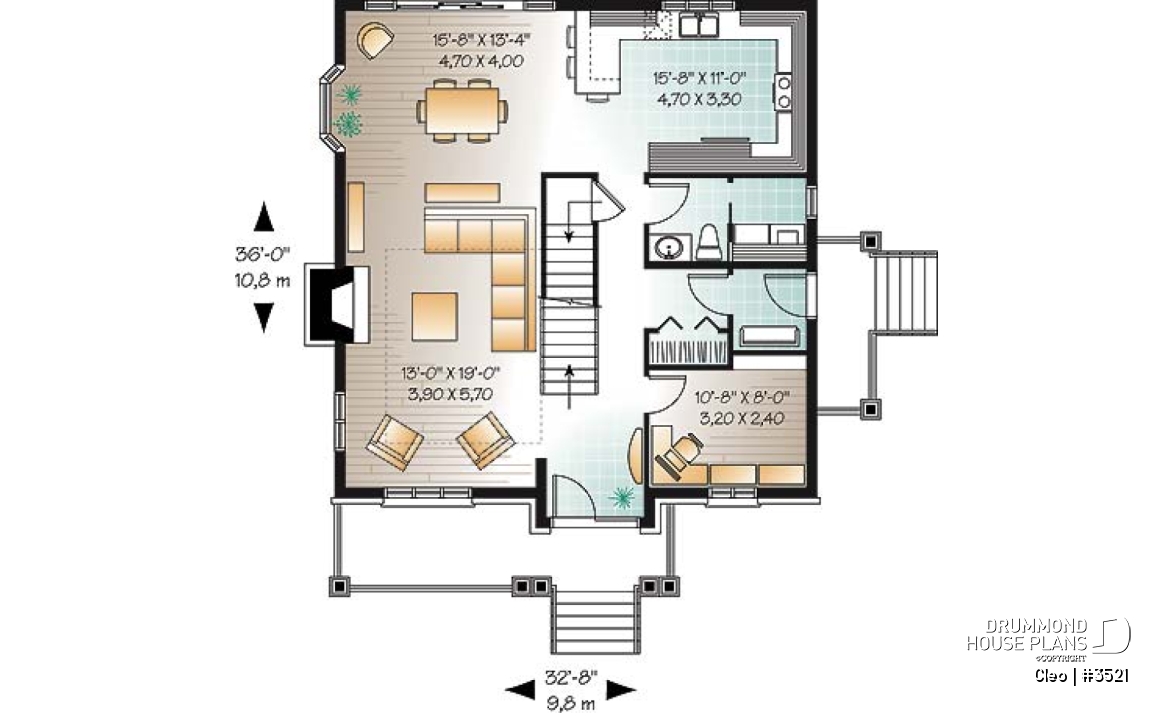

    1st level - Manor style house plan with 3 bedroom, home office and mezzanine - Cleo

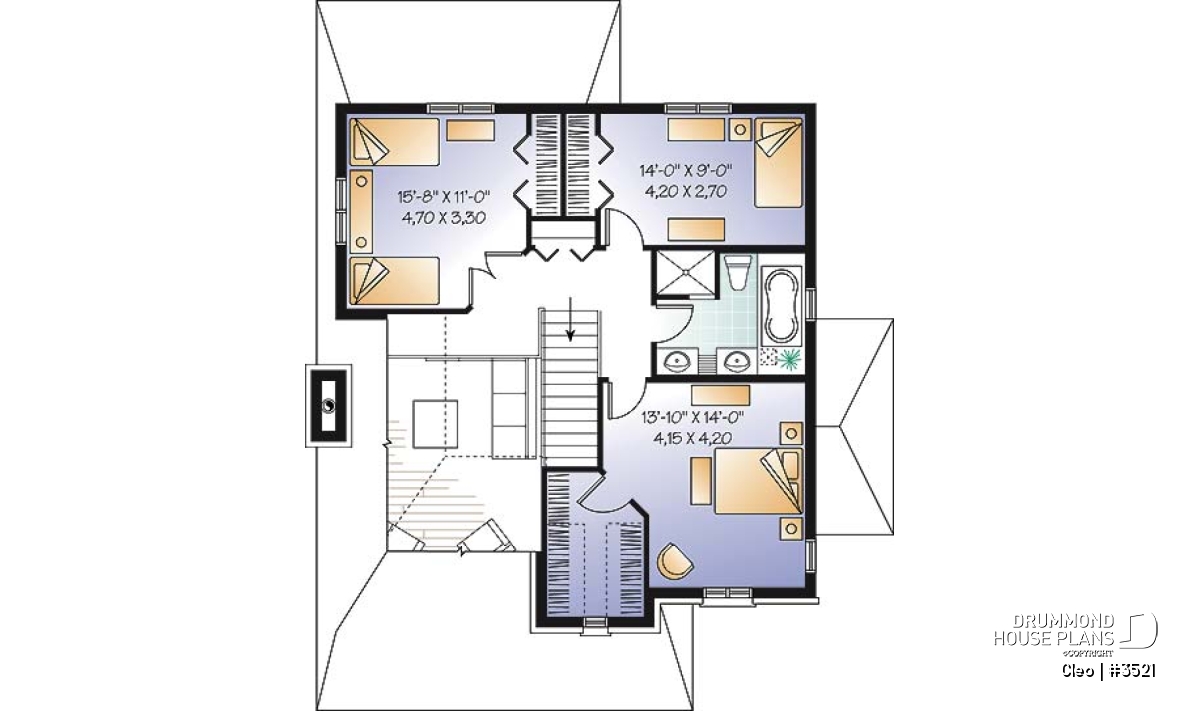

  • 2nd level

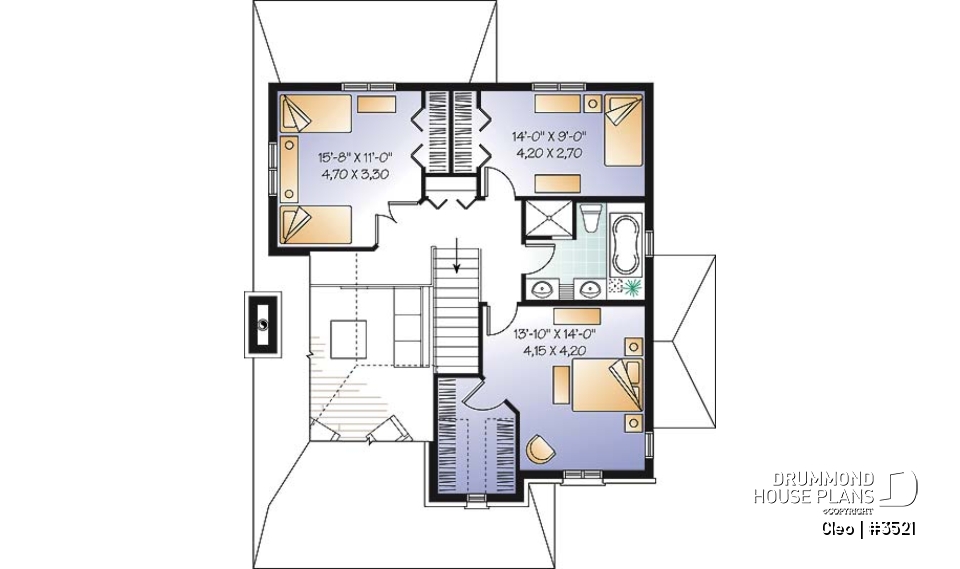

    2nd level - Manor style house plan with 3 bedroom, home office and mezzanine - Cleo
Vignette 1st level - 3521
Vignette 2nd level - 3521

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Laundry room 5'0" x 5'8" ~ 9'0"
Home office 10'8" x 8'0" ~ 9'0"
Kitchen 15'8" x 11'0" ~ 9'0"
Half bath or powder room 5'4" x 5'8" ~ 9'0"
Foyer 6'8" x 8'6" ~ 9'0"
Foyer 5'0" x 5'6" ~ 9'0"
Closet 5'4" x 2'2" ~ 9'0"
Covered porch 4'0" x 12'0" ~ 0'0"
Dining room 15'8" x 13'4" ~ 9'0"
Living room 13'0" x 19'0" ~ 9'0"
Covered deck 18'0" x 5'8" ~ 0'0"
Porch 23'0" x 6'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Bedroom 13'10" x 14'0" ~ 9'0"
Walk-in closet 6'8" x 9'11" ~ 9'0"
Bedroom 15'8" x 11'0" ~ 9'0"
Closet 2'0" x 7'0" ~ 9'0"
Bedroom 14'0" x 9'0" ~ 9'0"
Closet 2'0" x 7'0" ~ 9'0"
Linen 4'4" x 1'8" ~ 9'0"
Full bathroom 10'2" x 8'4" ~ 9'0"

General specifications

Total living area 2021 sq.ft.
1st level 1133 sq.ft.
2nd level 888 sq.ft.
Width 32'8"
Depth 36'0"
Ridge height from top of foundation 33'9"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code E

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 2021 sq.ft.
1st level 1133 sq.ft.
2nd level 888 sq.ft.
Width 32'8"
Depth 36'0"
Ridge height from top of foundation 33'9"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code E

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type -
Living bonus space - i
Bonus storage - i

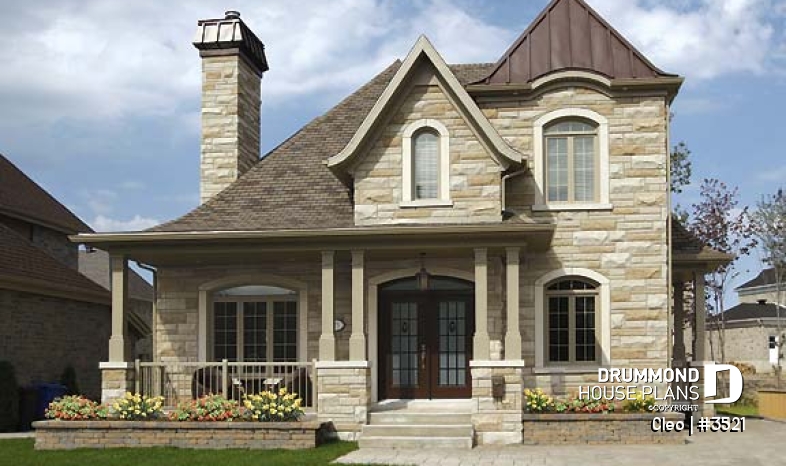

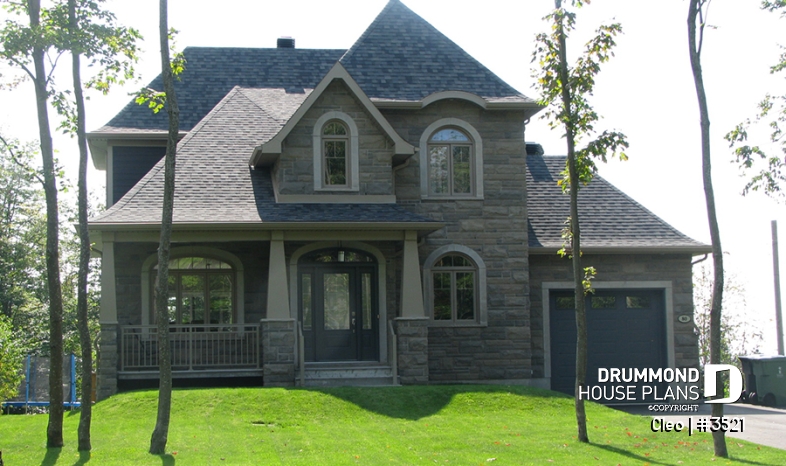

  • Photo front - Cleo

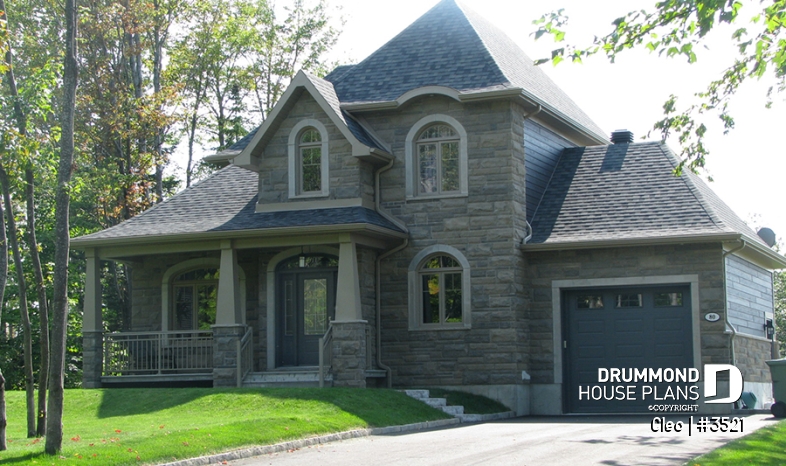

  • Photo front - Cleo
  • Photo front - Cleo
  • Photo Bathroom - Cleo
  • Photo Dining room - Cleo
  • Photo Stairs - Cleo

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

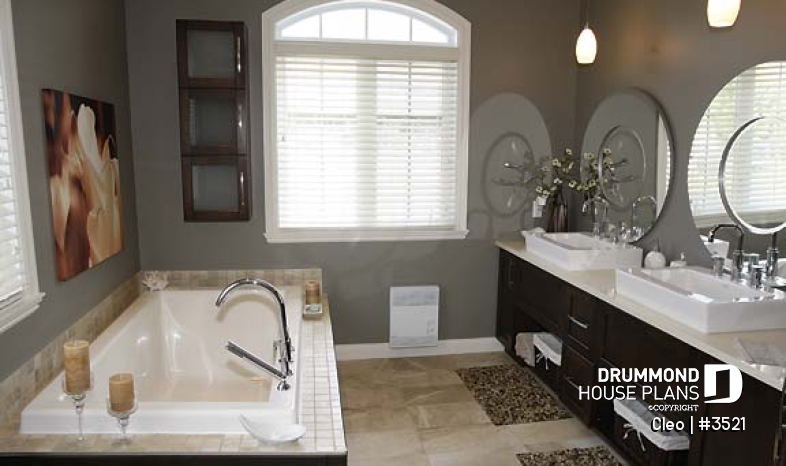

Bathroom
This color version might have decorative elements that are not available on base plan.

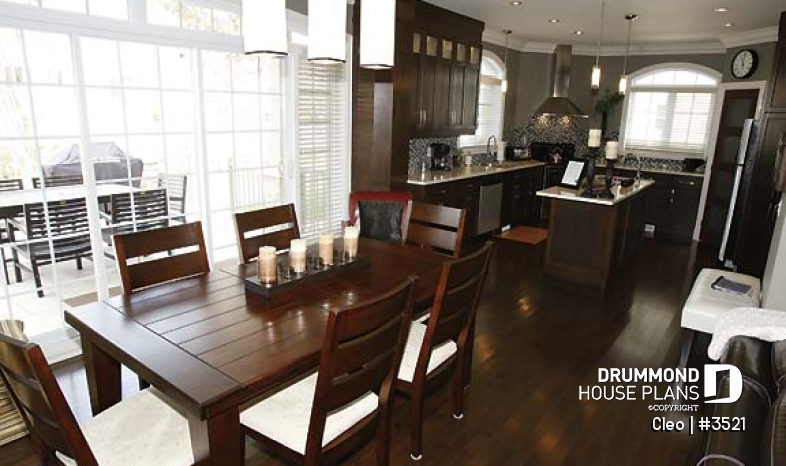

Dining room
This color version might have decorative elements that are not available on base plan.

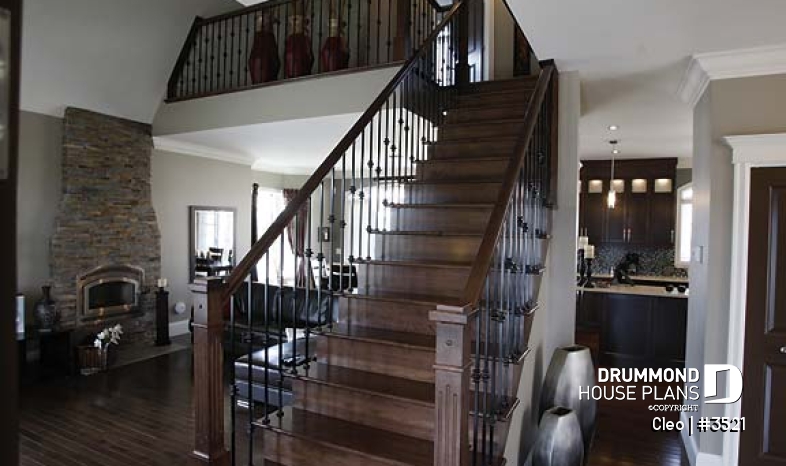

Stairs
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 3521
Photo thumbnail front - Plan 3521
Photo thumbnail front - Plan 3521
Photo thumbnail Bathroom - Plan 3521
Photo thumbnail Dining room - Plan 3521
Photo thumbnail Stairs - Plan 3521

Buy this plan

From : 990$

Modify this plan

Get a quote

Description

1st floor: entrance, office, living room, dining room, kitchen with lunch counter, 2pc bathroom, laundry 2nd floor: three bedrooms, bathroom, loft

Other useful information on this plan

Indulge in your own castle!

Designed for individuals wanting their home to embody characteristics of royalty and chivalry, this small castle-style home will transport you to times of yore every time you set eyes upon her. Of course, a modern castle must have a few amenities!

Pass through the main entrance and your eye travels up the staircase, wanders up the cathedral ceiling or rests beyond the living room at a family hearth. To the right is a conveniently located small office or study.

The dining room is situated at the back of the house, bathed in light from ample windows and married to the views beyond. The traditional hob is transformed into a modern kitchen with generous storage and prep zones. Also found on the main floor are a two-piece bathroom, laundry, and indispensable side entrance complete wth mudroom.

At the top of the staircase, one finds a small loft, two bedrooms, family bathroom complete with separate bathtub and shower and master bedroom with walk-in closet.

Not just your home - your castle!

Distinctive elements

9' ceilings on main floor and upstairs. Office space close to front entrance. Living room with fireplace and cathedral ceiling. Master bathroom includes walk-in closet. Full bathroom includes separate 48x36" shower.

Plan feature(s)

Ceiling over 8', Fireplace, Mezzanine, Walk-in closet, Office / Study / Den, Deck

Plan architectural style(s)

European, Manors and small castles, English

Other useful information on this plan

Full description

Indulge in your own castle!

Designed for individuals wanting their home to embody characteristics of royalty and chivalry, this small castle-style home will transport you to times of yore every time you set eyes upon her. Of course, a modern castle must have a few amenities!

Pass through the main entrance and your eye travels up the staircase, wanders up the cathedral ceiling or rests beyond the living room at a family hearth. To the right is a conveniently located small office or study.

The dining room is situated at the back of the house, bathed in light from ample windows and married to the views beyond. The traditional hob is transformed into a modern kitchen with generous storage and prep zones. Also found on the main floor are a two-piece bathroom, laundry, and indispensable side entrance complete wth mudroom.

At the top of the staircase, one finds a small loft, two bedrooms, family bathroom complete with separate bathtub and shower and master bedroom with walk-in closet.

Not just your home - your castle!

Distinctive elements

9' ceilings on main floor and upstairs. Office space close to front entrance. Living room with fireplace and cathedral ceiling. Master bathroom includes walk-in closet. Full bathroom includes separate 48x36" shower.

Plan feature(s)

Ceiling over 8', Fireplace, Mezzanine, Walk-in closet, Office / Study / Den, Deck

Plan architectural style(s)

Questions and comments on this plan

March 26 2011

i.radu

I live i a seismic zone with 0,20g clasification.Is this house suitable for such a area?
Thank you

March 28 2011

Customer service

Dear Mr Radu,

Thank you for your interest in Drummond House Plans.

Our plans do not meet seismic requirements. You will need to contact a local engineer to have them adapted.

Do not hesitate to contact me again if you need further information. I will gladly answer any questions you may have.

Best Regards,

Doreen, Customer Service Department

Questions and comments

March 26 2011

i.radu

I live i a seismic zone with 0,20g clasification.Is this house suitable for such a area?
Thank you

March 28 2011

Customer service

Dear Mr Radu,

Thank you for your interest in Drummond House Plans.

Our plans do not meet seismic requirements. You will need to contact a local engineer to have them adapted.

Do not hesitate to contact me again if you need further information. I will gladly answer any questions you may have.

Best Regards,

Doreen, Customer Service Department
