House plan Cleo (3521)
Manor style house plan with 3 bedroom, home office and mezzanine
View the size of the rooms and height of the ceilings

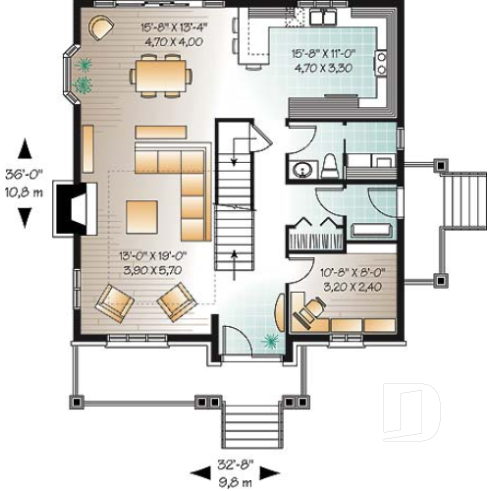

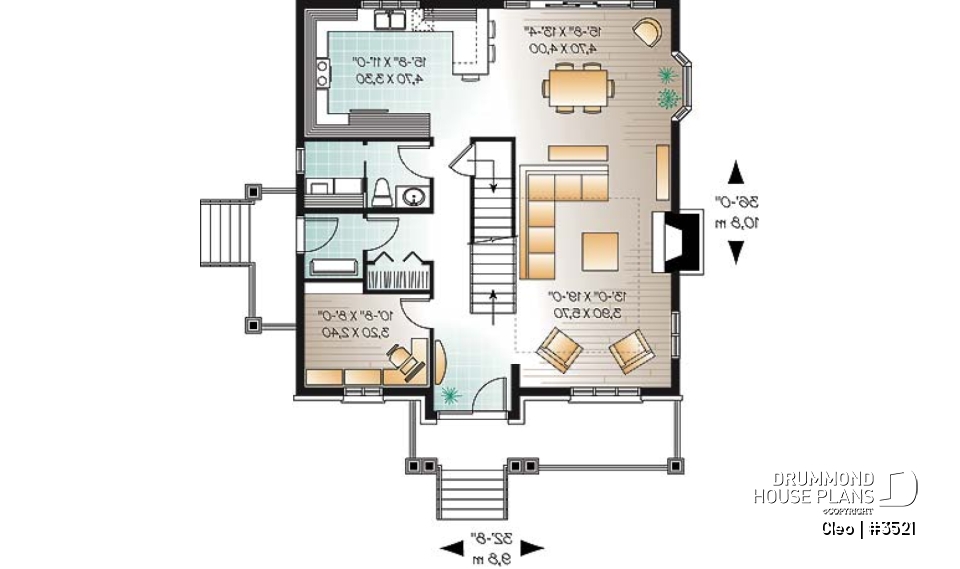

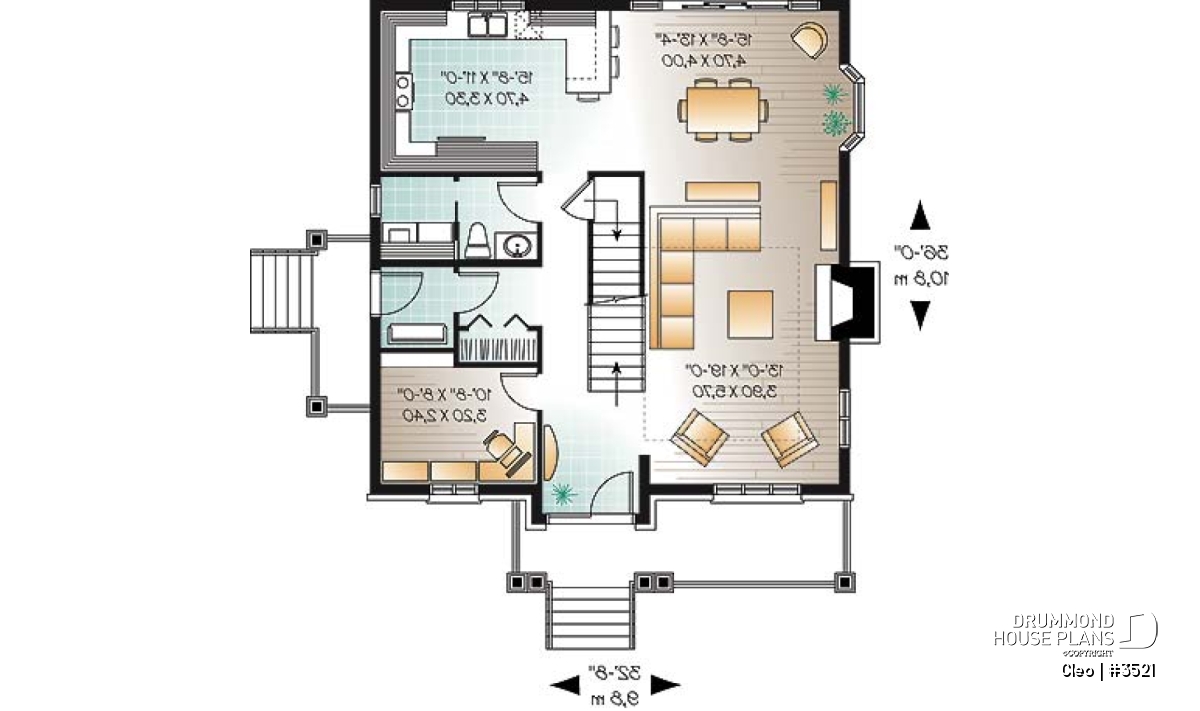

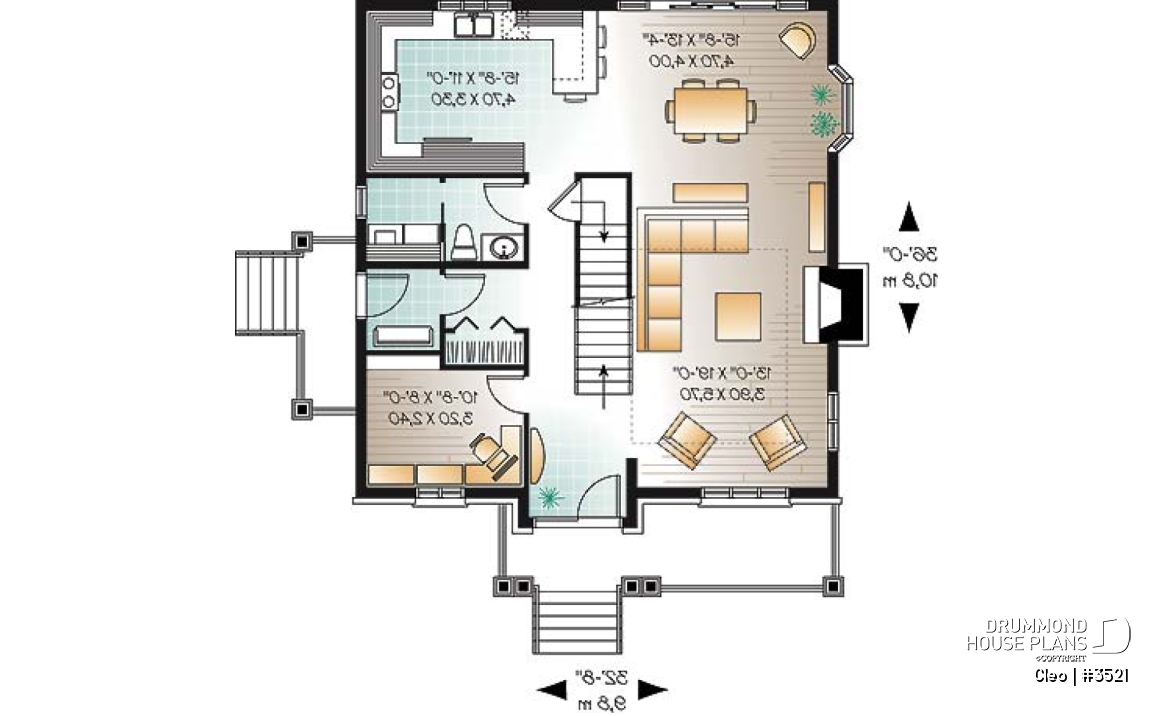

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 5'0" x 5'8" | ~ 9'0" |
| Home office | 10'8" x 8'0" | ~ 9'0" |
| Kitchen | 15'8" x 11'0" | ~ 9'0" |
| Half bath or powder room | 5'4" x 5'8" | ~ 9'0" |
| Foyer | 6'8" x 8'6" | ~ 9'0" |
| Foyer | 5'0" x 5'6" | ~ 9'0" |
| Closet | 5'4" x 2'2" | ~ 9'0" |
| Covered porch | 4'0" x 12'0" | N/A |
| Dining room | 15'8" x 13'4" | ~ 9'0" |
| Living room | 13'0" x 19'0" | ~ 9'0" |
| Covered deck | 18'0" x 5'8" | N/A |
| Porch | 23'0" x 6'0" | N/A |

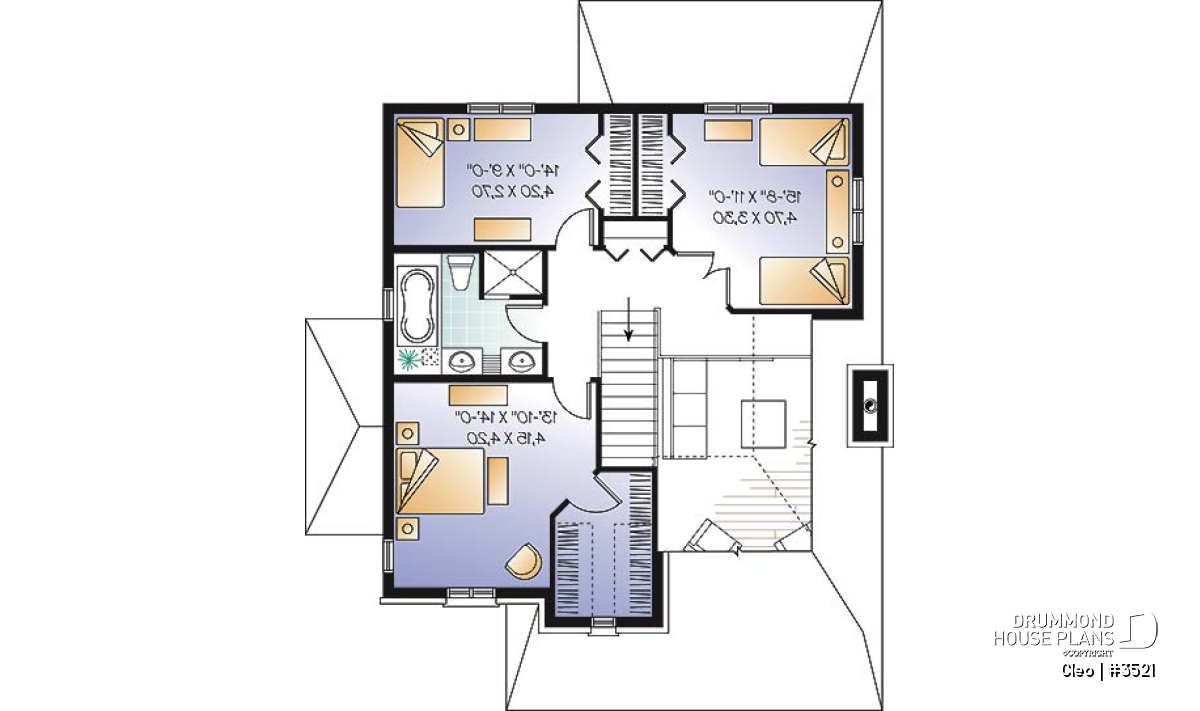

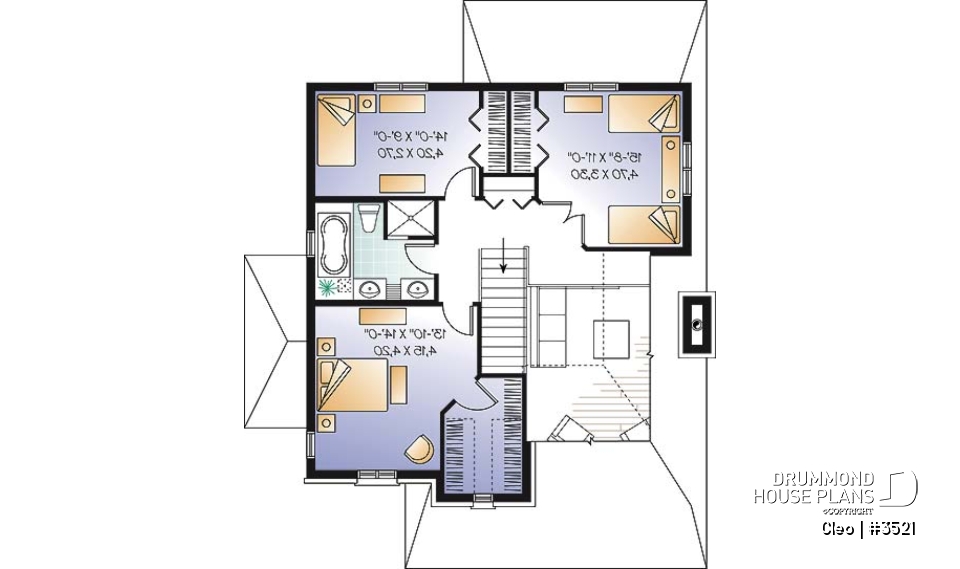

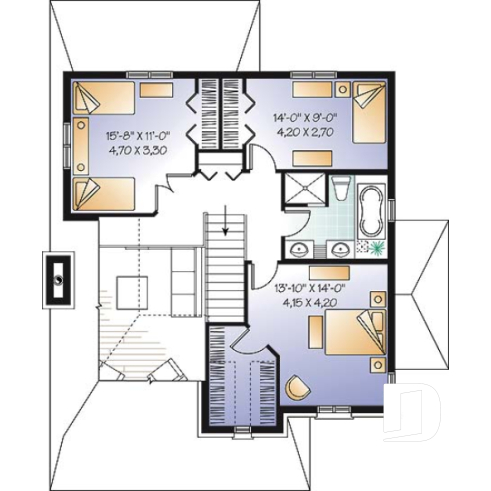

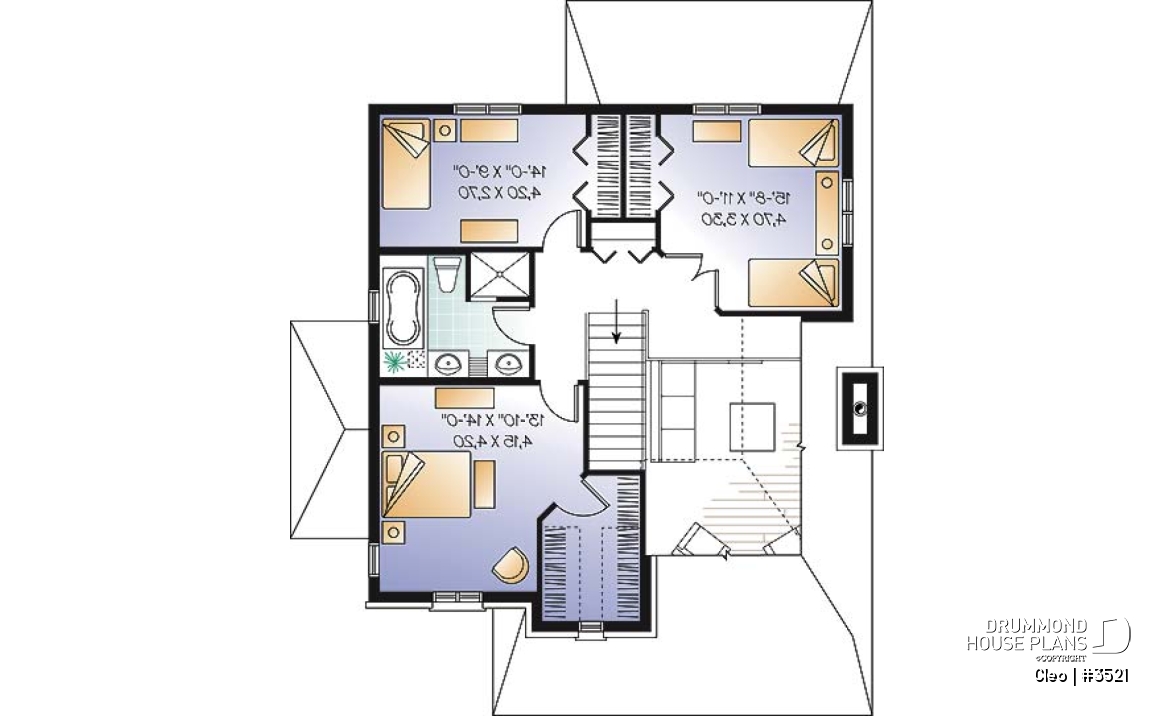

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'10" x 14'0" | ~ 9'0" |
| Walk-in closet | 6'8" x 9'11" | ~ 9'0" |
| Bedroom | 15'8" x 11'0" | ~ 9'0" |
| Closet | 2'0" x 7'0" | ~ 9'0" |
| Bedroom | 14'0" x 9'0" | ~ 9'0" |
| Closet | 2'0" x 7'0" | ~ 9'0" |
| Linen | 4'4" x 1'8" | ~ 9'0" |
| Full bathroom | 10'2" x 8'4" | ~ 9'0" |
General specifications
| Total living area | 2021 sq.ft. |
| 1st level | 1133 sq.ft. |
| 2nd level | 888 sq.ft. |
| Width | 32'8" |
| Depth | 36'0" |
| Ridge height from top of foundation | 33'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

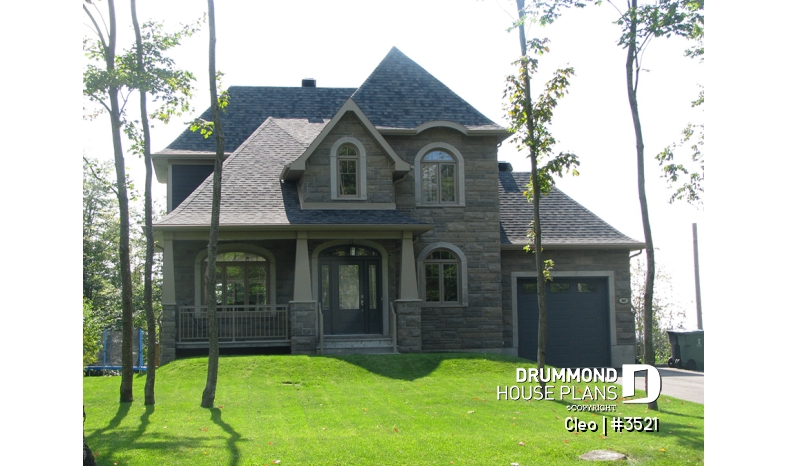

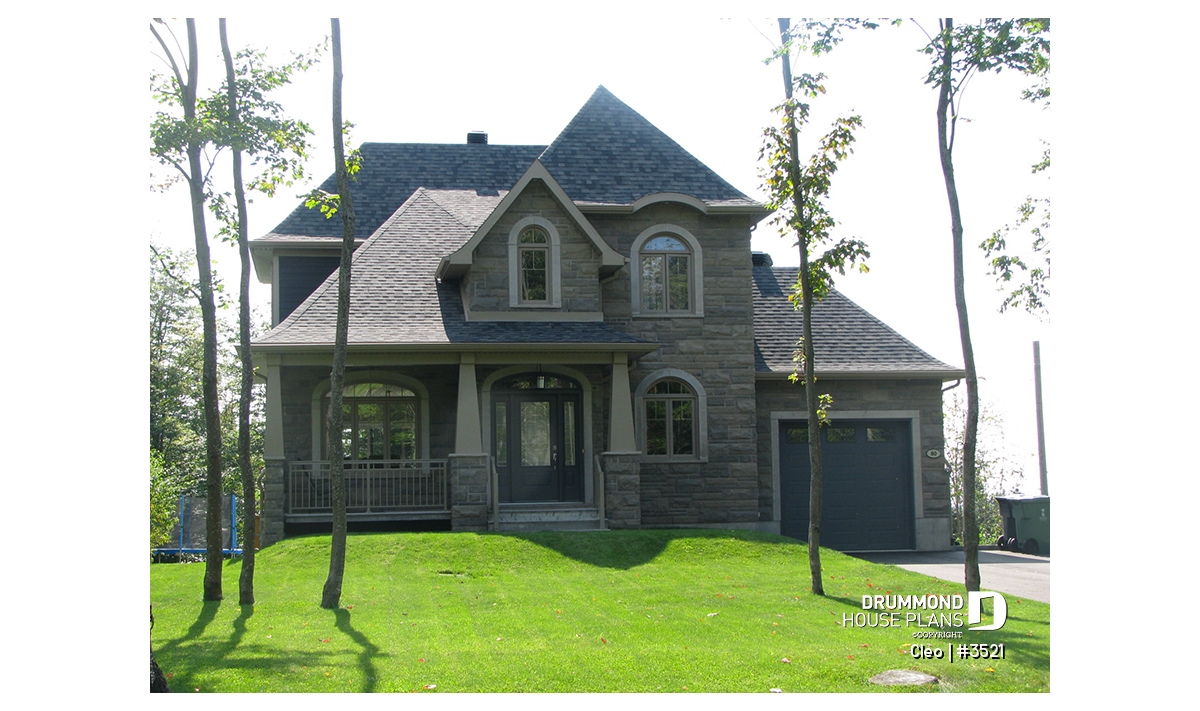

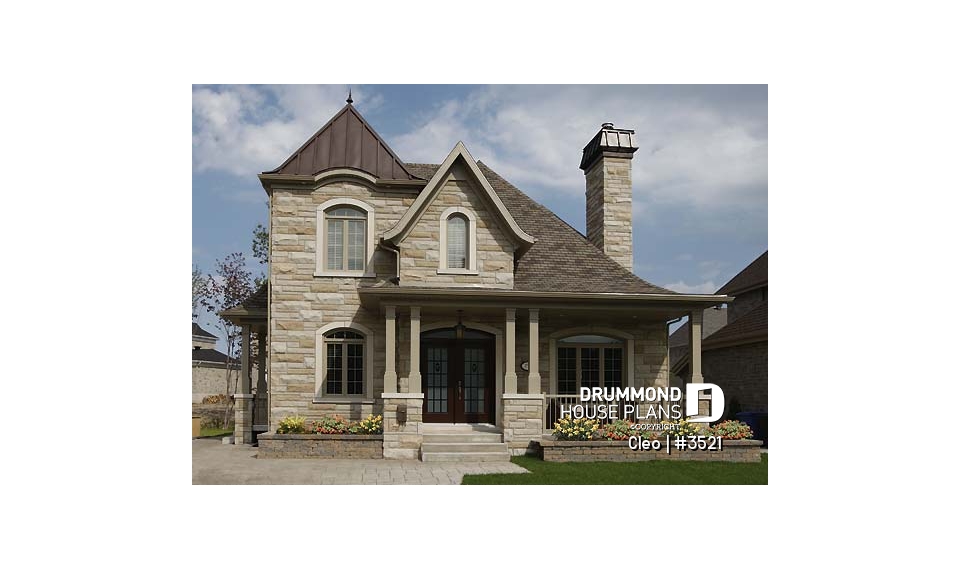

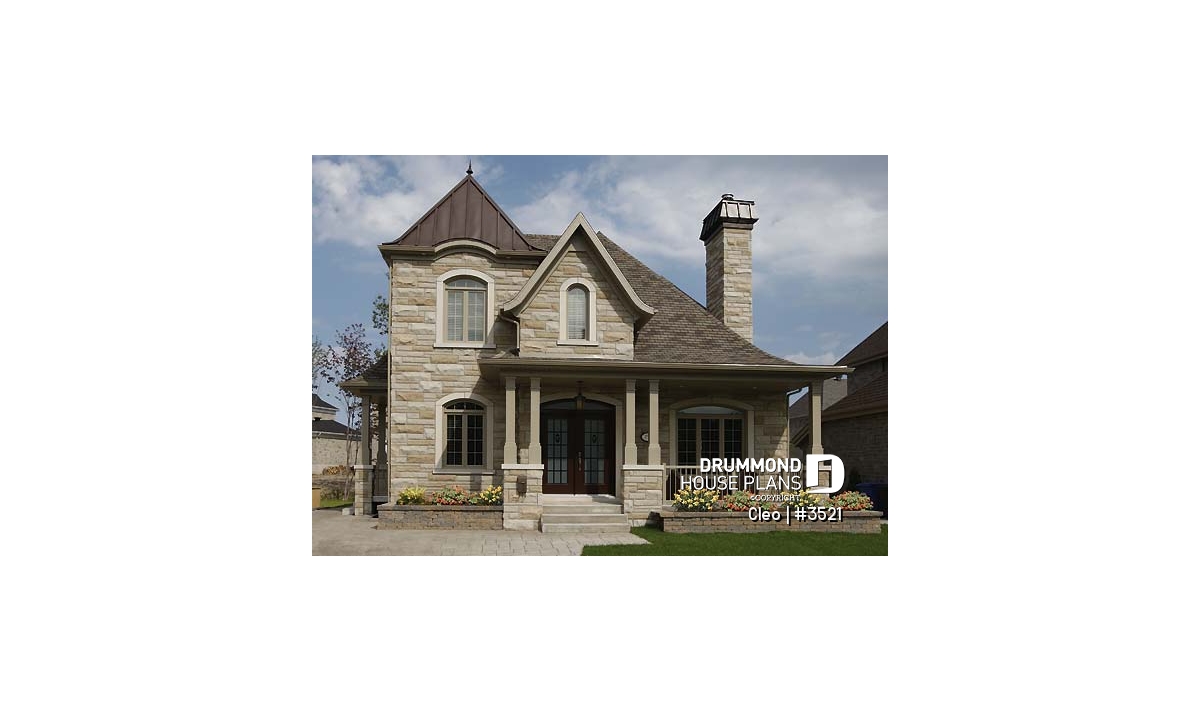

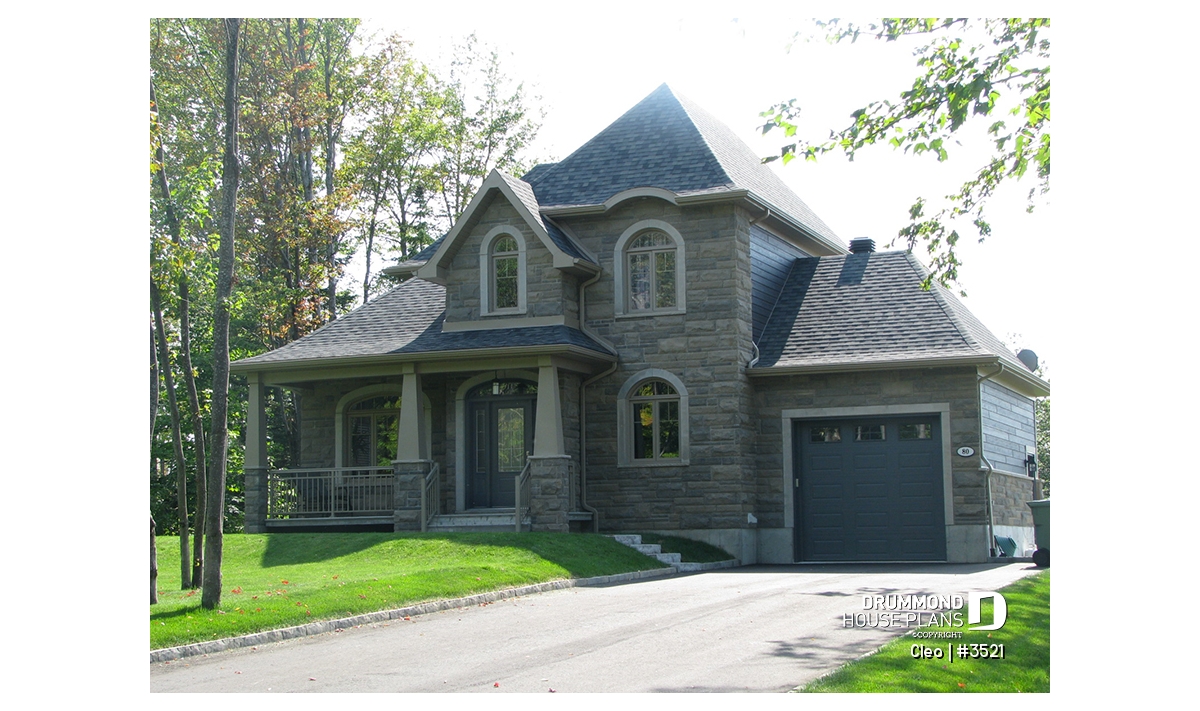

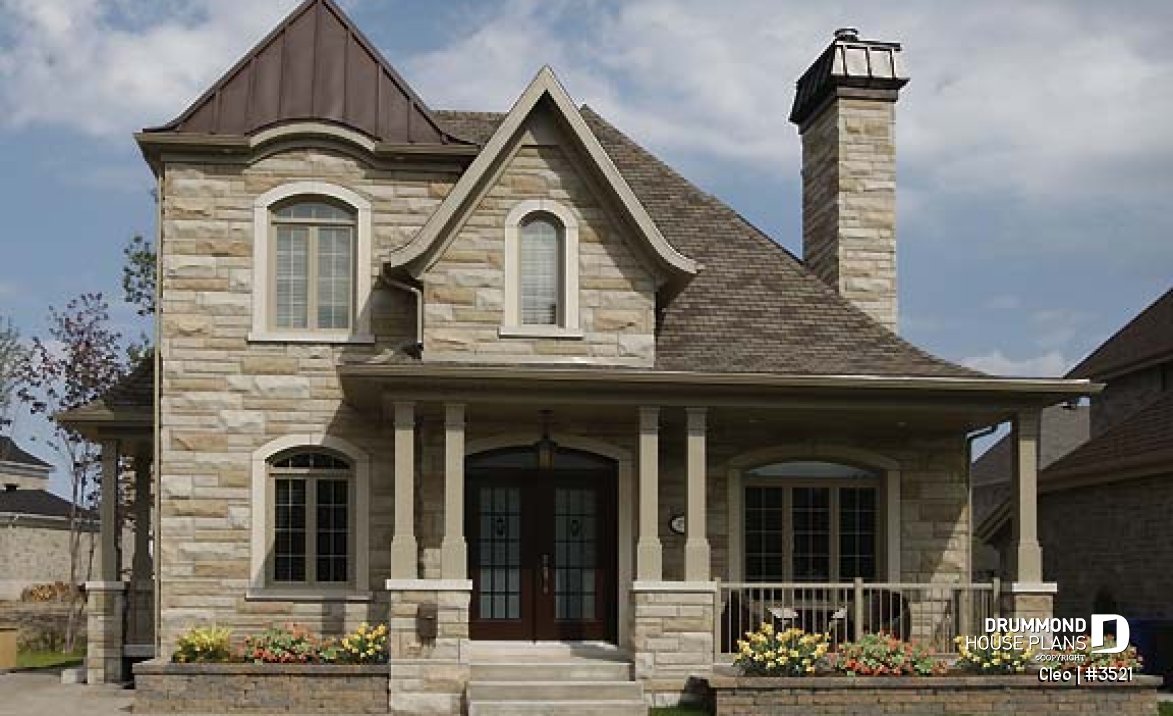

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

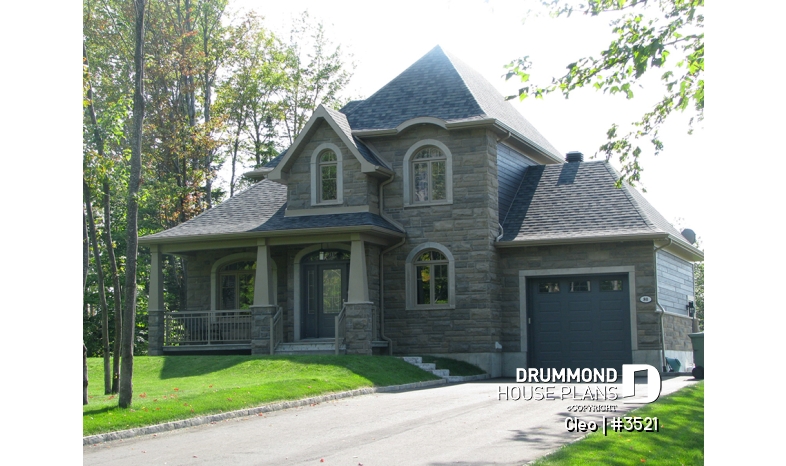

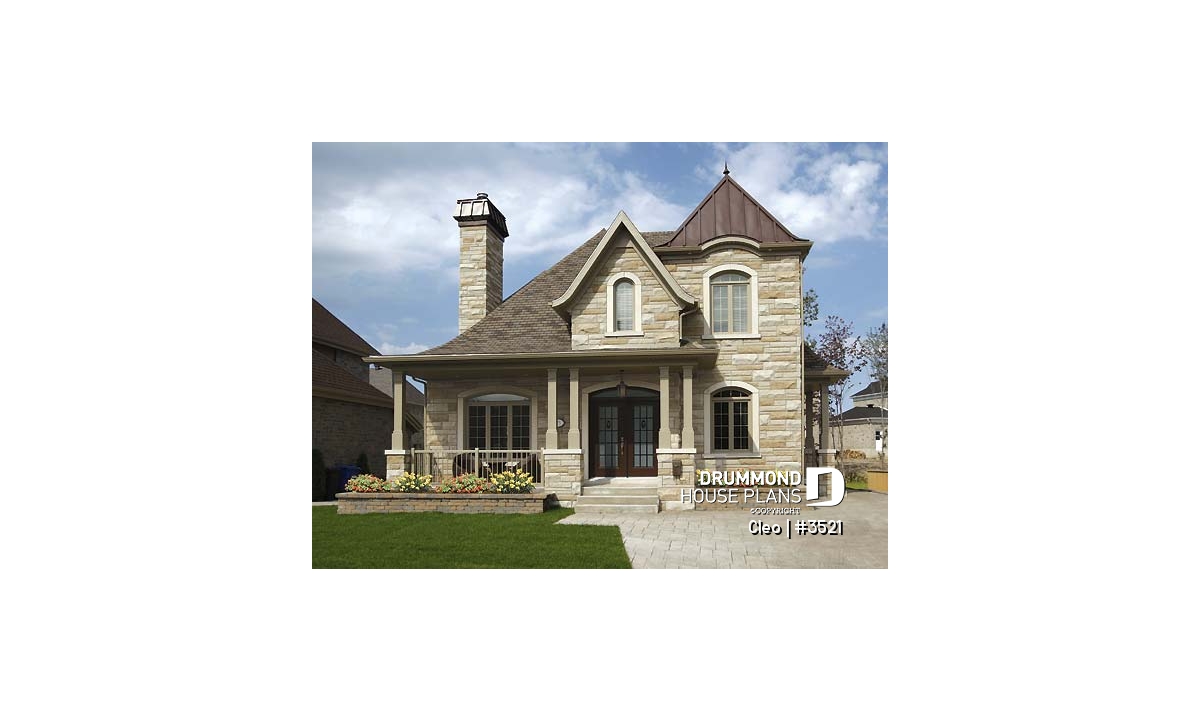

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

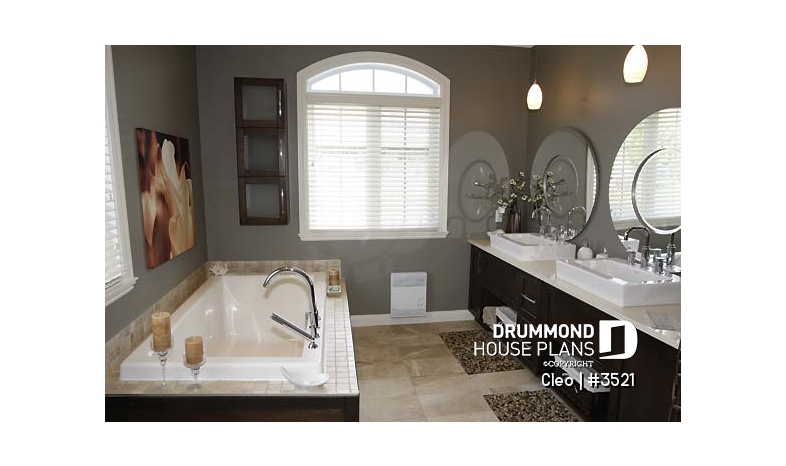

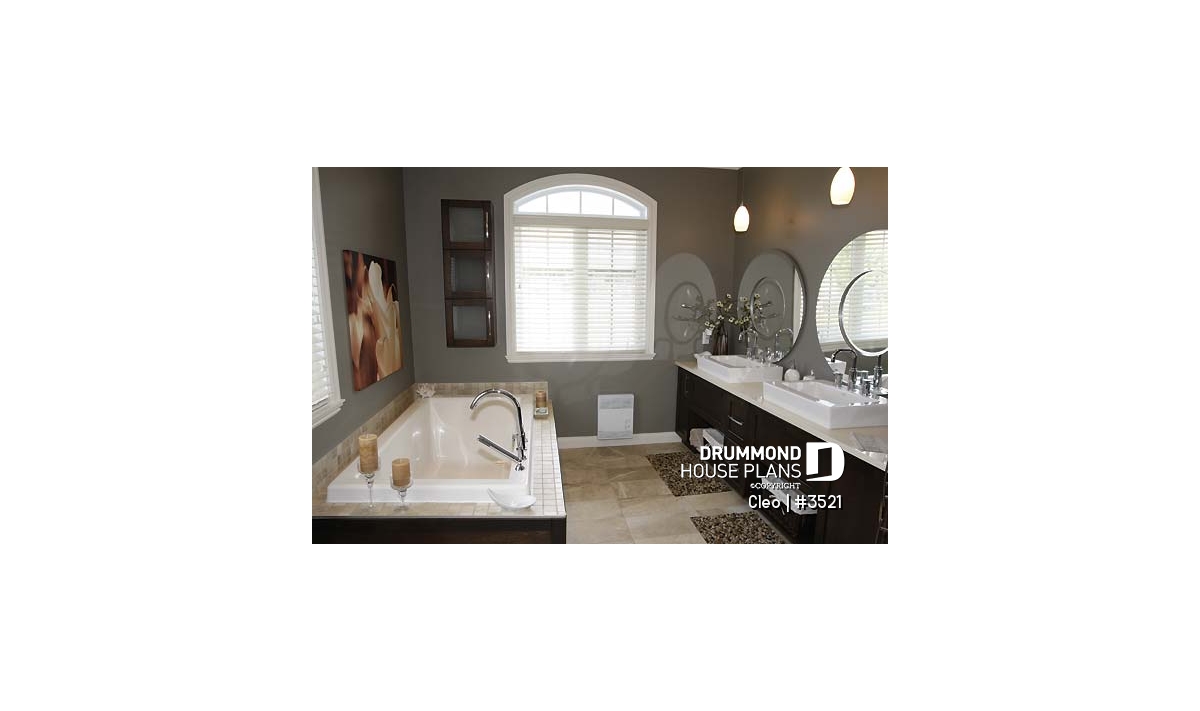

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

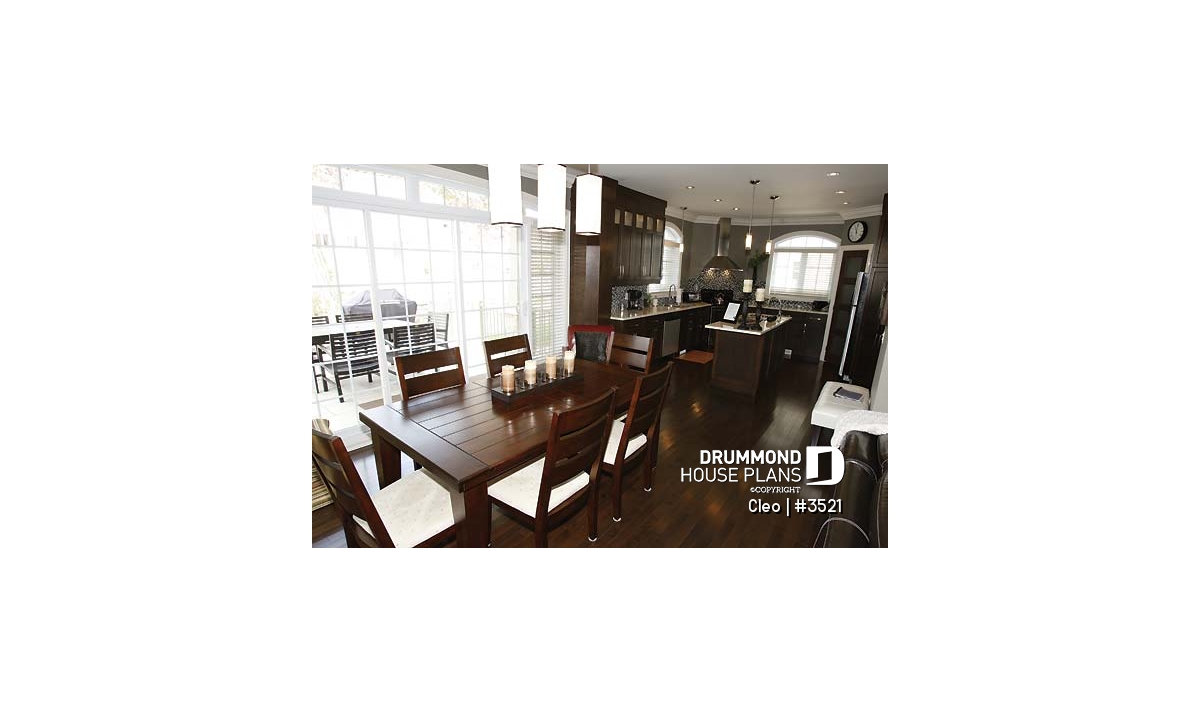

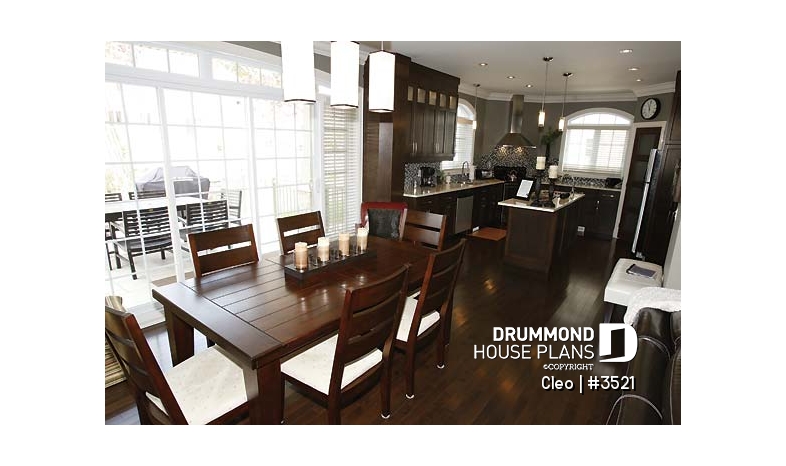

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

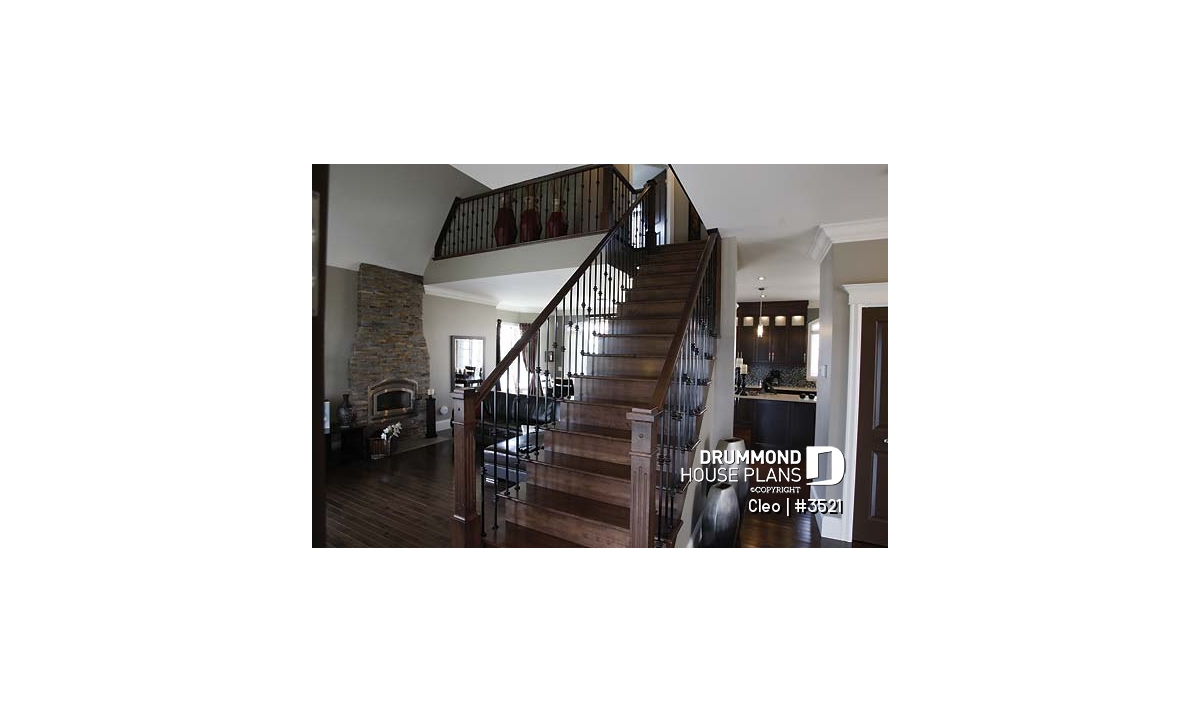

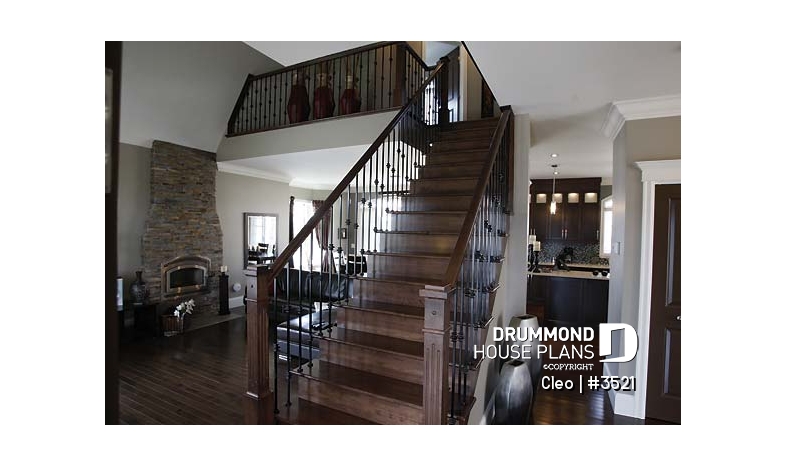

Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Indulge in your own castle!
Designed for individuals wanting their home to embody characteristics of royalty and chivalry, this small castle-style home will transport you to times of yore every time you set eyes upon her. Of course, a modern castle must have a few amenities!
Pass through the main entrance and your eye travels up the staircase, wanders up the cathedral ceiling or rests beyond the living room at a family hearth. To the right is a conveniently located small office or study.
The dining room is situated at the back of the house, bathed in light from ample windows and married to the views beyond. The traditional hob is transformed into a modern kitchen with generous storage and prep zones. Also found on the main floor are a two-piece bathroom, laundry, and indispensable side entrance complete wth mudroom.
At the top of the staircase, one finds a small loft, two bedrooms, family bathroom complete with separate bathtub and shower and master bedroom with walk-in closet.
Not just your home - your castle!
Distinctive elements
9' ceilings on main floor and upstairs. Office space close to front entrance. Living room with fireplace and cathedral ceiling. Master bathroom includes walk-in closet. Full bathroom includes separate 48x36" shower.
Plan feature(s)
Ceiling over 8', Fireplace, Mezzanine, Office / Study / Den, Deck, Gound floor laundry room, Lunch counter, Entrance hall, Double sinks, Separate bath and shower
Plan architectural style(s)
. European, . Manors and small castles, . English
Similar plans
Previously Viewed Plans
Questions and comments
March 26
i.radu
I live i a seismic zone with 0,20g clasification.Is this house suitable for such a area?
Thank you
March 28
Customer service
Dear Mr Radu,
Thank you for your interest in Drummond House Plans.
Our plans do not meet seismic requirements. You will need to contact a local engineer to have them adapted.
Do not hesitate to contact me again if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
