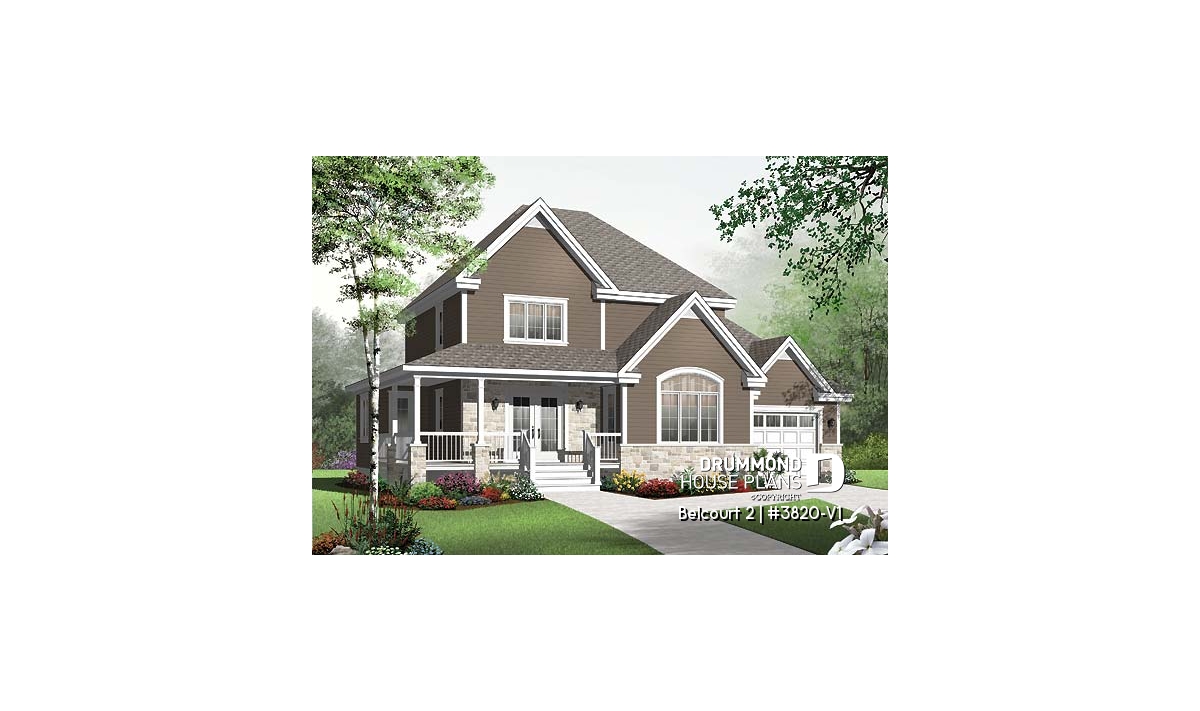

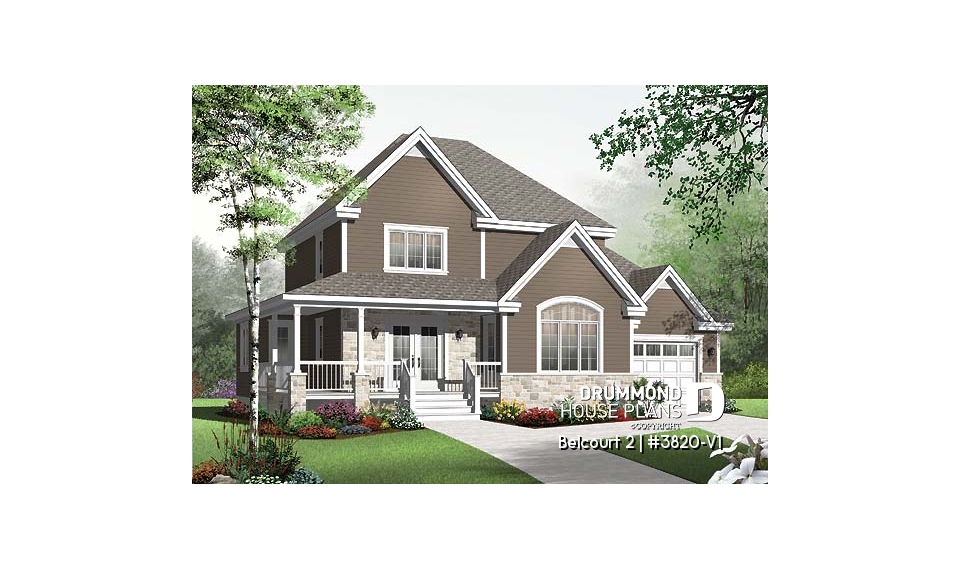

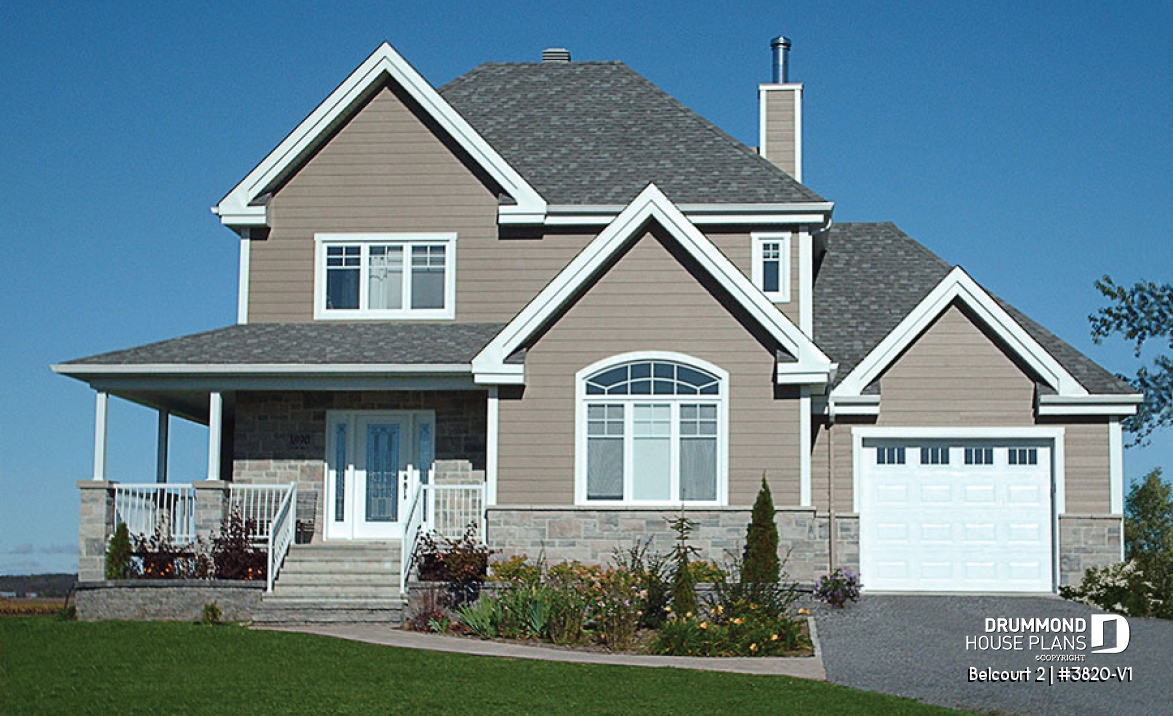

Belcourt 2 (3820-V1)
Farmhouse style houseplan, affordable construction, 3 bedrooms, garage, covered balcony
View the size of the rooms and height of the ceilings

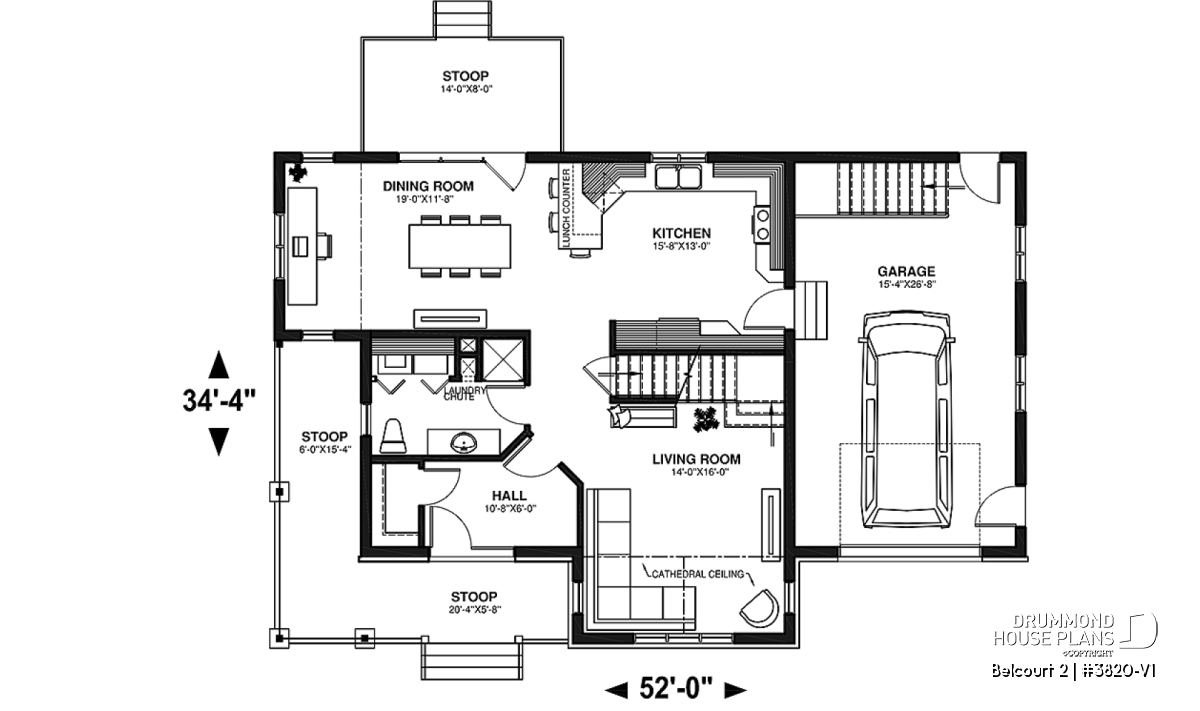

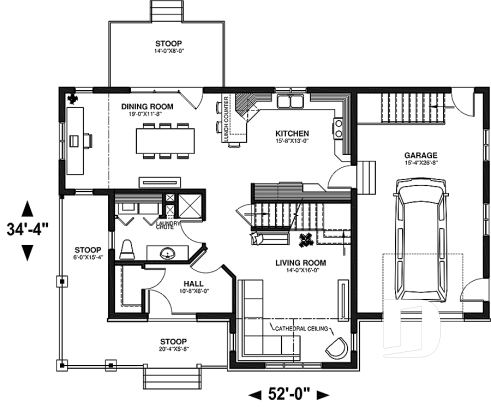

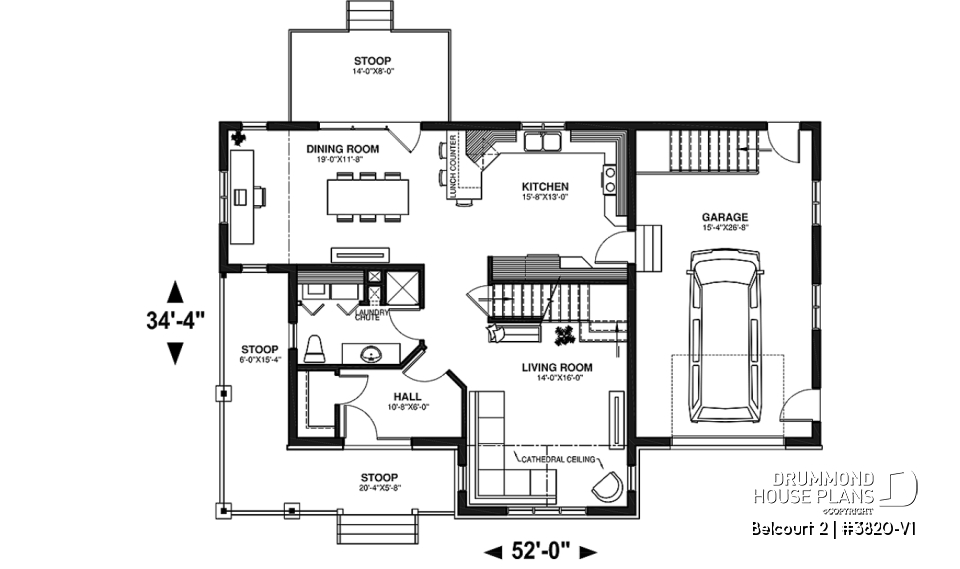

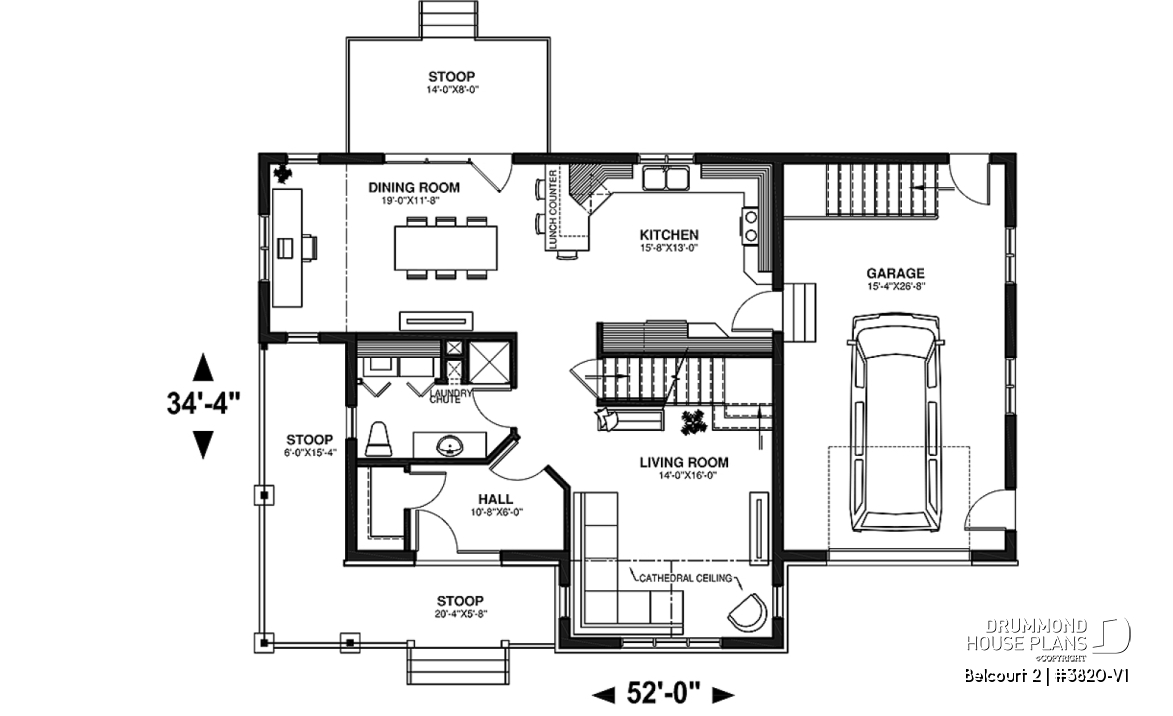

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 15'8" x 13'0" | ~ 8'0" |
| Dining room | 13'0" x 11'8" | ~ 8'0" |
| Living room | 14'0" x 16'0" | ~ 11'9" |
| Foyer | 10'8" x 6'0" | ~ 8'0" |
| Full bathroom | 10'8" x 8'2" | ~ 8'0" |
| Garage | 15'4" x 26'8" | ~ 9'8" |
| Porch | 20'4" x 21'0" | N/A |
| Deck | 14'0" x 8'0" | N/A |
| Reading/computer area | 6'0" x 11'8" | ~ 8'0" |

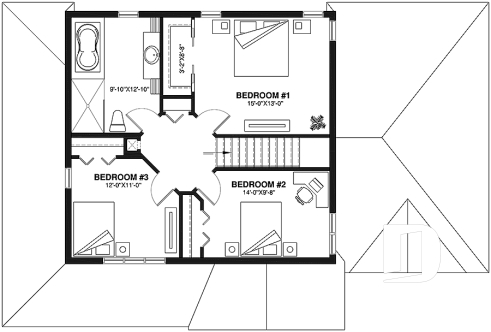

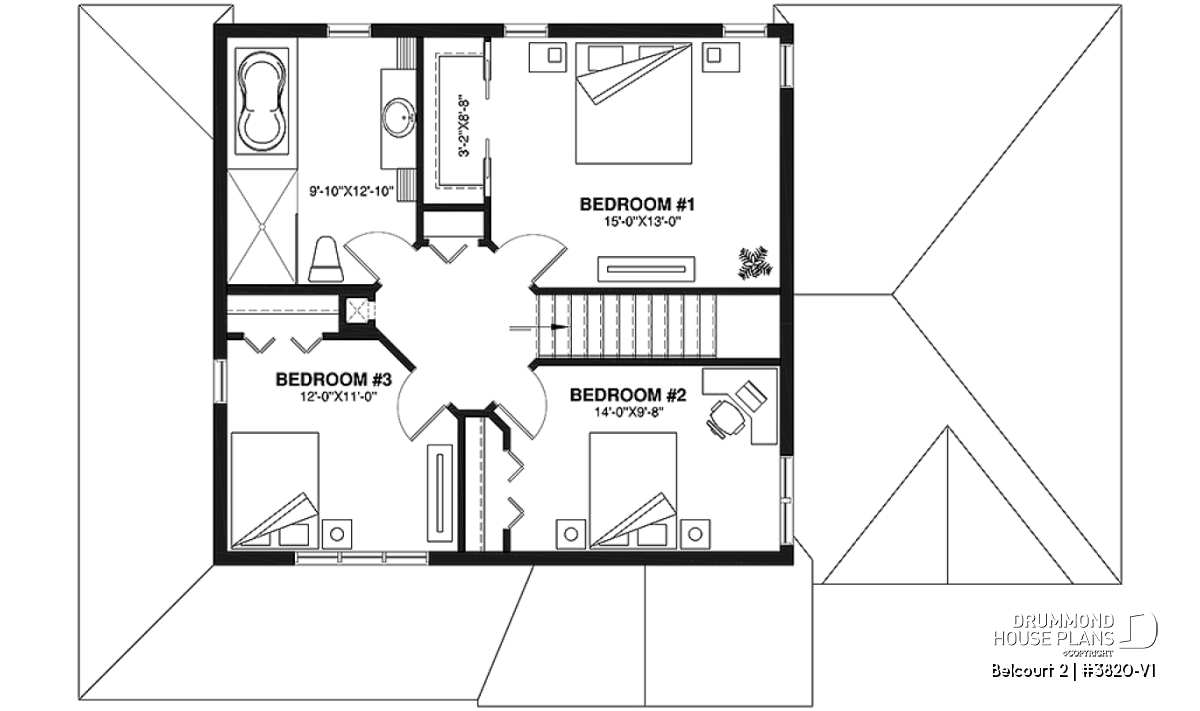

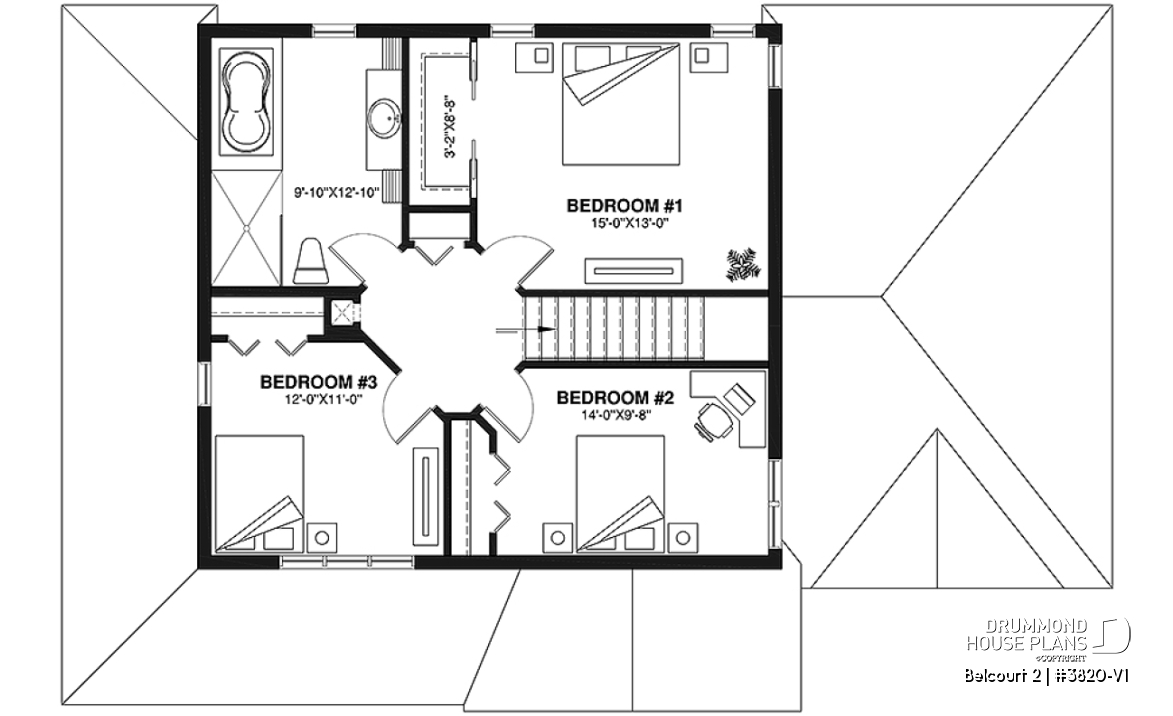

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'10" x 12'10" | ~ 8'0" |
| Bedroom | 15'0" x 13'0" | ~ 8'0" |
| Bedroom | 14'0" x 9'8" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Linen | 3'2" x 1'6" | ~ 8'0" |
General specifications
| Total living area | 1864 sq.ft. |
| 1st level | 1024 sq.ft. |
| 2nd level | 840 sq.ft. |
| Width | 52'0" |
| Depth | 34'4" |
| Ridge height from top of foundation | 31'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Country home with 3 bedrooms, mudroom and a planning desk!

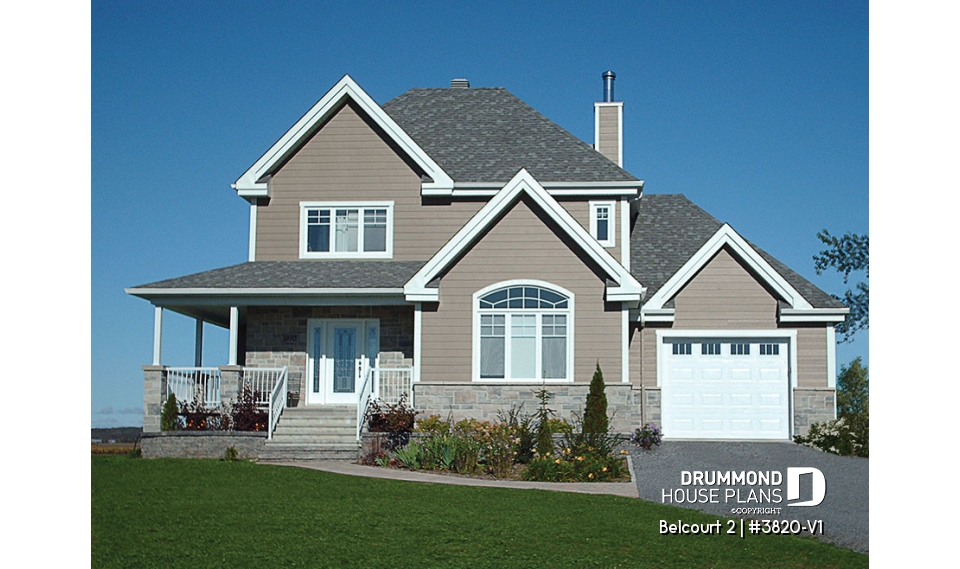

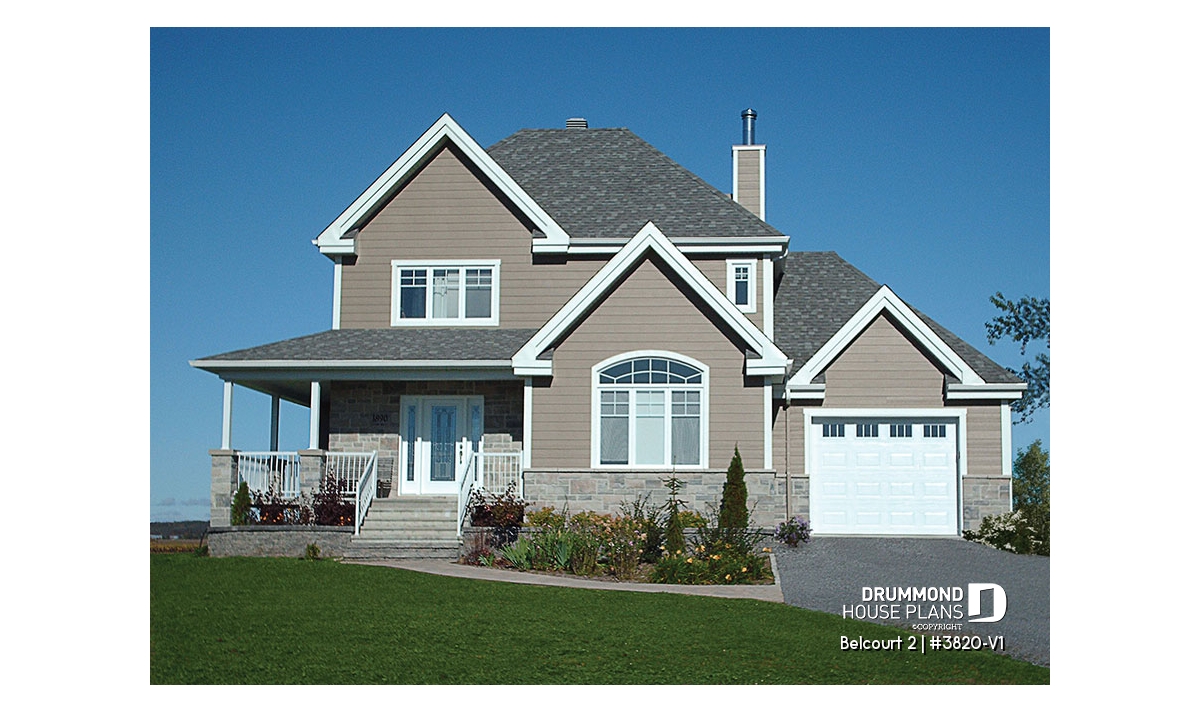

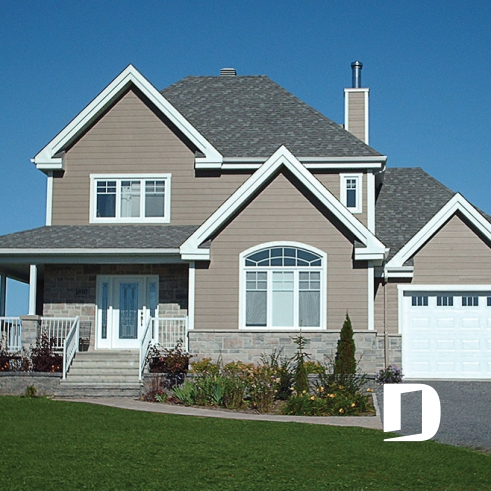

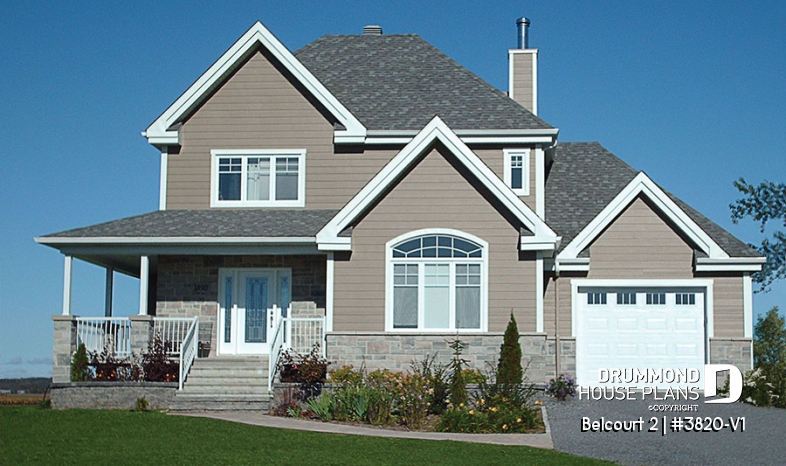

The already popular model, cottage 3820, whose exterior and interior photos are available on our site for you to enjoy, offers even more features which may increase the appeal of model version 3820-V1 over its predecessor. Enlargement of the floor plan adds comfort and the much enhanced size of the garage offers a new dimension to the practical space.
On the first floor there is larger entrance foyer, complete with its own walk-in closet. The family room has increased in size on the width and the depth and the kitchen also benefits from the additional width. The dining area now has room for built ins on either side of the window, between which is the perfect place to nestle a computer corner. All of the bedrooms upstairs are larger and the bathroom’s shower size has grown to 44” x 72”.
The enhanced garage accommodates a 10’ wide door and offers additional storage space, all features that give this plan more to love!
Distinctive elements
Comfortable main entrance foyer with a walk-in closet.
Partial cathedral ceiling in the living room.
Large dining room with abundant windows and a computer area.
Large kitchen with access to the garage.
Garage has direct access to basement. Three bedrooms on 2nd floor including master bedroom with walk-in closet.
Large bathroom with independant 44" x 72" shower.
Plan feature(s)
Basement access from garage, Separate bath and shower, Walk-in master bed., Gound floor laundry room, Lunch counter, Mud room, Planning desk, Cathedral ceiling
Plan architectural style(s)
. Country, . American, . Farmhouse, . Traditional
