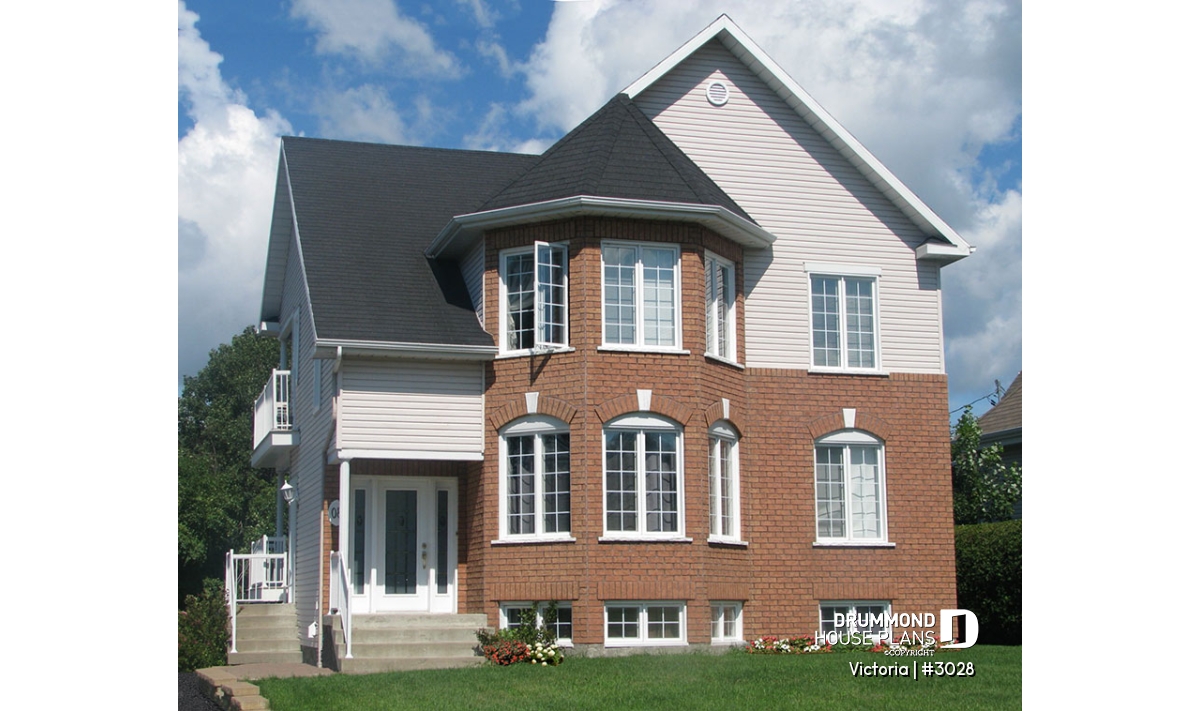

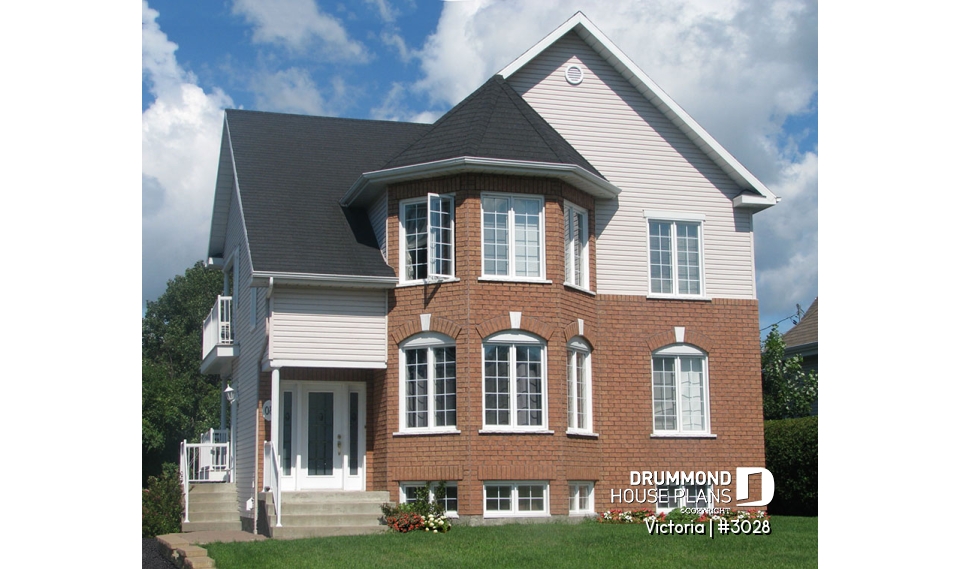

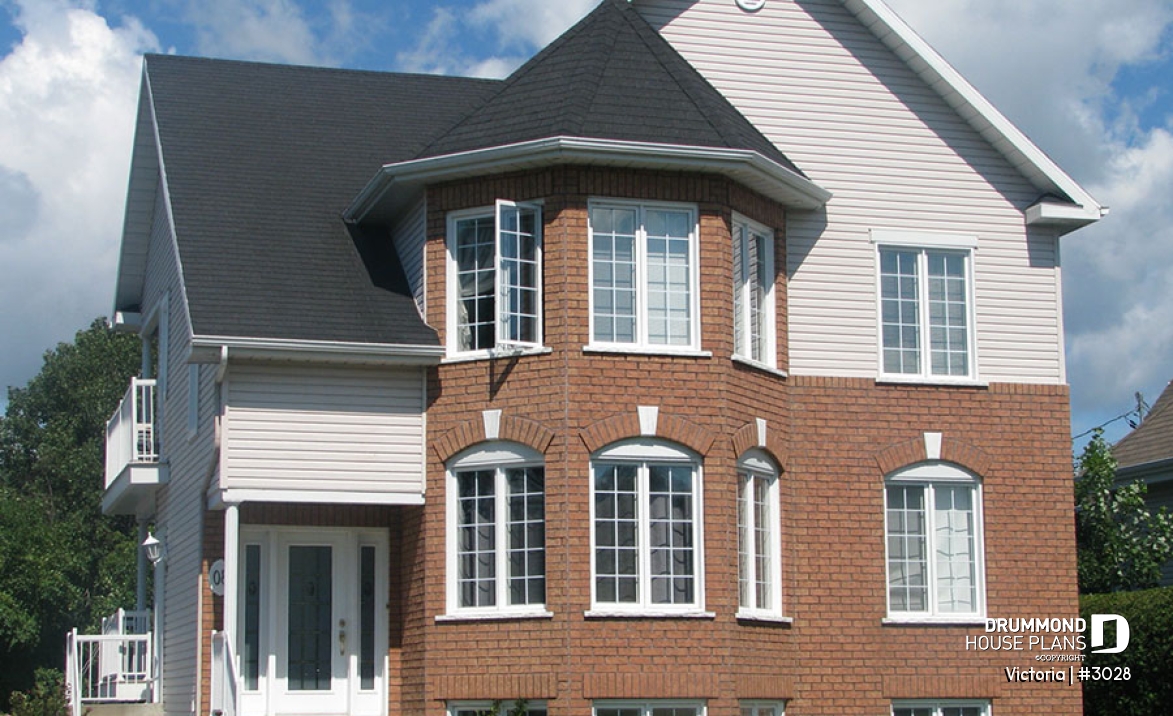

front - BASE MODEL - Duplex house plan with 2 bedroom per unit, open dining and living room, balcony, lots of natural light - Victoria

front - BASE MODEL

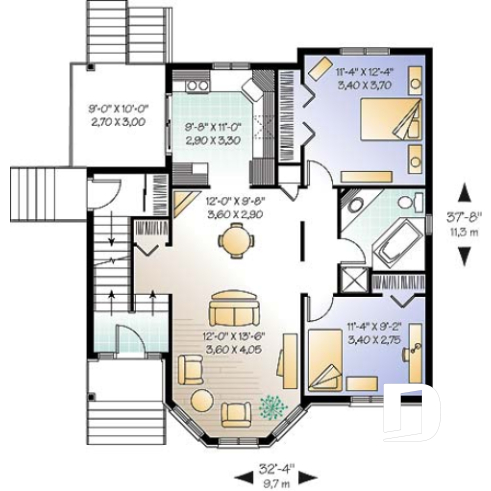

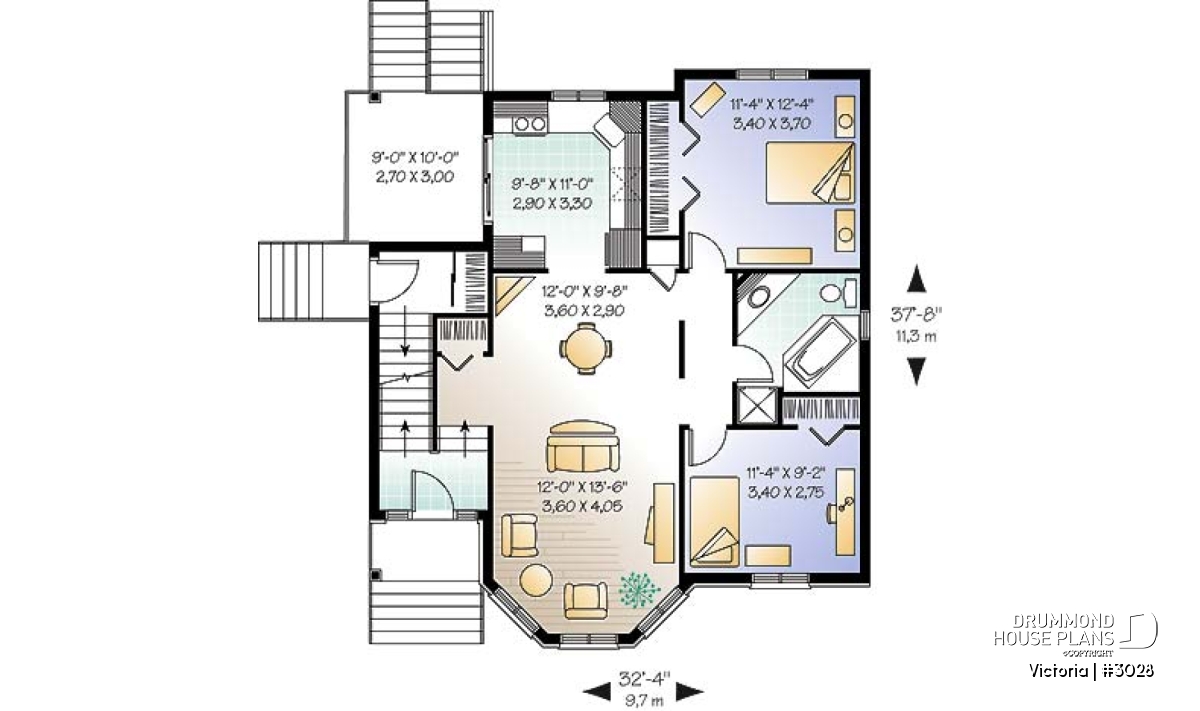

1st level - Duplex house plan with 2 bedroom per unit, open dining and living room, balcony, lots of natural light - Victoria

1st level

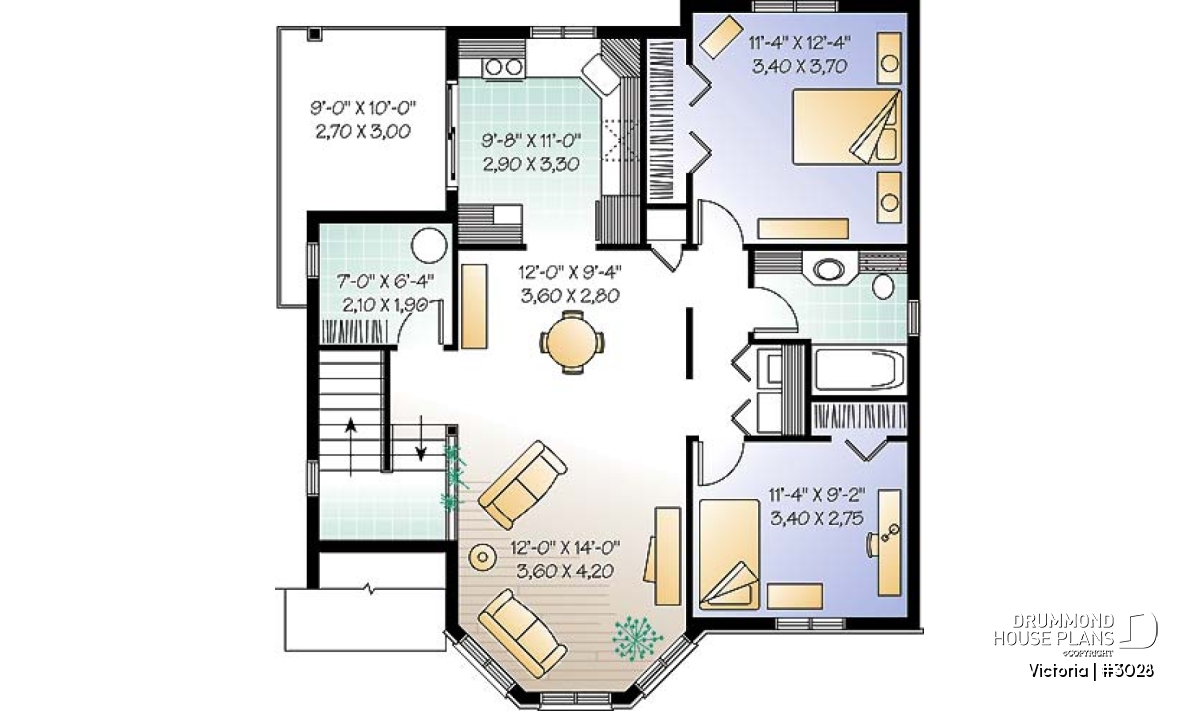

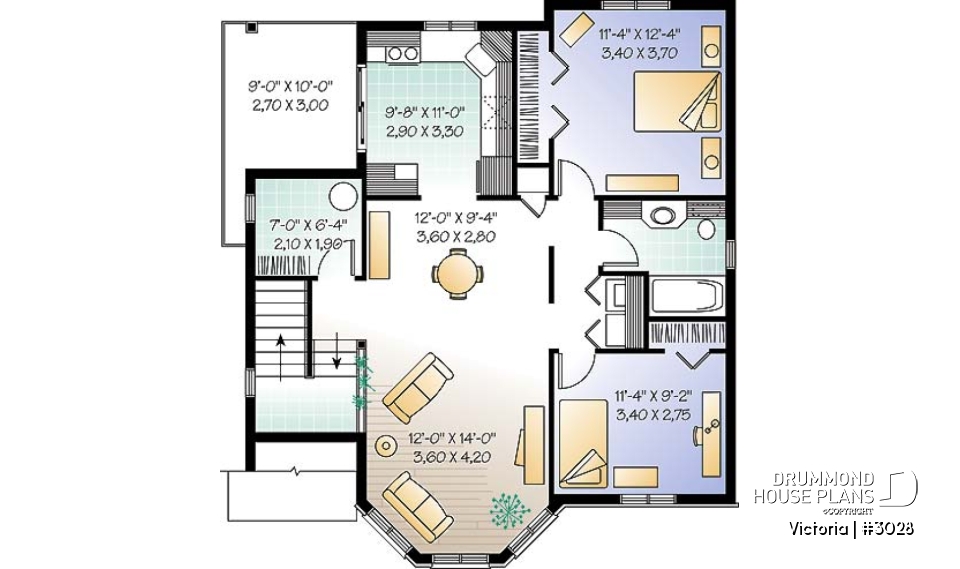

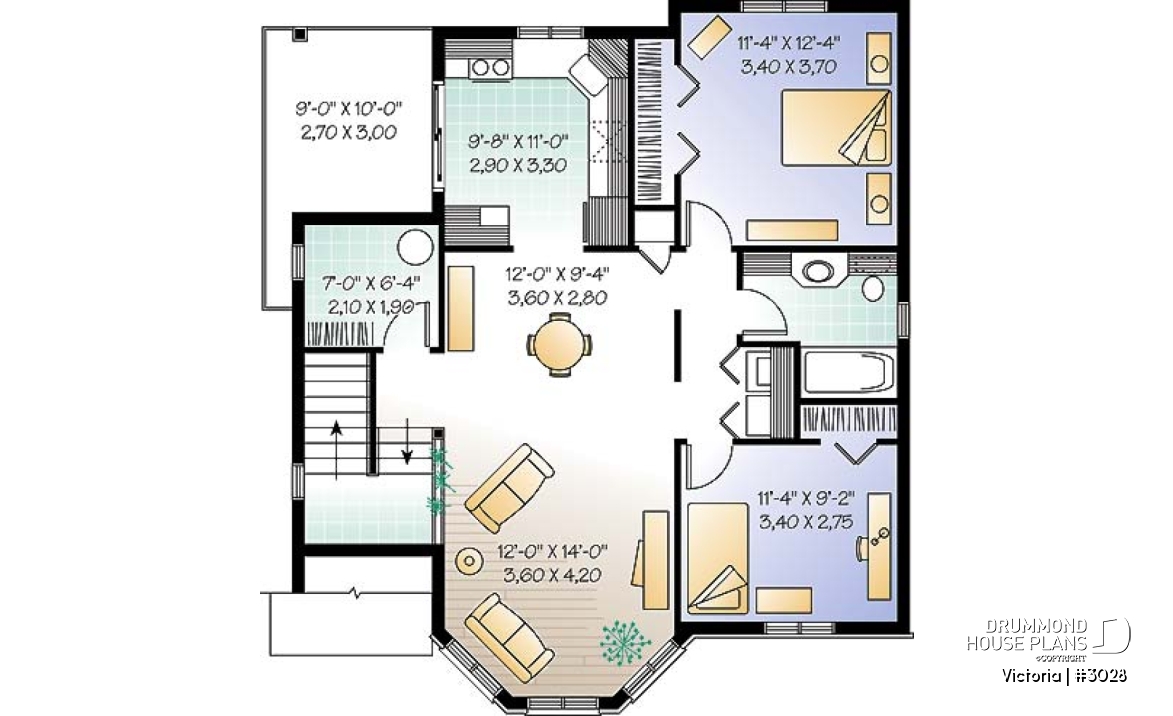

2nd level - Duplex house plan with 2 bedroom per unit, open dining and living room, balcony, lots of natural light - Victoria

2nd level

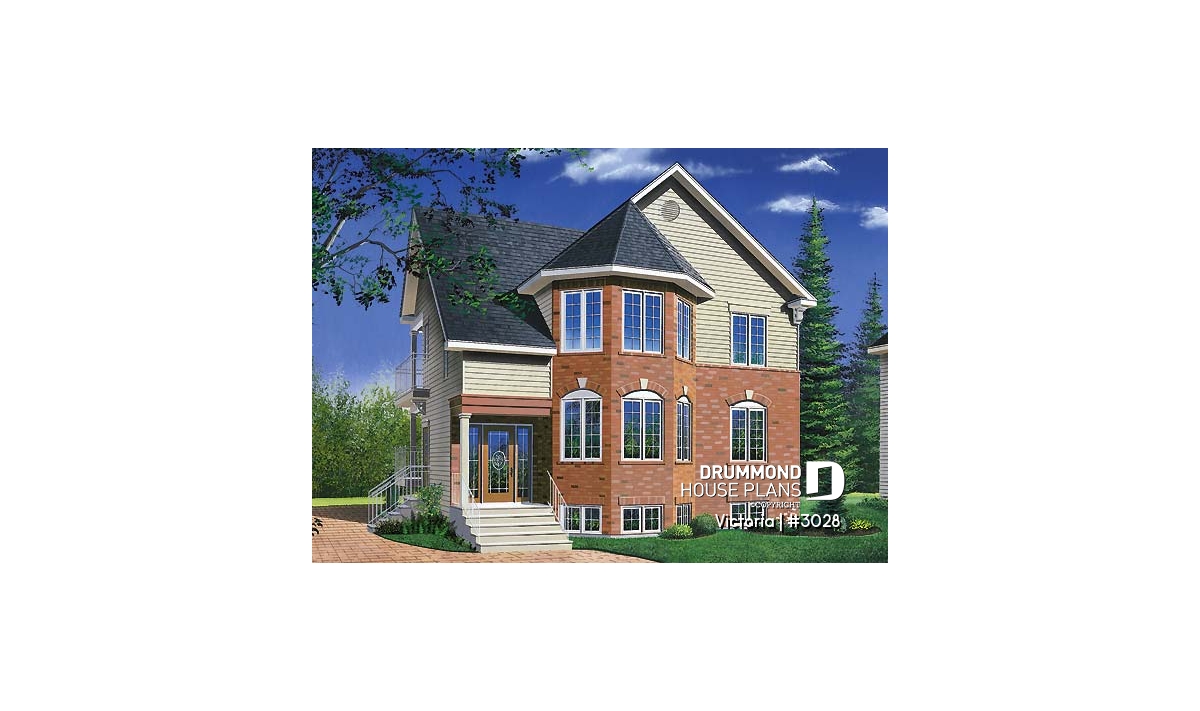

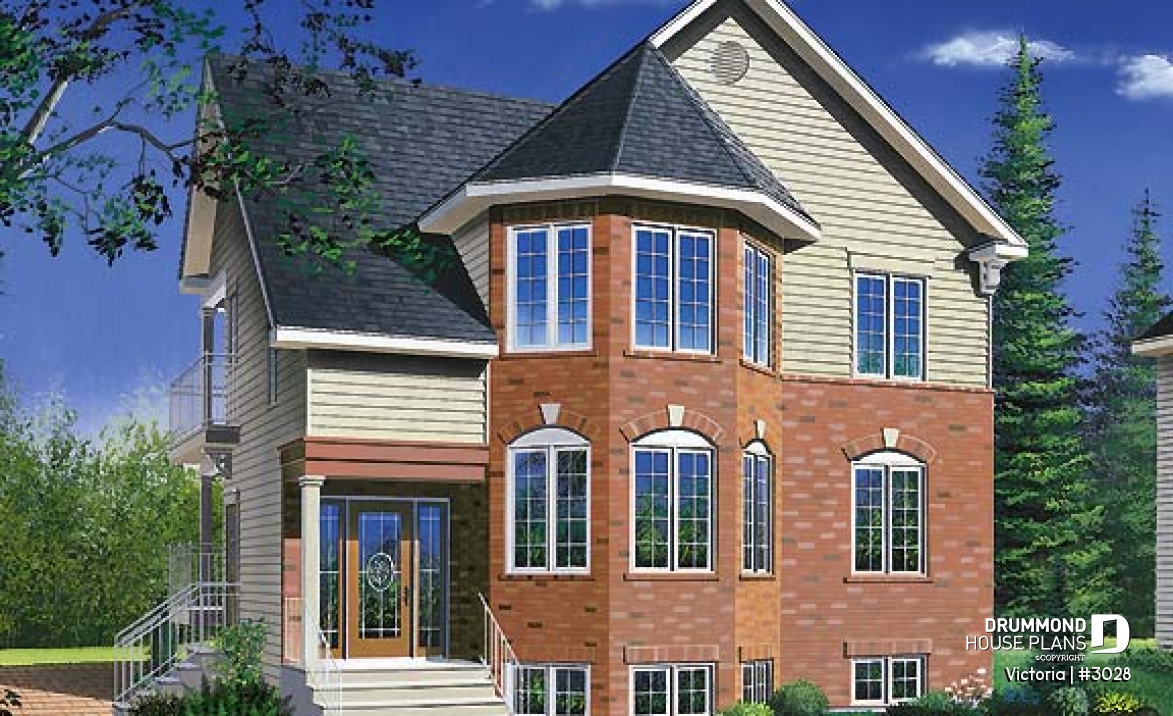

front - ORIGINAL MODEL - Victoria

front - ORIGINAL MODEL

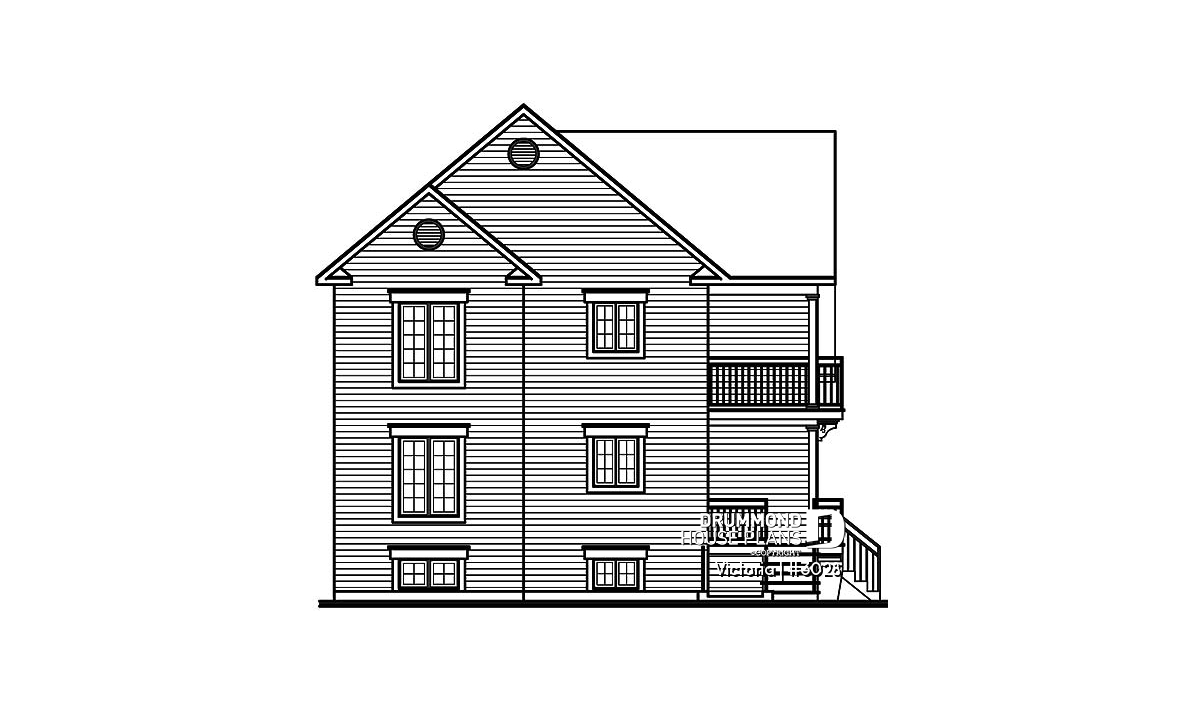

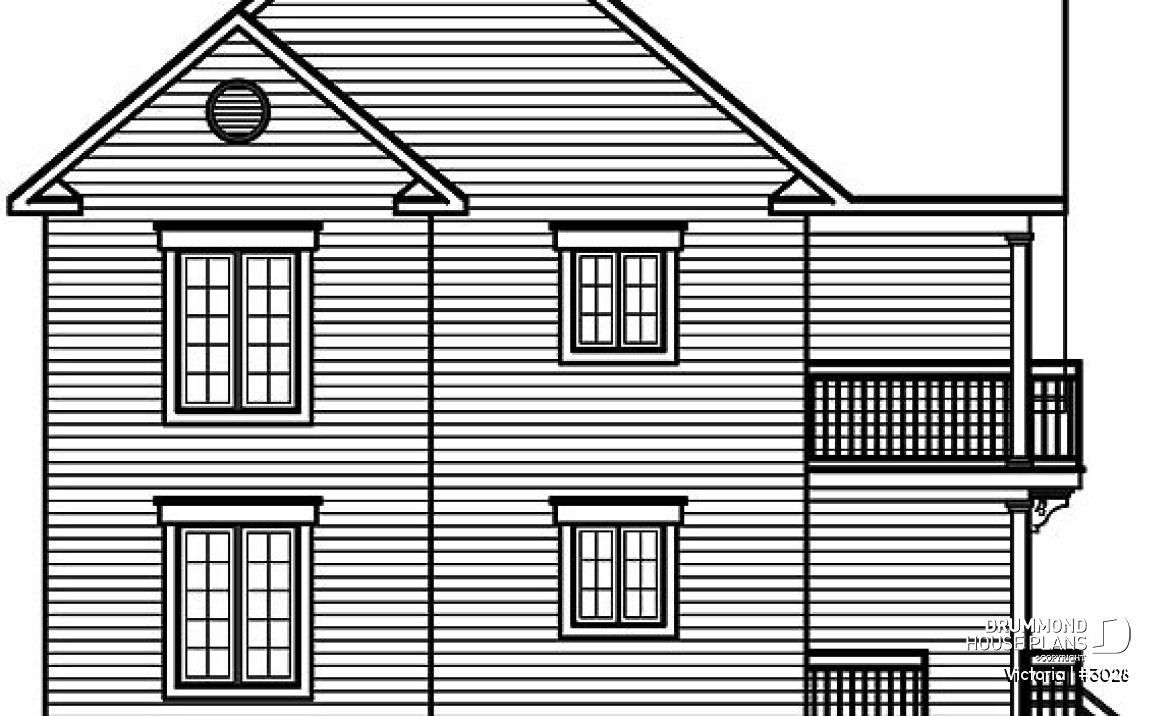

rear elevation - Victoria

rear elevation

Victoria House plan 3028

Duplex house plan with 2 bedroom per unit, open dining and living room, balcony, lots of natural light

Starting from

2130$

Technical details summary Plan #3028
Total living area 2000 sq.ft. Bedroom 2
Full baths 1 Half baths 1
Foundation included Unfinished Basement Garage -
Width 32'4" Depth 37'8"

Need help ?

Our experts are here to guide you to make your dream project come to life.

Contact us

Come see us

Visit one of our 30 regional offices.

Our offices

Personalized support

From plan modifications to fully custom designs, we guide you every step of the way.

Discover our services

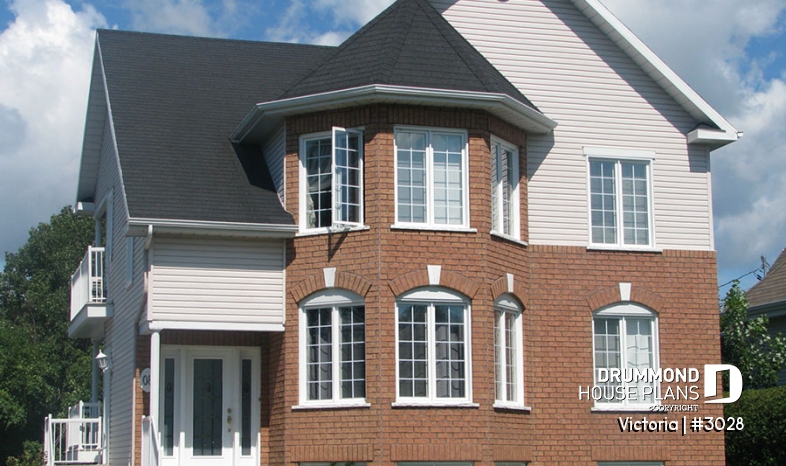

Photos of the plan Victoria

Additional details

General specifications

Total living area
2000 sq.ft.
1st level
1000 sq.ft.
2nd level
1000 sq.ft.
Width
32'4"
Depth
37'8"
Ridge height from top of foundation
32'6"
Exterior wall
2 X 6
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
MB

Rooms specifications

Bedroom(s)
2
Full baths
1
Half baths
1
Garage type
-
Covered porch area
43 sq.ft.

Units specifications

UNIT 1
UNIT 2
Total living area
1000 sq.ft.
1000 sq.ft.
1st level
1000 sq.ft.
2nd level
1000 sq.ft.
Width
32' 4"
32' 4"
Depth
37' 8"
37' 8"
Ridge height from top of foundation
32' 6"
32' 6"
Exterior wall
2 X 6
2 X 6
Foundation type
Unfinished Basement
Unfinished Basement
Bedroom(s)
2
2
Full baths
1
1
Half baths
-
-
Garage type
-
-
Living bonus space
-
-
Bonus storage
-
-

1st level

Rooms
Sizes
Ceiling
Full bathroom
8'0" x 7'6"
~ 8'0"
Kitchen
9'8" x 11'0"
~ 8'0"
Pantry
1'10" x 2'0"
N/A
Dining room
12'0" x 9'8"
~ 8'0"
Living room
12'0" x 13'6"
~ 8'0"
Bedroom
11'4" x 12'4"
~ 8'0"
Closet
2'0" x 8'8"
~ 8'0"
Bedroom
11'4" x 9'2"
~ 8'0"
Closet
5'0" x 2'0"
~ 8'0"
Foyer
7'0" x 3'10"
~ 8'0"
Closet
3'4" x 2'0"
~ 8'0"
Covered porch
7'0" x 4'0"
N/D
Covered deck
9'0" x 10'0"
N/D
Linen
2'0" x 2'0"
~ 8'0"
Porch
3'0" x 5'0"
N/D
Terrace
8'3" x 9'4"
N/D

2nd level

Rooms
Sizes
Ceiling
Storage
7'0" x 6'4"
~ 8'0"
Dining room
12'0" x 9'4"
~ 8'0"
Living room
12'0" x 14'0"
~ 8'0"
Kitchen
9'8" x 11'0"
~ 8'0"
Pantry
1'10" x 2'0"
N/A
Bedroom
11'4" x 12'4"
~ 8'0"
Closet
2'0" x 8'8"
~ 8'0"
Bedroom
11'4" x 9'2"
~ 8'0"
Closet
5'0" x 2'0"
~ 8'0"
Laundry room
3'0" x 5'0"
~ 8'0"
Linen
2'0" x 2'0"
~ 8'0"
Balcony
9'0" x 10'0"
N/D
Foyer
4'8" x 4'0"
~ 8'0"
Closet
2'0" x 4'0"
~ 8'0"
Full bathroom
8'0" x 7'4"
~ 8'0"

2 bedroom duplex plan with sheltered rear balconies

.

Distinctive elements

Covered main entrance, covered rear balconies for both units, abundant fenestration.

Plan feature(s)

Panoramic view, Second floor laundry room, Separate bath and shower, Covered patios

Plan architectural style(s)

European, Victorian, Traditional

Similar plans
Logo Drummond House Plans image drummond house plans
The plan Victoria is protected by the copyright law.

The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.

Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
