House plan Trek (2636)
Modern 3 to 4 bedroom home, mezzanine, great family room with fireplace, one-car garage
View the size of the rooms and height of the ceilings

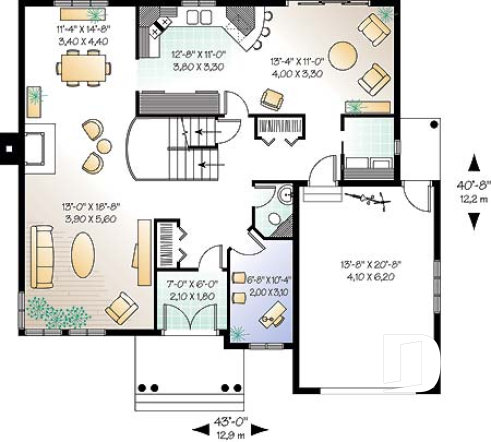

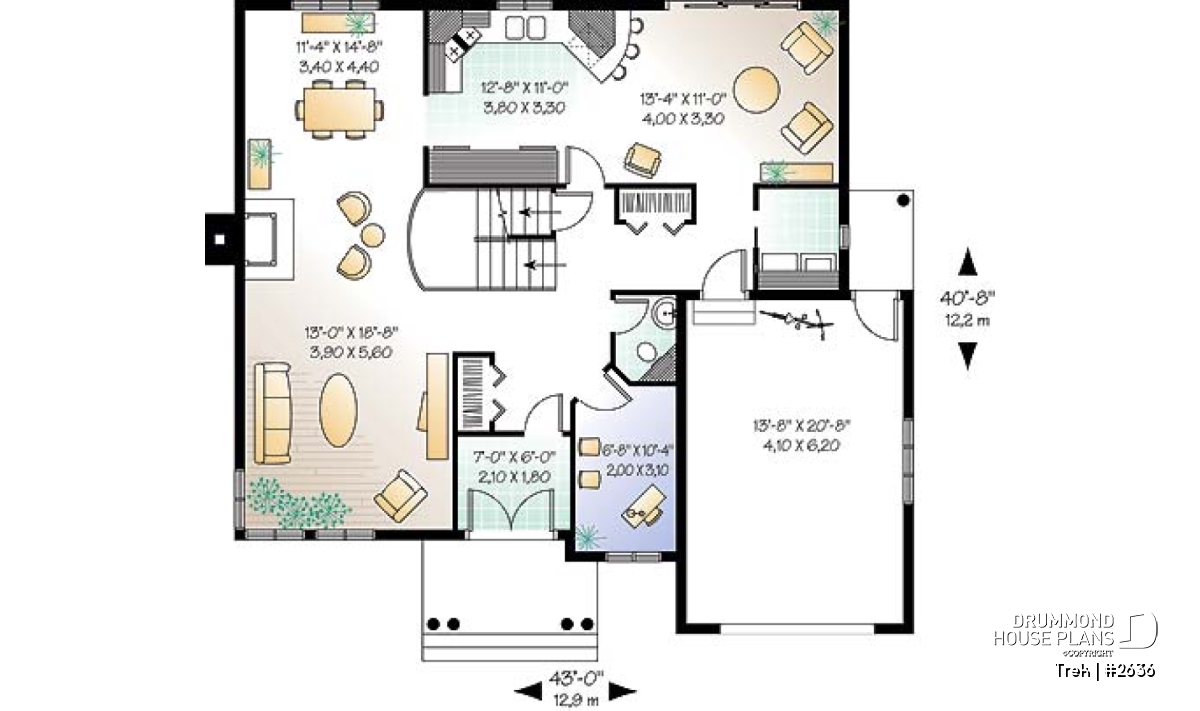

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 11'0" | ~ 8'0" |
| Dining room | 11'4" x 14'8" | ~ 17'4" |
| Living room | 13'0" x 18'8" | ~ 17'4" |
| Office | 6'8" x 10'6" | ~ 8'0" |
| Foyer | 7'0" x 6'0" | ~ 8'0" |
| Garage | 13'8" x 20'8" | ~ 9'8" |
| Closet | 4'6" x 2'0" | ~ 8'0" |
| Porch | 11'0" x 6'0" | N/A |
| Porch | 12'0" x 8'0" | N/A |
| Half bath or powder room | 4'0" x 5'6" | ~ 8'0" |
| Laundry room | 5'0" x 6'0" | ~ 8'0" |
| Porch | 4'0" x 6'6" | N/A |

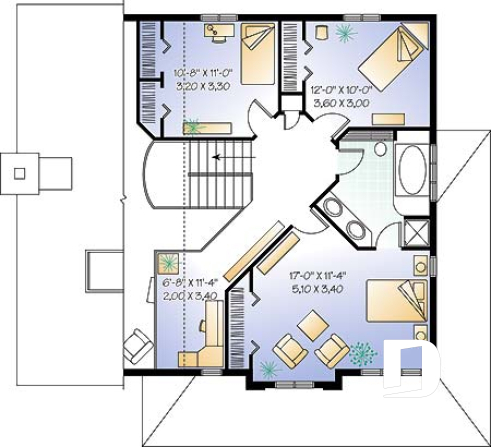

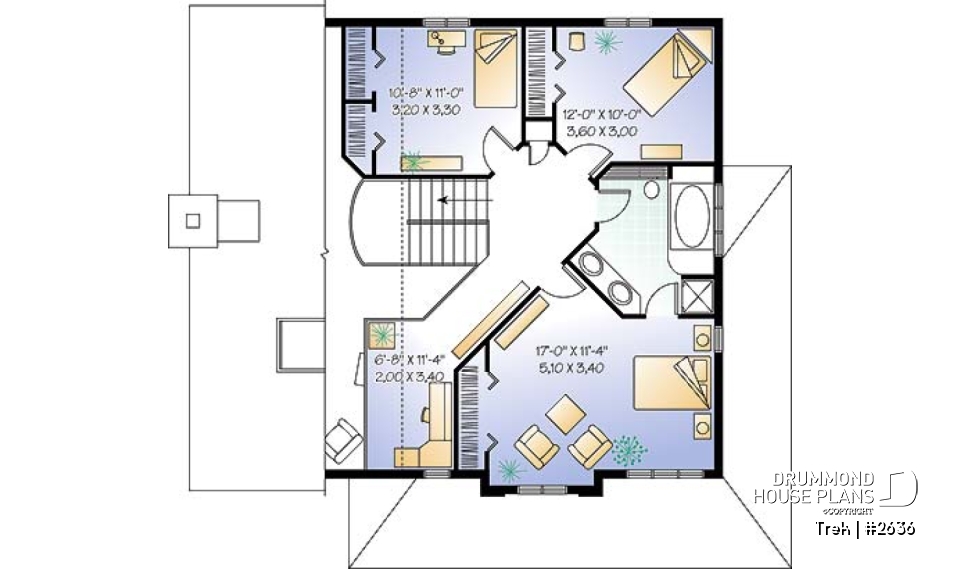

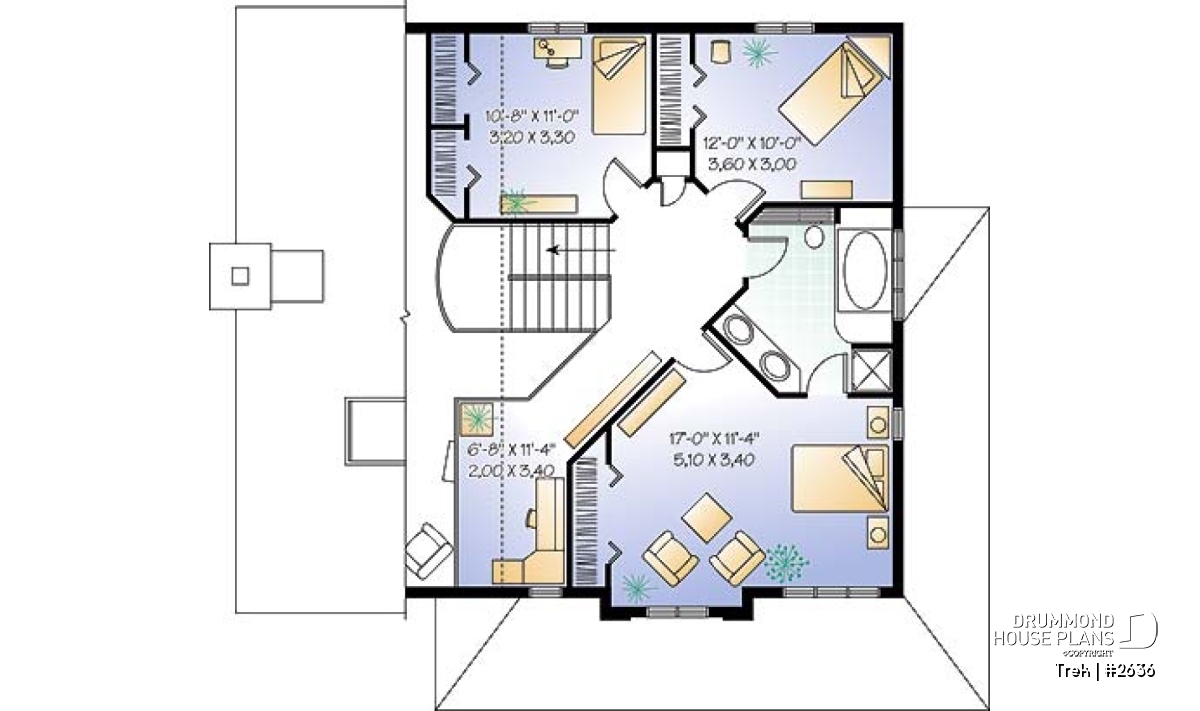

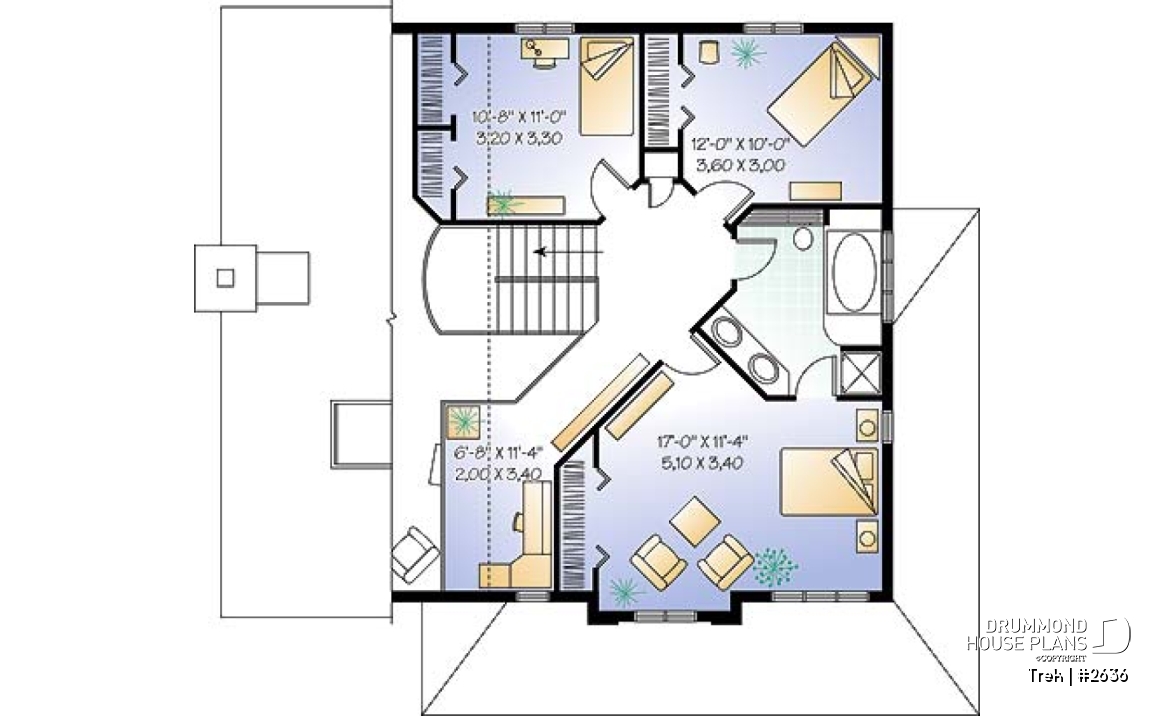

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'10" x 11'2" | ~ 8'0" |
| Bedroom | 17'0" x 11'4" | ~ 10'2" |
| Bedroom | 12'0" x 10'2" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 2089 sq.ft. |
| 1st level | 1204 sq.ft. |
| 2nd level | 885 sq.ft. |
| Width | 43'0" |
| Depth | 40'8" |
| Ridge height from top of foundation | 27'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Distinctive elements
Cathedral ceiling in the living room. Centered fireplace between the dining room and the living room. Office space provided on the first level. Family room adjoining to the kitchen. Computer center provided on the second level in the mezzanine.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Sitting area, Planning desk, Gound floor laundry room
