House plan The Heritage (2837)
Lakefront beautiful country house plan, 3 to bedrooms, master suite with fireplace & terrace, wraparound porch
View the size of the rooms and height of the ceilings

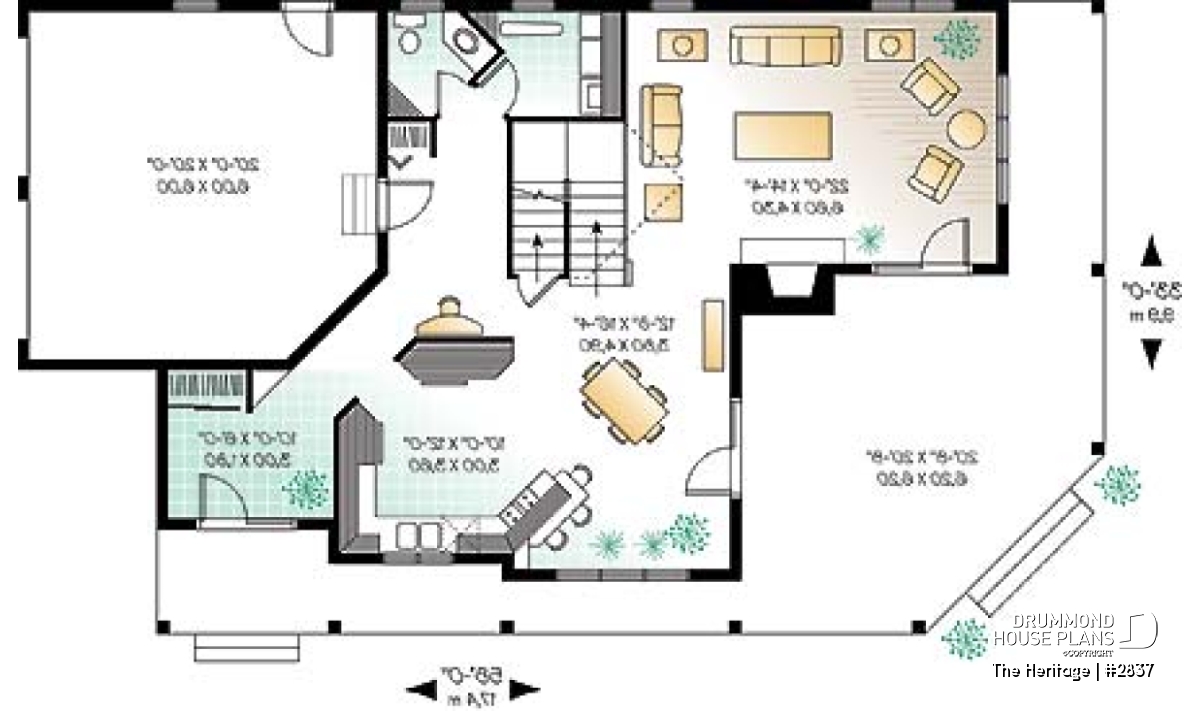

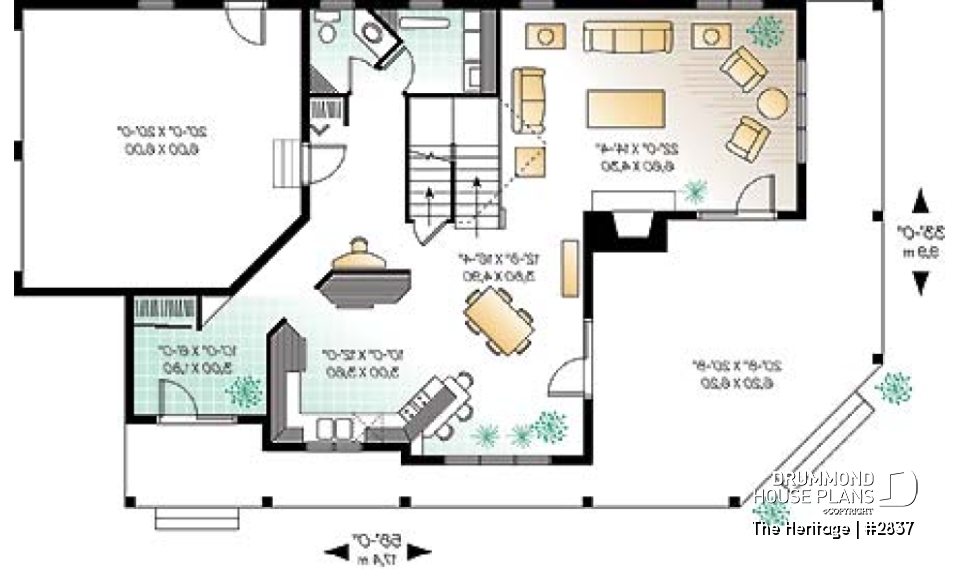

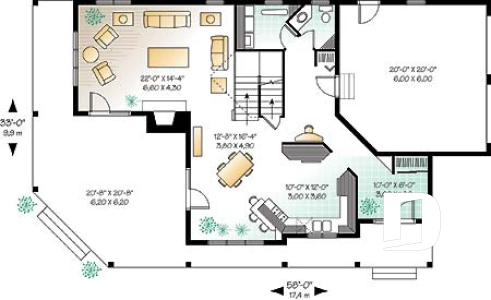

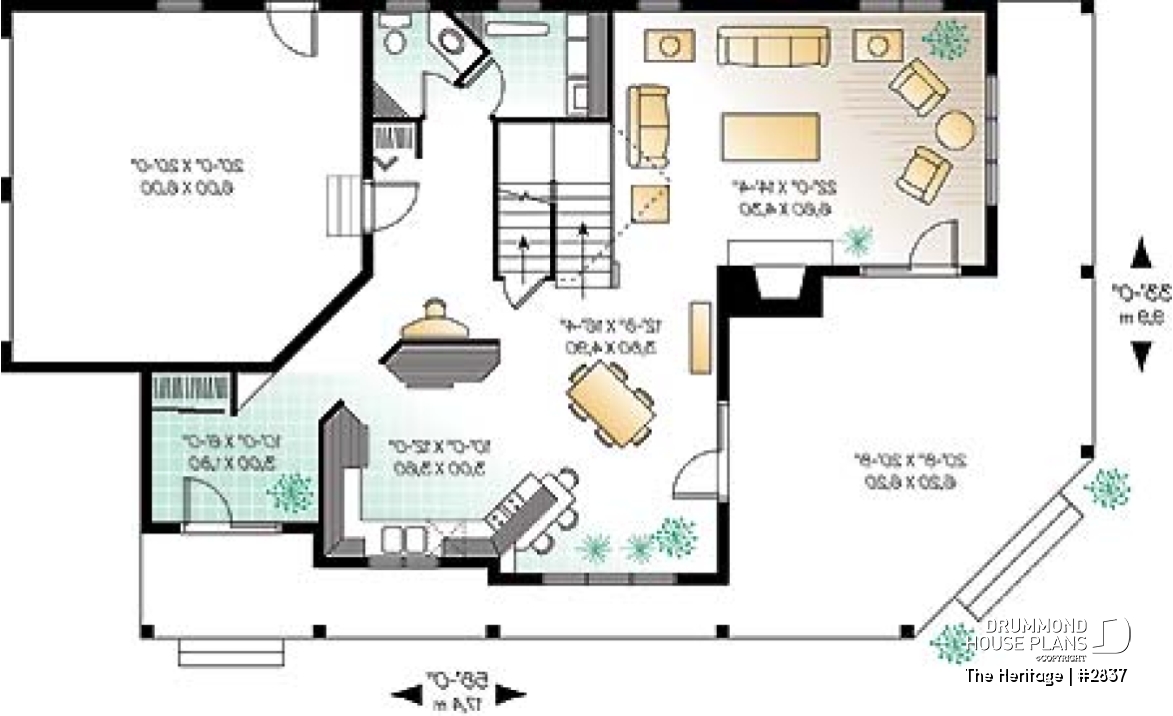

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 12'0" | ~ 9'0" |
| Dining room | 12'8" x 16'4" | ~ 9'0" |
| Living room | 22'0" x 14'4" | ~ 9'0" |
| Foyer | 10'0" x 6'0" | ~ 9'0" |
| Utility room | 6'10" x 6'0" | ~ 9'0" |
| Garage | 20'0" x 20'0" | ~ 9'0" |
| Closet | 2'4" x 2'0" | ~ 9'0" |
| Porch | 20'8" x 20'8" | N/A |
| Deck | 15'0" x 15'0" | N/A |
| Half bath or powder room | 6'5" x 6'0" | ~ 9'0" |

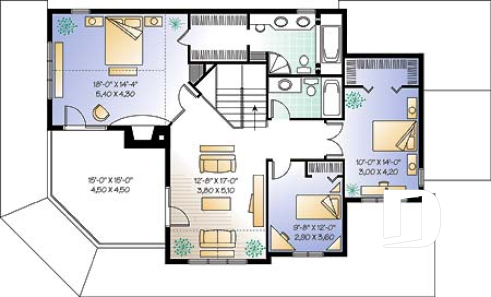

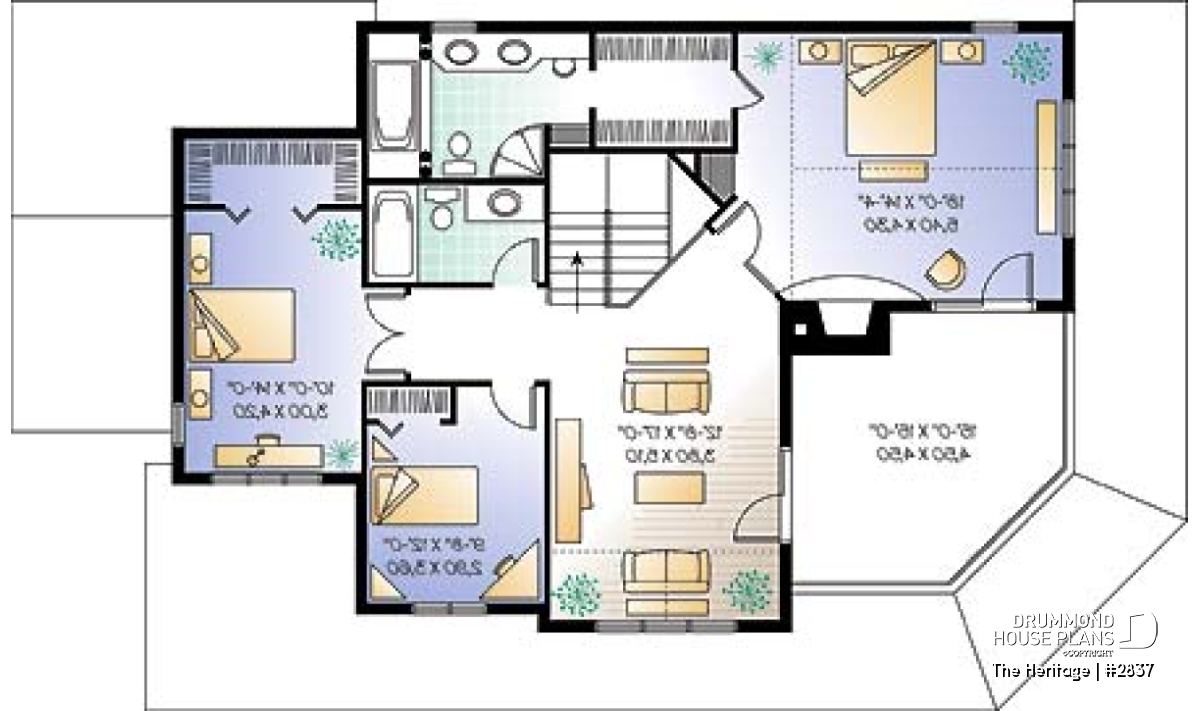

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'4" x 5'0" | ~ 8'0" |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Bedroom | 9'8" x 12'0" | ~ 8'0" |
| Reading/computer area | 12'8" x 17'0" | ~ 8'0" |
| Master suite | 18'0" x 14'4" | ~ 8'0" |
General specifications
| Total living area | 2350 sq.ft. |
| 1st level | 1107 sq.ft. |
| 2nd level | 1243 sq.ft. |
| Width | 58'0" |
| Depth | 33'0" |
| Ridge height from top of foundation | 33'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications

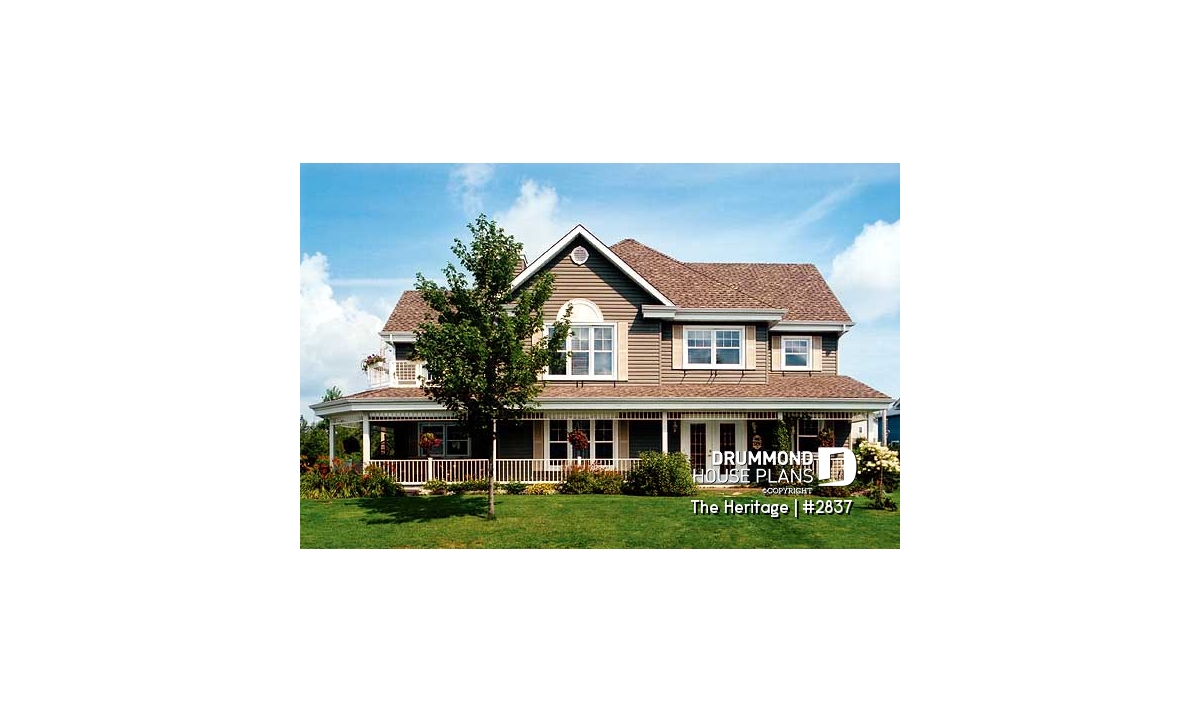

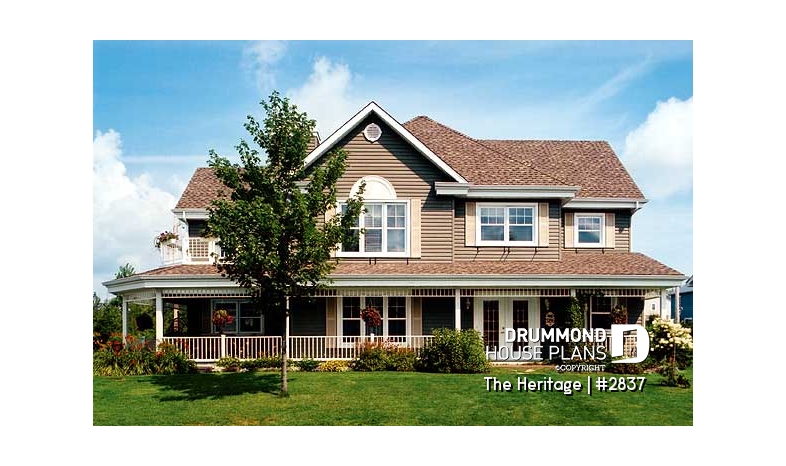

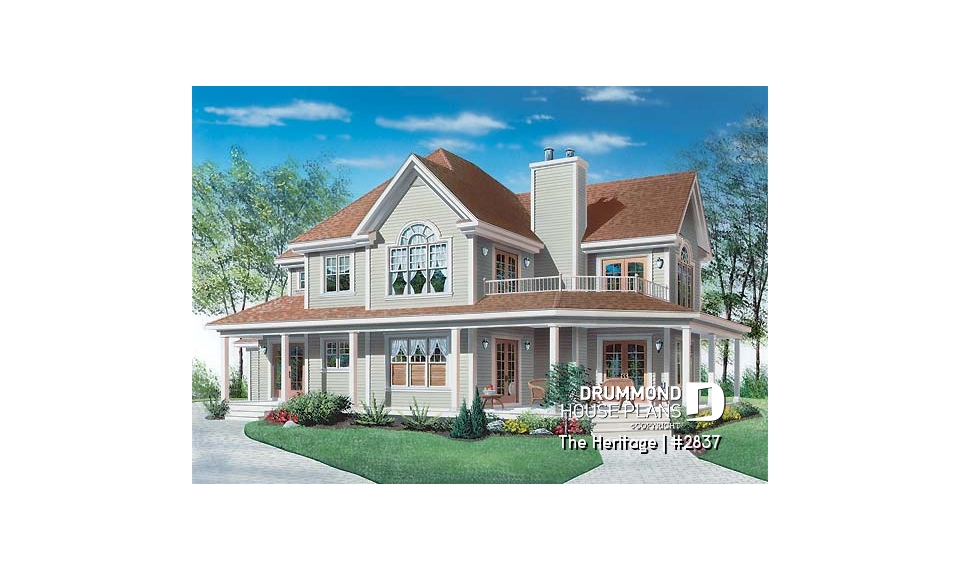

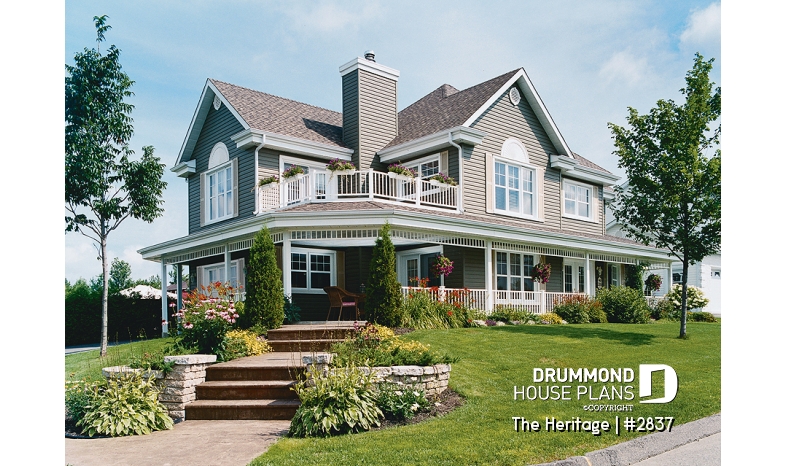

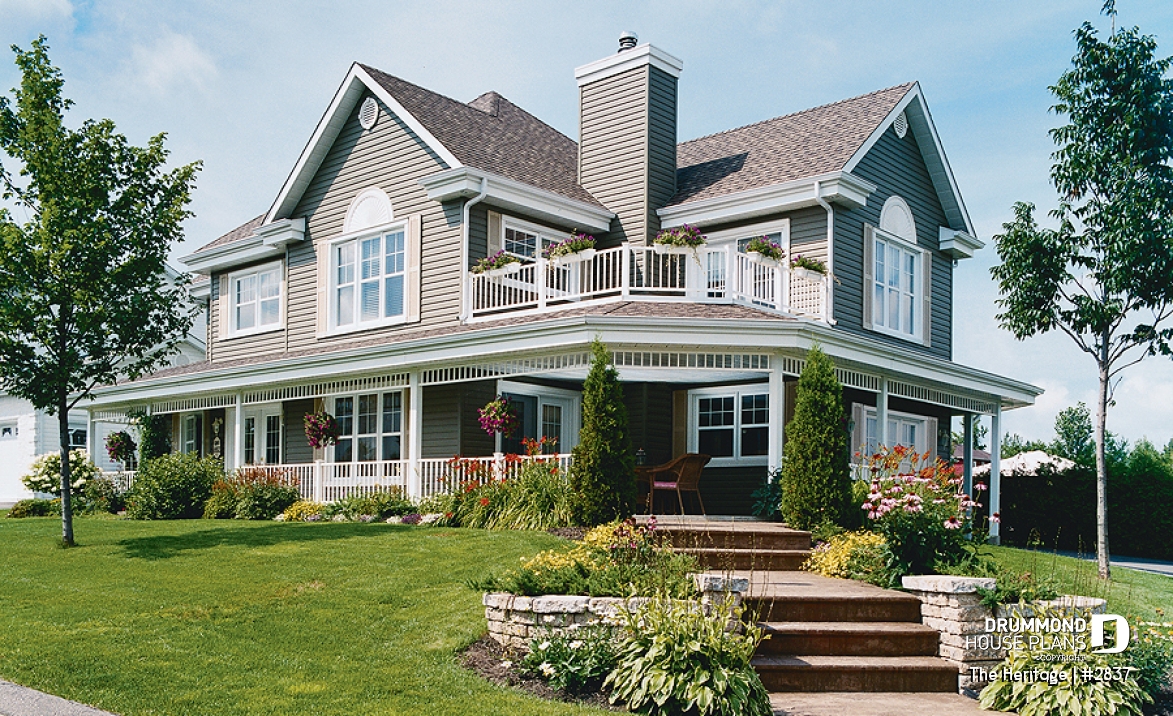

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

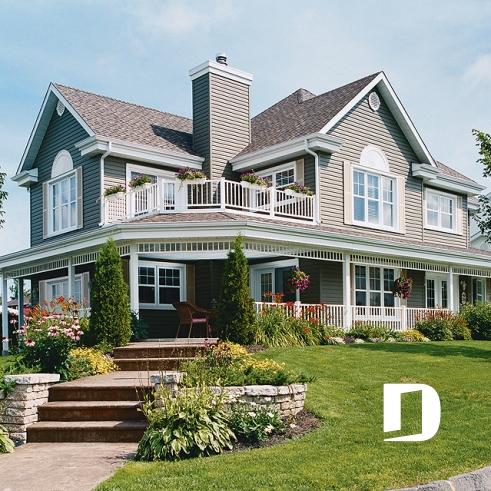

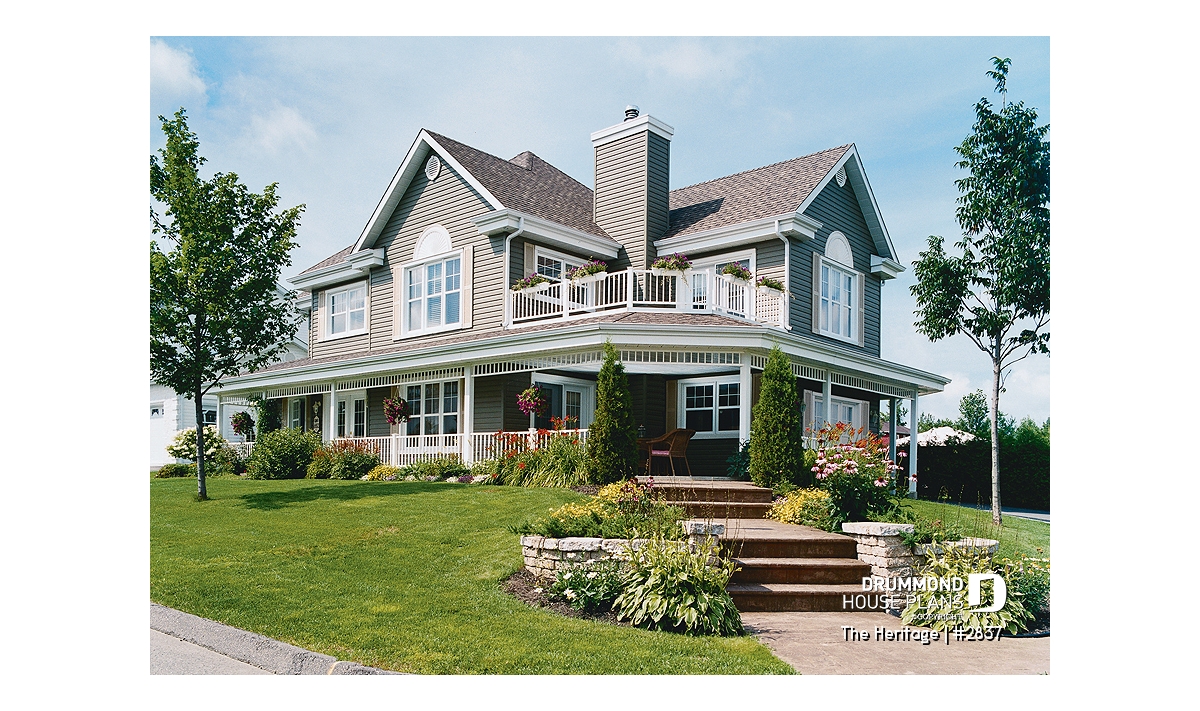

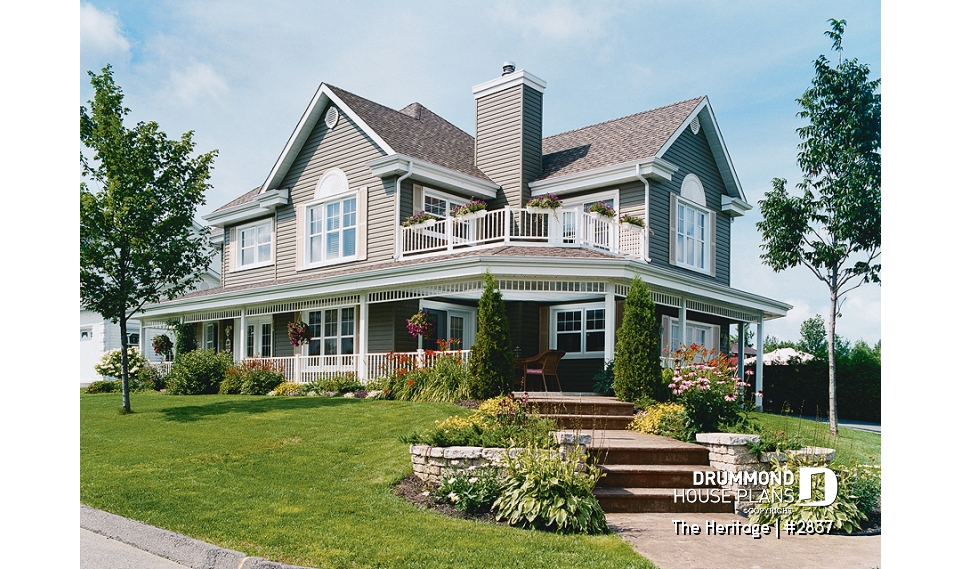

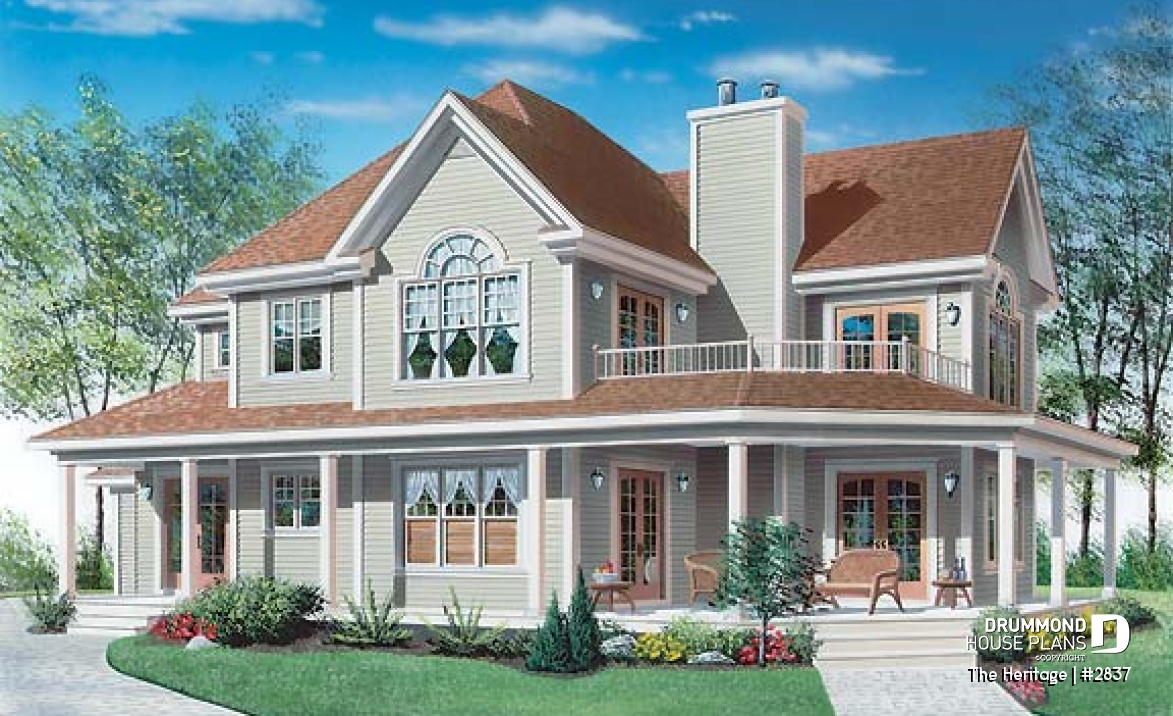

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
A stunningly timeless 3 to 4 bedroom home and its terraces!
Classic design is often timeless, as is this design, whose subsequent models make a statement that remains popular throughout the years.
Perhaps it is because of the distinctive look, enhanced by balconies and terraces or it may be because of the perfect balance between the spaces and the elegant chimney on the outside and in the flow throughout the large, well organized interior spaces.
The 9’ ceiling height of the main floor accents the large, abundantly fenestrated family room with its cozy fireplace. Both the family room, whose fireplace adds coziness, and the dining room open onto the covered terrace on the main level. The master bedroom upstairs has own access to the upstairs terrace and a fireplace as well as a private bathroom, with separate bath and corner shower, which is accessible by the walk through closet.
Two more bedrooms, one with a walk-in closet, and a second family room on this level, that could be converted to another bedroom or a home office if required to adapt this plan to the owners needs, complete the upstairs.
Timeless elegance is yours to discover...
Distinctive elements
Affordable 3 to 4 bedroom lakefront or country home with covered wraparound porch.
9' ceiling on 1st level.
Family room and master suite with fireplace and access to a terrace.
Laundry and powder rooms on main floor.
Living room on 2nd level (or bedroom #4)
Large master suite.
Lateral double car garage.
Unfinished daylight basement. Many foundation options available.
Plan feature(s)
Fireplace, Gound floor laundry room, Lunch counter, Panoramic view, Side entry garage, Ceiling over 8', Master suite upstairs, Deck, Walk-in master bed., Balcony 2nd floor, Sitting area, Warparound, Separate bath and shower, Double sinks, Cathedral ceiling
Plan architectural style(s)
. Country, . Farmhouse, . Traditional, . Vacation and waterfront, . American, . Cottage, chalet, cabin, . Cape Cod
Similar plans
Previously Viewed Plans
Questions and comments
November 16
Larry
How does the upstairs porch drain?
November 16
Customer service
Hi Larry and great question! Actually, there is a drain directly on the terrace so no water accumulates.
Hope this helps and feel free to contact me directly or via the question/comment section if you have any further questions.
Have a great day!
Jessica
[email protected]
September 18
ronda coates
Hi do you have this floor plan for about 2100 sq'? I thought I sas it but can't find it?
September 18
Customer service
Good day Ms. Coates and thank you for your interest in this plan.
Although we don't seem to have a plan with all of the features that this one offers in a 2,100 sq. ft. version we would be happy to return a free estimate for any changes that you require within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
September 09
Lindsey Owens
Hi, we have bought this floor plan. Are the ceilings upstairs vaulted? Which ceilings throughout are vaulted?
September 09
Customer service
Good day and thank you for choosing Drummond House Plans
The master bedroom is vaulted at a maximum height of 11'10'' and its lowest height is 8'
The sitting room is partially vaulted at a distance of about 4' in from of the window, the maximum height is 11'5'' and the lowest is 8'
In bedroom 2 the closet's maximum height 8' and the knee wall is 4'4''
Please let me know if you have any other questions or comments.
Regards
Deb
September 19
Frank Zepf
Approximately - how much is this house to build --including the foundation.
Thanks!
fjjz
September 20
Customer service
Dear Mr Zepf,
Thank you for your interest in Drummond House Plans.
We do not have building costs for your state. We are located in Canada and the only prices we have are provincial averages for the province of Quebec.
Local builders should be able to provide a price per square foot.
Please contact us again if you need further information about this plan.
Best Regards,
Doreen, Customer Service Department
August 26
AHMED RAMES
if i want to build this model neither in wood nor steel, but in concrete and bricks, shall the structural design be available to purchase ?
thanks.
August 26
Customer service
Dear Mr Rames,
Thank you for your interest in Drummond House Plans.
The plan will be available for purchase but take note that it will have to be modified. To get a free cost estimate for the modifications, you can visit the "Plan modification services" section of our website and fill out the checklist. Our estimator will provide you with the cost estimate within 2-3 business days of receipt of the checklist.
Please contact us again if you need further information. We will gladly answer any questions you may have.
Best Regards,
Customer Service Department
