House plan Mt. Meridian 1 (3804)
3 bedroom waterfront cottage house plan with wraparound porch, large master suite, breakfast nook
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'8" x 16'4" | ~ 9'0" |
| Dining room | 13'0" x 15'0" | ~ 9'0" |
| Living room | 13'0" x 15'0" | ~ 9'0" |
| Great room or Family room | 12'4" x 14'8" | ~ 9'0" |
| Foyer | 11'8" x 7'0" | ~ 9'0" |
| Utility room | 11'0" x 8'8" | ~ 9'0" |
| Garage | 20'4" x 21'4" | ~ 10'10" |
| Porch | 18'4" x 20'0" | N/A |
| Porch | 31'0" x 5'0" | N/A |
| Porch | 5'0" x 16'4" | N/A |
| Half bath or powder room | 6'6" x 5'8" | ~ 9'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 6'9" x 6'2" | ~ 8'0" |
| Bedroom | 12'4" x 13'4" | ~ 8'0" |
| Bedroom | 11'0" x 10'10" | ~ 8'0" |
| Living bonus room | 12'0" x 14'6" | ~ 8'0" |
| Linen | 4'4" x 1'10" | ~ 8'0" |
| Balcony | 12'6" x 14'2" | N/A |
| Master suite | 16'0" x 15'0" | ~ 8'0" |
| Den | 11'8" x 9'8" | N/A |
General specifications
| Total living area | 2687 sq.ft. |
| 1st level | 1297 sq.ft. |
| 2nd level | 1390 sq.ft. |
| Width | 60'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 33'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Finaliste Qualité Habitation 2013

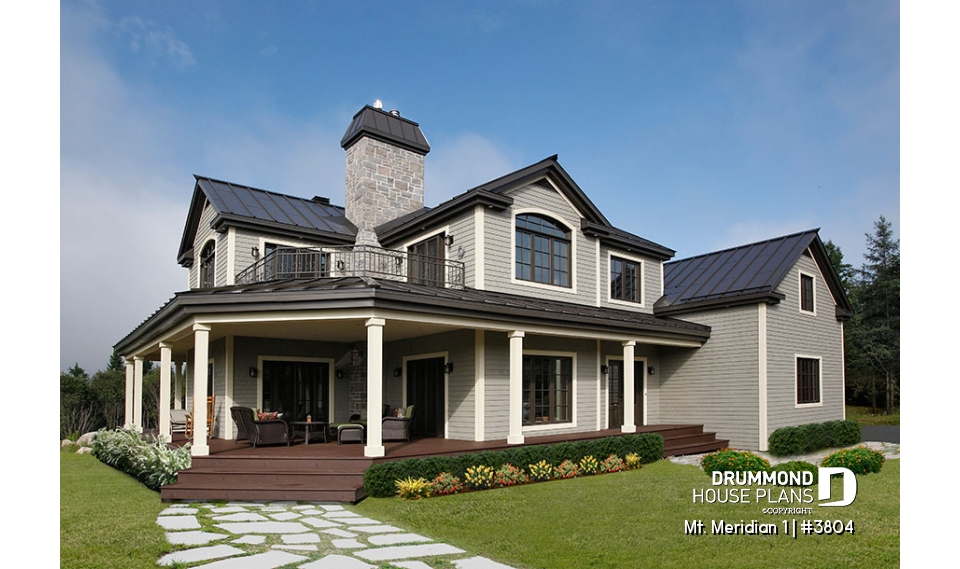

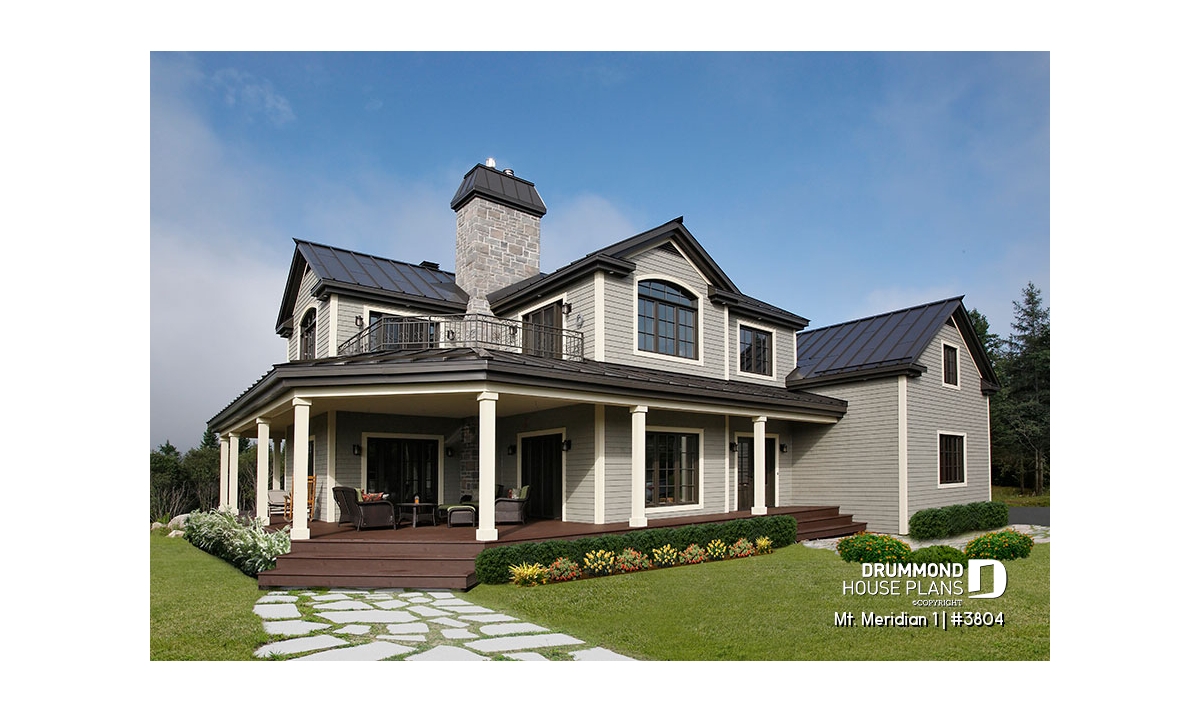

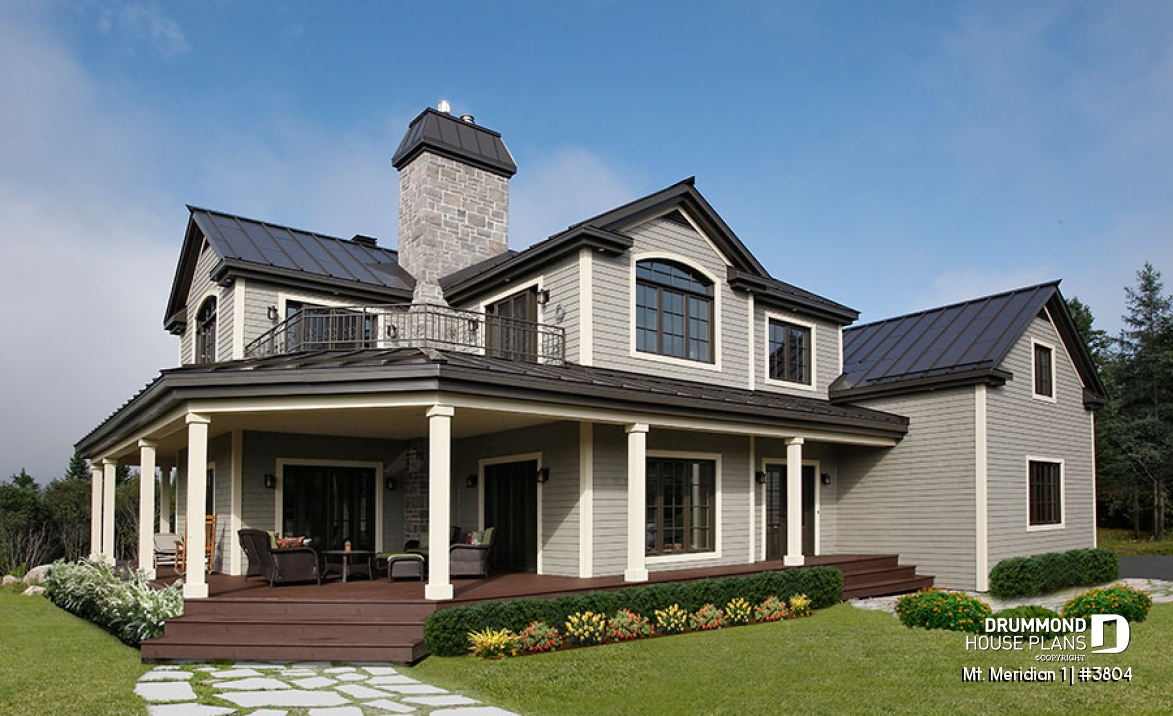

Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Beautiful and large 3 bedrooms country house plan with bonus room and great wraparound porch
Designed from popular model 2837 and aiming at proposing a different interior from the latter, this model suggests an exterior with dark covering and white mouldings, giving it some character. We do however take care in conserving for this one the assets of the original model, such as the discreet double garage, the double chimney conduits whose slender look contributes to the house’s cachet and those sheltered and non-sheltered terraces found at the main and upper levels.
Inside we attribute even more comfort to the activities center with the kitchen at the rear and a voluminous bay window area with space enough for a breakfast area and access to the gallery, while the dining and living rooms are grouped together around a well centered fireplace. We obtain a second family room or playroom by replacing the initial dining room (in model 2837) and we improved the format of the laundry room and the main entrance foyer.
On the upper level, we still find 3 bedrooms with the possibility of a fourth, two accesses to an open-sky terrace, of which one is for the superb master suite who amazes us by its format, by the presence of a fireplace and a large walk-in closet, and above all by a most comfortable private bathroom, without forgetting access to a bonus space above the garage. Discover many similar plans on http://www.drummonddesigns.com/
Distinctive elements
Ideal lakefront house design with wraparound covered porch.
Abundant windowing,
9 foot ceiling on first floor,
Large dining / living room with fireplace.
Breakfast nook.
Laundry and powder room on main floor.
Large master suite with private walk-in and bathroom, and acces to a balcony.
2 to 3 secondary bedrooms share a shower room.
Two-car garage with access door to the house, near kitchen.
Unfinished daylight basement. Many foundation options available with this home.
Plan feature(s)
Fireplace, Side entry garage, Gound floor laundry room, Panoramic view, Ceiling over 8', Master suite upstairs, Deck, Walk-in master bed., Sitting area, Warparound, Mud room, Built-ins, Living bonus space, Sloped ceiling, Breakfast nook, Balcony 2nd floor, Separate bath and shower, Double sinks
Plan architectural style(s)
. Country, . Farmhouse, . Traditional, . Vacation and waterfront, . American, . Cottage, chalet, cabin, . Craftsman / Northwest
