View the size of the rooms and height of the ceilings

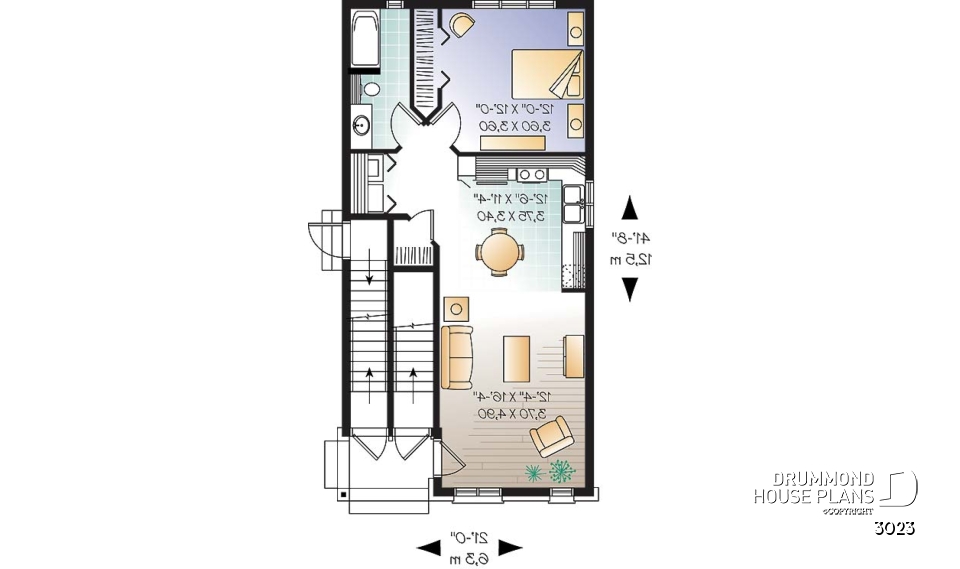

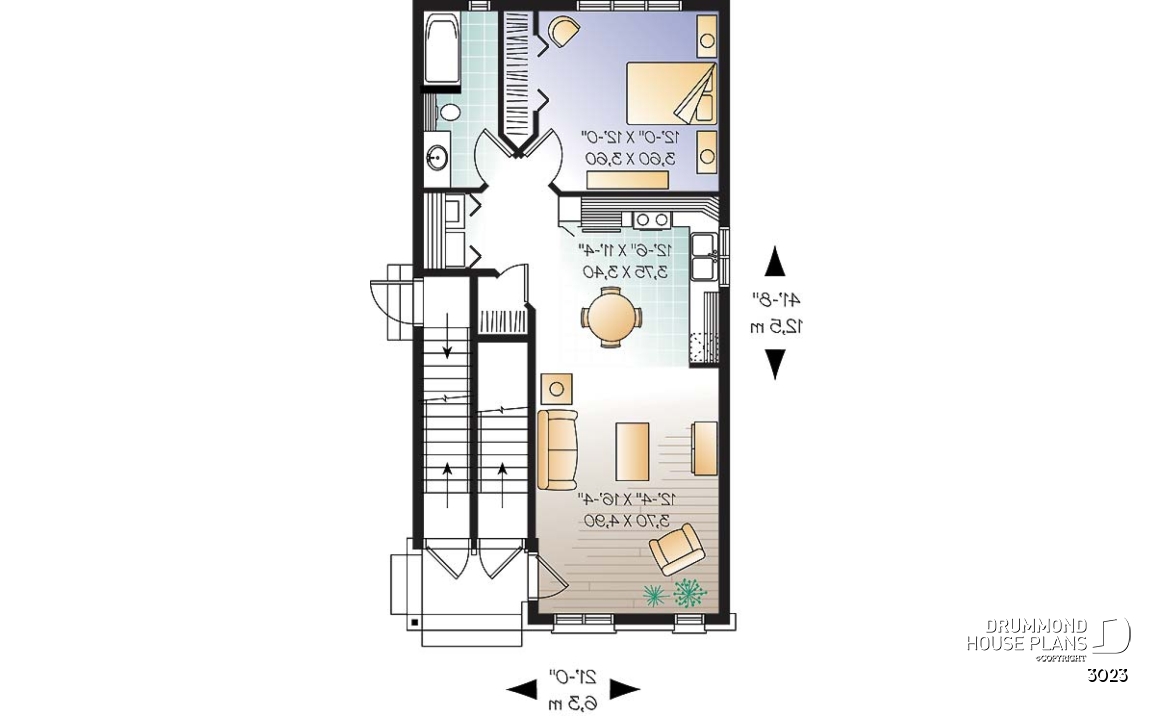

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 12'4" x 16'4" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Covered porch | 6'8" x 4'0" | N/A |
| Full bathroom | 5'0" x 11'9" | ~ 8'0" |
| Kitchen/dining room | 12'4" x 11'4" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Laundry room | 5'0" x 3'2" | ~ 8'0" |

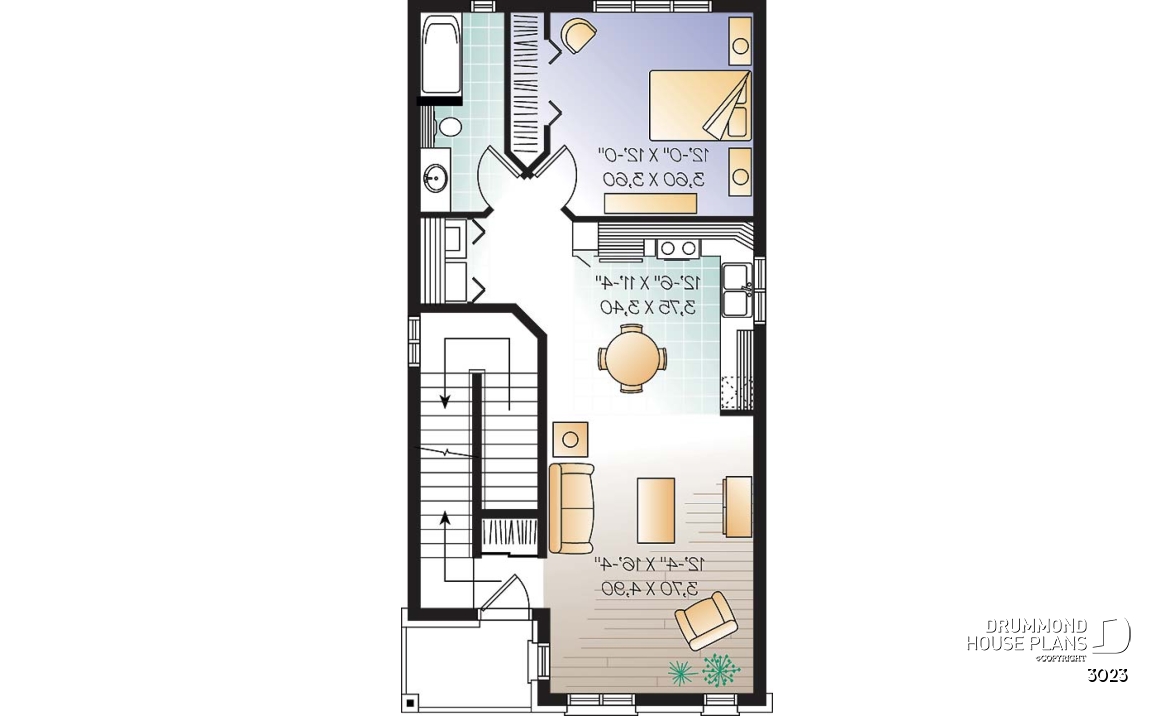

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 7'8" x 5'0" | N/A |
| Laundry room | 5'0" x 3'2" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Kitchen/dining room | 12'4" x 11'4" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Closet | 3'0" x 2'0" | ~ 8'0" |
| Full bathroom | 5'0" x 11'9" | ~ 8'0" |
| Living room | 12'4" x 16'4" | ~ 8'0" |

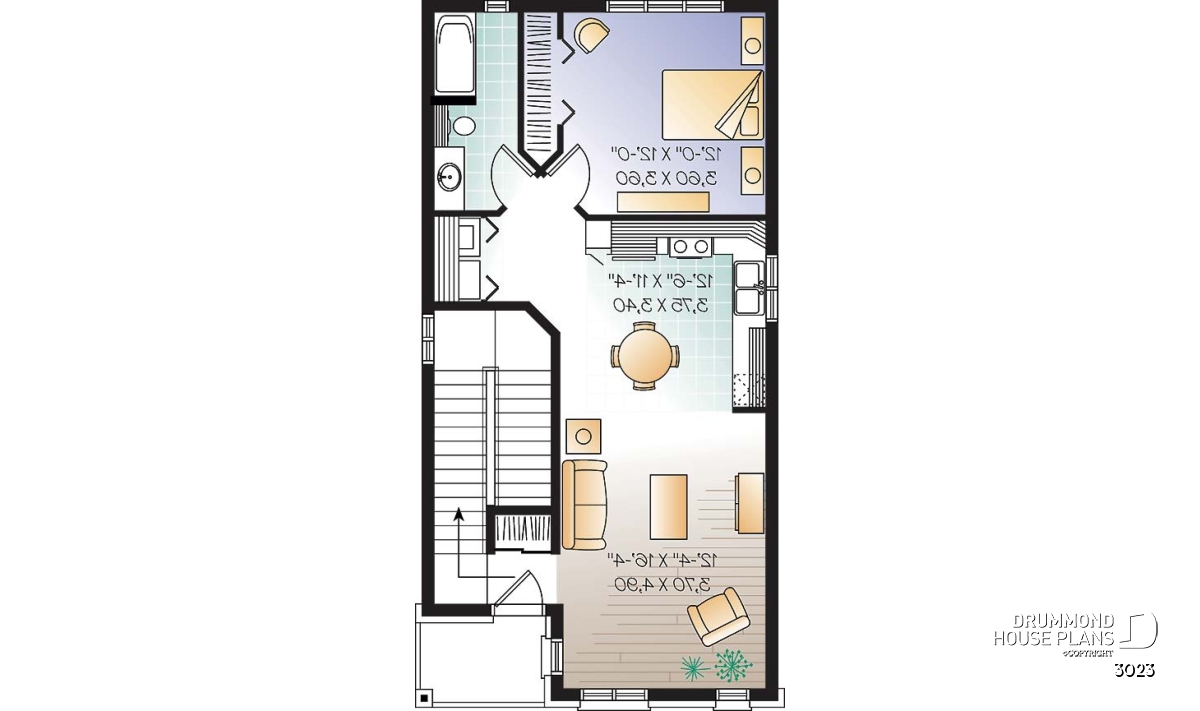

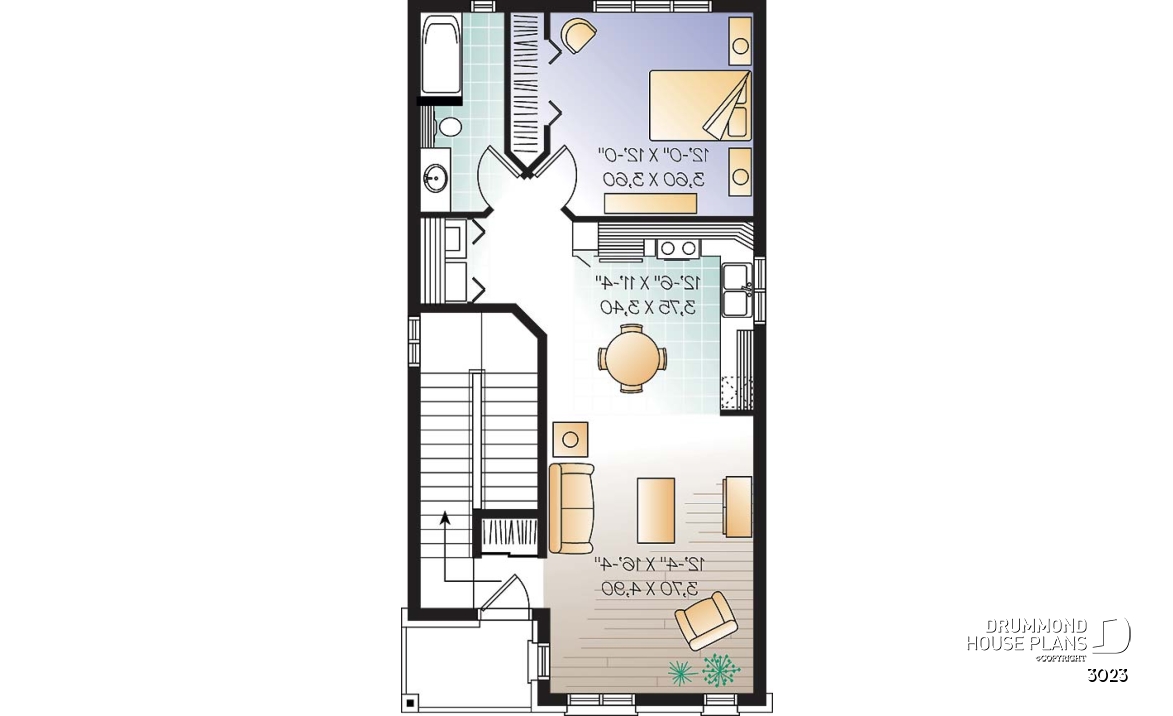

| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 5'0" x 3'2" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Kitchen/dining room | 12'4" x 11'4" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Closet | 3'0" x 2'0" | ~ 8'0" |
| Full bathroom | 5'0" x 11'9" | ~ 8'0" |
| Living room | 12'4" x 16'4" | ~ 8'0" |
| Balcony | 7'8" x 5'0" | N/A |
General specifications
| Total living area | 2517 sq.ft. |
| 1st level | 839 sq.ft. |
| 2nd level | 839 sq.ft. |
| 3rd level | 839 sq.ft. |
| Width | 21'8" |
| Depth | 41'8" |
| Ridge height from top of foundation | 40'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MC |
Rooms specifications
Units specifications
Other useful information on this plan
Distinctive elements
Cool Multi-Plex Plan
Unit 1: on ground level can be used as living space or can easily be converted into a business or professionnal office. Units 2 and 3 each have a balcony and abundant windowing.
Plan feature(s)
Plan architectural style(s)
. European, . Contemporary
