Carla (3258)
3 bedroom mediteranean with high ceilings and a covered terrace
Bedrooms
3
Bath(s)
2
Half B.
1
Living area
2388 sq.ft.

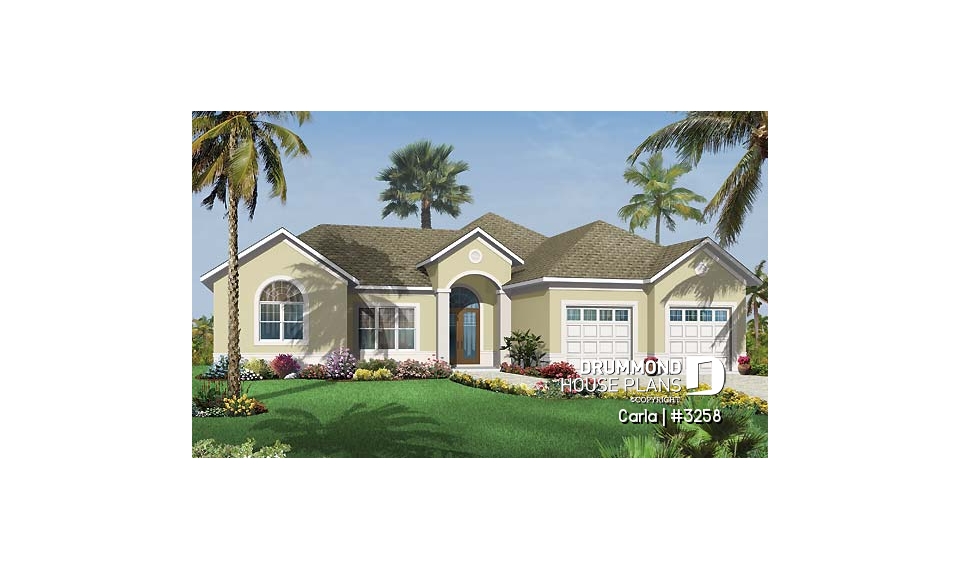

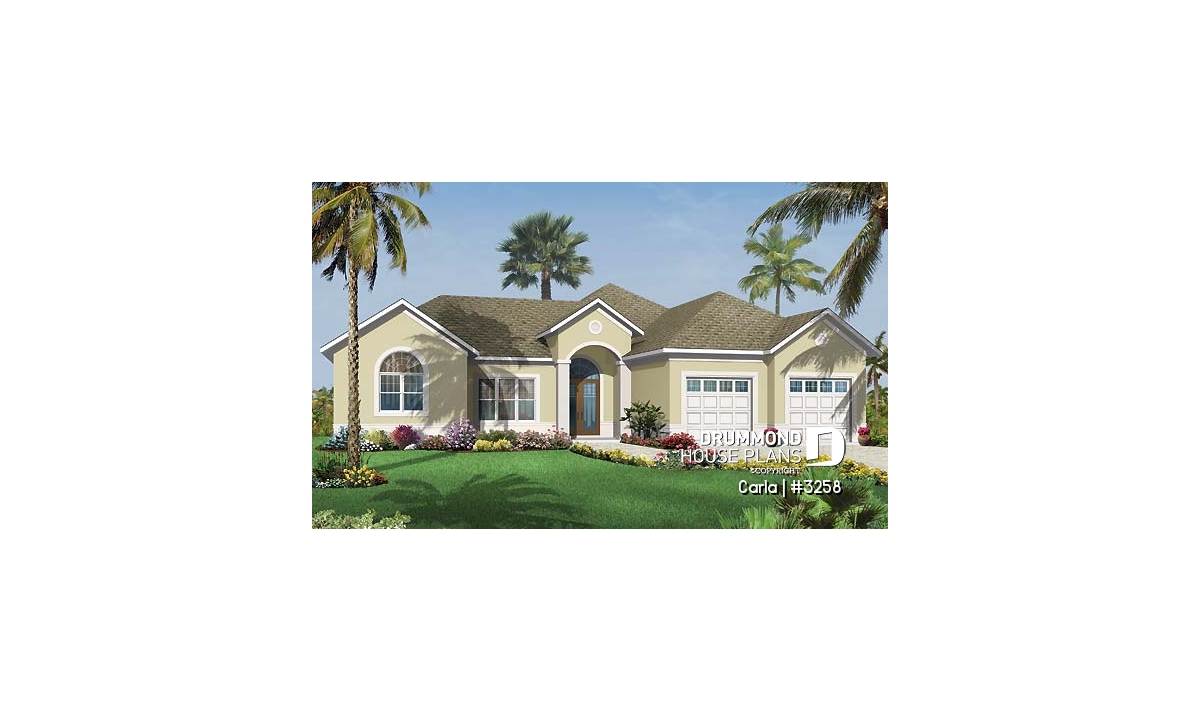

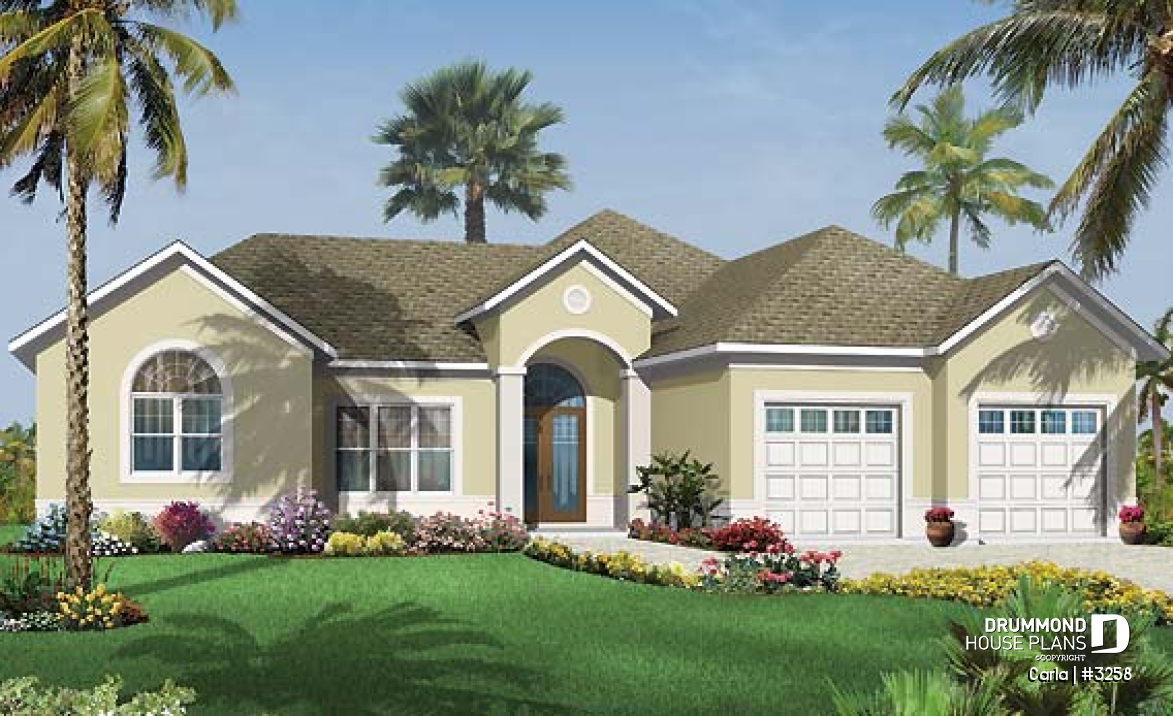

front - BASE MODEL

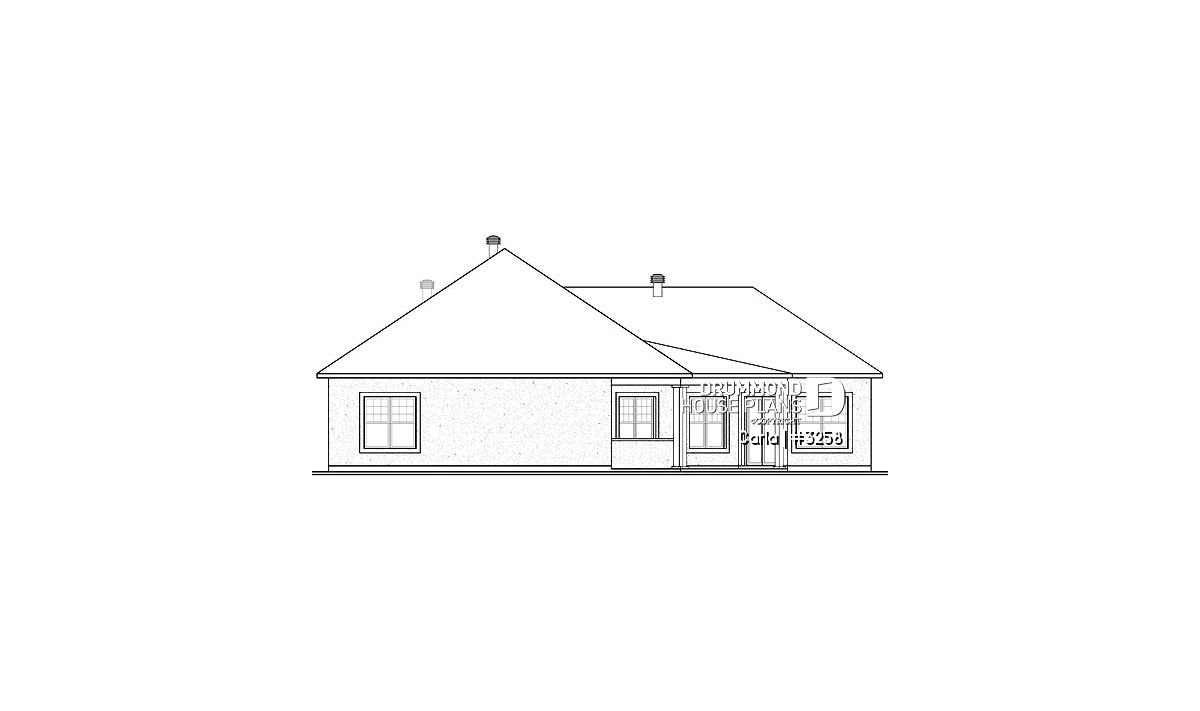

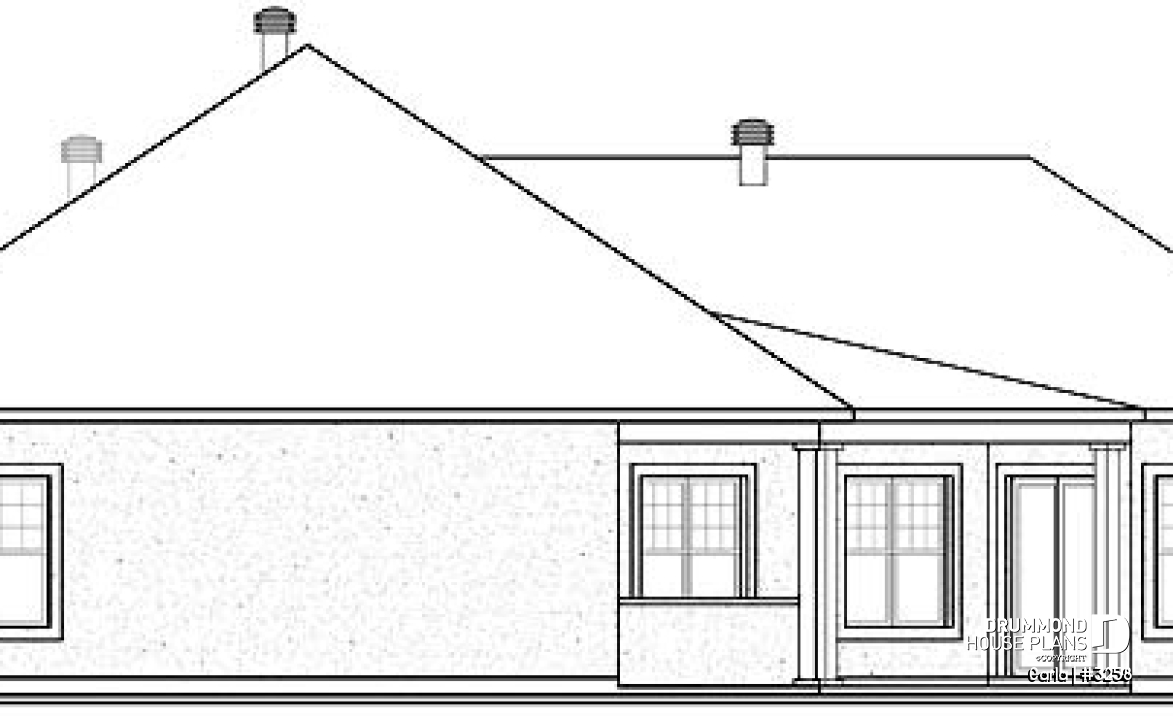

rear elevation
View by floor
-

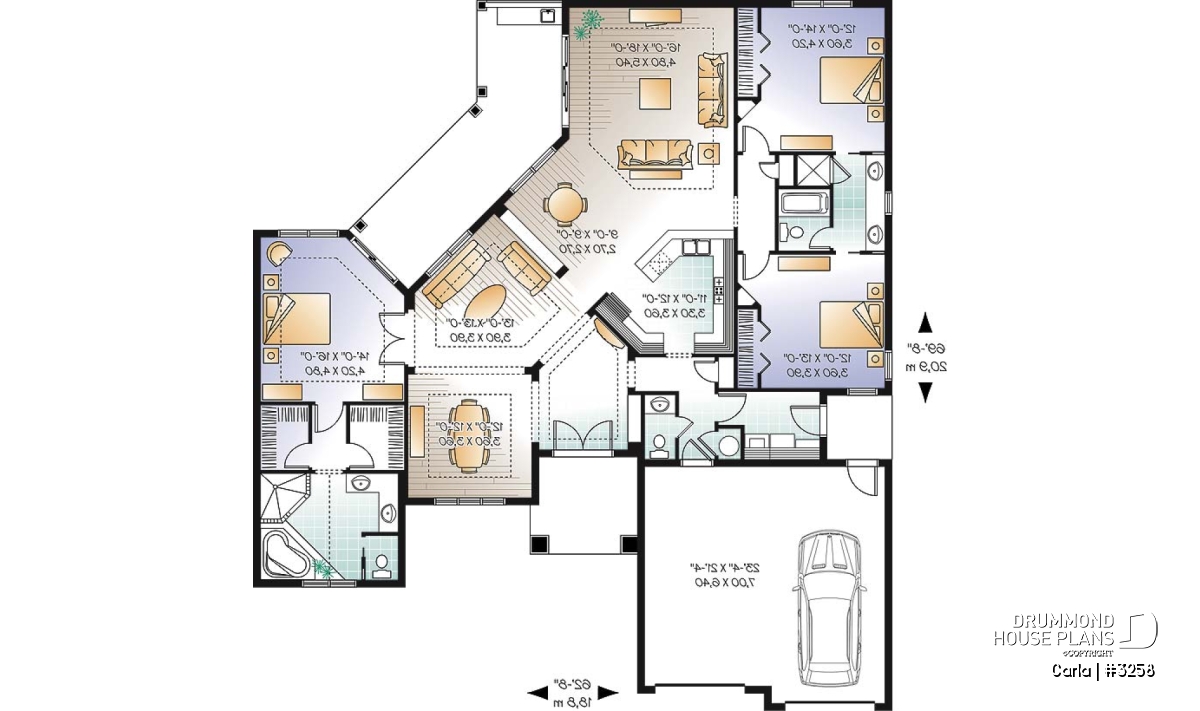

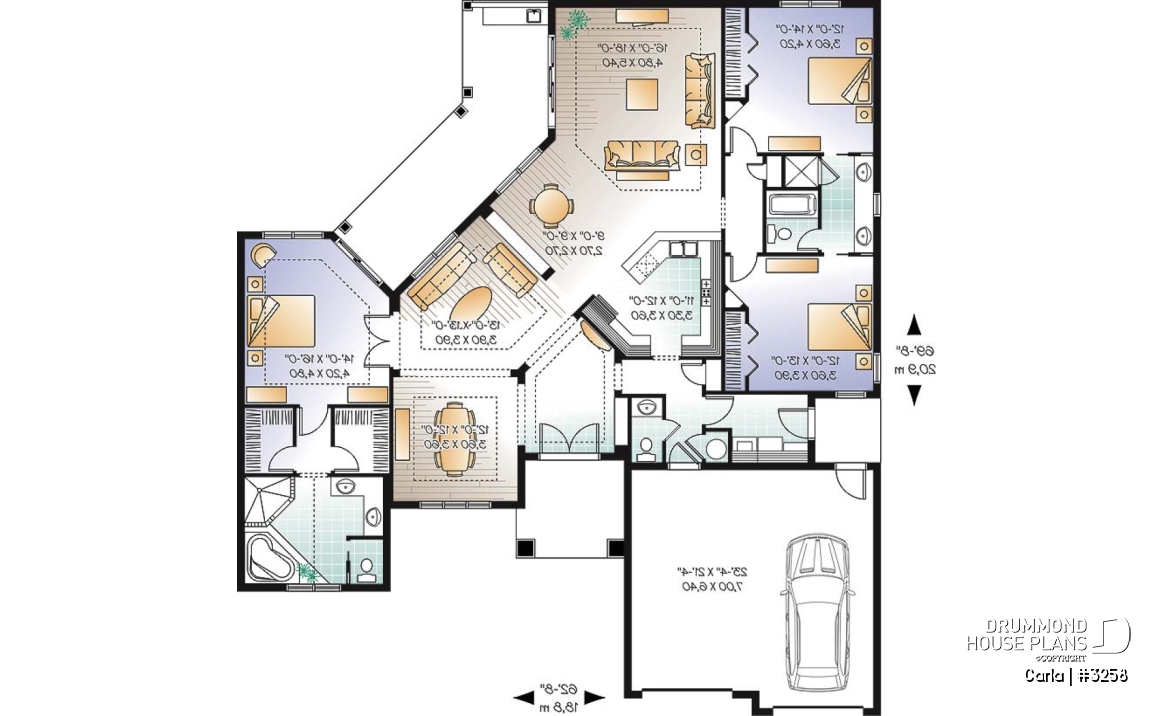

1st level
Buy this plan
From 1325$
View the size of the rooms and height of the ceilings
| 1st level | ||||
| Rooms | Sizes | Ceiling | ||
| Kitchen | 11'0" x 12'0" | ~ 10'0" | ||
| Dining room | 12'0" x 12'0" | ~ 11'4" | ||
| Living room | 13'0" x 13'0" | ~ 11'4" | ||
| Foyer | 8'8" x 13'2" | ~ 12'2" | ||
| Full bathroom | 10'4" x 9'4" | ~ 10'0" | ||
| Half bath or powder room | 3'0" x 6'4" | ~ 10'0" | ||
| Master suite | 14'0" x 16'0" | ~ 11'4" | ||
| Bedroom | 12'0" x 14'0" | ~ 10'0" | ||
| Bedroom | 12'0" x 13'0" | ~ 10'0" | ||
| Laundry room | 9'10" x 6'8" | ~ 10'0" | ||
| Linen | 1'6" x 3'0" | ~ 10'0" | ||
| Garage | 23'4" x 21'4" | ~ 10'0" | ||
| Porch | 9'0" x 9'0" | N/A | ||
| Porch | 8'0" x 19'0" | N/A | ||
| Porch | 8'0" x 10'8" | N/A | ||
| Porch | 6'4" x 5'8" | N/A | ||
| Dinette | 9'0" x 9'0" | ~ 10'0" | ||
| Great room or Family room | 16'0" x 18'0" | ~ 11'4" | ||
General specifications
| Total living area | 2388 sq.ft. |
| 1st level | 2388 sq.ft. |
| Width | 62'8" |
| Depth | 69'8" |
| Ridge height from top of foundation | 25'6" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Description
Ceiling at 10'. Entry, dining room, living room, master suite, kitchen, dinette, family room, two secondary bedrooms sharing a bathroom, half-bath, laundry room and double garage.
Other useful information on this plan
Distinctive elements
Ceiling at 11'-4`` at the entry, dining room, living room, master suite, kitchen, dinette and family room. Ceiling at 10' in the secondary bedrooms and the utility room. Cathedral ceiling in the master suite bathroom. Covered main entry as the rear patio totally covered and accessible from the master suite and the family room. The well-organized interior with different angles allows a minimum corridor space and enables more living space. Large dinette space that can be converted into a dining room and allowing this room to be converted into a home office or a game room.
Plan feature(s)
Cathedral ceiling, Formal dining room, Master suite on main, His/Hers walk-in, Separate bath and shower, Double sink vanity, Gound floor laundry room, Deck, Breakfast nook, Jack & Jill bath, Ceiling over 8'
Plan architectural style(s)
Questions and comments
April 21 2014
Glen Clark
Do you have any photos of finished rooms and can we make garage a three car garage?
April 21 2014
Customer service
Good day Mr. Clark and thank you for your interest in this plan.
Since we do no actual construction, we do not have any pictures of the finished homes other that those which our clients have so generously shared with us.
Unfortunately, there are none on file for this home at the present time and I will therefore be unable to forward any for the moment but we do post them to our site upon receipt.
We can, however, modify this plan to enlarge the garage and would be happy to send you a free estimate for the changes within two business days after receipt of this on line request.
Please let me know if you have any other questions or comments.
Regards
Deb
