House plan Morgan (3863)
3 bedroom European house plan with sunken living room, fireplace and garage
View the size of the rooms and height of the ceilings

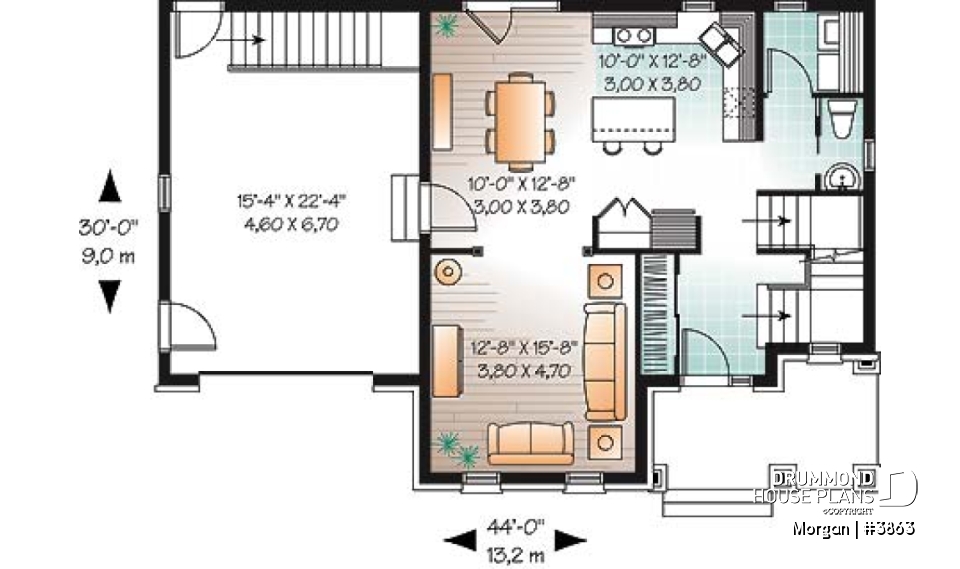

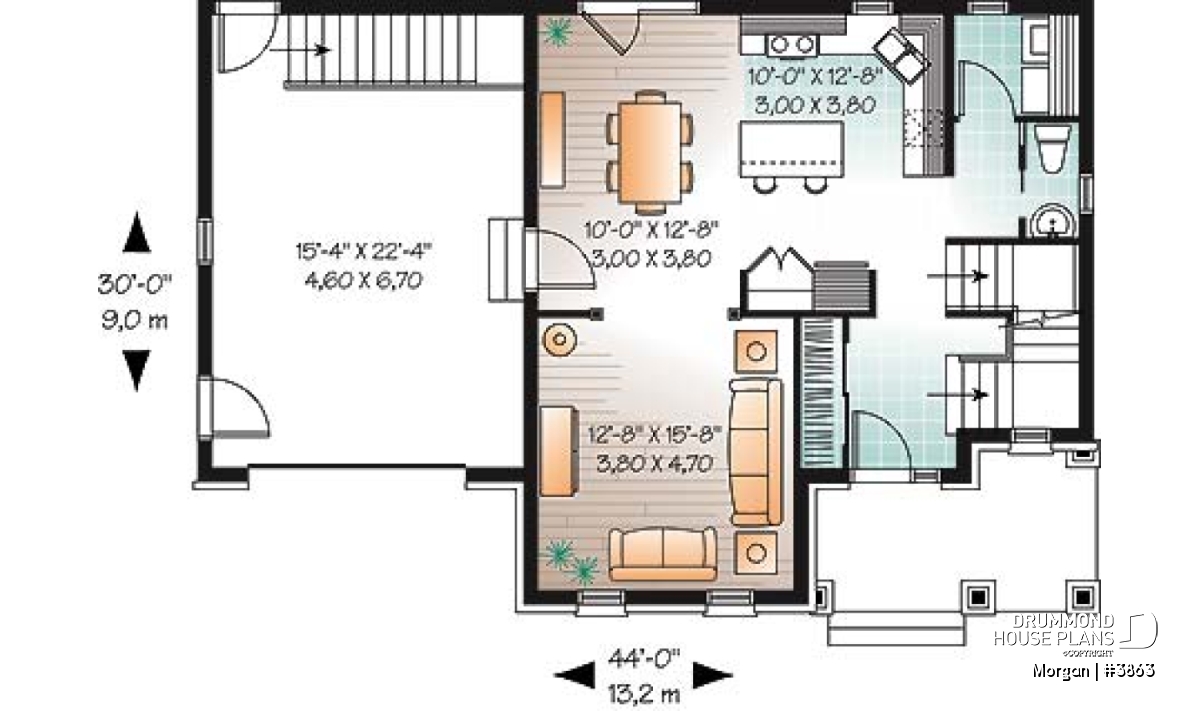

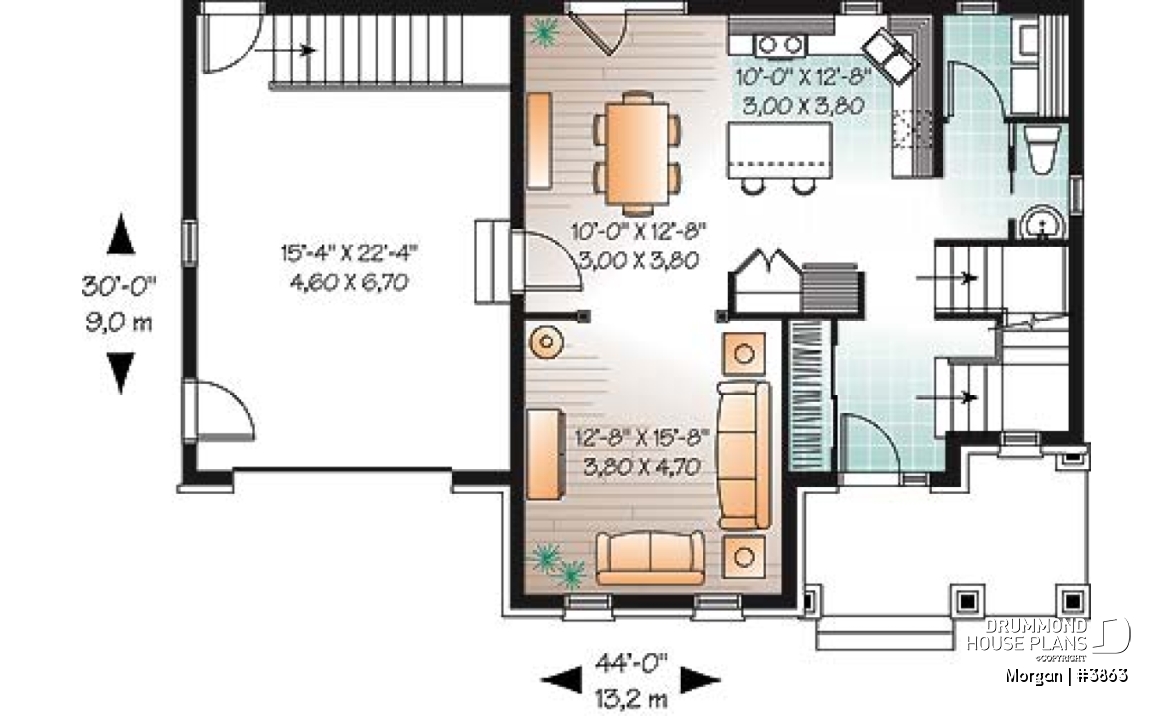

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 12'8" | ~ 8'0" |
| Dining room | 10'0" x 12'8" | ~ 8'0" |
| Living room | 12'8" x 13'5" | ~ 8'0" |
| Foyer | 5'4" x 7'5" | ~ 8'0" |
| Half bath or powder room | 2'8" x 5'8" | ~ 8'0" |
| Garage | 15'4" x 22'4" | ~ 9'8" |
| Utility room | 6'2" x 5'0" | ~ 8'0" |
| Porch | 13'10" x 6'0" | N/A |

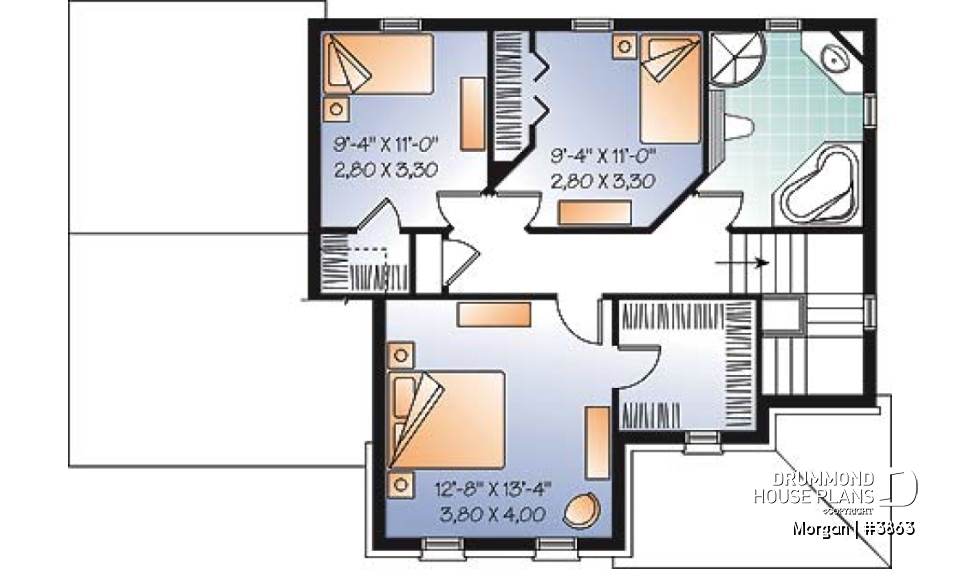

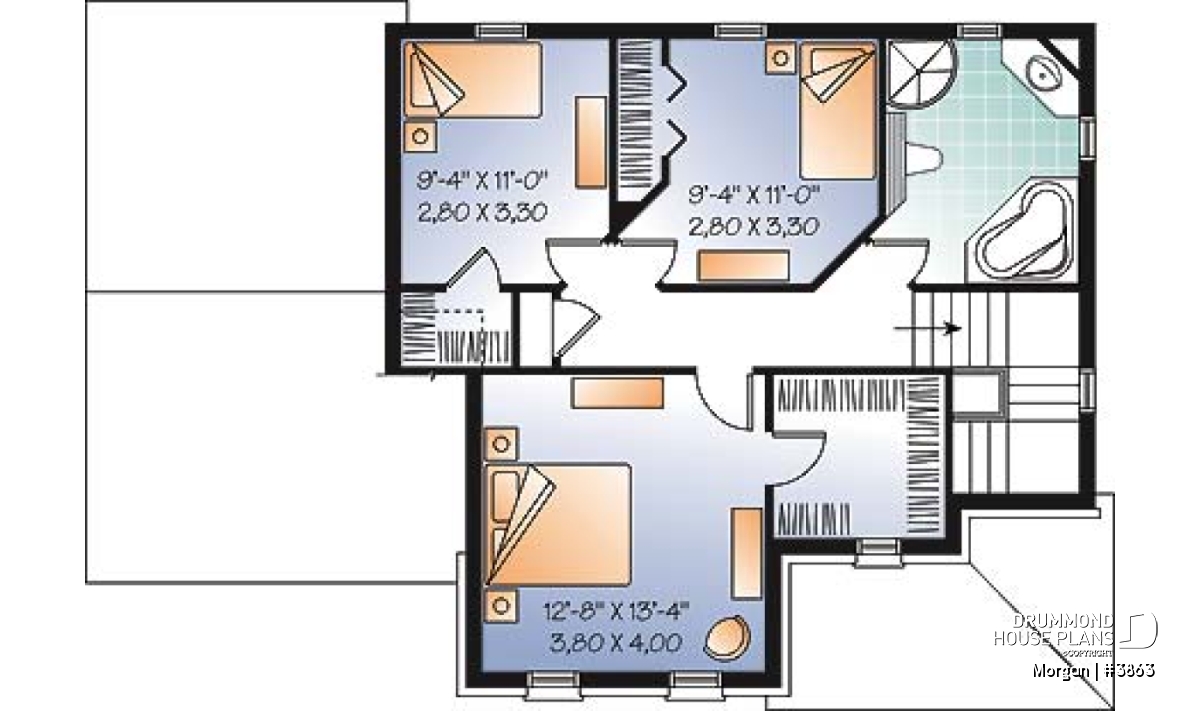

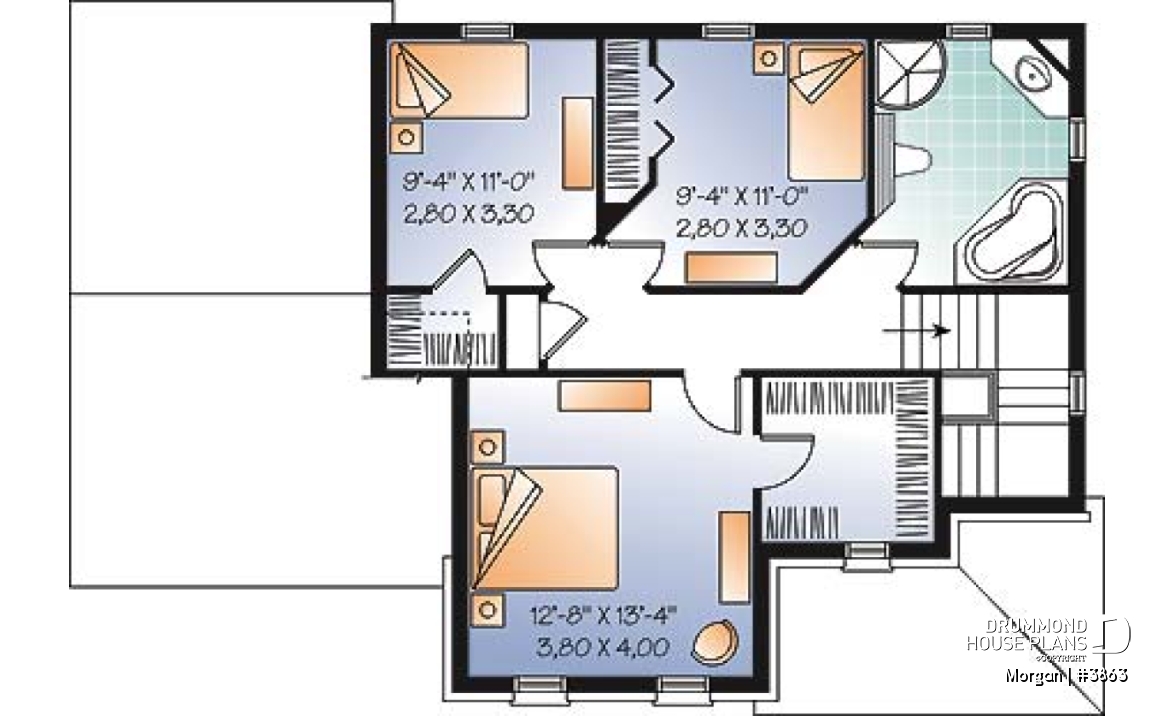

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 11'0" | ~ 8'0" |
| Bedroom | 12'8" x 13'4" | ~ 8'0" |
| Bedroom | 9'4" x 11'0" | ~ 8'0" |
| Bedroom | 9'4" x 11'0" | ~ 8'0" |
| Storage | 1'6" x 3'4" | ~ 8'0" |
General specifications
| Total living area | 1552 sq.ft. |
| 1st level | 749 sq.ft. |
| 2nd level | 803 sq.ft. |
| Width | 44'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 29'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Distinctive elements
Covered front porch. Remarquable entrance. Large walk-in closet in master bedroom. Access to basement from garage.
Plan feature(s)
Island, Gound floor laundry room, Walk-in master bed., Basement access from garage, Separate bath and shower
Plan architectural style(s)
. Country, . European, . Modern rustic, . Craftsman / Northwest, . Traditional, . English, French Country
