Kiludy (2455)

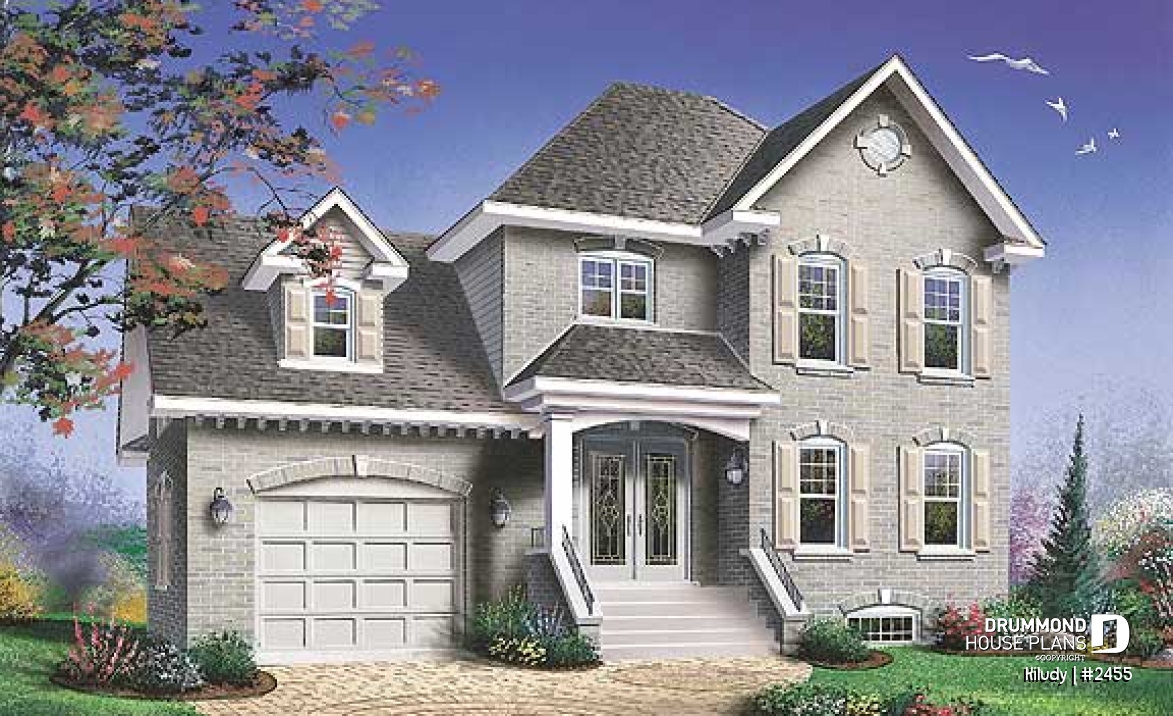

European inspired cottage with large flex room above garage, walk-in in master bedroom, large family bathroom
View the size of the rooms and height of the ceilings

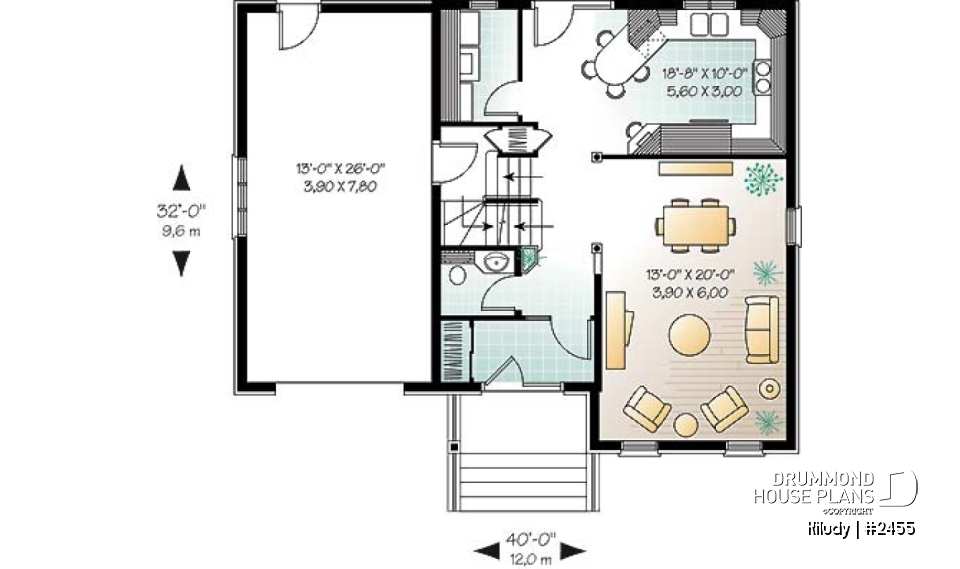

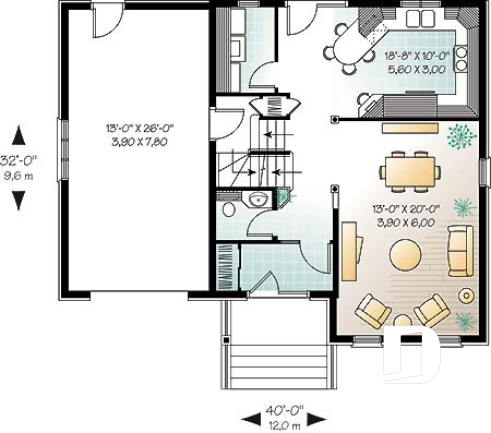

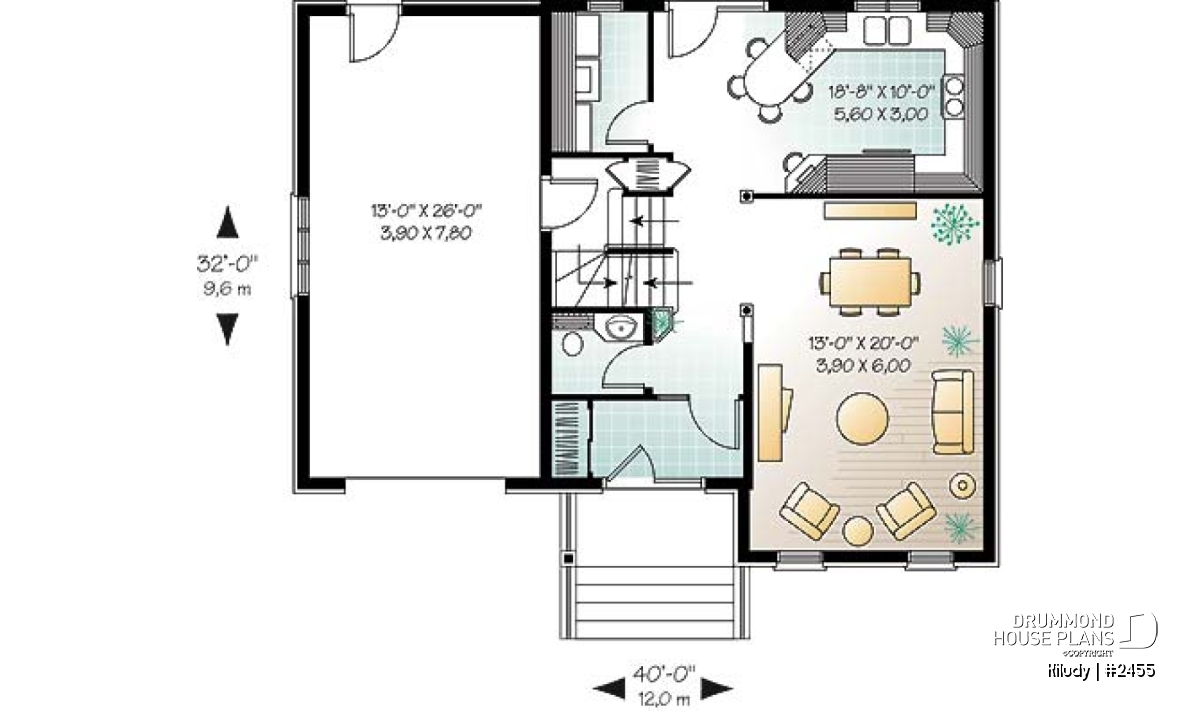

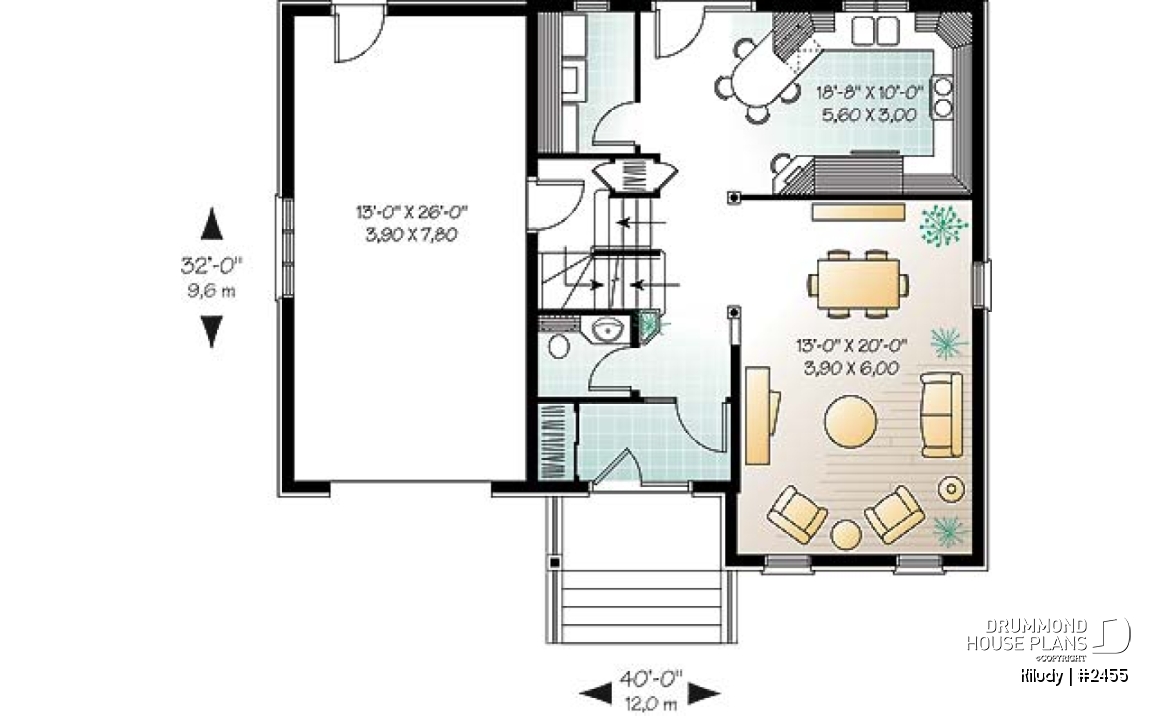

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 18'8" x 10'0" | ~ 8'0" |
| Pantry | 2'3" x 2'0" | N/A |
| Living room/dining room | 13'0" x 20'0" | ~ 8'0" |
| Foyer | 8'6" x 4'4" | ~ 8'0" |
| Garage | 13'0" x 26'0" | ~ 8'8" |
| Covered porch | 9'0" x 4'0" | N/A |
| Deck | 8'0" x 6'0" | N/A |
| Half bath or powder room | 5'2" x 4'8" | ~ 8'0" |
| Storage | 2'2" x 1'10" | ~ 8'0" |
| Laundry room | 5'0" x 7'10" | ~ 8'0" |

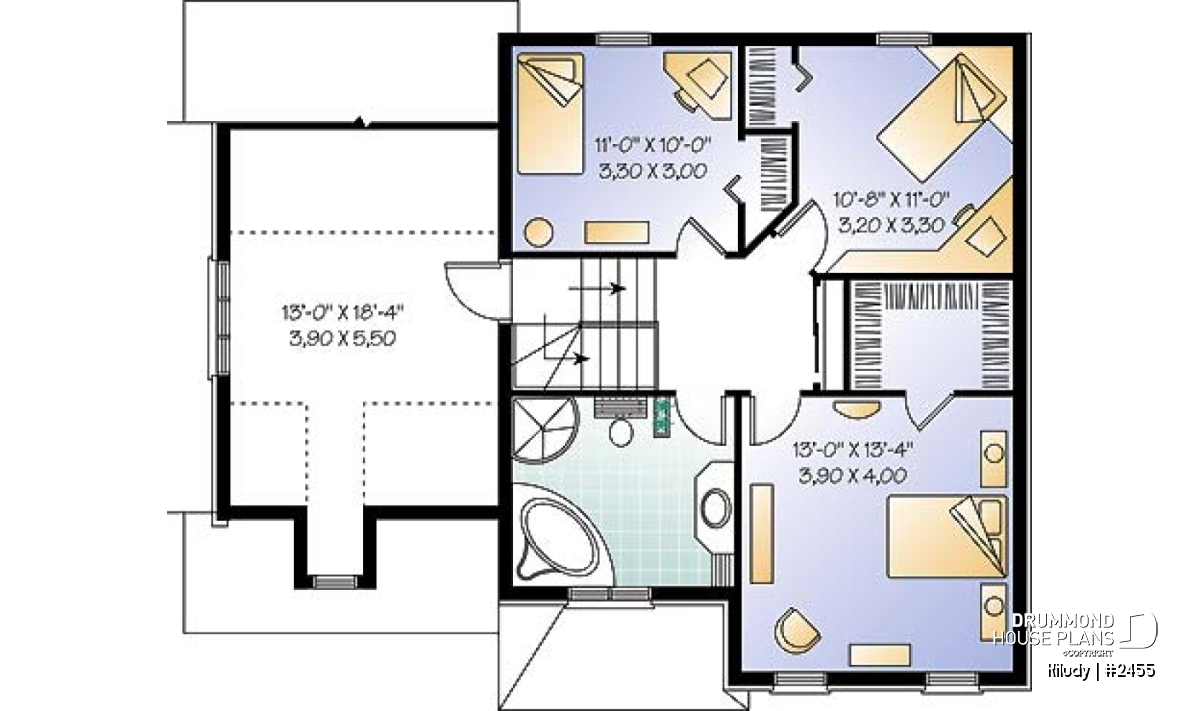

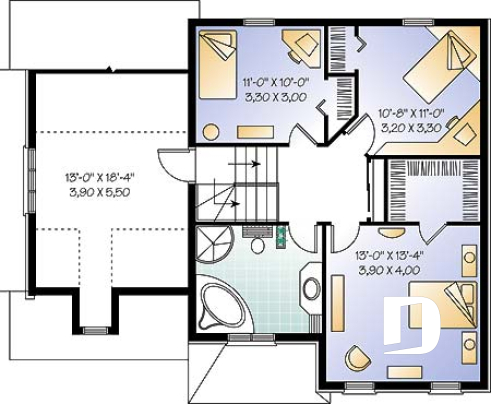

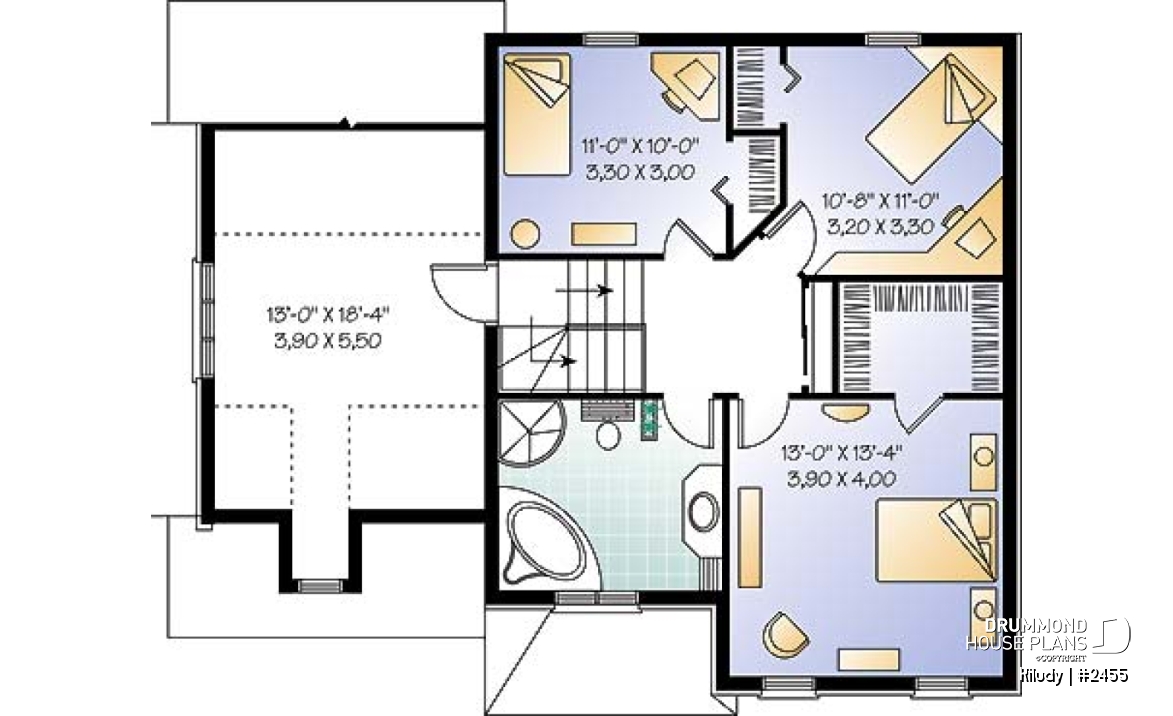

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'0" x 9'2" | ~ 8'0" |
| Bedroom | 13'0" x 13'4" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Linen | 1'2" x 5'4" | ~ 8'0" |
| Living bonus room | 13'0" x 18'4" | ~ 8'0" |
General specifications
| Total living area | 1576 sq.ft. |
| 1st level | 788 sq.ft. |
| 2nd level | 788 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 29'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
3 bedroom english style house plan with garage and large bonus room
.
Distinctive elements
Built-ins, unfinished bonus space (283 sq.ft., 25.47 sq.m.) above garage, shutters, dormer, covered front balcony.
Plan feature(s)
Living bonus space, Walk-in master bed., Gound floor laundry room, Separate bath and shower, Lunch counter, Entrance hall, Planning desk
Plan architectural style(s)
. European, . Traditional, . English
