House plan Richardson (2951)
Rustic cottage house plan, open floor plan with fireplace, 3 bedrooms, garage
View the size of the rooms and height of the ceilings

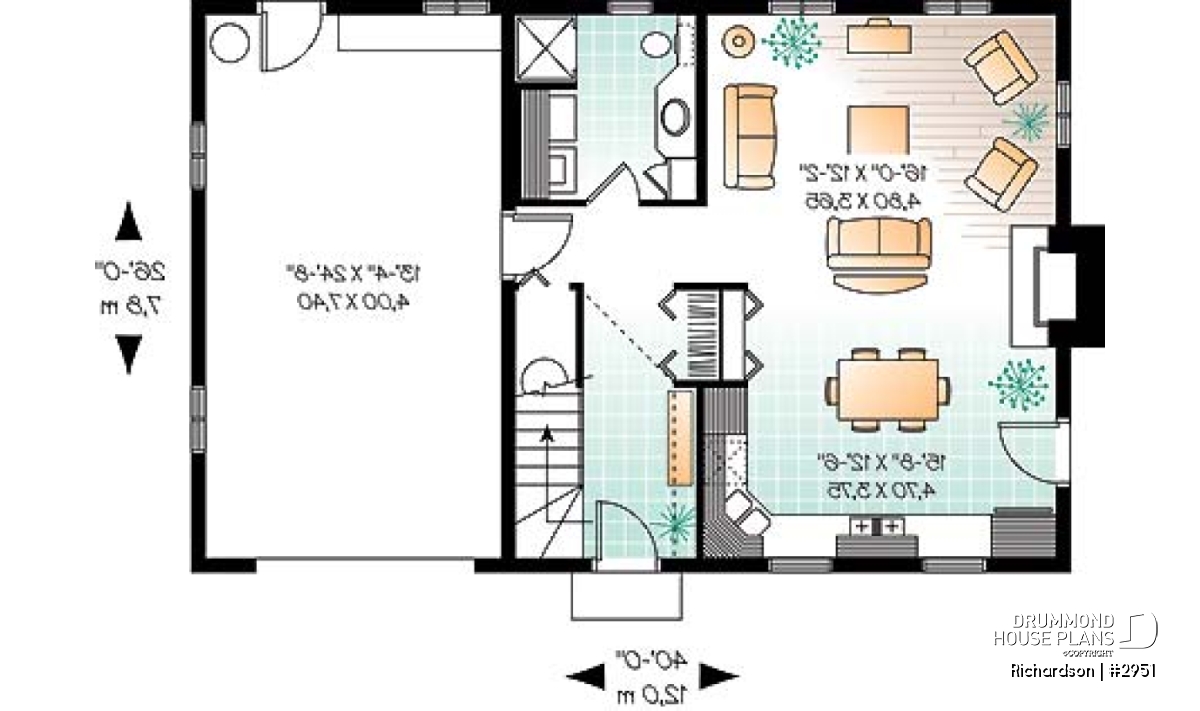

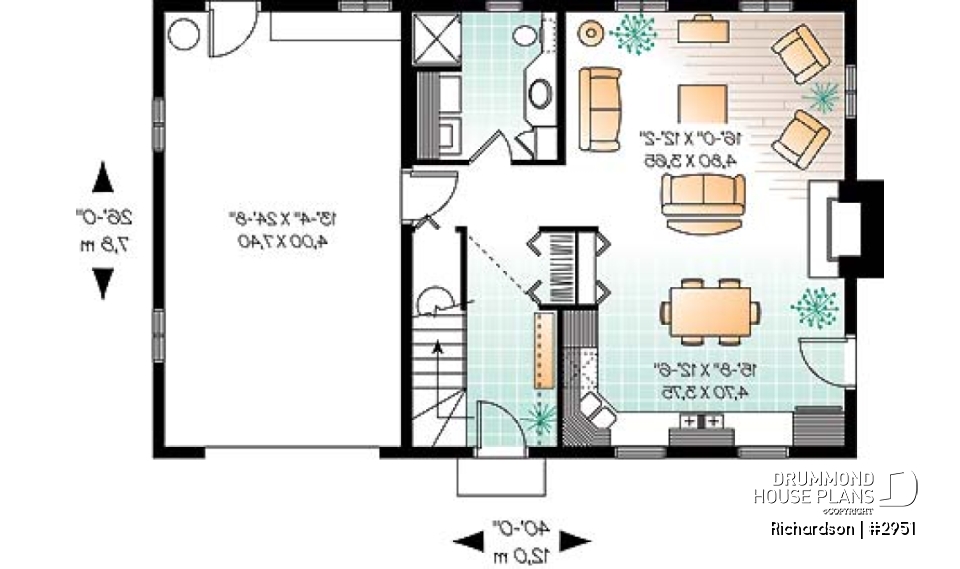

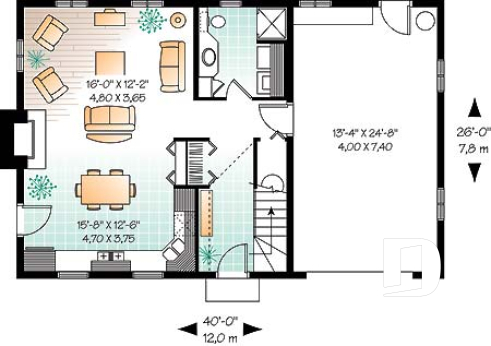

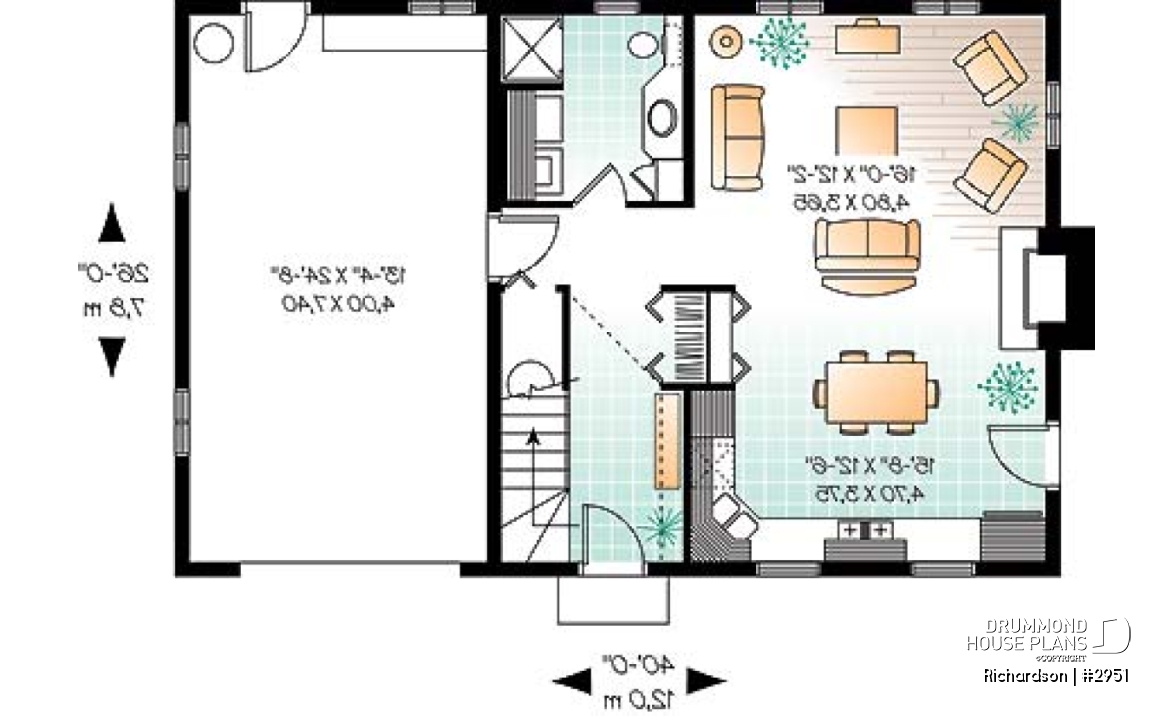

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'2" x 8'2" | ~ 8'0" |
| Kitchen | 15'8" x 12'6" | ~ 8'0" |
| Living room | 16'0" x 12'2" | ~ 8'0" |
| Foyer | 5'0" x 7'10" | ~ 8'0" |
| Garage | 13'4" x 24'8" | ~ 8'0" |
| Porch | 5'0" x 3'0" | N/A |

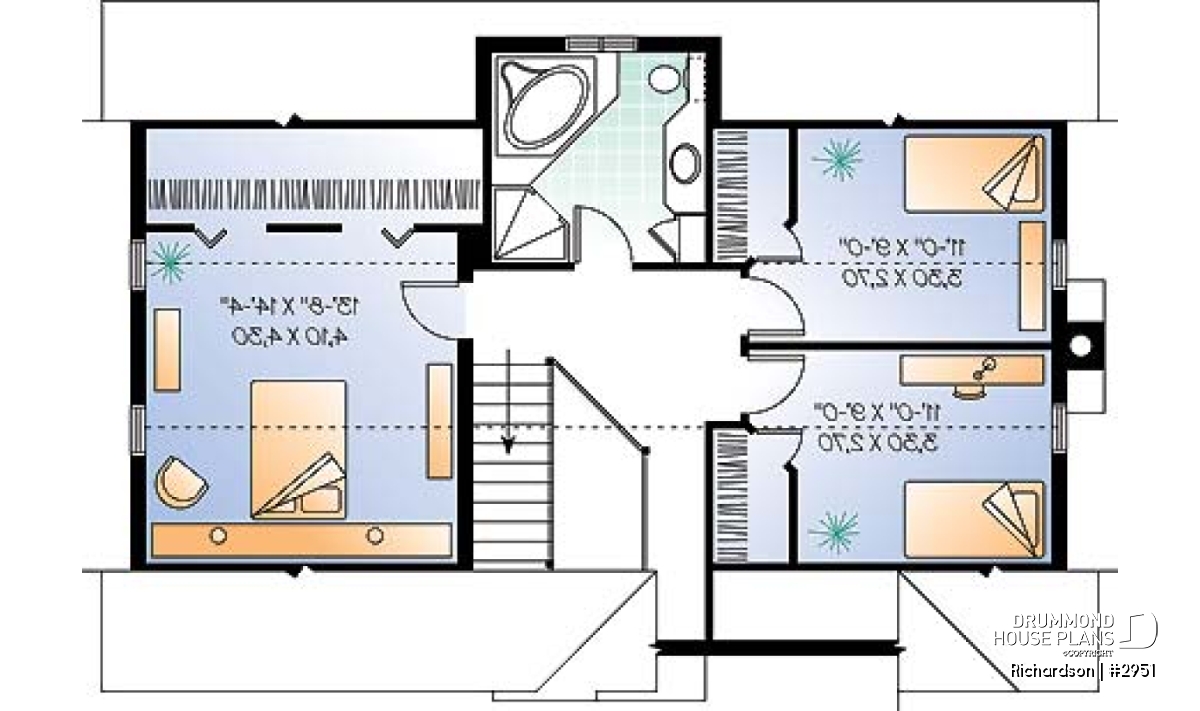

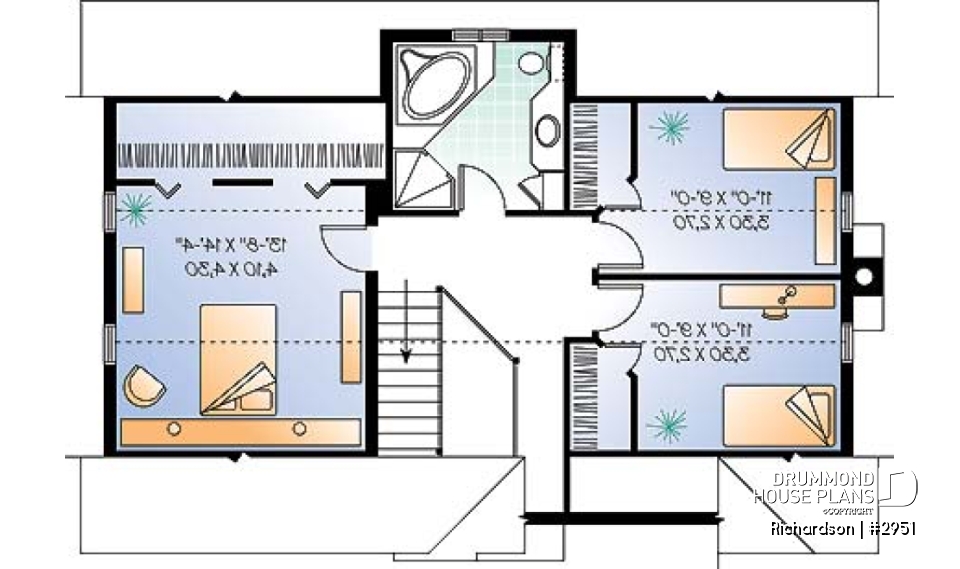

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'4" x 8'2" | ~ 8'0" |
| Bedroom | 13'8" x 14'4" | ~ 8'0" |
| Bedroom | 11'0" x 9'0" | ~ 8'0" |
| Bedroom | 11'0" x 9'0" | ~ 8'0" |
General specifications
| Total living area | 1474 sq.ft. |
| 1st level | 676 sq.ft. |
| 2nd level | 798 sq.ft. |
| Width | 40'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 22'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

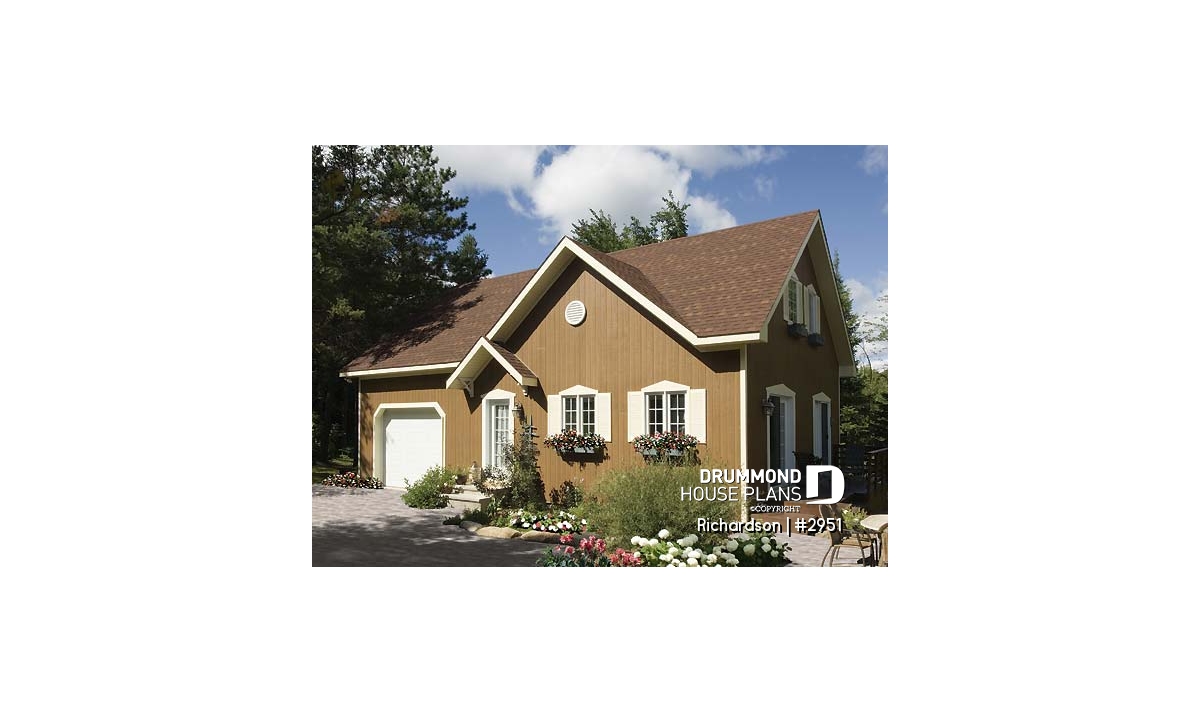

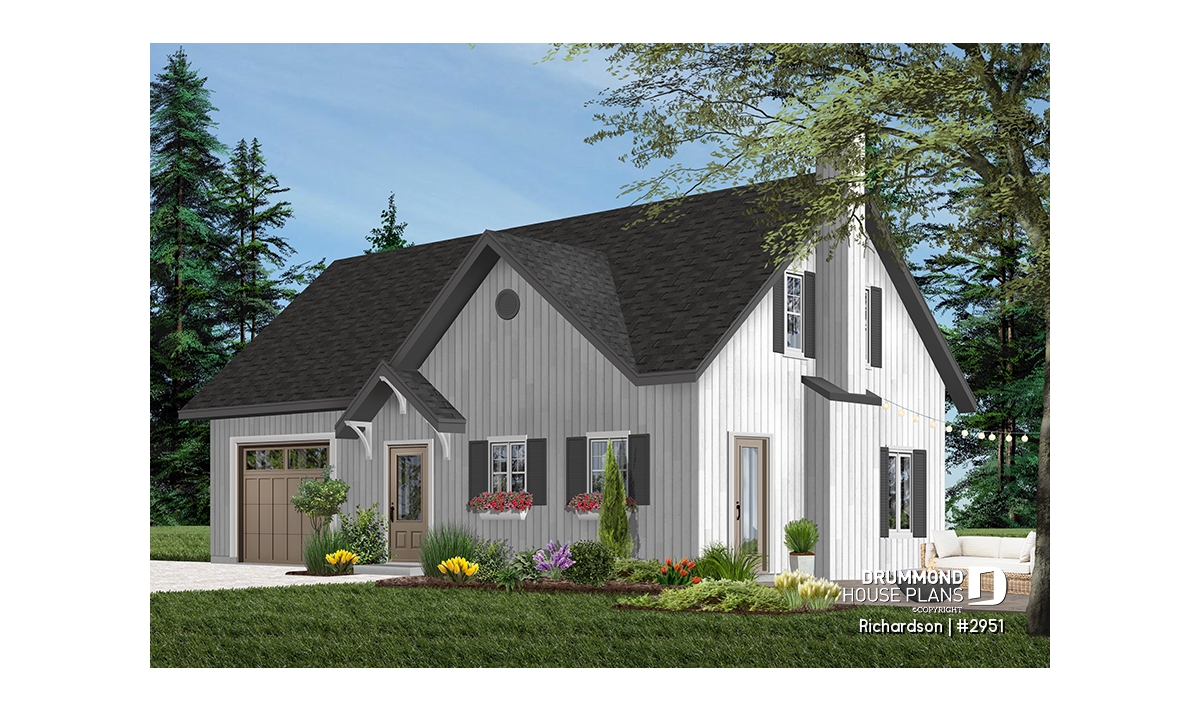

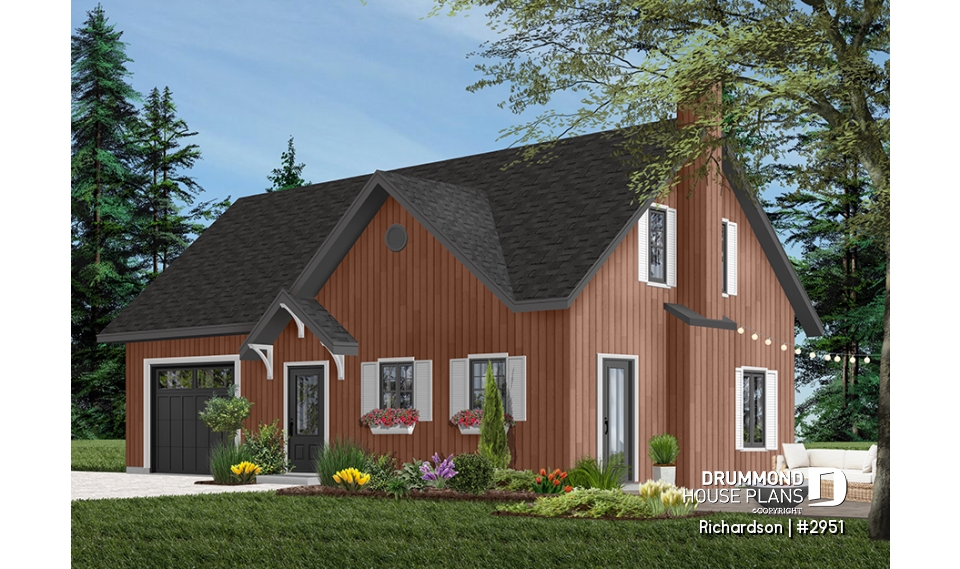

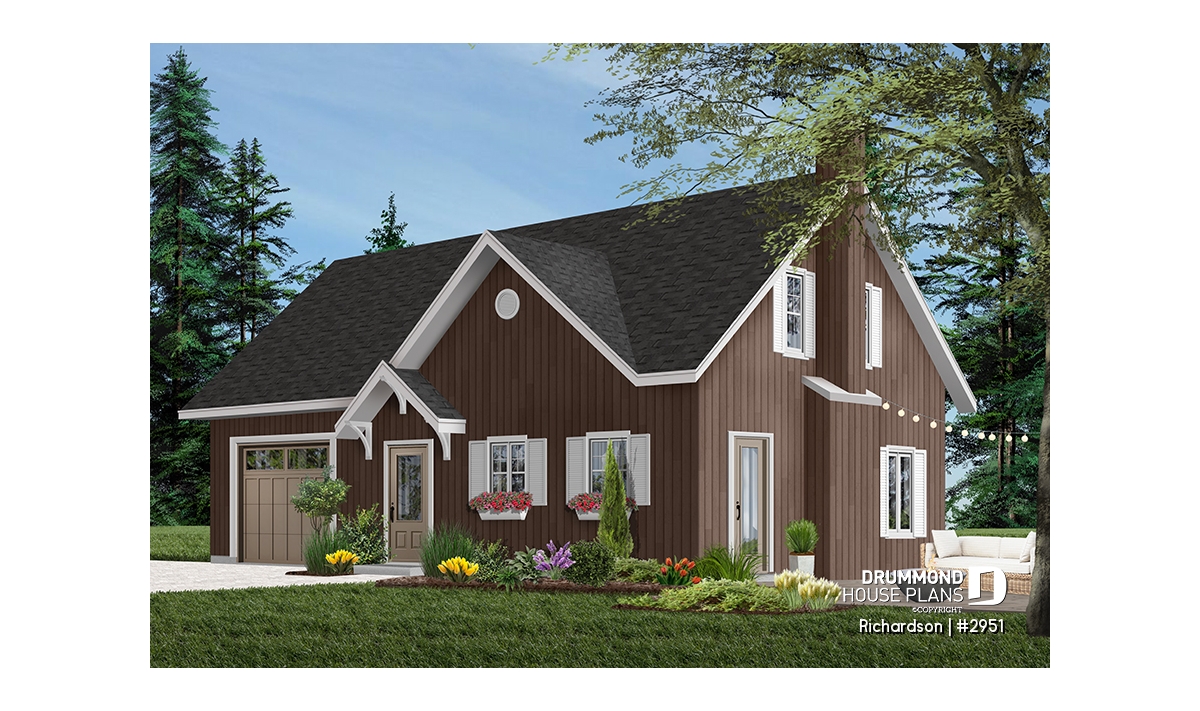

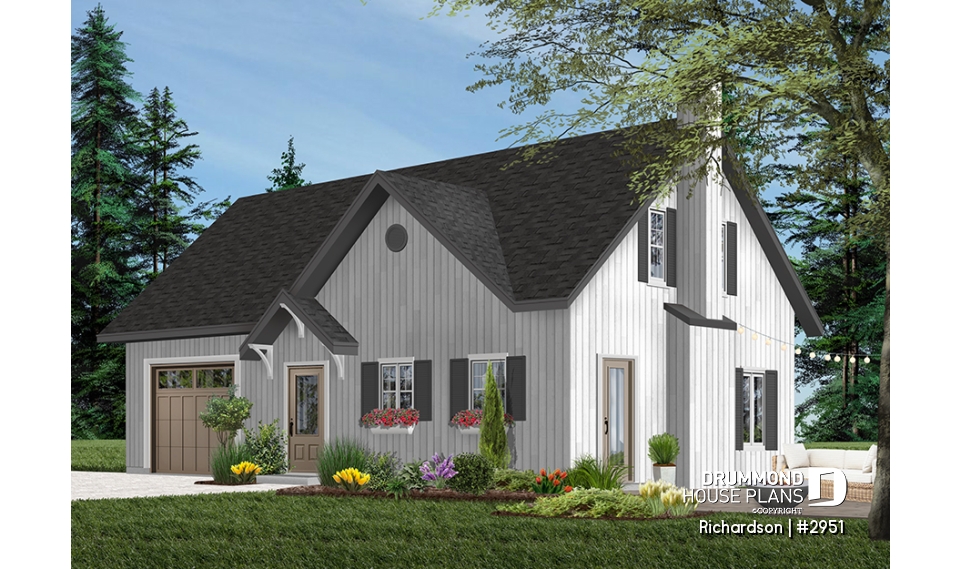

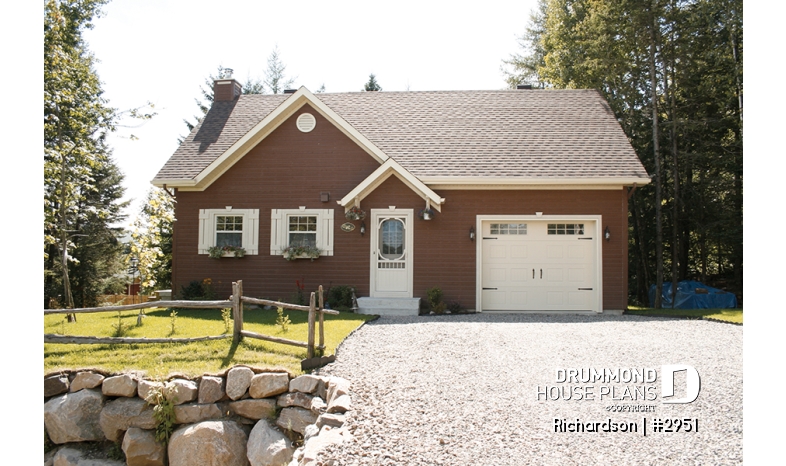

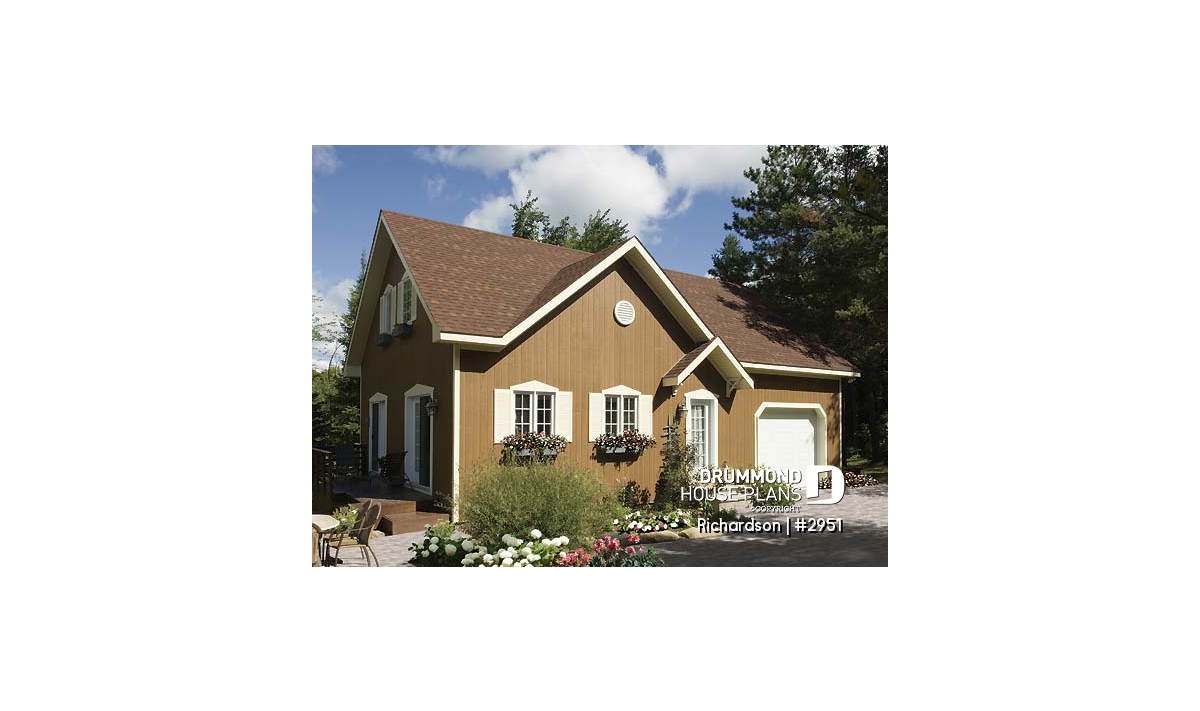

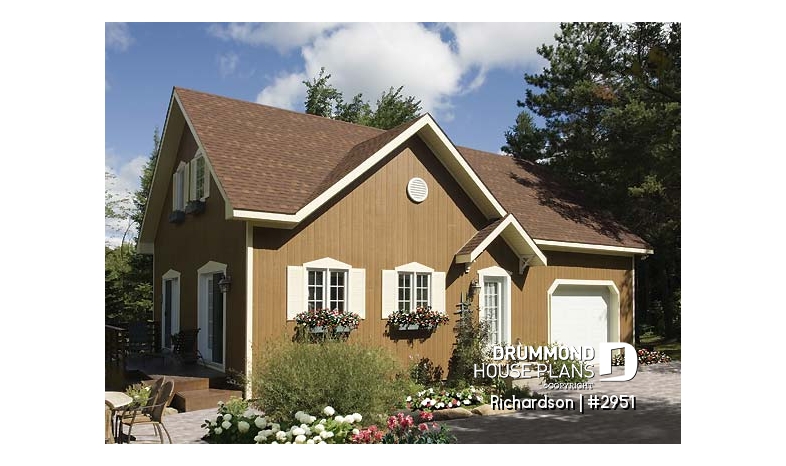

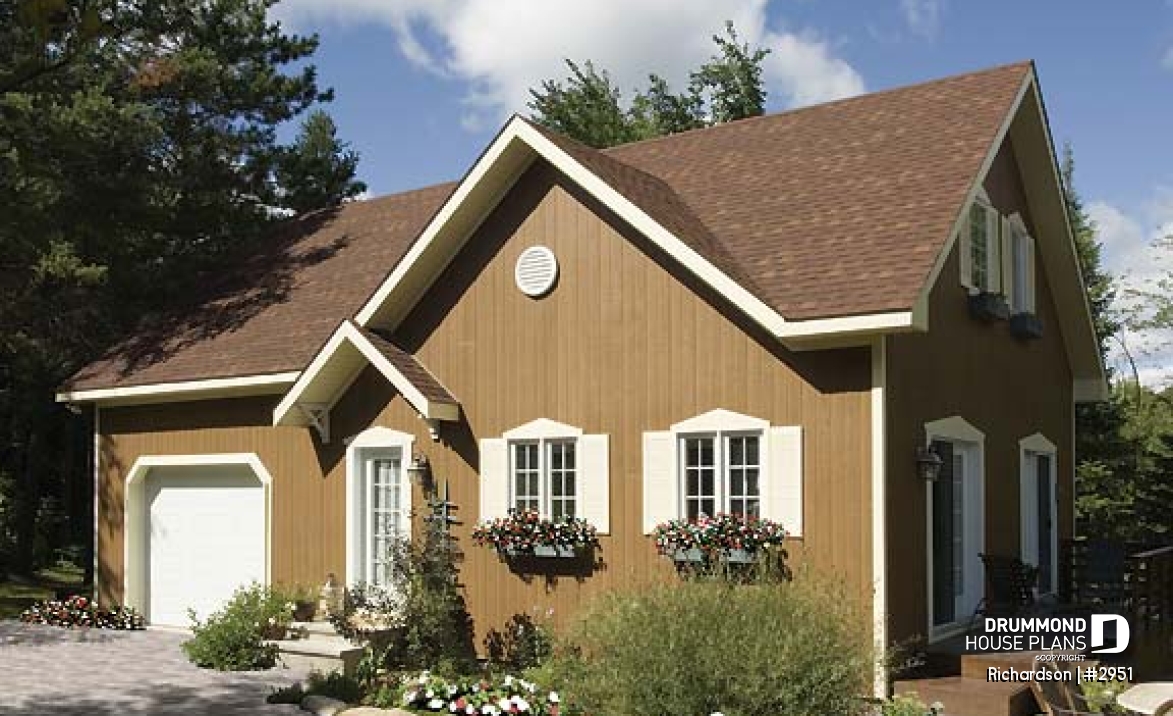

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

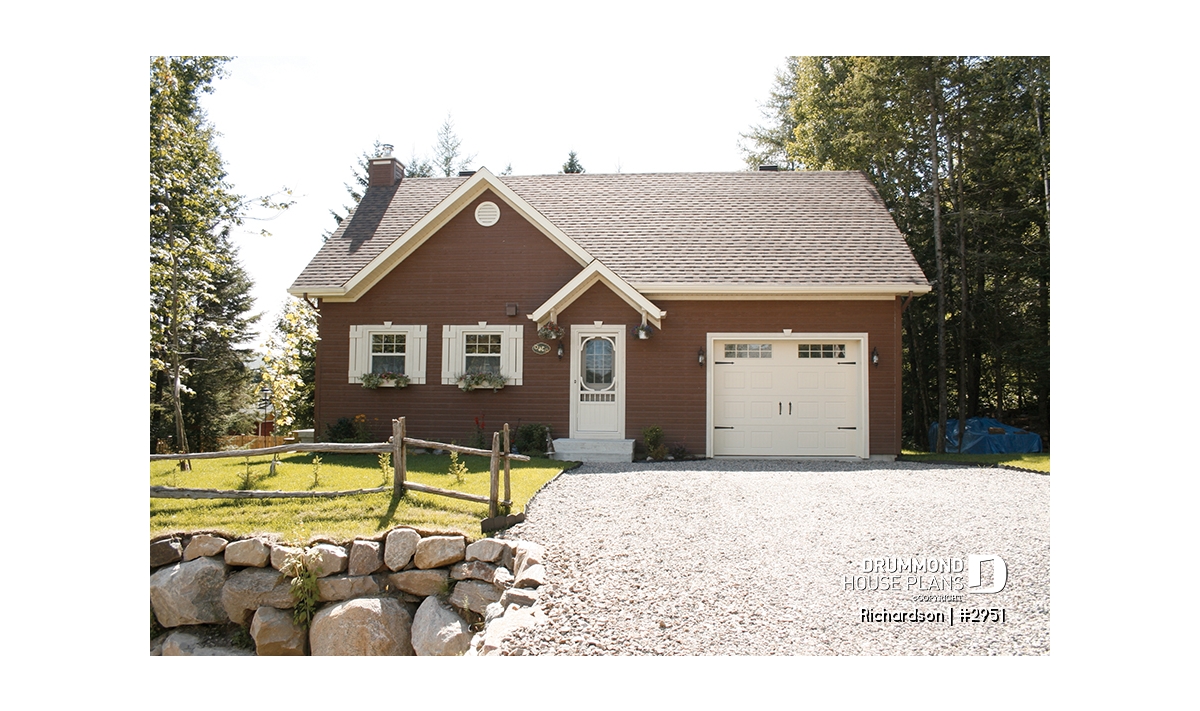

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
A ‘Chalet’ with a Well Integrated Garage
Within our collection of four seasons chalet type models offering a garage, this model is one of the rare ones in which the garage is so well integrated to the main façade without giving it too much importance. Let’s go in for a look.
Inside, we get that chalet ambiance when we first see the second level mezzanine and the cathedral ceiling, which is embraced by the staircase leading to that level. We also notice that this is the only stairway in the house due to the absence of a basement. However, a basement is easily added to suit the needs of the occupants. Always on the main level, we can appreciate a completely open activity center grouping together an ‘L’ shaped kitchen which is very appropriate for a table in its center, and a good sized living room all sharing a centered fireplace.

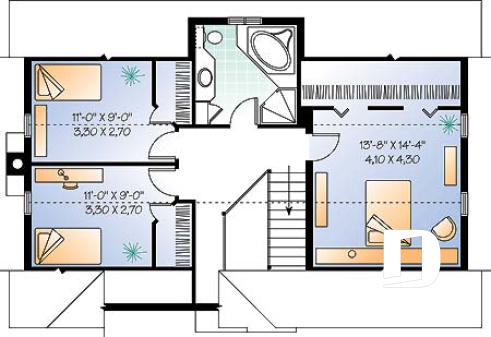

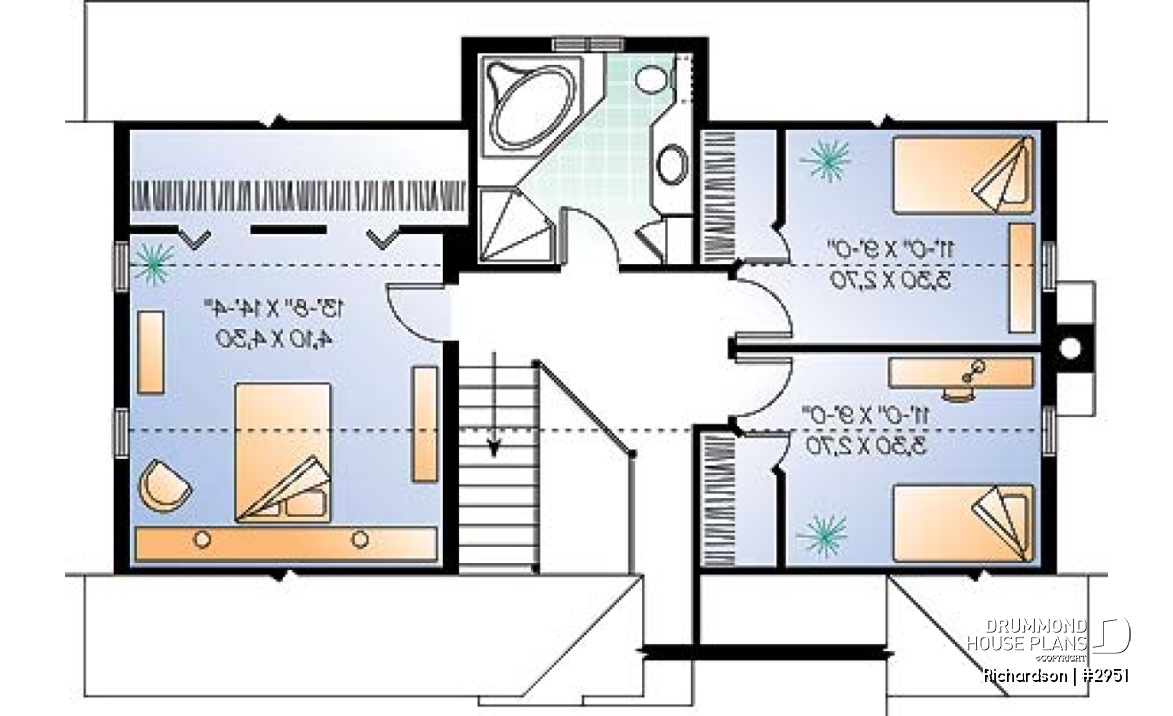

On the second level, the chalet look continues with the presence of significantly sloped ceilings which in this case are very appropriate. We appreciate a beautiful master bedroom with large closet and two secondary bedrooms, all of which compose well with the sloped ceilings. The bathroom for its part has an 8 foot ceiling all around and includes a bath and separate corner shower, which will surely be appreciated by homeowners.
Distinctive elements
Abundant fenestration, shutters, covered front entrance, walk-in closets in 3 bedrooms, corner bath.
Plan feature(s)
Fireplace, Sloped ceiling, Gound floor laundry room, Mezzanine
Plan architectural style(s)
. Rustic, . Country, . Cabin plans, . Cottage, chalet, cabin, . Ski chalets, . Farmhouse, . Cape Cod
