House plan Monarch (2767)
Tudor house plan with master suite, total 3 bedrooms, formal dining and living rooms, fireplace
View the size of the rooms and height of the ceilings

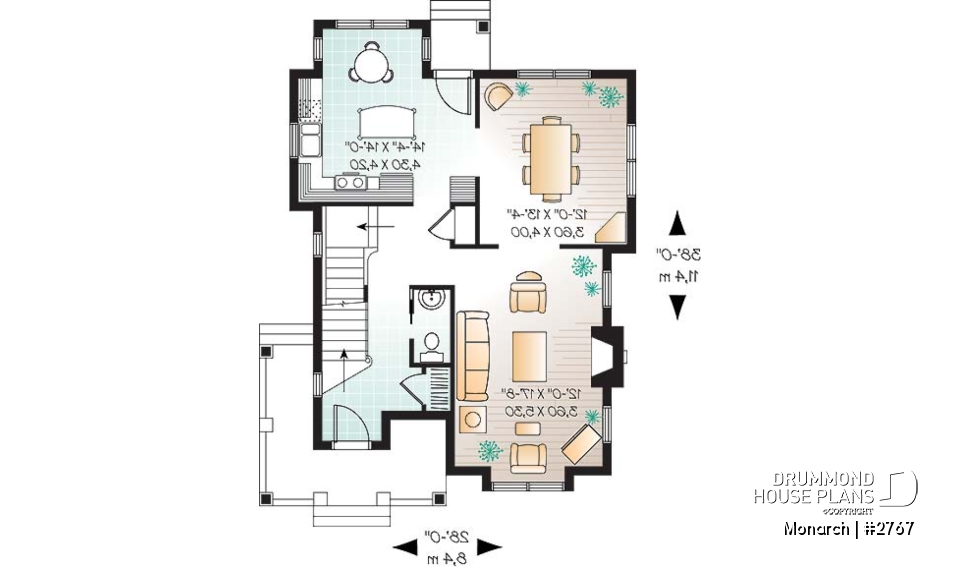

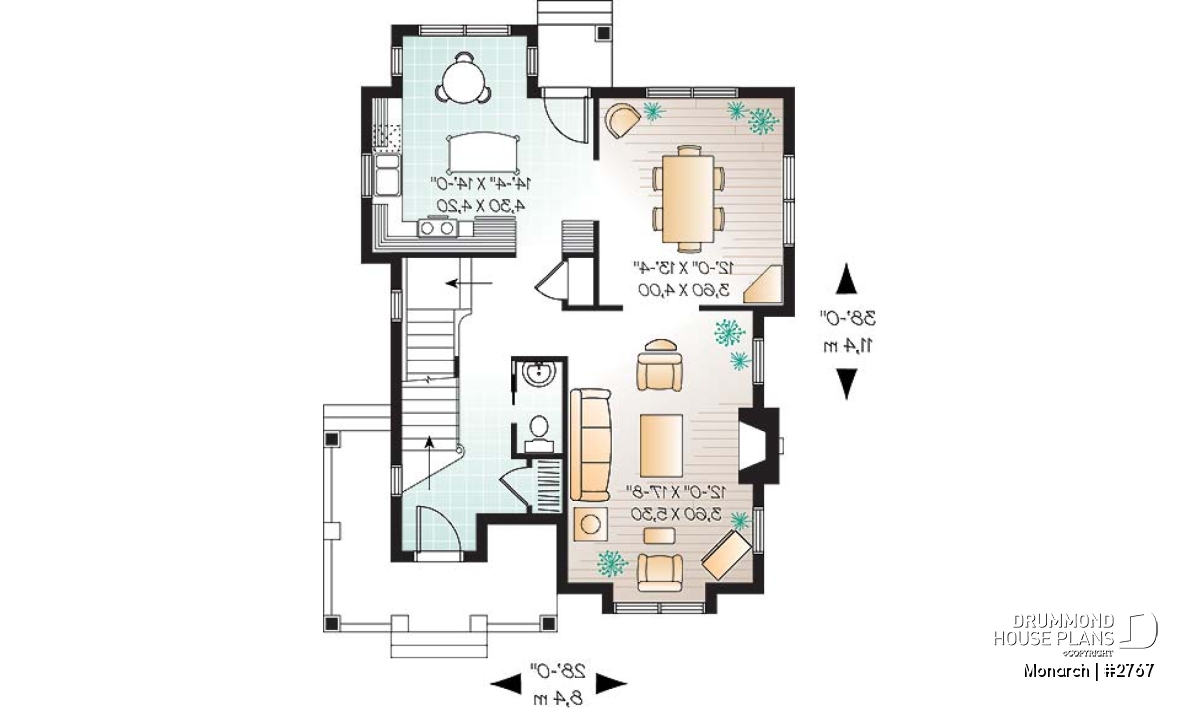

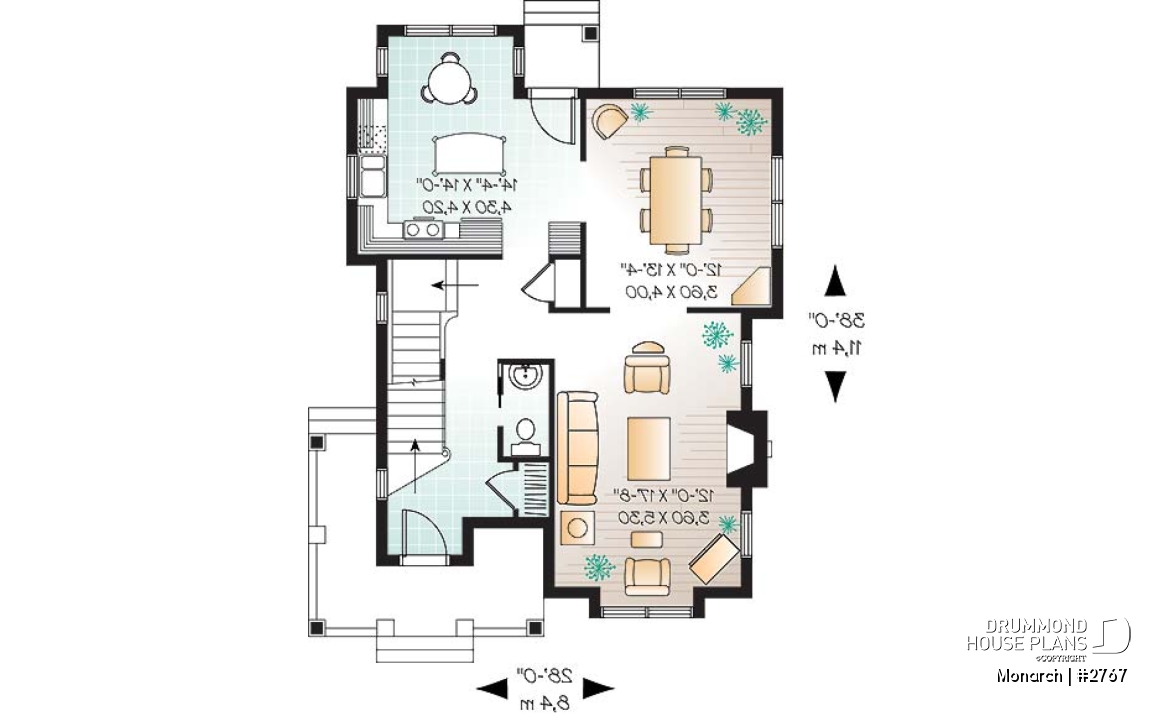

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 3'0" x 6'0" | ~ 8'0" |
| Kitchen | 14'4" x 14'0" | ~ 8'0" |
| Dining room | 12'0" x 13'4" | ~ 8'0" |
| Living room | 12'0" x 17'8" | ~ 8'0" |
| Foyer | 4'10" x 6'6" | ~ 8'0" |
| Porch | 15'2" x 13'0" | N/A |
| Porch | 4'10" x 4'0" | N/A |

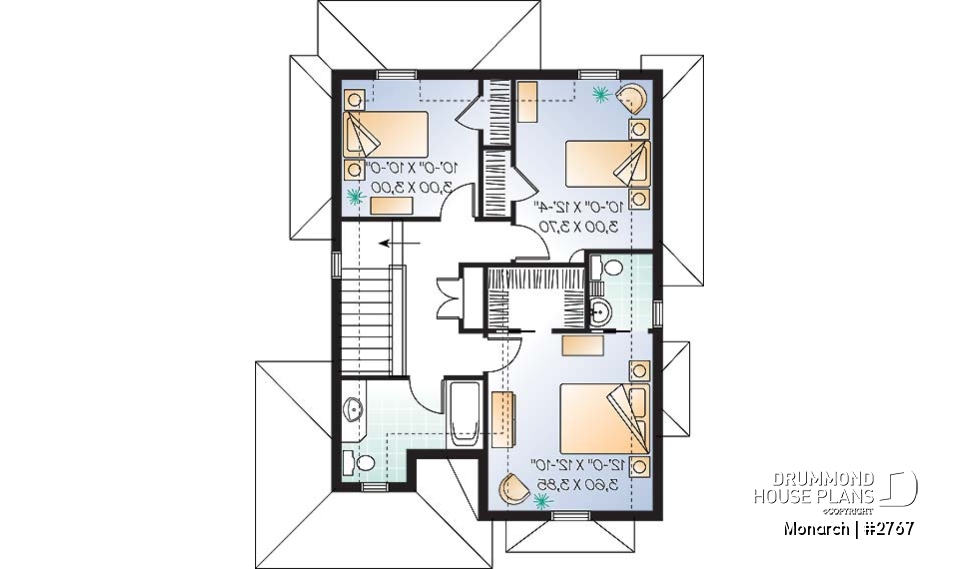

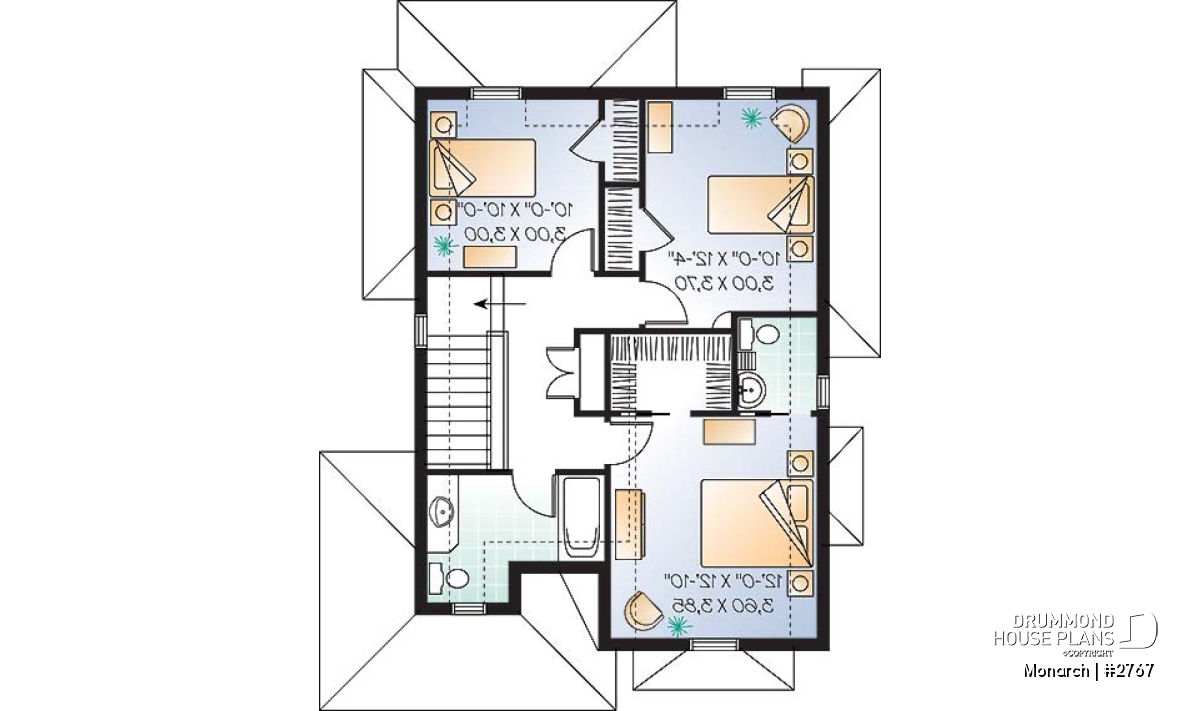

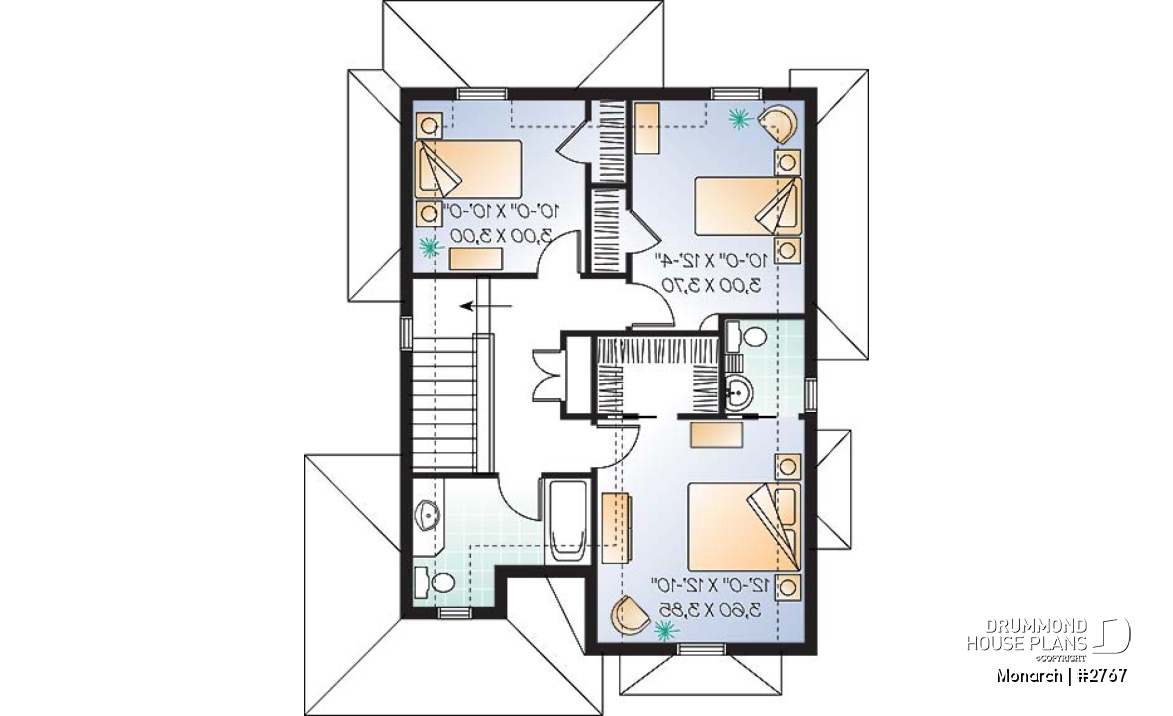

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'4" x 7'6" | ~ 8'0" |
| Bedroom | 10'0" x 12'4" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Linen | 3'0" x 1'8" | ~ 8'0" |
| Half bath or powder room | 5'6" x 4'8" | ~ 9'0" |
| Bedroom | 12'0" x 12'10" | ~ 9'2" |
General specifications
| Total living area | 1603 sq.ft. |
| 1st level | 851 sq.ft. |
| 2nd level | 752 sq.ft. |
| Width | 28'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Tudor inspiration house plan with modern conveniences!

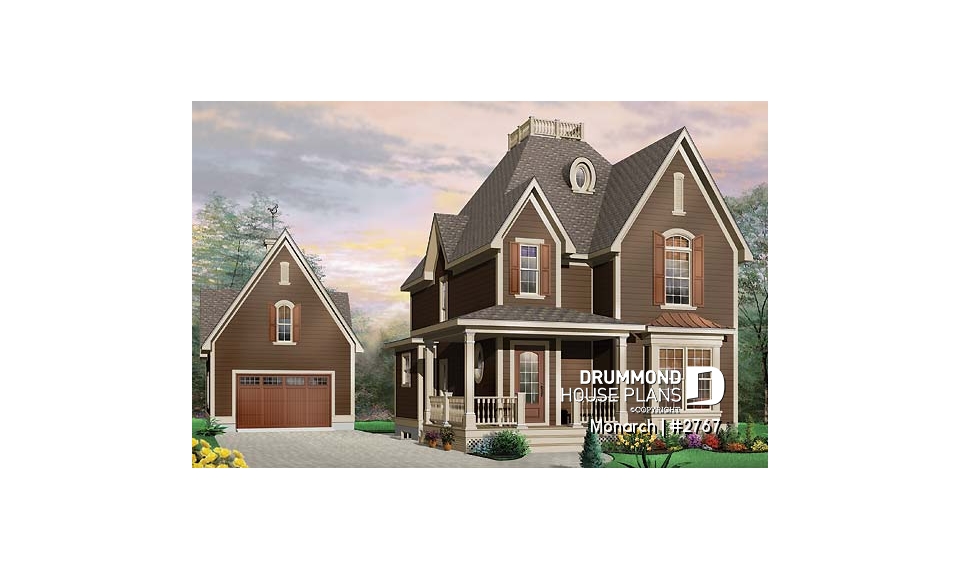

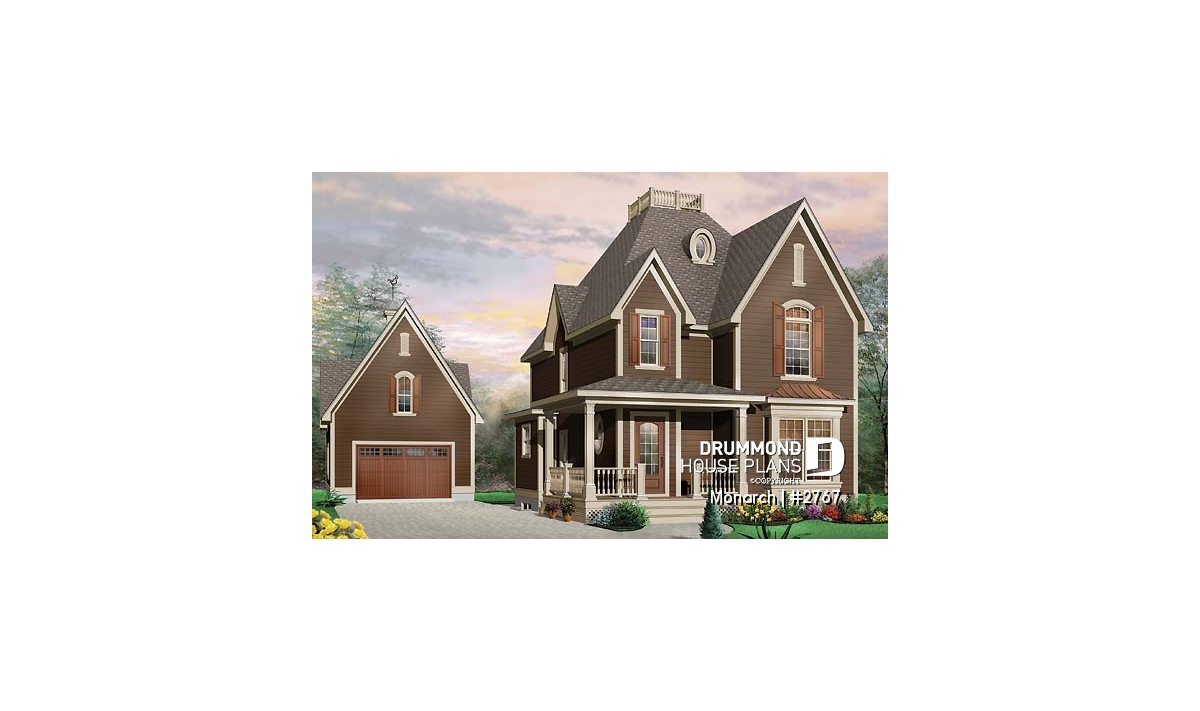

This design is reminiscent of the stately Tudor style homes of the past and maintains the volumes and elegance through the materials used and the characteristic windows. The matching garage mirrors the same style and offers a beautiful finish to this striking home.
Inside, from the entrance foyer, with powder room nearby, the abundance of natural light from windows all around gives ambiance to the living room, with its central fireplace, and continues the feeling throughout the formal dining area. The well appointed kitchen has an abundance of storage space, a central island and room for a breakfast nook as well as a pantry not far off.
Upstairs is a master bedroom with its own powder room and a walk-in closet, two secondary bedrooms and a full bathroom with its own Victorian feeling.
All in all a truly unique plan for those in love with this style and through which to make a statement!
Distinctive elements
L-shaped covered balcony in front, abundant fenestration in family and dining rooms, kitchen with central island and windowed breakfast area.
*Garage plan #2984 not included.
Plan feature(s)
Fireplace, Island, Breakfast nook, Walk-in master bed., Master suite upstairs, Sloped ceiling, Formal dining room
Similar plans
Previously Viewed Plans
Questions and comments
November 17
Denise Holder
Does the average construction cost include the matching garage design?
May 11
Denise Holder
The Plan does not specify what the ceiling heights are.
May 12
Customer service
Dear Mrs Holder,
Thank you for your interest in Drummond House Plans.
The ceiling heights are listed in "View Room Details" above the floor plans. Click on the link to access the information.
Please contact us again if you need further information. We will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
April 27
stacey cole
Hi,
I was wondering if you are able to give me a general building estimate for this house in NL. I was also wondering if it's possible to change to staircase so that you go up the stairs closer to the kitchen rather than as you come in the front door. Any info would be great.
Thanks,
Stacey
April 28
Customer service
Dear Stacey,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
As for the building cost for NL, we only have provincial averages for Quebec, since that is where we are located. The price we have is $187,000 to $223,000. Note that this price may not be accurate for your area.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
