Dellwood (2769)
Tudor 3 bedroom home plan, kitchen with pantry, laundry room on second floor
View the size of the rooms and height of the ceilings

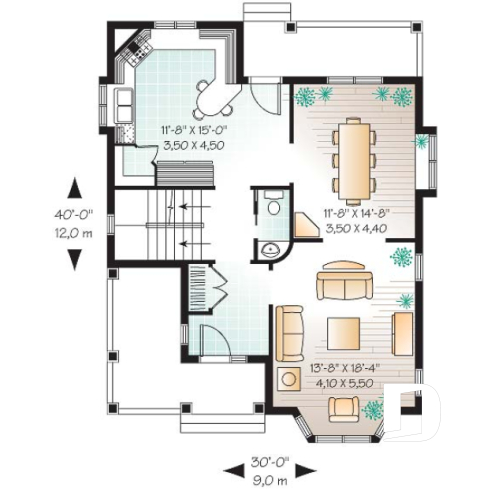

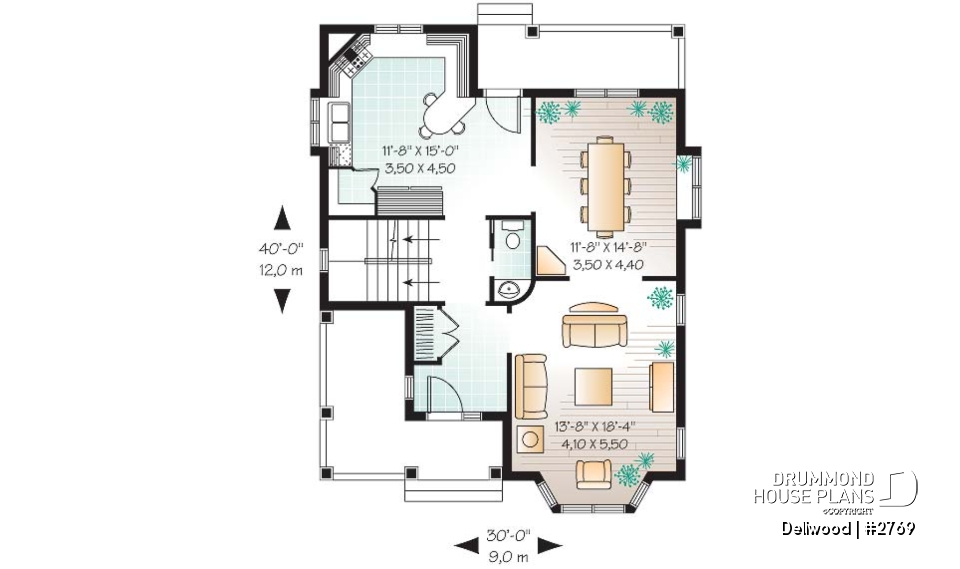

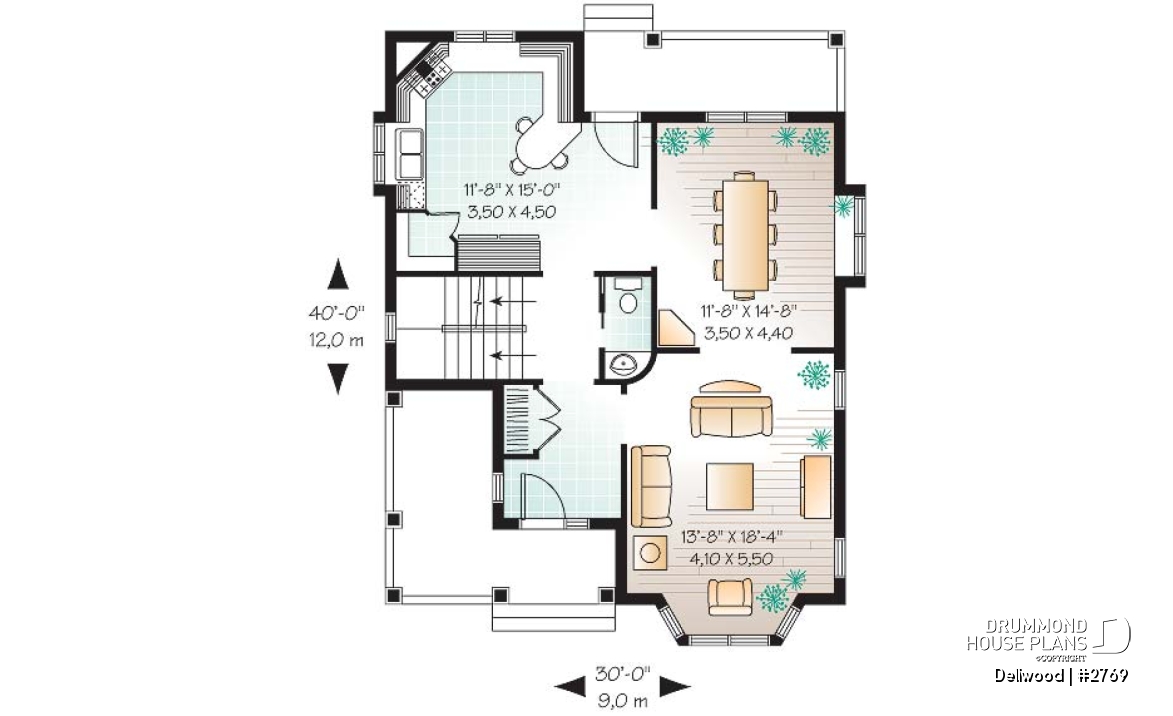

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 3'0" x 6'8" | ~ 8'0" |
| Kitchen | 11'8" x 15'0" | ~ 8'0" |
| Dining room | 11'8" x 14'8" | ~ 8'0" |
| Living room | 13'8" x 18'4" | ~ 8'0" |
| Foyer | 7'8" x 8'8" | ~ 8'0" |
| Porch | 15'0" x 14'0" | N/A |
| Porch | 17'0" x 5'4" | N/A |

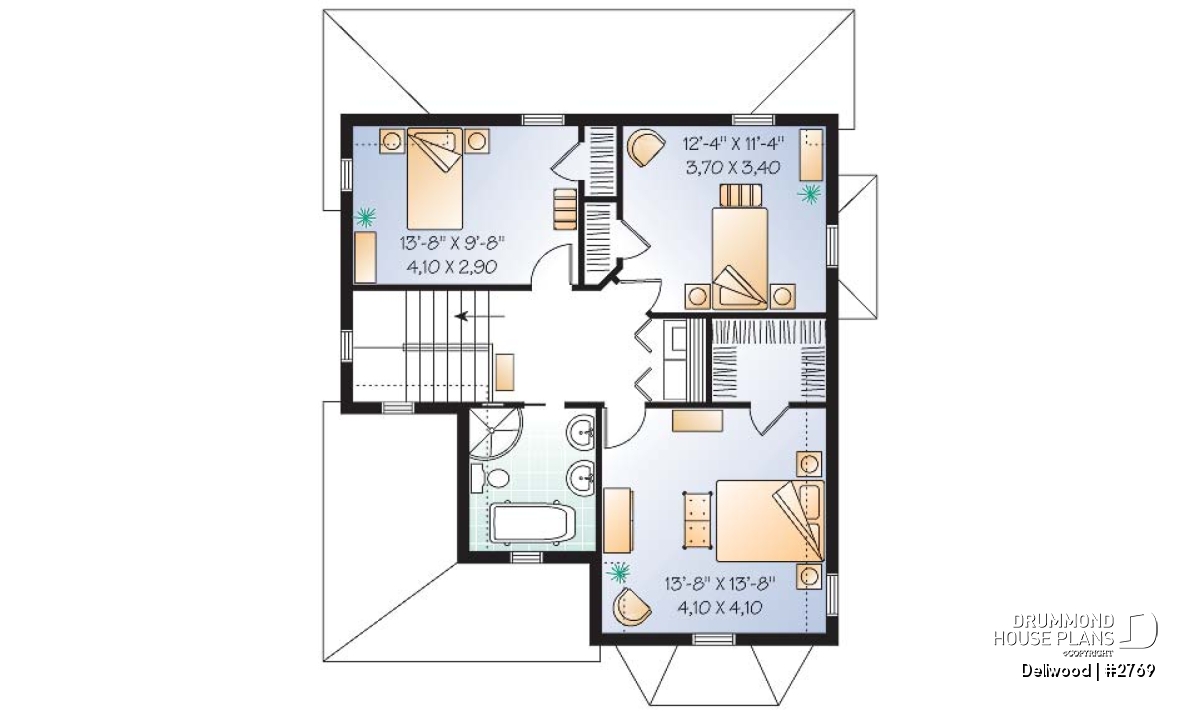

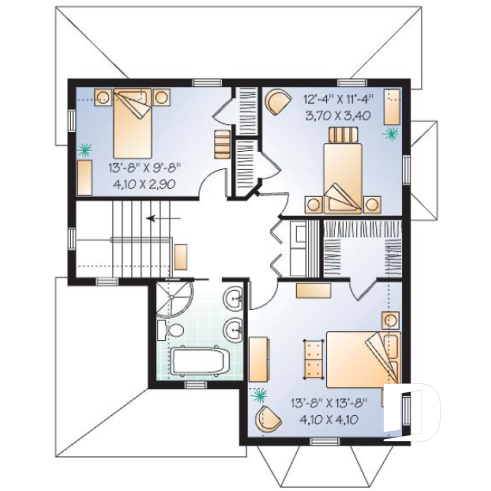

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 7'8" | ~ 8'0" |
| Bedroom | 13'8" x 13'8" | ~ 8'0" |
| Bedroom | 12'4" x 11'4" | ~ 8'0" |
| Bedroom | 13'8" x 9'8" | ~ 8'0" |
| Utility room | 5'0" x 3'0" | ~ 8'0" |
General specifications
| Total living area | 1744 sq.ft. |
| 1st level | 922 sq.ft. |
| 2nd level | 822 sq.ft. |
| Width | 30'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 34'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

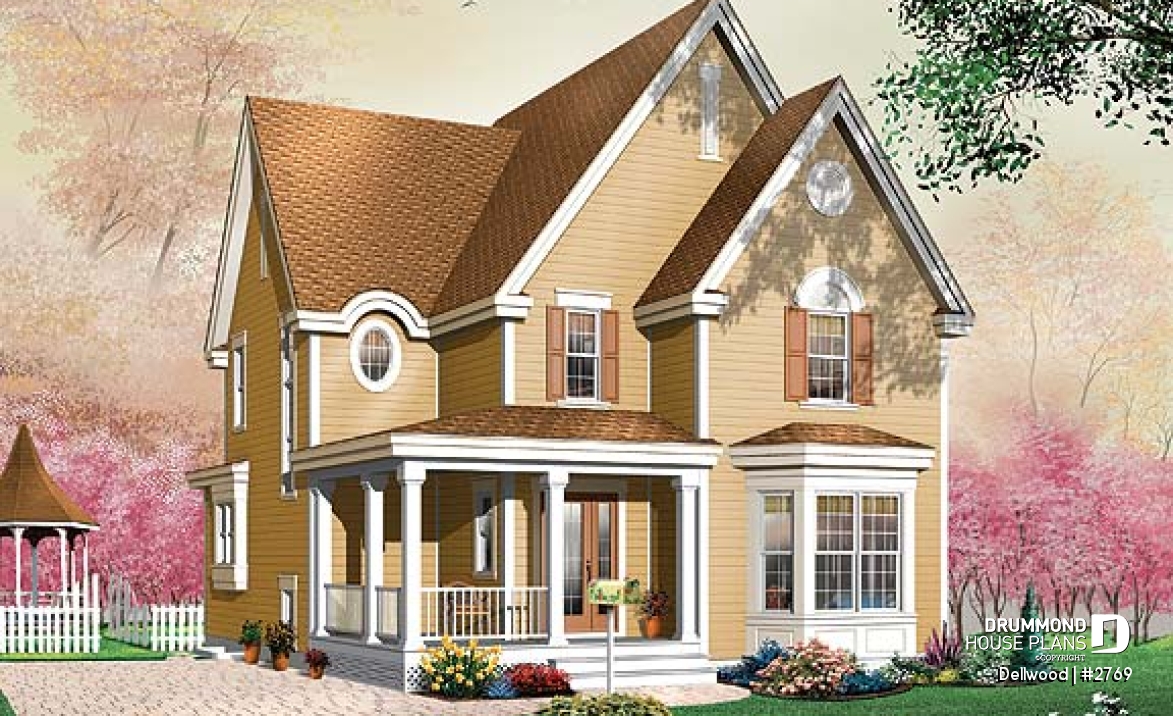

front
This color version might have decorative elements that are not available on base plan.
front
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Tudor style home plan with 3 bedrooms
All the features families want converge here with 1744 sq. ft. of well thought out living space. Front and rear covered porches, plus peaked-roof detailing trim the exterior. Inside, there’s a wholesome kitchen with lunch counter, and pantry, inviting family and dining rooms, and nearby half bath. Upstairs, a master bedroom features a walk-in closet, luxury bath, and two additional bedrooms.
Distinctive elements
Front and rear covered porches, remarkable kitchen with excellent storage and lunch counter, dining and family rooms are well designed and well-lit.
Plan feature(s)
Second floor laundry room, Walk-in master bed., Pantry, Lunch counter, Deck, Warparound, Bench seat(s), Separate bath and shower, Double sinks
Plan architectural style(s)
Tudor, . Traditional, . Farmhouse, . Country, . Victorian, French Country
Similar plans
Previously Viewed Plans
Questions and comments
June 29 2016
Customer service
Hello Denise!
The ceiling heights for this plan is 8'-0'' for the main floor and same thing for the second floor.
Hope this helps you!
Jessica
800-567-5267 x 109
June 29 2016
Denise Holder
What are the finished ceiling heights on this plan please?
