Lana (3618)
Spanish style home design, 4 to 5 bedrooms, master suite on main floor

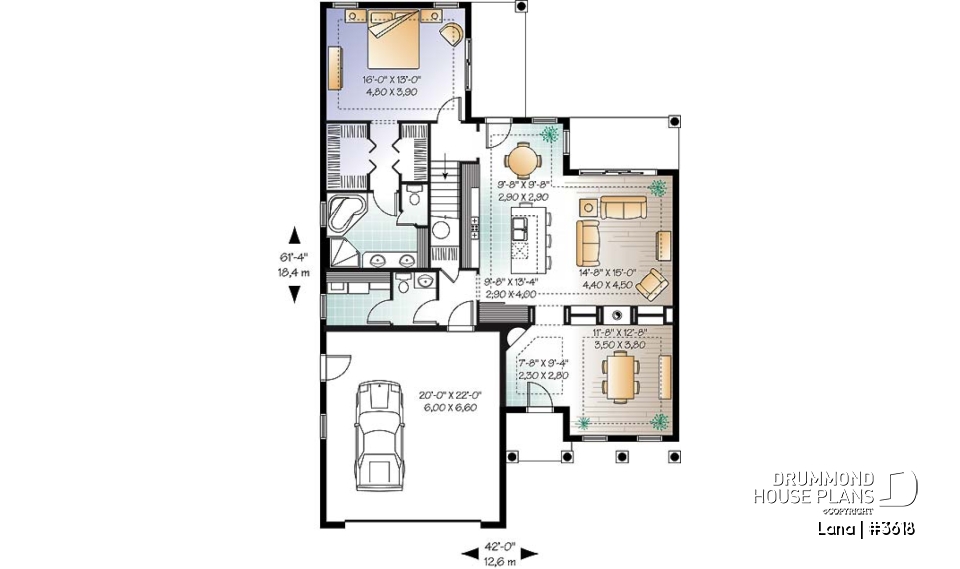

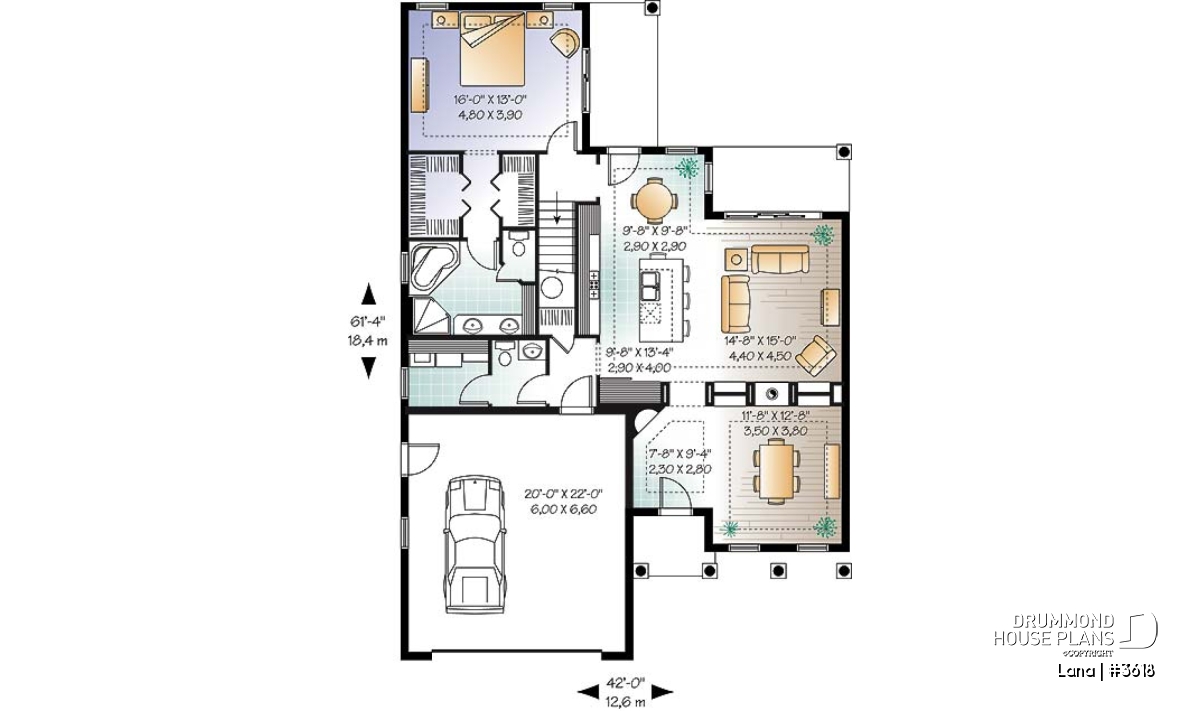

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'8" x 13'4" | ~ 10'0" |
| Dining room | 11'8" x 12'8" | ~ 10'0" |
| Foyer | 7'8" x 9'4" | ~ 10'0" |
| Half bath or powder room | 5'0" x 6'1" | ~ 10'0" |
| Master suite | 16'0" x 13'0" | ~ 10'0" |
| Laundry room | 7'4" x 6'2" | ~ 10'0" |
| Pantry | 3'4" x 2'6" | ~ 10'0" |
| Garage | 20'0" x 22'0" | ~ 10'0" |
| Porch | 6'4" x 5'4" | N/A |
| Porch | 6'0" x 13'4" | N/A |
| Porch | 12'8" x 6'0" | N/A |
| Dinette | 9'8" x 9'8" | ~ 10'0" |
| Great room or Family room | 14'8" x 15'0" | ~ 10'0" |

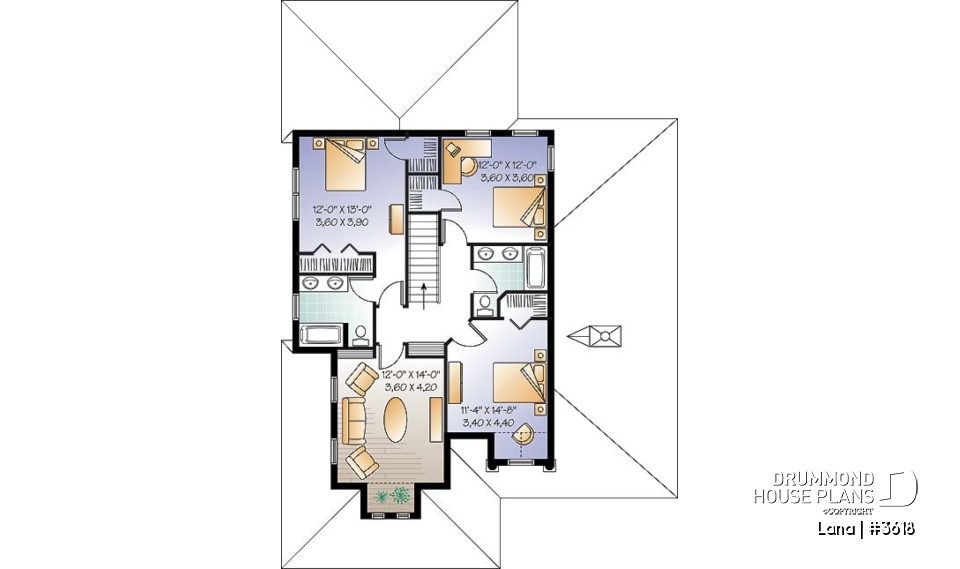

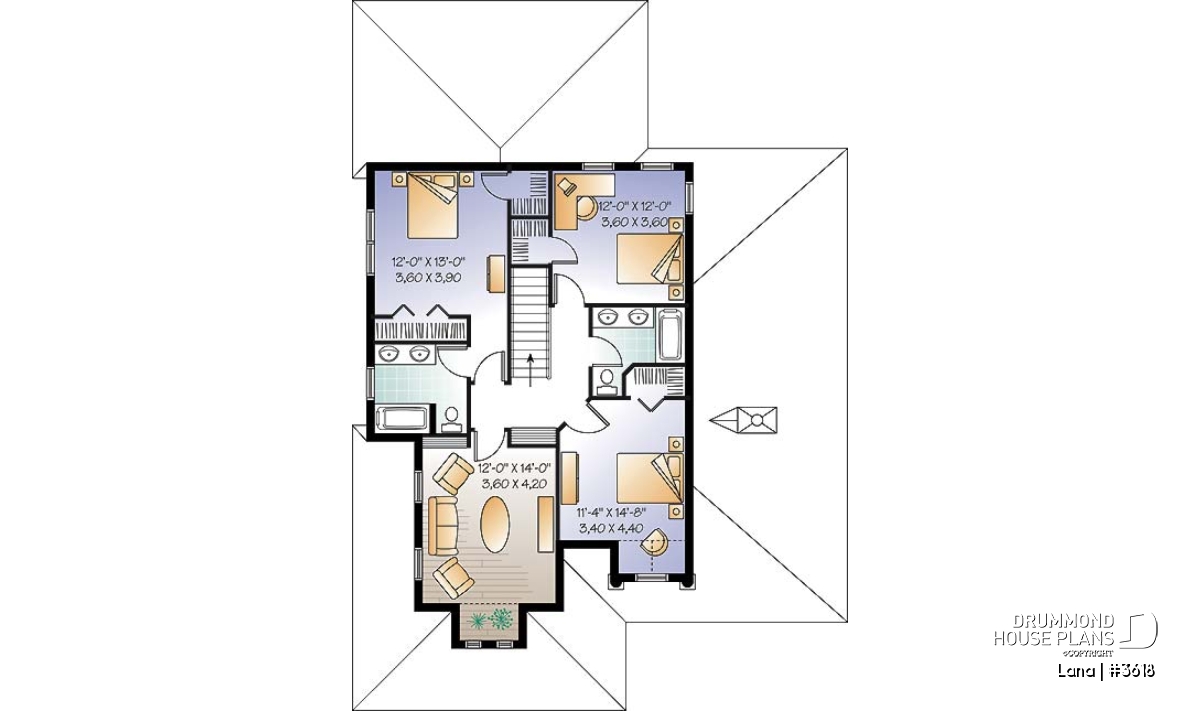

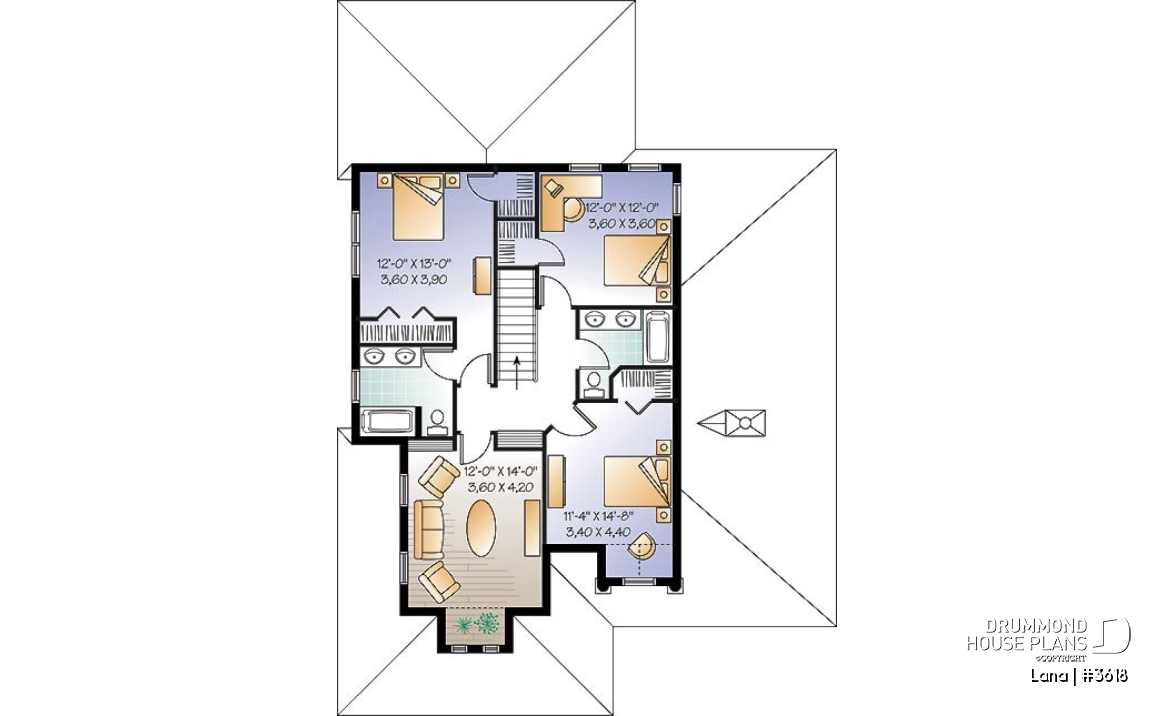

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'4" x 5'0" | ~ 9'0" |
| Bedroom | 11'4" x 14'8" | ~ 9'0" |
| Bedroom | 12'0" x 12'0" | ~ 9'0" |
| Guest suite | 12'0" x 13'0" | ~ 9'0" |
| Home theater | 12'0" x 14'0" | ~ 9'0" |
| Full bathroom | 8'4" x 8'0" | ~ 9'0" |
General specifications
| Total living area | 2550 sq.ft. |
| 1st level | 1463 sq.ft. |
| 2nd level | 1087 sq.ft. |
| Width | 42'0" |
| Depth | 61'4" |
| Ridge height from top of foundation | 30'5" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Beautiful 2 storey, 4 to 5 bedroom Mediterranean style house plan
.
Distinctive elements
Ceiling at 10' on the 1st level and at 9' on the second level. Two-sided fireplace in the dining room and the family room with built-ins on each side. Tray ceilings in the entry, the activity area as well as in the master suite on the first level. Well-lit dinette space with access to the exterior covered patio. Kitchen with central island lunch-counter. Three lovely bedrooms on the second level one of which is a guest suite. A movie room is provided above the garage.
Plan feature(s)
Fireplace, Master suite on main, Island, Gound floor laundry room, Ceiling over 8', Deck, Game room, Breakfast nook, Formal dining room
Plan architectural style(s)
. Mediterranean, . Florida, . American, French Country
Previously Viewed Plans
Questions and comments
May 27 2013
Julian Monceaux
I just bought house plan 3618 from houseplans.com I have some ?'s regarding the steel support beams on the first level. Can I as those from you and the designer? Thanks
May 27 2013
Customer service
Good day Mr. Monceaux and thank you for your purchase
1) The use of LVLs instead of the steel in the living room is not recommended. We usually use wood but the steel beam has been used in this case because it is the best choice but you are welcome to check with your floor truss manufacturer.
2) Steel, although more costly is the better option in this case
3) The floor truss manufacturer?s engineer will need to provide the design with which the framer will attach them to the steel beam
4) Once again, the engineering expertise of your floor truss manufacturer will be the best source
Please let me know if you have any other questions or comments
Regards
Deborah
April 17 2012
Lindsay
Do this plan include a basement?
April 17 2012
Customer service
Good day and thank you for taking the time to write.
This plan includes a slab foundation which means that there is no basement.
If you require a different foundation it is available as an option. All you need to do is to request it at the time of order or fill in our on line modification form, for which I have attached the link
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form.html?tx_ddimod_pi1%5Bplan_id%5D=1002574
Please let me know if I can be of further assistance.
Regards
Deborah
