Storage Shed plan Hacienda (1918)
Pool cabana plan with small kitchen, half bath, large interior storage and outdoor shower
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 11'0" x 6'0" | N/A |
| Kitchen | 10'0" x 7'8" | ~ 8'0" |
| Powder room | 4'8" x 4'6" | ~ 8'0" |
| Linen | 1'6" x 1'2" | N/A |
| Storage | 15'0" x 7'0" | ~ 8'0" |
General specifications
| Total living area | 241 sq.ft. |
| 1st level | 241 sq.ft. |
| Width | 16'0" |
| Depth | 16'0" |
| Ridge height from top of foundation | 15'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Builder price code | SC |
Rooms specifications
Other useful information on this plan
HACIENDA Pool House Plan (#1918) – 16' x 16' Cabana with Kitchenette, Storage & Outdoor Shower!

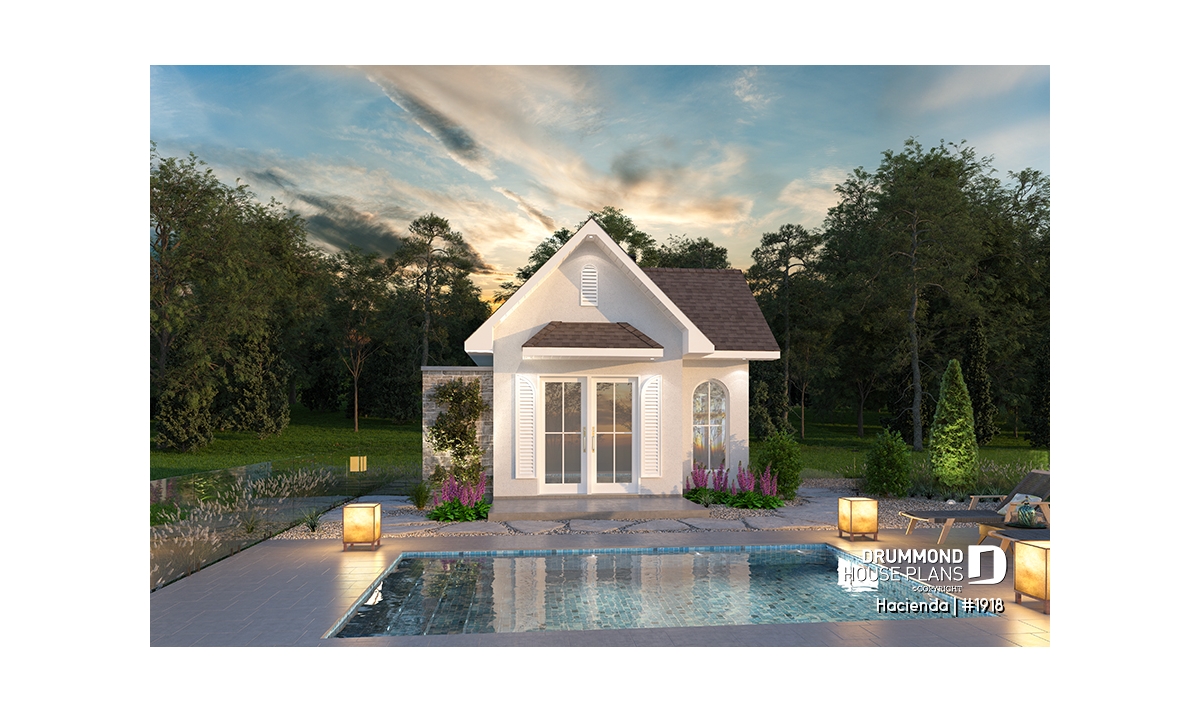

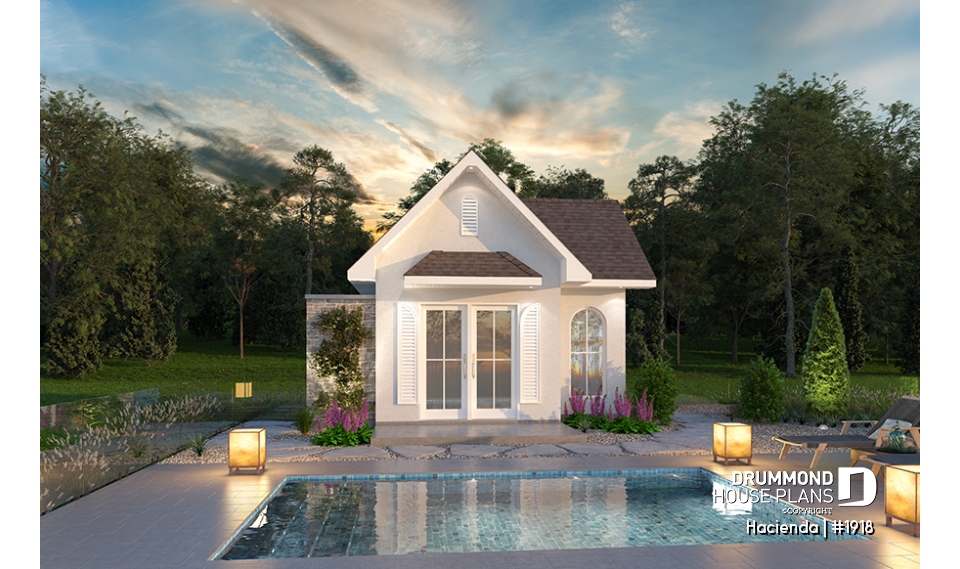

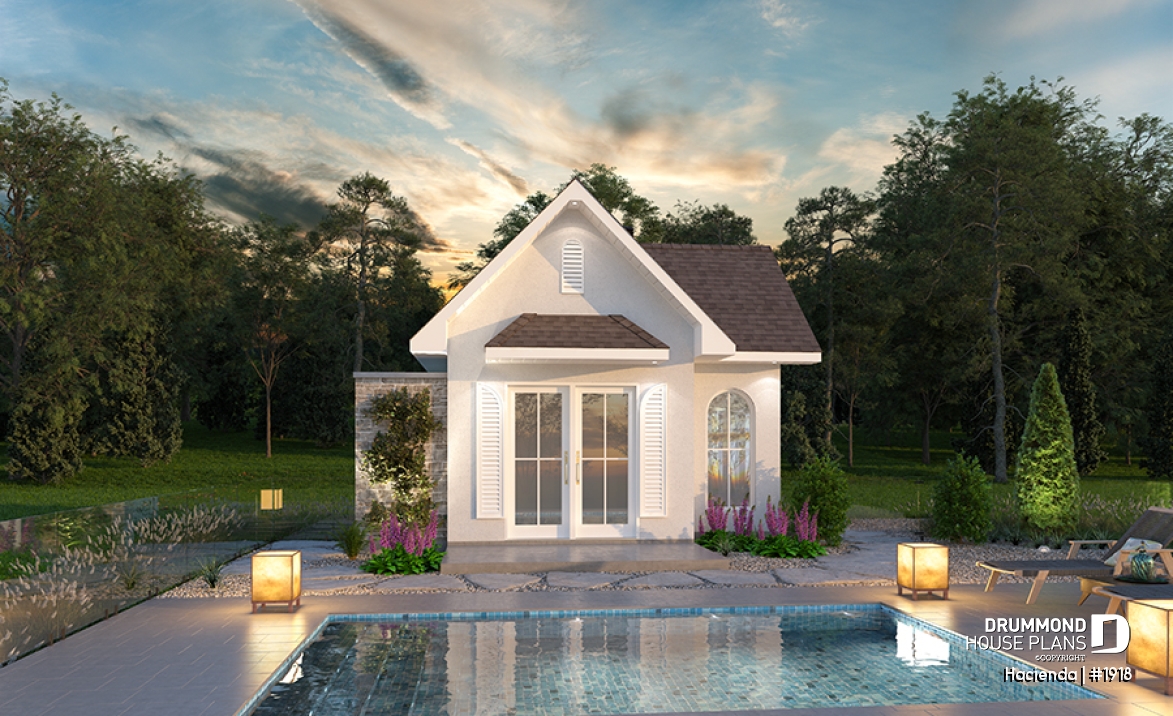

The HACIENDA pool house plan (#1918) offers a warm, rustic-inspired design that blends comfort and practicality for everyday outdoor living. With a compact yet efficient 16' x 16' footprint, this cabana is thoughtfully designed to complement a backyard pool area without overwhelming the landscape.
Inside, a functional kitchenette provides convenient space to store drinks and snacks, making poolside entertaining easy and enjoyable. A counter with sink allows for rinsing glasses and accessories, while a cozy built-in banquette creates a comfortable spot to sit, relax, or enjoy a shaded break after swimming. A convenient powder room adds everyday practicality, especially appreciated when children and guests are using the pool.
At the rear of the structure, a generous storage area measuring 15' x 7' offers ample room for pool equipment, outdoor furniture, and seasonal accessories. A discreet outdoor shower, positioned behind the stone accent wall, enhances both comfort and cleanliness.
Built on a monolithic slab foundation, the HACIENDA pool house ensures durability, stability, and low maintenance, making it a practical and inviting addition to any backyard retreat.
Distinctive elements
Pool pavilion with rustic charm and a welcoming, relaxed feel.
Integrated powder room, ideal for children and frequent pool traffic.
Compact indoor kitchenette with a built-in banquette, designed to keep drinks and snacks within reach, plus a counter for rinsing glasses and accessories.
Generous rear storage space designed for maximum practicality.
Outdoor shower discreetly located behind the stone wall on the right side.
Small uncovered front porch providing simple, natural access.
Monolithic slab foundation ensuring long-term stability and durability.
Plan feature(s)
Bench seat(s)
Plan architectural style(s)
. Pool House Plans and Cabanas, . Farmhouse, . Country, French Country, . Mediterranean
