Michener (2682)
Victorian inspired home plan, large home office with private entrance, bedrooms w/ walk-in closets, bonus room
View the size of the rooms and height of the ceilings

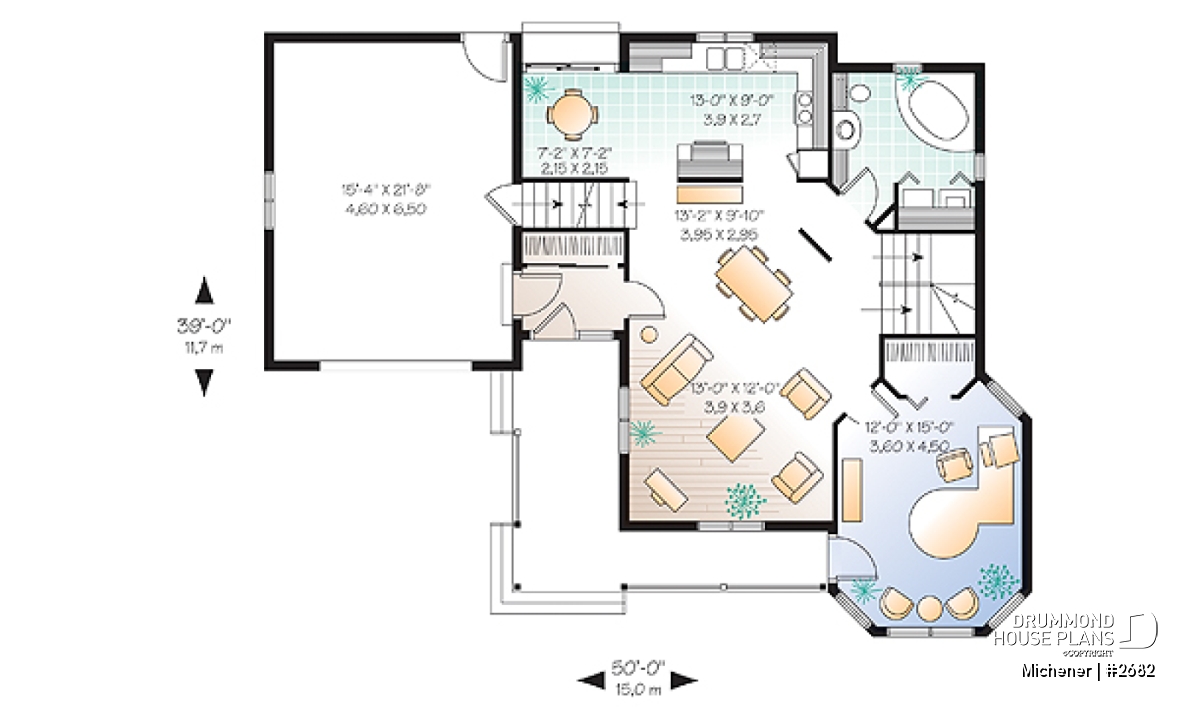

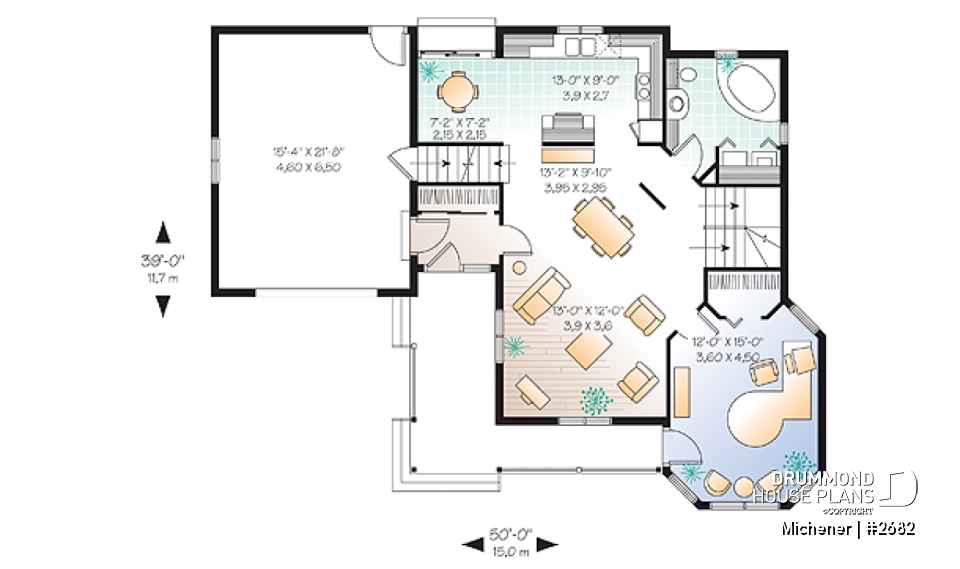

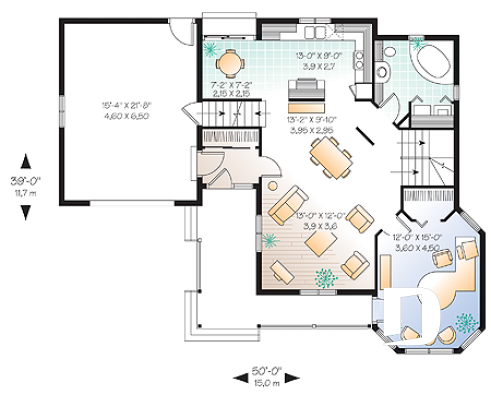

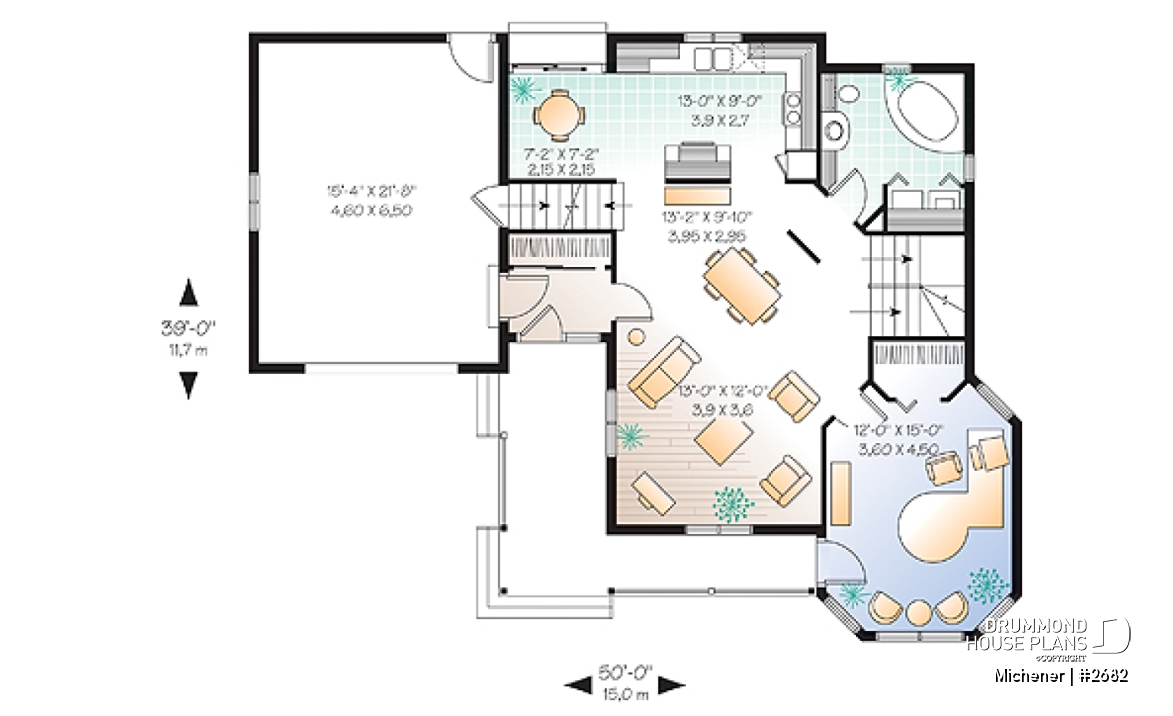

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'4" x 7'4" | ~ 8'0" |
| Kitchen | 12'8" x 9'2" | ~ 8'0" |
| Pantry | 2'0" x 1'6" | N/A |
| Dining room | 13'0" x 10'0" | ~ 8'0" |
| Living room | 13'0" x 12'0" | ~ 8'0" |
| Foyer | 6'10" x 4'0" | ~ 8'0" |
| Garage | 15'4" x 21'8" | ~ 8'4" |
| Porch | 20'8" x 4'0" | N/A |
| Porch | 6'6" x 11'0" | N/A |
| Covered deck | 6'6" x 2'0" | N/A |
| Home office | 12'0" x 15'0" | ~ 8'0" |

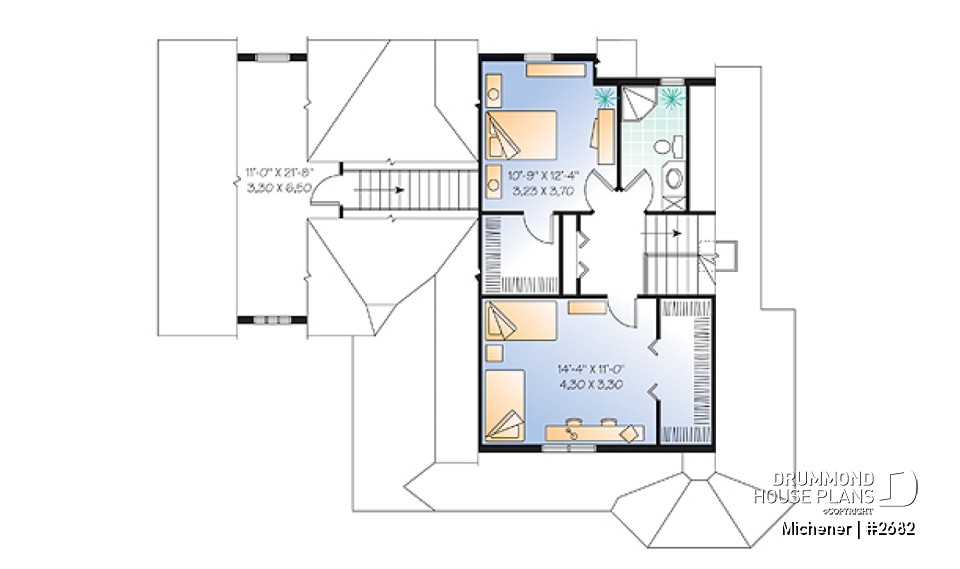

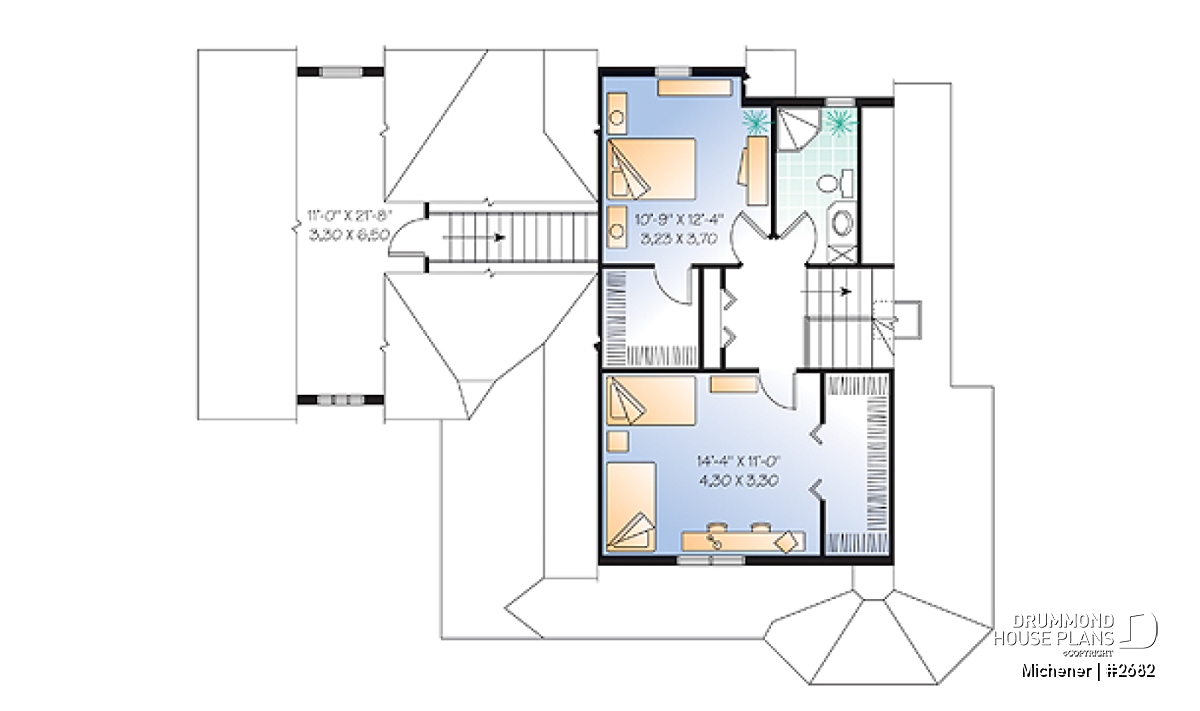

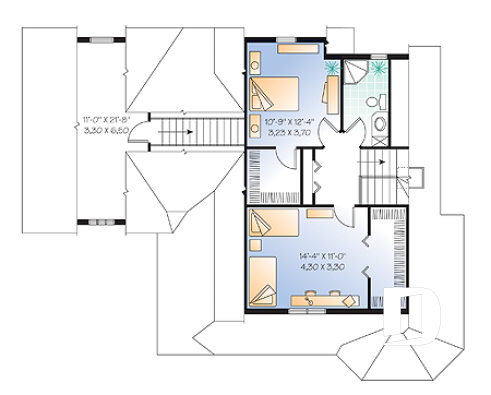

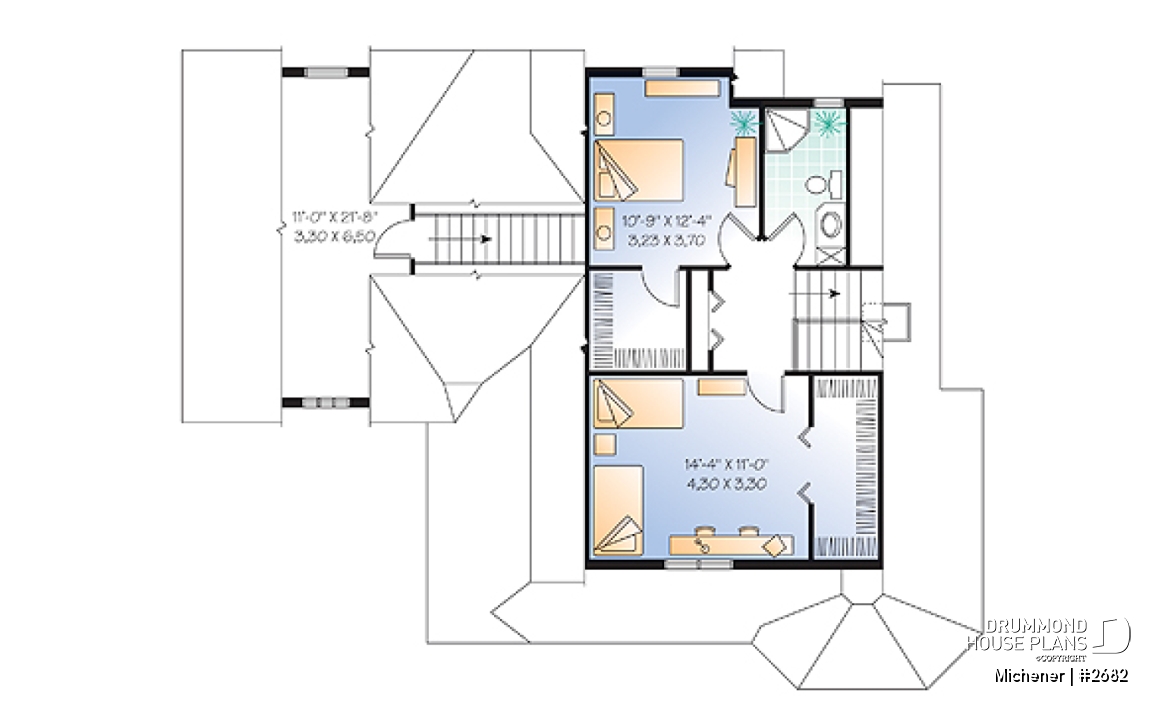

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 5'4" x 10'4" | ~ 8'0" |
| Bedroom | 14'4" x 11'0" | ~ 8'0" |
| Bedroom | 10'8" x 12'4" | ~ 8'0" |
| Linen | 1'0" x 6'8" | ~ 8'0" |
| Living bonus room | 11'0" x 21'8" | ~ 8'0" |
General specifications
| Total living area | 1568 sq.ft. |
| 1st level | 992 sq.ft. |
| 2nd level | 576 sq.ft. |
| Width | 50'0" |
| Depth | 39'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Floor plan with large home office and bonus room
.
Distinctive elements
Covered front entry and balcony, access to basement from garage, special ceiling treatments, home office or 3rd bedroom with private access from outside, abundant fenestration.
Plan feature(s)
Office / Study / Den, Living bonus space, Basement access from garage, Panoramic view, Breakfast nook, Warparound, Gound floor laundry room, Walk-in master bed., Laundry chute
Plan architectural style(s)
. Victorian, . American, . Country, . Cottage, chalet, cabin, . Vacation and waterfront
