House plan Chapman (4135)
Rised foundation, one-storey house plan with 2 bedrooms, kitchen with lots of storage

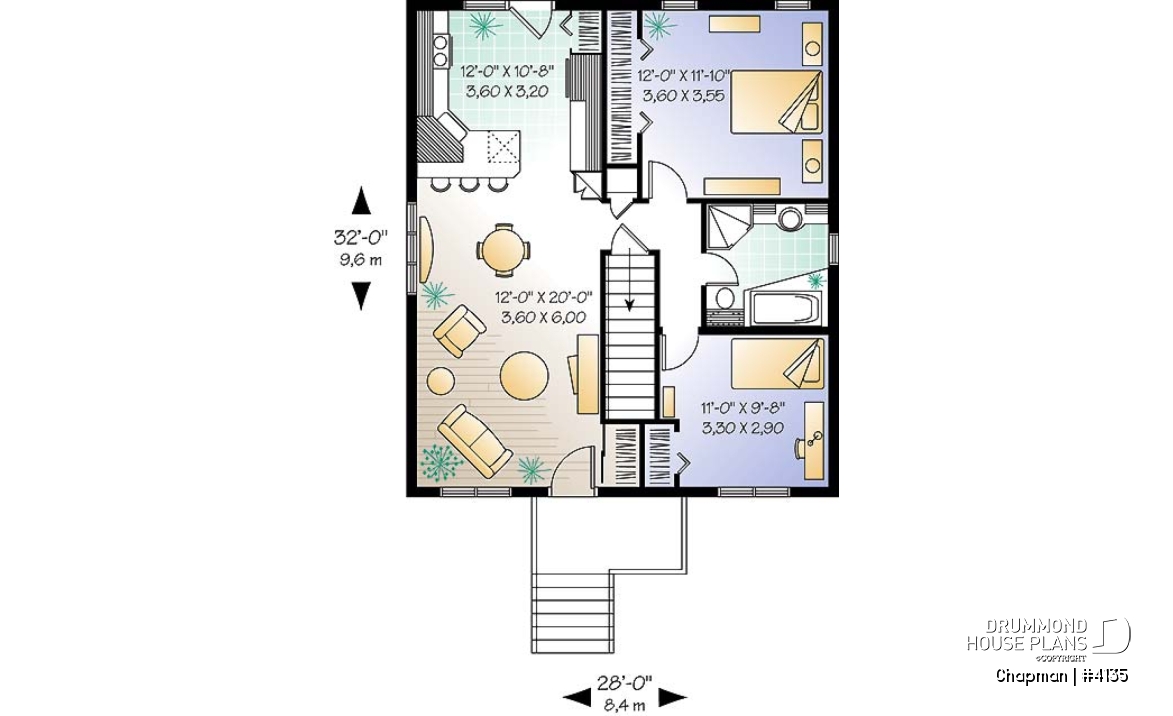

View the size of the rooms and height of the ceilings

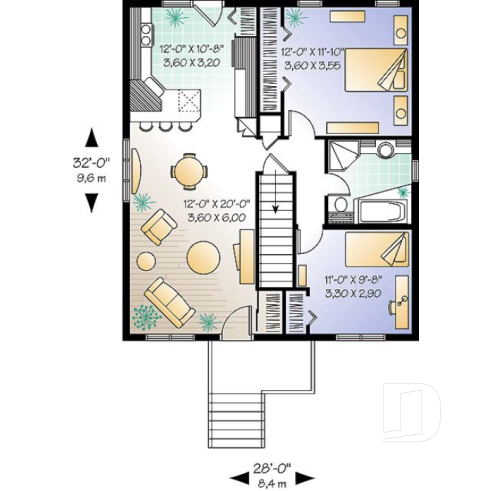

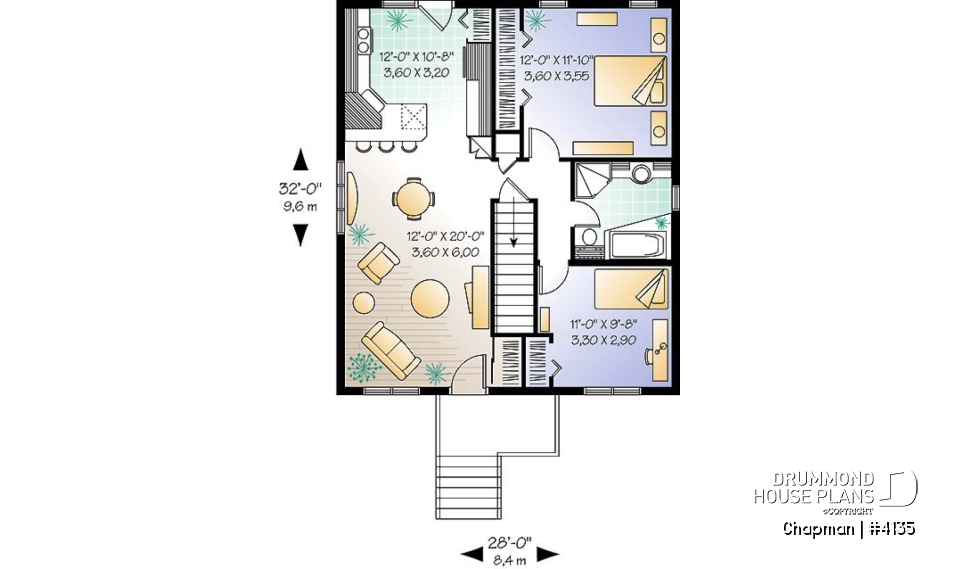

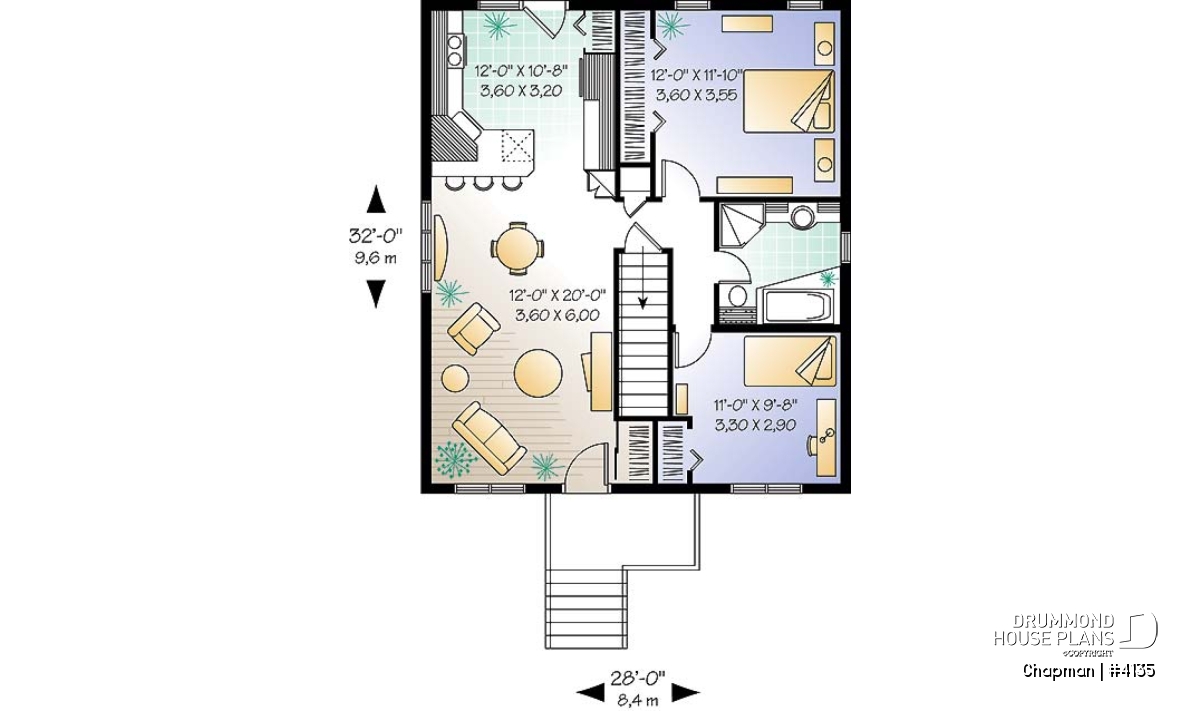

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 8'4" | ~ 8'0" |
| Kitchen | 12'0" x 10'8" | ~ 8'0" |
| Dining room | 12'0" x 20'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'10" | ~ 8'0" |
| Bedroom | 11'0" x 9'8" | ~ 8'0" |
| Closet | 2'0" x 4'0" | ~ 8'0" |
| Porch | 10'2" x 5'0" | N/A |
| Terrace | 8'0" x 5'0" | N/A |
| Storage | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 896 sq.ft. |
| 1st level | 896 sq.ft. |
| Width | 28'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 20'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | A |
Rooms specifications
Other useful information on this plan
Special space

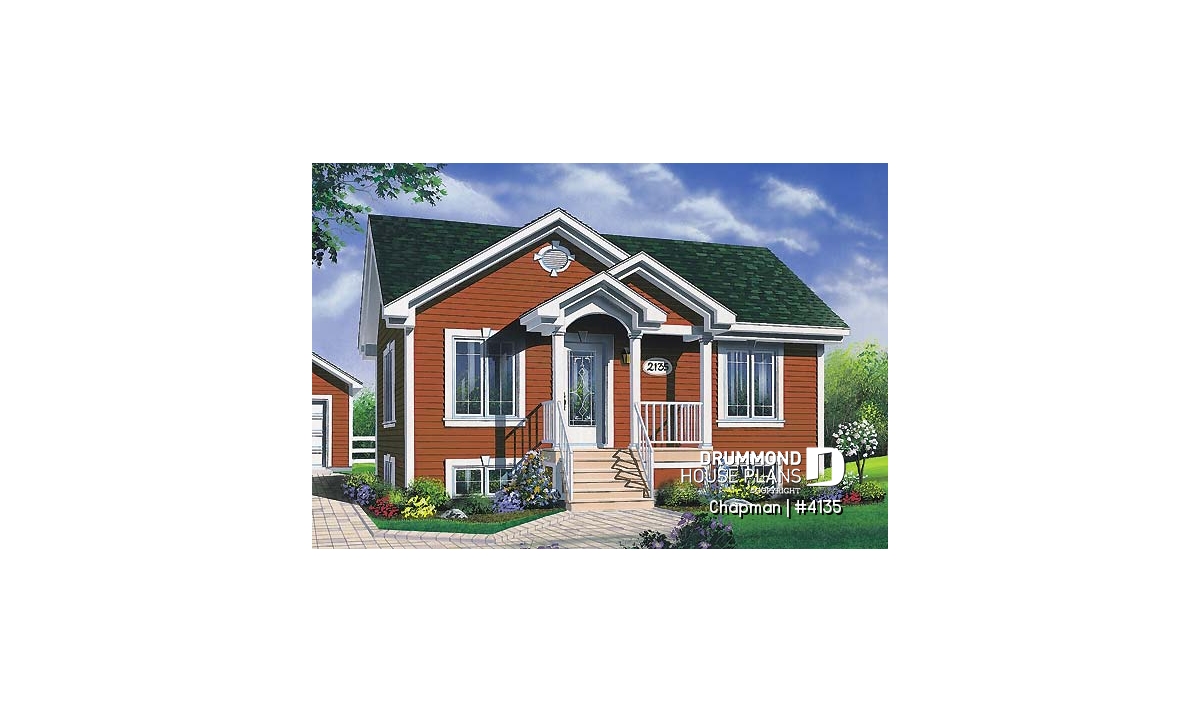

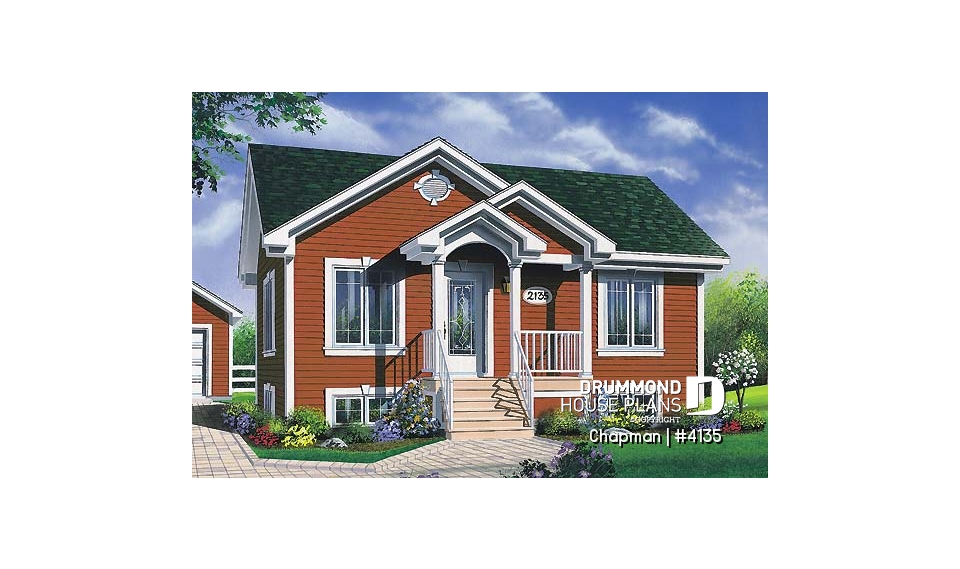

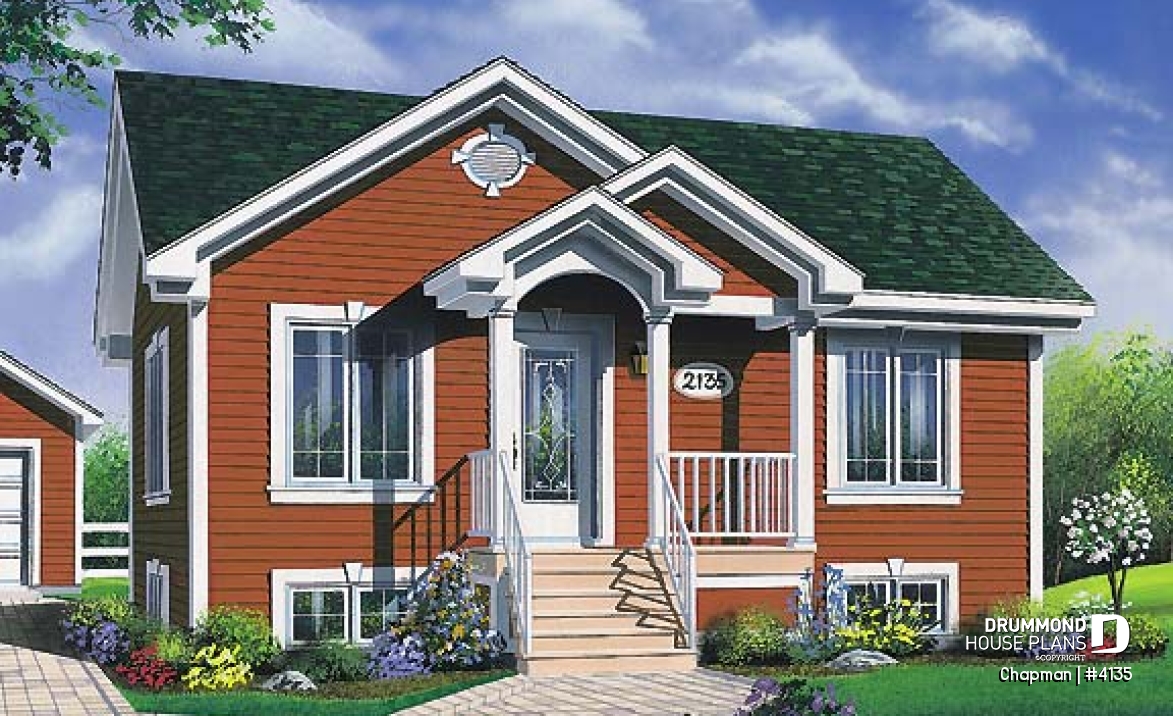

Cascading gables and a covered entry grace the front of this economical two-bedroom house plan.
Inside the front door, hang your coat in the closet and step into the open floorplan. The family room flows into the dining room and then to the kitchen with handy eating bar. Two bedrooms share a generous bathroom with separate tub and shower.
Laundry is located in the basement, where you’ll find more room for expansion and storage.
Distinctive elements
Front porch. Snack-bar in kitchen. Corner bath.
Plan feature(s)
Open floor layout, Lunch counter, Separate bath and shower
Plan architectural style(s)
. Country, . American, . Ranch, . Traditional
