House plan Sonata 2 (3280-V1)
Modern home design, master ensuite, open floor plan, home office or bedroom #3, 2-car garage

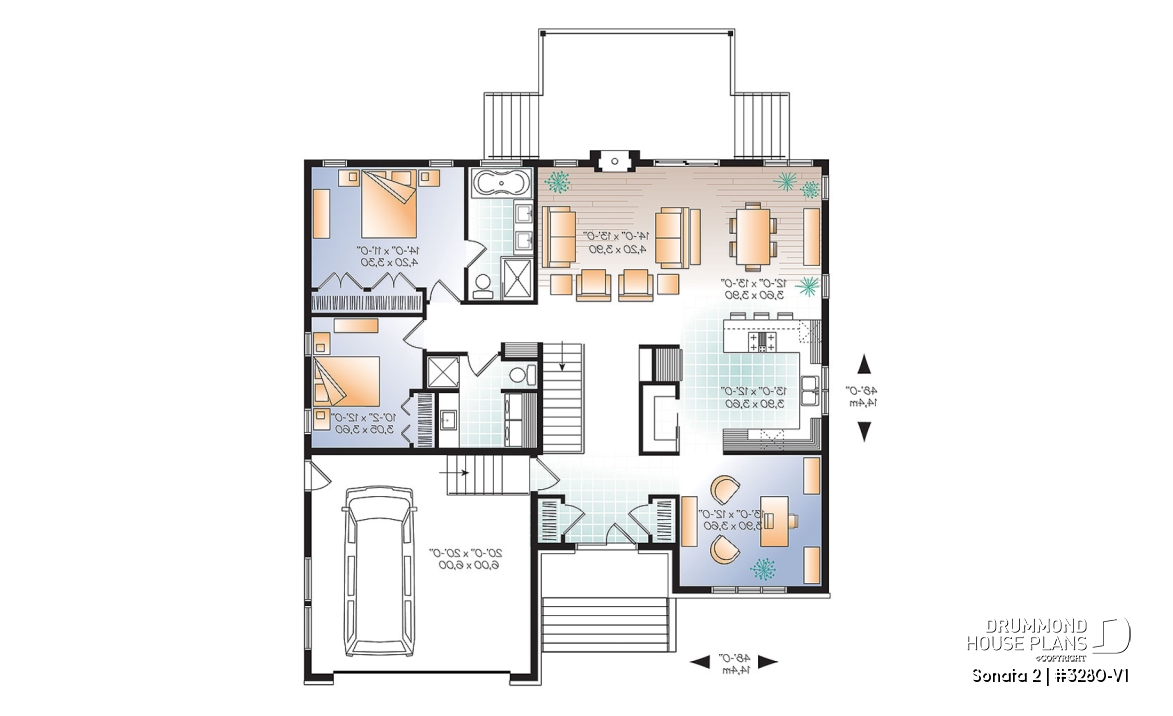

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'8" x 8'2" | ~ 9'0" |
| Closet | 2'2" x 4'0" | ~ 9'0" |
| Closet | 2'2" x 4'0" | ~ 9'0" |
| Home office | 13'0" x 12'0" | ~ 9'0" |
| Kitchen/dinette | 13'0" x 12'0" | ~ 9'0" |
| Dining room | 12'0" x 13'0" | ~ 9'0" |
| Living room | 14'0" x 13'0" | ~ 9'0" |
| Master suite | 14'0" x 11'0" | ~ 9'0" |
| Closet | 10'2" x 2'0" | ~ 9'0" |
| Bedroom | 10'2" x 12'0" | ~ 9'0" |
| Closet | 2'0" x 5'0" | ~ 9'0" |
| Shower/laundry room | 9'0" x 8'5" | ~ 9'0" |
| Shower | 3'0" x 3'0" | N/A |
| Linen | 3'0" x 1'4" | N/A |
| Pantry | 3'0" x 6'0" | ~ 9'0" |
| Full bathroom | 6'0" x 12'2" | ~ 9'0" |
| Shower | 3'0" x 4'0" | N/A |
General specifications
| Total living area | 1600 sq.ft. |
| 1st level | 1600 sq.ft. |
| Width | 48'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 23'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern bungalow house plan with striking contrasts and 9' ceilings throughout
Inspired by your comments on our site for the best layout from a choice of three, we are proud to present model 3280-V1.
Part of the design collection inspired by model 3280, the modern yet elegant lines begin with its hip roof and lead down to the exterior walls, finished in pale colored brick that harmonizes well with the horizontal wood siding.
The floor plan chosen by popular demand includes a large entrance foyer with closet space on either side and an office near by that can always be used as a third bedroom if the need arises.
The well appointed kitchen has ample counter space, a 3' x 6' walk in pantry and an island. The living/dining area has abundant windows overlooking the back yard and opens out onto a beautiful, covered terrace that spans 18' x 12'.
The master suite with a full bathroom that includes a double vanity. The second bedroom is adjacent to a combination shower room/laundry area that increases the livability of this versatile plan.
Distinctive elements
9' ceilings throughout the main level. Home office near the front entrance. Master suite with full bath. Entirely open family area with fireplace and view to the back yard. 18' x 12' covered terrace in back. Double garage with ceilings more than 10' high.
Plan feature(s)
Deck, Fireplace, Gound floor laundry room, Pantry, Ceiling over 8', Lunch counter, Office / Study / Den, Double sinks, Master suite on main, Separate bath and shower, Double sinks, Open floor layout
Plan architectural style(s)
. Contemporary, . American, . Ranch, . Modern / Design, . Mid-century
