House plan Grenoble 2 (4572)
Victorian house plan with home office, breakfast nook and 3 bedrooms
View the size of the rooms and height of the ceilings

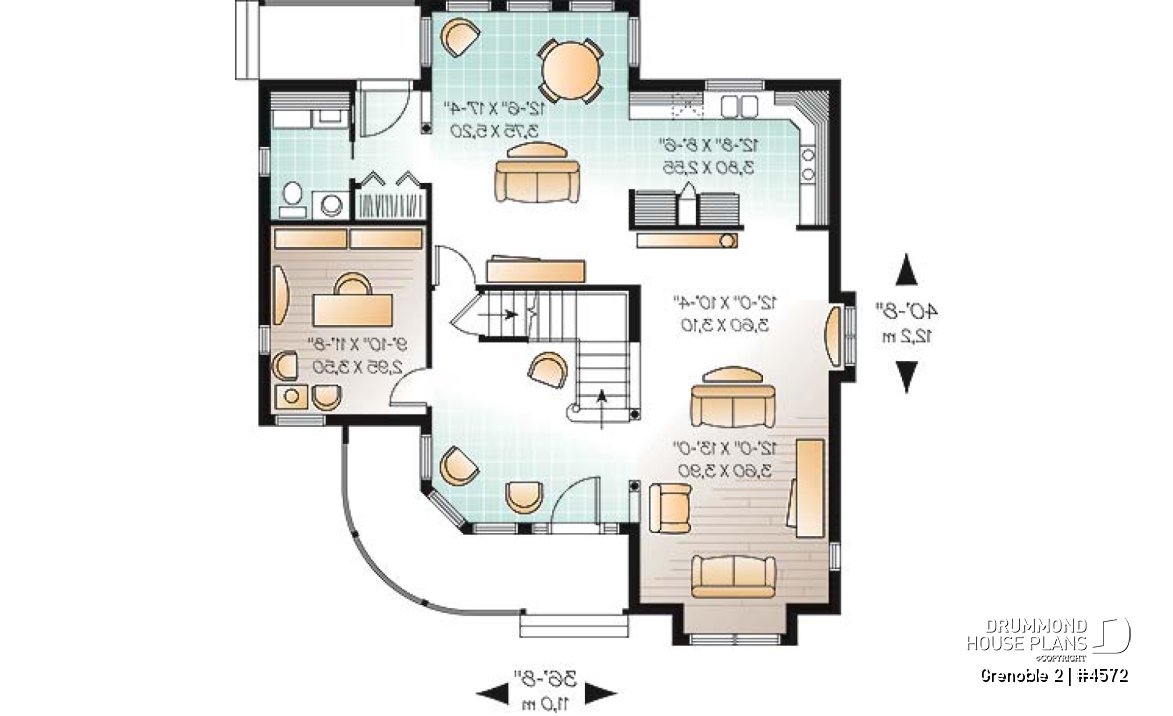

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 8'6" | ~ 9'0" |
| Dining room | 12'0" x 10'4" | ~ 9'0" |
| Living room | 12'0" x 13'0" | ~ 9'0" |
| Great room or Family room | 12'6" x 17'4" | ~ 9'0" |
| Home office | 9'10" x 11'8" | ~ 9'0" |
| Foyer | 12'6" x 6'4" | ~ 9'0" |
| Utility room | 5'0" x 8'4" | ~ 9'0" |
| Closet | 4'6" x 2'0" | ~ 9'0" |
| Deck | 10'2" x 5'0" | N/A |

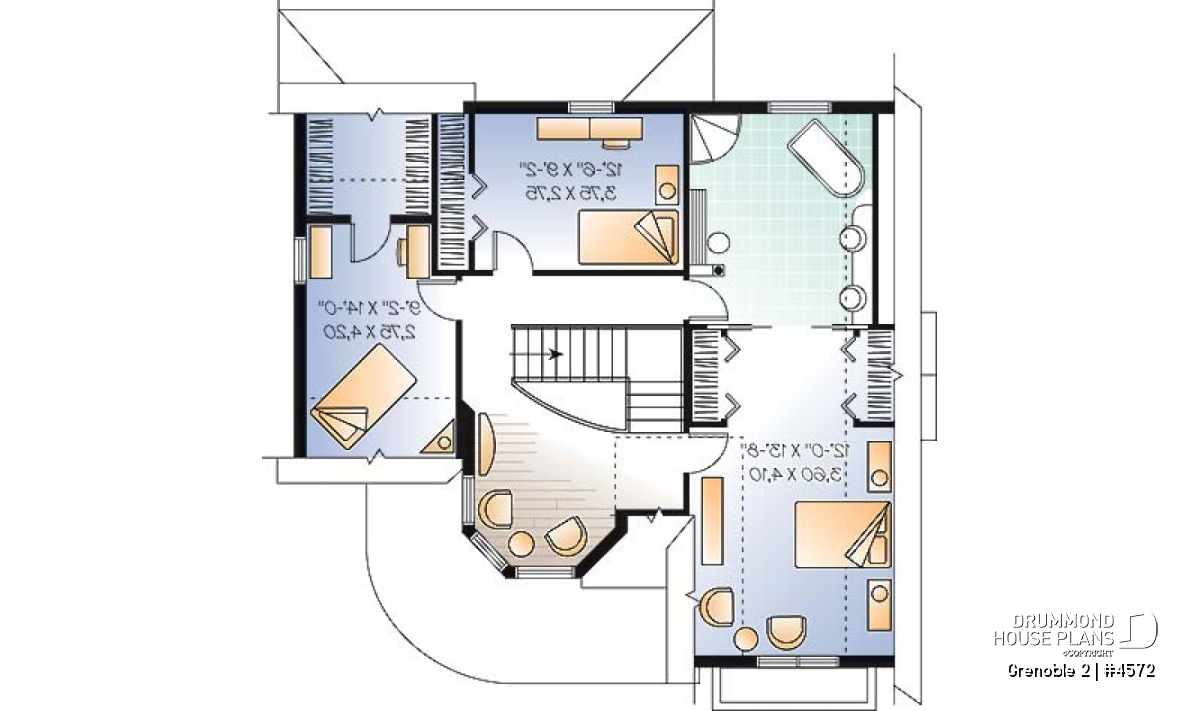

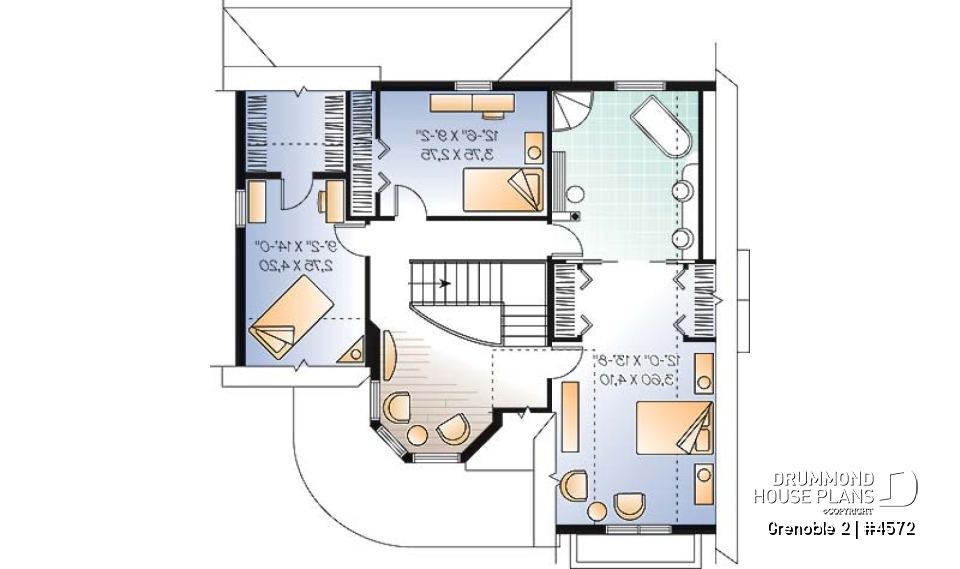

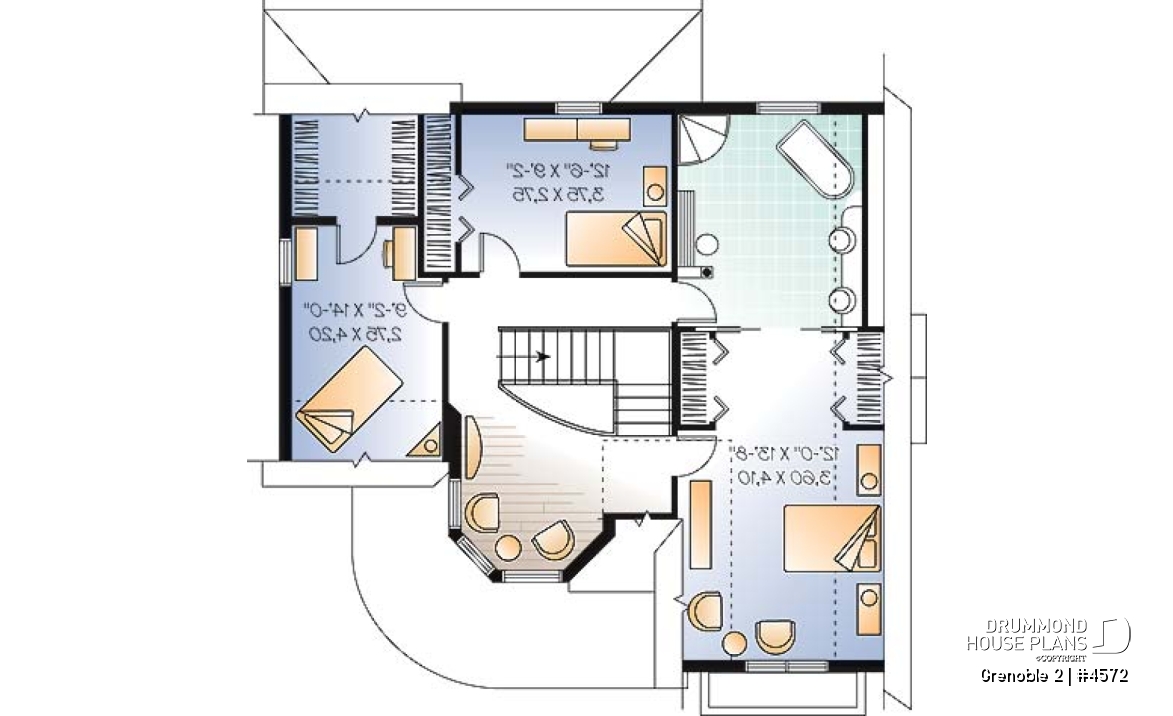

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'8" x 10'10" | ~ 8'0" |
| Bedroom | 12'0" x 13'8" | ~ 8'0" |
| Bedroom | 9'2" x 14'0" | ~ 8'0" |
| Bedroom | 12'6" x 9'2" | ~ 8'0" |
General specifications
| Total living area | 2160 sq.ft. |
| 1st level | 1130 sq.ft. |
| 2nd level | 1030 sq.ft. |
| Width | 36'8" |
| Depth | 40'8" |
| Ridge height from top of foundation | 30'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Charming victorian style house plan with 3 bedrooms, a home office and breakfast nook
.
Distinctive elements
Home office or bedroom #4, abundant fenestration, built-ins, covered front porch, false balcony on 2nd level.
Plan feature(s)
Separate bath and shower, Sitting area, Office / Study / Den, Breakfast nook, Double sinks, Ceiling over 8', Sloped ceiling, Formal dining room, Gound floor laundry room, Master suite upstairs, Deck
Plan architectural style(s)
. Victorian, . Country, . Traditional
