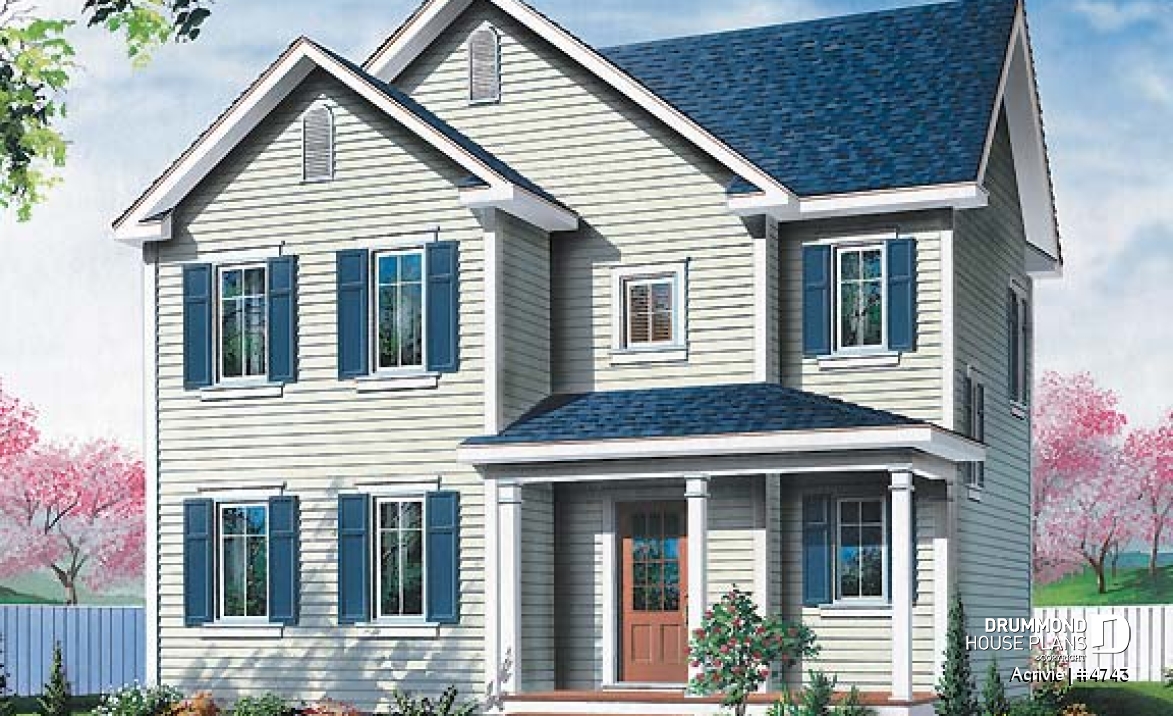

House plan Acrivie (4743)
Budget friendly 2-storey house plan with 3 bedrooms, landry room on main and full unfinished basement
View the size of the rooms and height of the ceilings

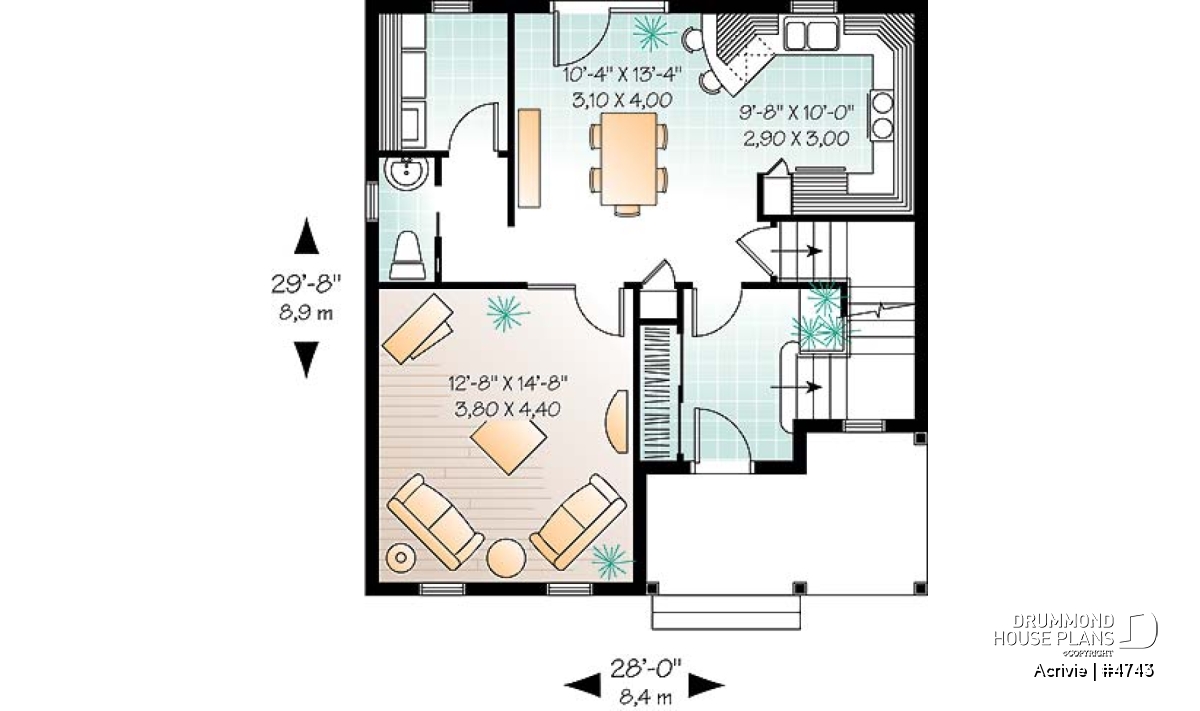

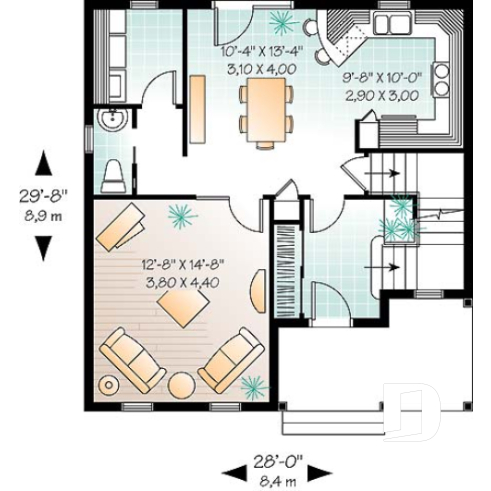

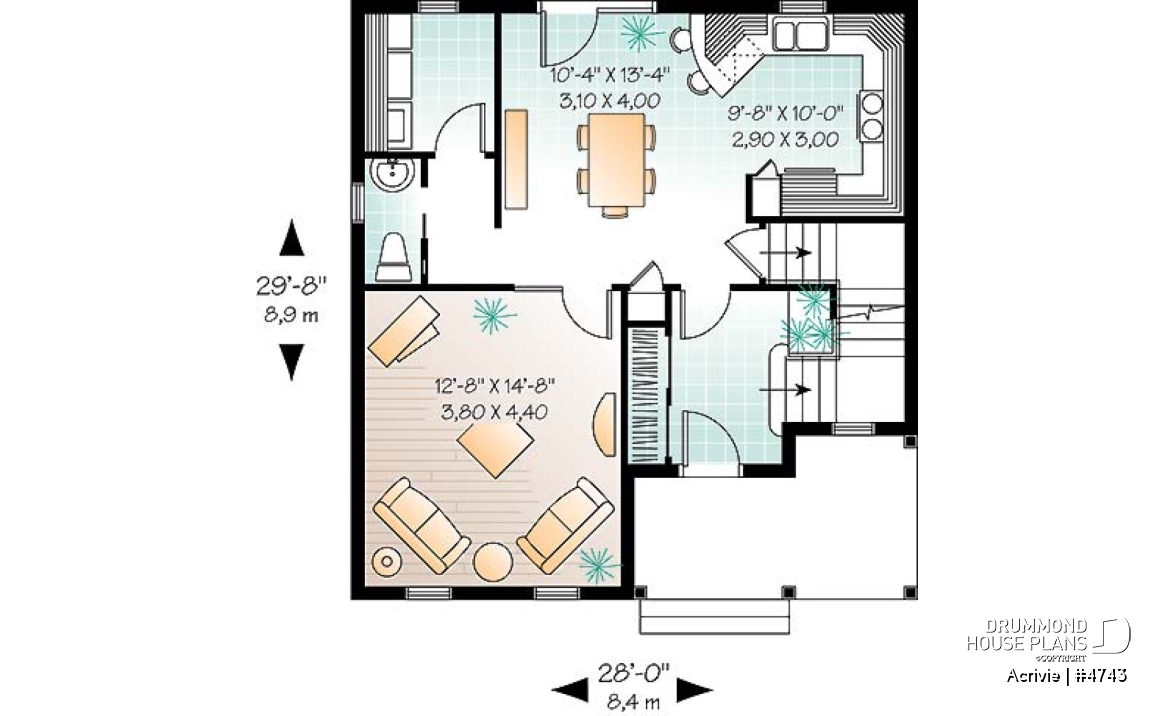

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 2'10" x 6'2" | ~ 8'0" |
| Kitchen | 9'8" x 10'0" | ~ 8'0" |
| Dining room | 10'4" x 13'4" | ~ 8'0" |
| Living room | 12'8" x 14'8" | ~ 8'0" |
| Linen | 1'10" x 1'6" | ~ 8'0" |
| Foyer | 5'6" x 8'8" | ~ 8'0" |
| Utility room | 6'4" x 6'8" | ~ 8'0" |
| Porch | 14'0" x 6'0" | N/A |
| Terrace | 8'0" x 5'0" | N/A |

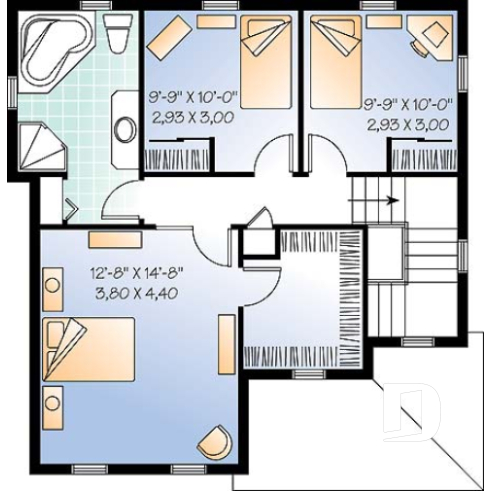

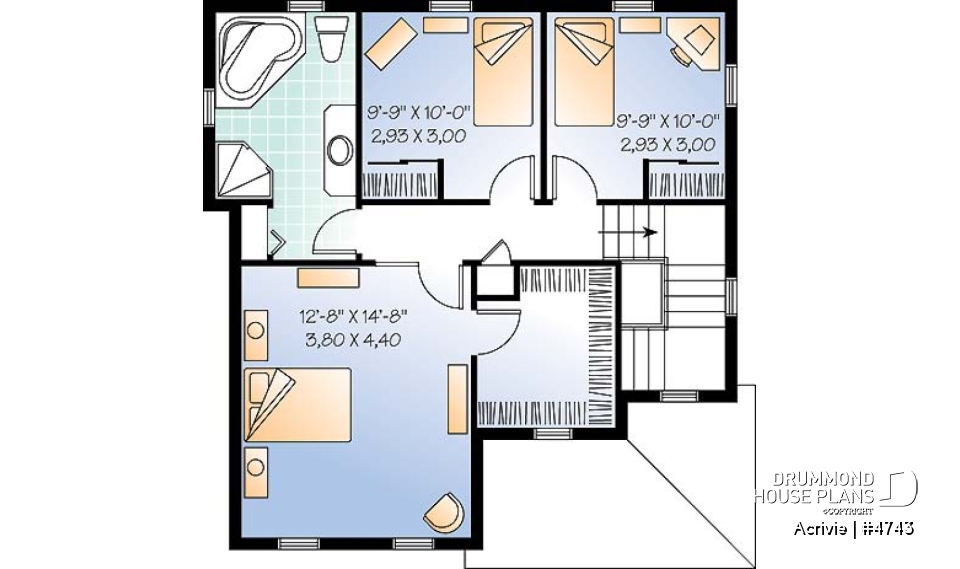

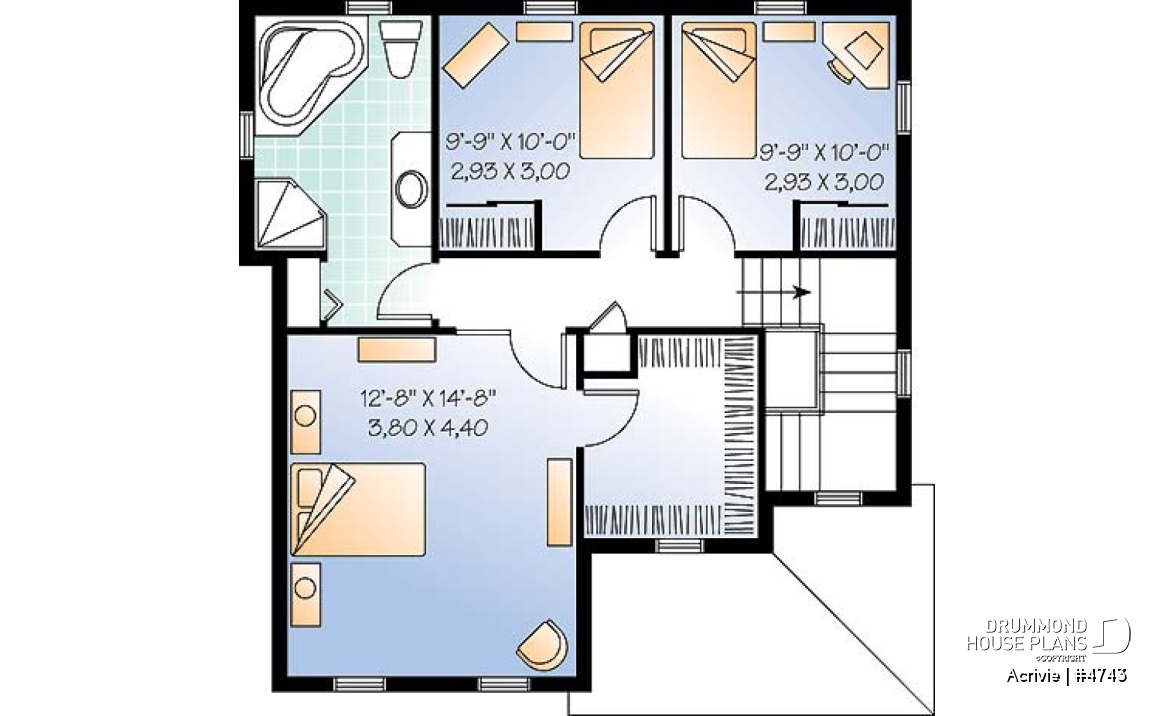

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 13'4" | ~ 8'0" |
| Bedroom | 12'8" x 14'8" | ~ 8'0" |
| Bedroom | 9'9" x 10'0" | ~ 8'0" |
| Bedroom | 9'9" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 1485 sq.ft. |
| 1st level | 735 sq.ft. |
| 2nd level | 750 sq.ft. |
| Width | 28'0" |
| Depth | 29'8" |
| Ridge height from top of foundation | 28'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Economical 3 bedroom / 2 storeys house plan with nice front porch!
.
Distinctive elements
Budget-friendly 3 bedroom house plan.
Closed entrance.
Laundry room on main floor.
Master bedroom with walk-in closet.
Large family bathroom with separate bath and shower.
Plan feature(s)
Entrance hall, Gound floor laundry room, Lunch counter, Separate bath and shower, Walk-in master bed.
Plan architectural style(s)
. Traditional, . American, . Country, . Colonial
