Bayview (3619)
Mediterranean 6 bedroom luxury house plan, 2 master suites, formal living & dining room, 3-car garage
View the size of the rooms and height of the ceilings

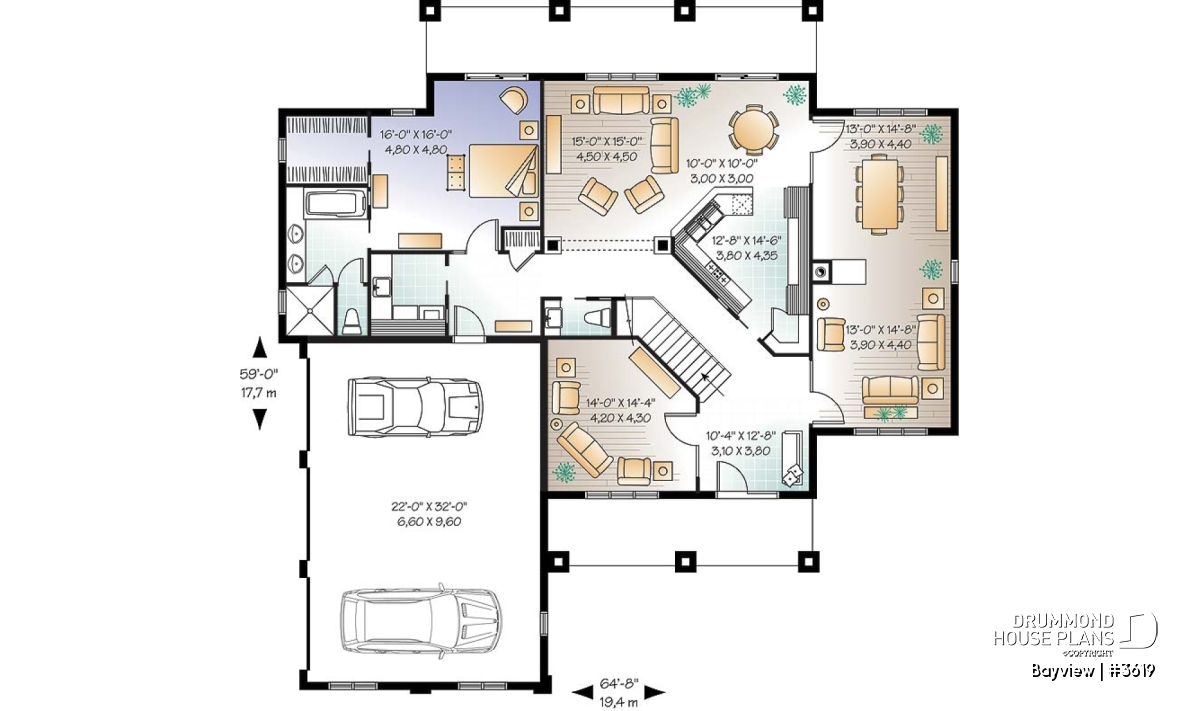

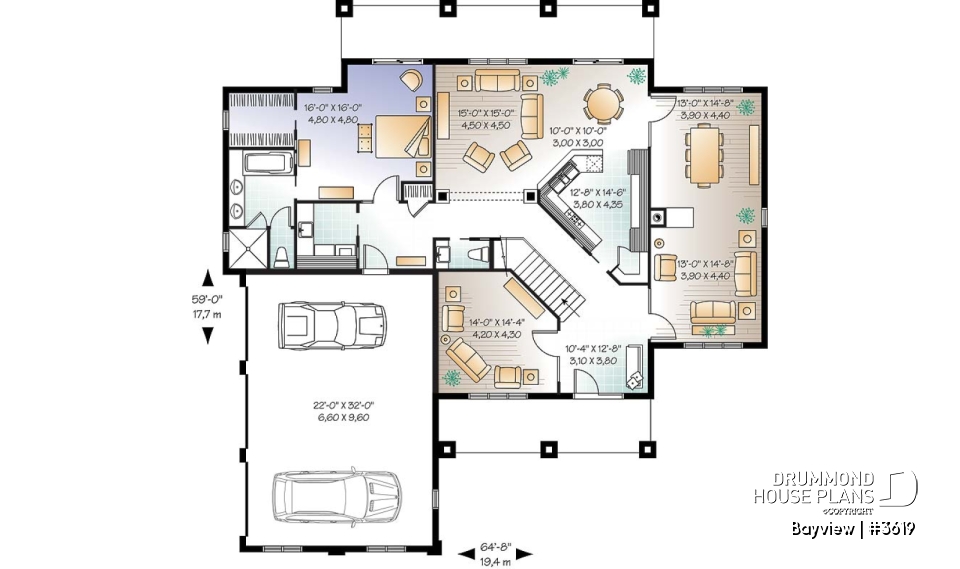

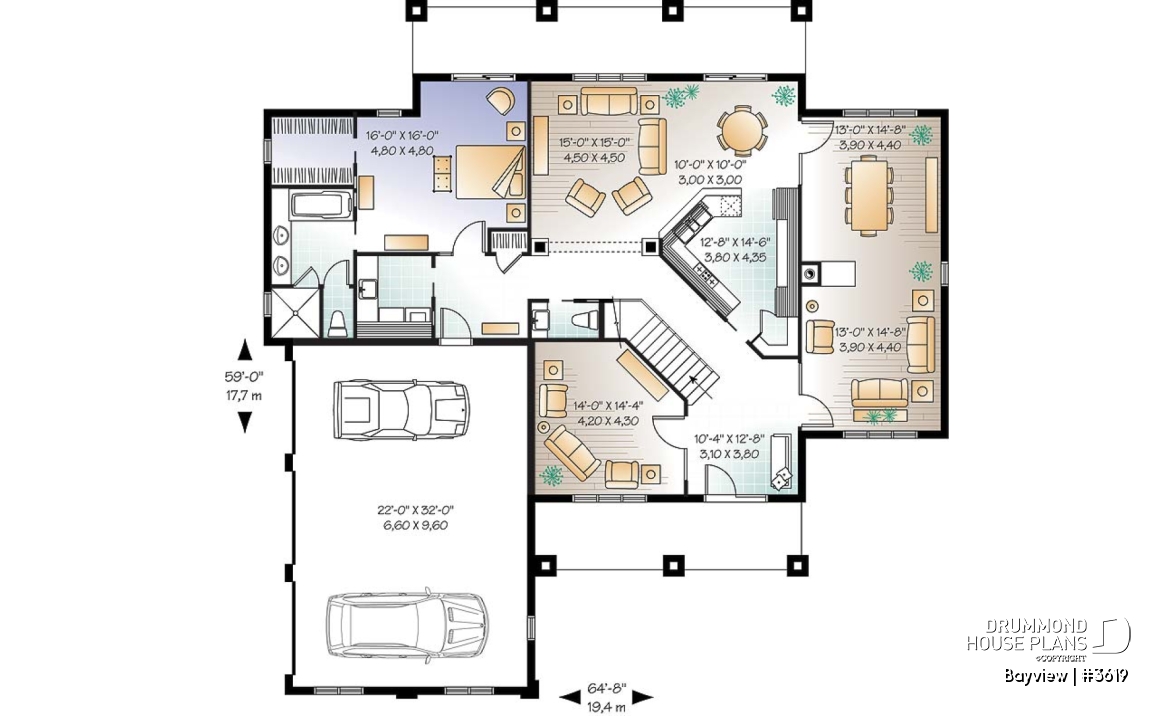

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 14'6" | ~ 9'6" |
| Dining room | 13'0" x 14'8" | ~ 9'6" |
| Living room | 13'0" x 14'8" | ~ 9'6" |
| Foyer | 10'4" x 12'8" | ~ 9'6" |
| Half bath or powder room | 6'4" x 3'4" | ~ 9'6" |
| Master suite | 16'0" x 16'0" | ~ 9'6" |
| Laundry room | 7'0" x 7'4" | ~ 9'6" |
| Linen | 3'5" x 2'0" | ~ 9'6" |
| Garage | 22'0" x 32'0" | ~ 9'6" |
| Porch | 24'8" x 6'0" | N/A |
| Porch | 36'0" x 6'0" | N/A |
| Dinette | 10'0" x 10'0" | ~ 9'6" |
| Great room or Family room | 15'0" x 15'0" | ~ 9'6" |
| Home theater | 14'0" x 14'4" | ~ 9'6" |

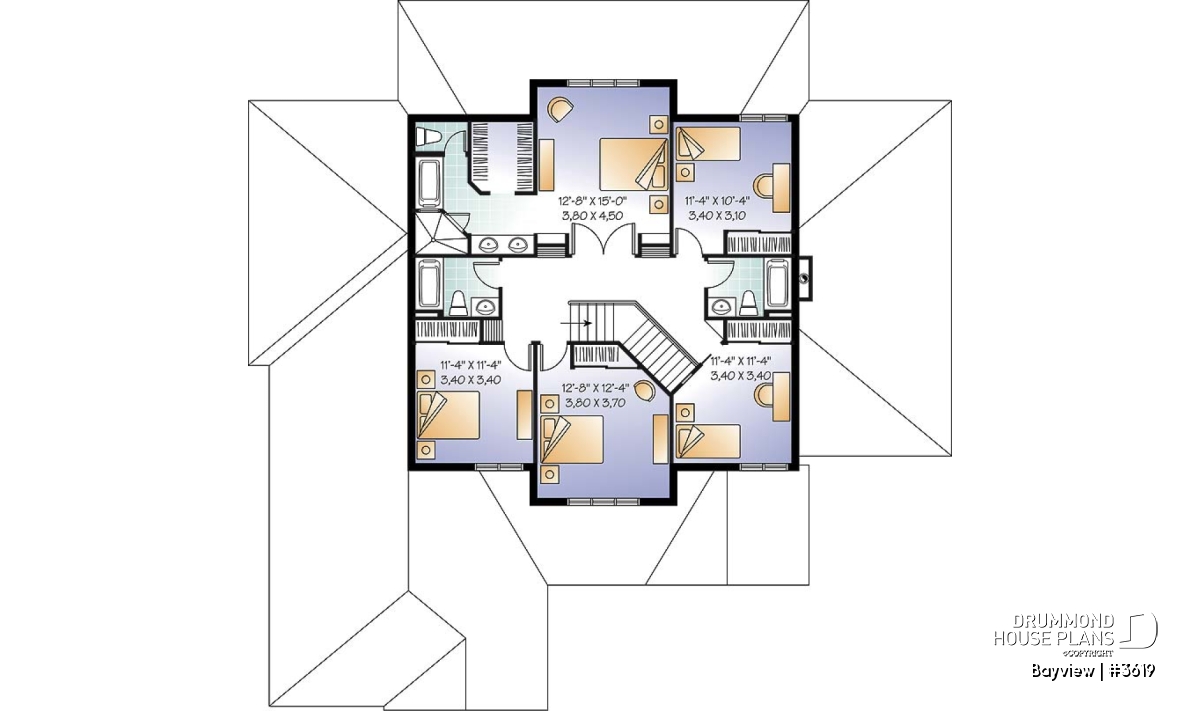

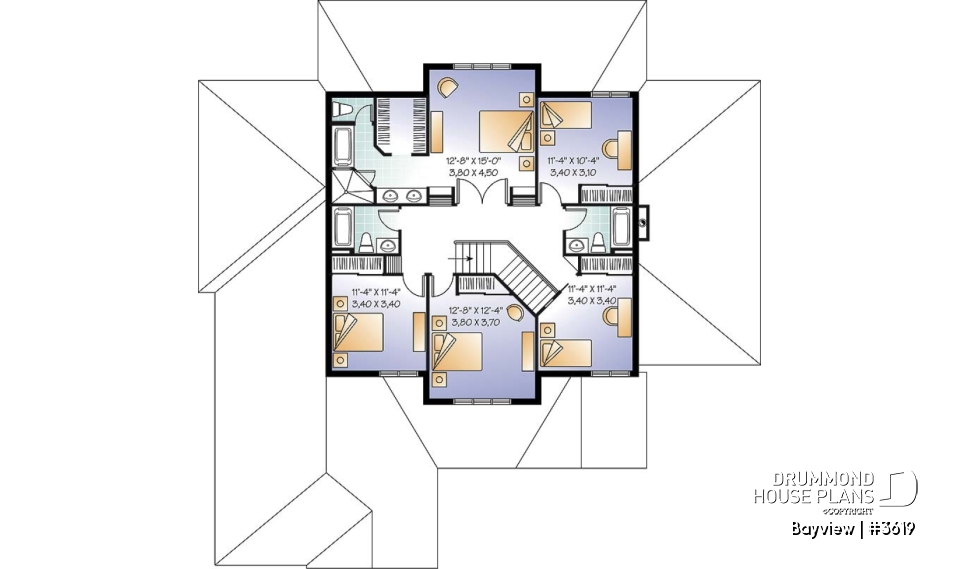

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Guest suite | 12'8" x 15'0" | ~ 8'0" |
| Bedroom | 12'8" x 12'4" | ~ 8'0" |
| Bedroom | 11'4" x 11'4" | ~ 8'0" |
| Full bathroom | 8'0" x 5'8" | ~ 8'0" |
| Full bathroom | 8'0" x 5'8" | ~ 8'0" |
| Bedroom | 11'4" x 10'4" | ~ 8'0" |
| Bedroom | 11'4" x 11'4" | ~ 8'0" |
General specifications
| Total living area | 3448 sq.ft. |
| 1st level | 2085 sq.ft. |
| 2nd level | 1363 sq.ft. |
| Width | 64'8" |
| Depth | 58'8" |
| Ridge height from top of foundation | 27'6" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | I |
Rooms specifications
Other useful information on this plan
6 Bedroom, 2 Master Suites House Plans with 3-car garage
There’s ample space for everyone in this spacious Florida-style house plan! Full bedrooms suites upstairs and down let you choose your favourite. The main level includes a media room, formal living and dining rooms with two-sided fireplace and a second family room and breakfast room off the open kitchen.
The second floor features four secondary bedrooms, two bathrooms and a master suite with walk-in closet and 5-piece bathroom.
A three-car garage and rear loggia complete the stunning features. With so much room, you have space for a large family or even for a B&B.
Designed as a southern design, this model is equally at home nation-wide as-is or with modest modifications.
Distinctive elements
Ceiling at 9'-4`` throughout the first level. Interior look suggesting three different living rooms and two dining areas. Original kitchen with a walk-in pantry. Master suite suggested on the first level as well as on the second level and four other large bedroms. Well-integrated triple garage.
Plan feature(s)
Ceiling over 8', Gound floor laundry room, Panoramic view, Fireplace, Side entry garage, Pantry, Guest suite, Deck, Master suite on main, Formal dining room, Office / Study / Den, Split bedrooms
Plan architectural style(s)
. Mediterranean, . Florida
