House plan Urban Valley 3 (3288-V2)
Mountain style small 2 bedrooms house plan with garage, mudroom, pantry, 9' ceiling
View the size of the rooms and height of the ceilings

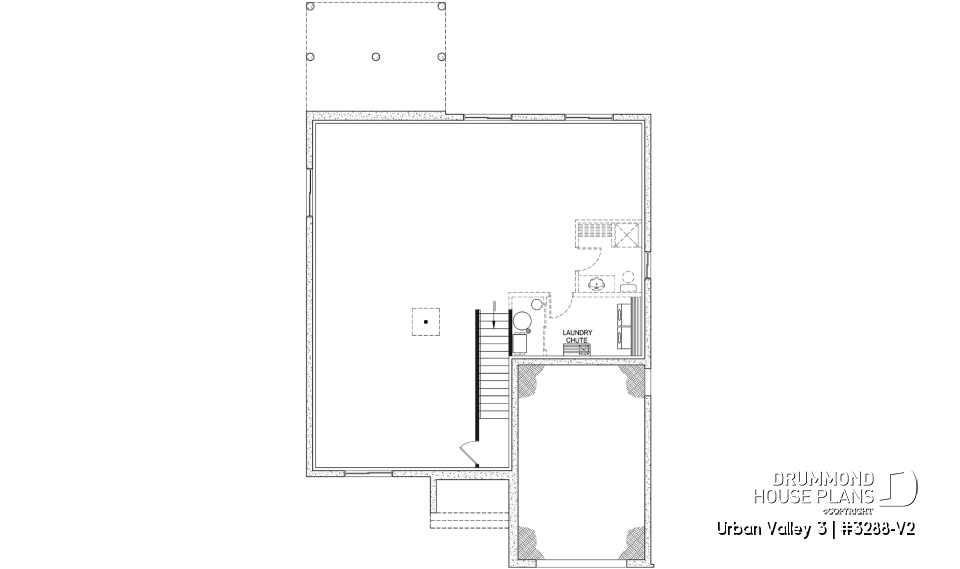

| Basement |
|---|

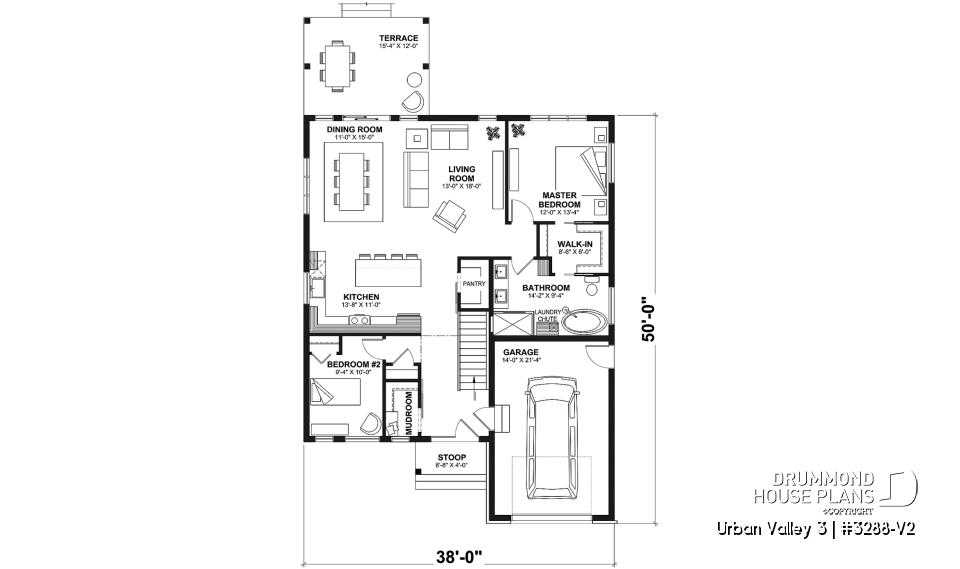

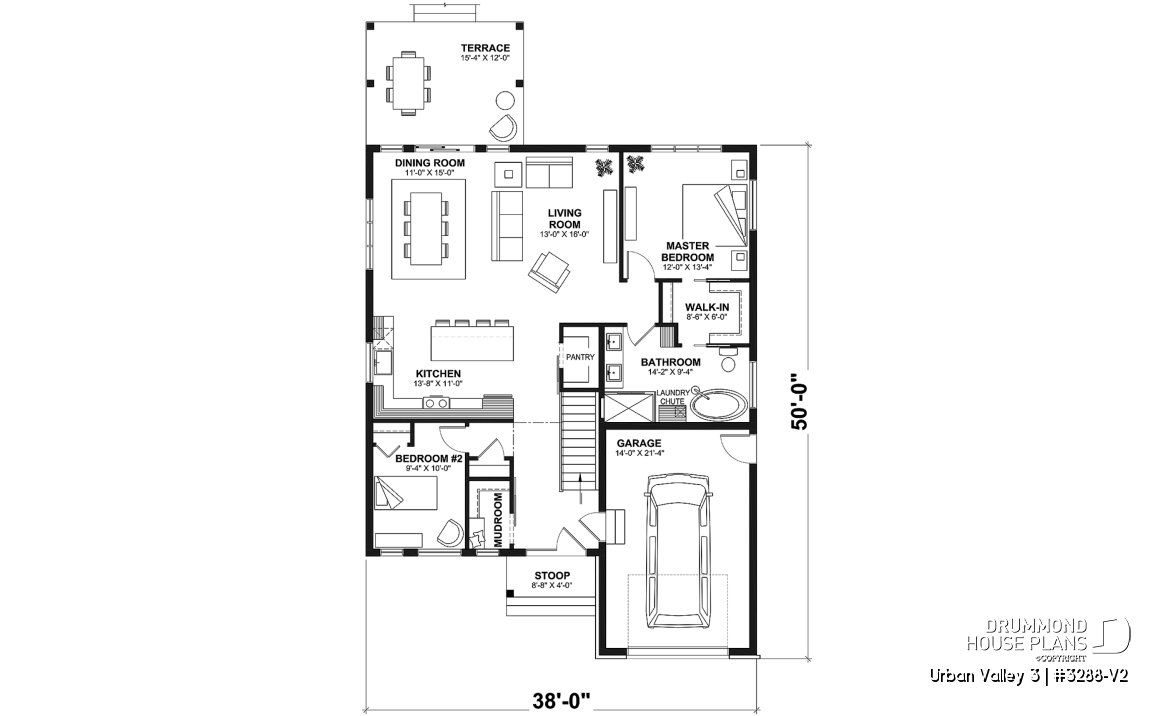

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'0" x 12'4" | ~ 9'0" |
| Closet | 3'8" x 2'0" | ~ 9'0" |
| Bedroom | 12'4" x 12'4" | ~ 9'0" |
| Walk-in closet | 8'6" x 6'0" | ~ 9'0" |
| Dining room | 11'0" x 15'0" | ~ 9'0" |
| Covered deck | 15'4" x 12'0" | ~ 9'0" |
| Kitchen | 13'4" x 11'0" | ~ 9'0" |
| Pantry | 3'6" x 6'0" | ~ 9'0" |
| Kitchen island | 8'0" x 3'4" | N/A |
| Mud room | 4'0" x 6'8" | ~ 9'0" |
| Foyer | 8'0" x 12'4" | ~ 13'2" |
| Garage | 14'0" x 21'4" | ~ 11'0" |
| Porch | 8'8" x 4'0" | ~ 9'0" |
| Linen | 4'0" x 1'8" | ~ 9'0" |
| Full bathroom | 14'2" x 7'4" | ~ 9'0" |
General specifications
| Total living area | 1339 sq.ft. |
| Basement | 1339 sq.ft. |
| 1st level | 1339 sq.ft. |
| Width | 38'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 21'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

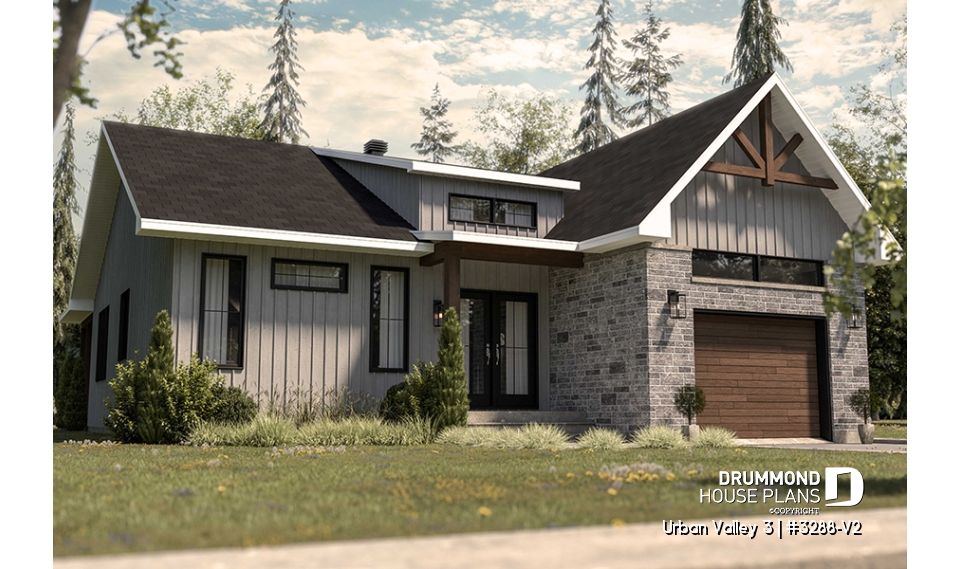

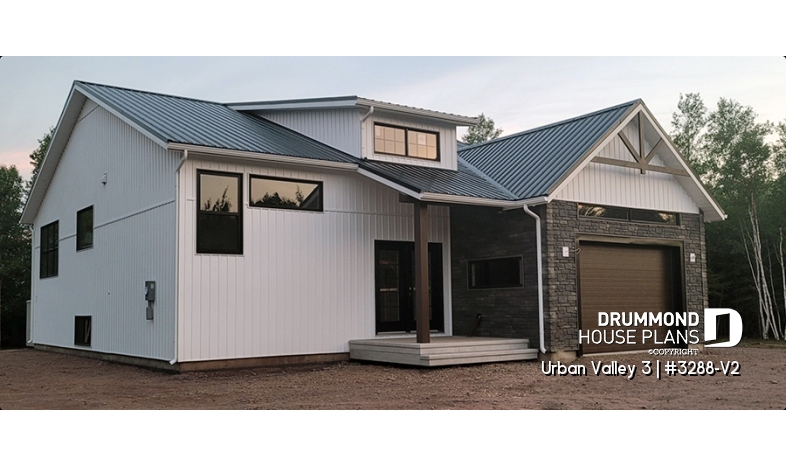

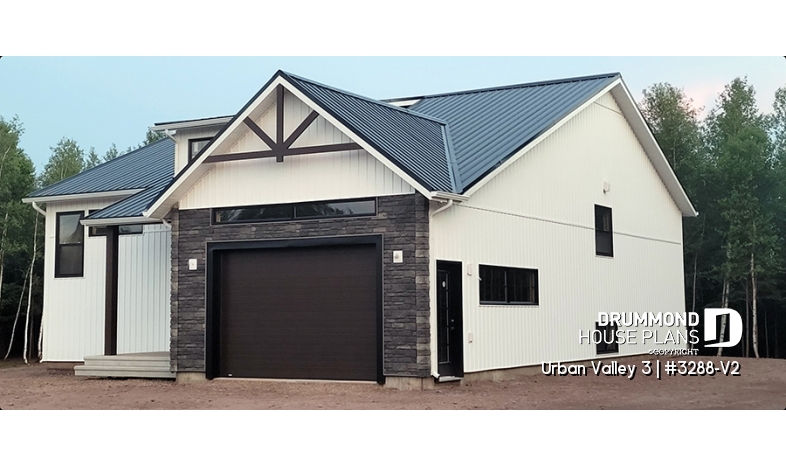

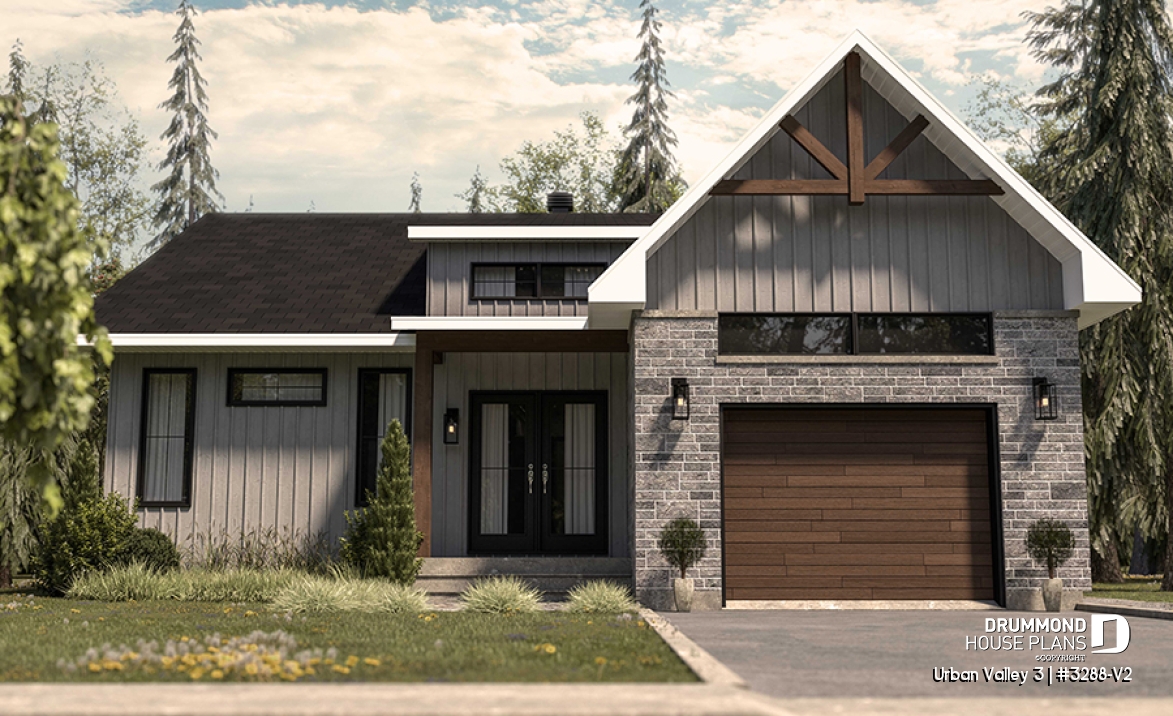

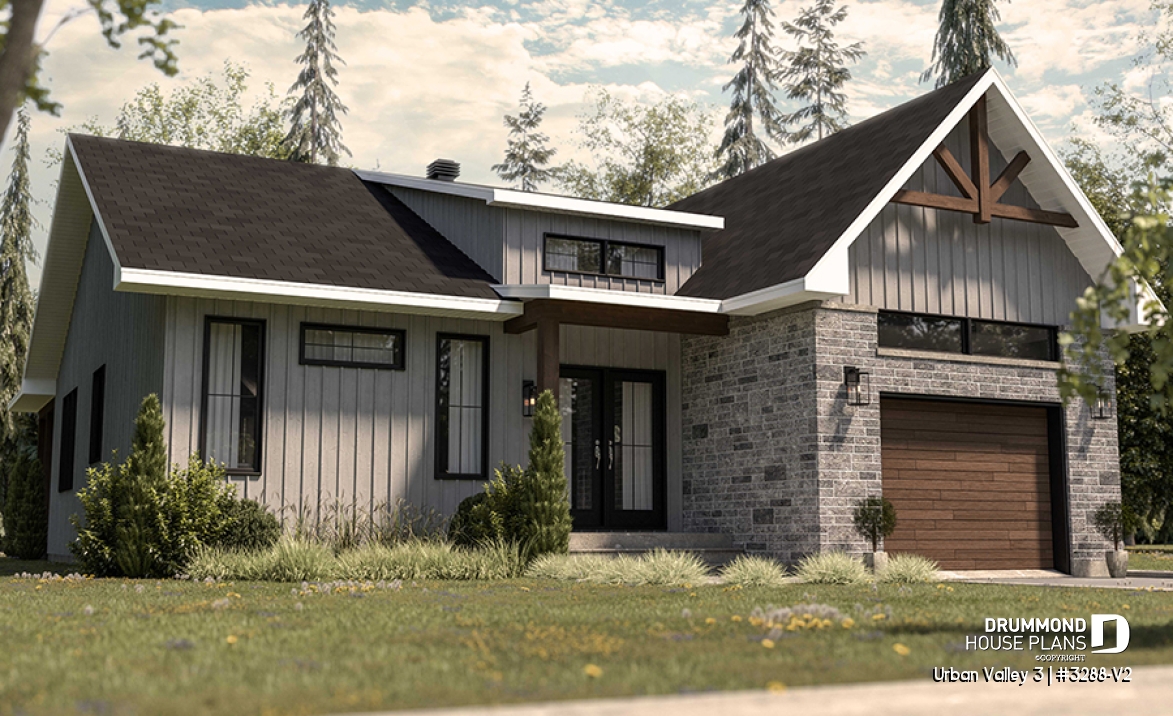

front

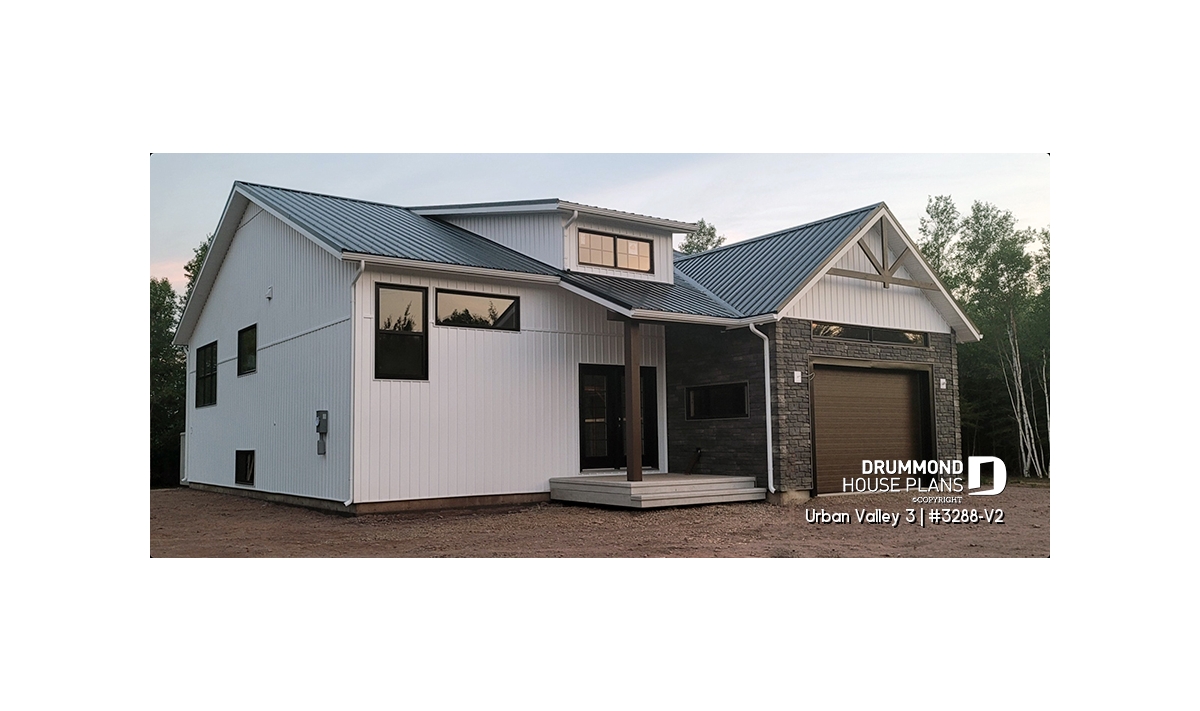

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

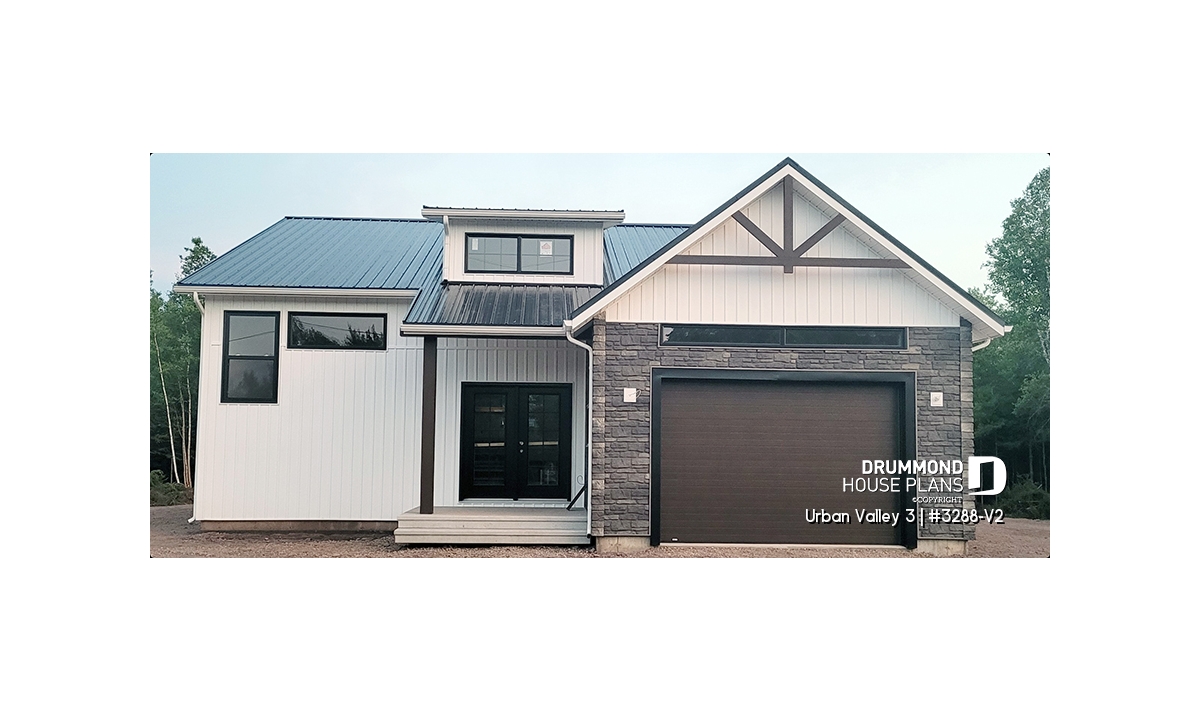

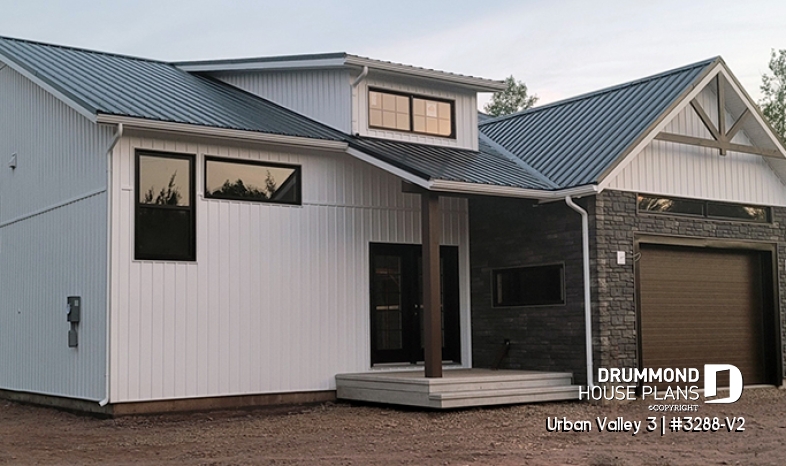

front

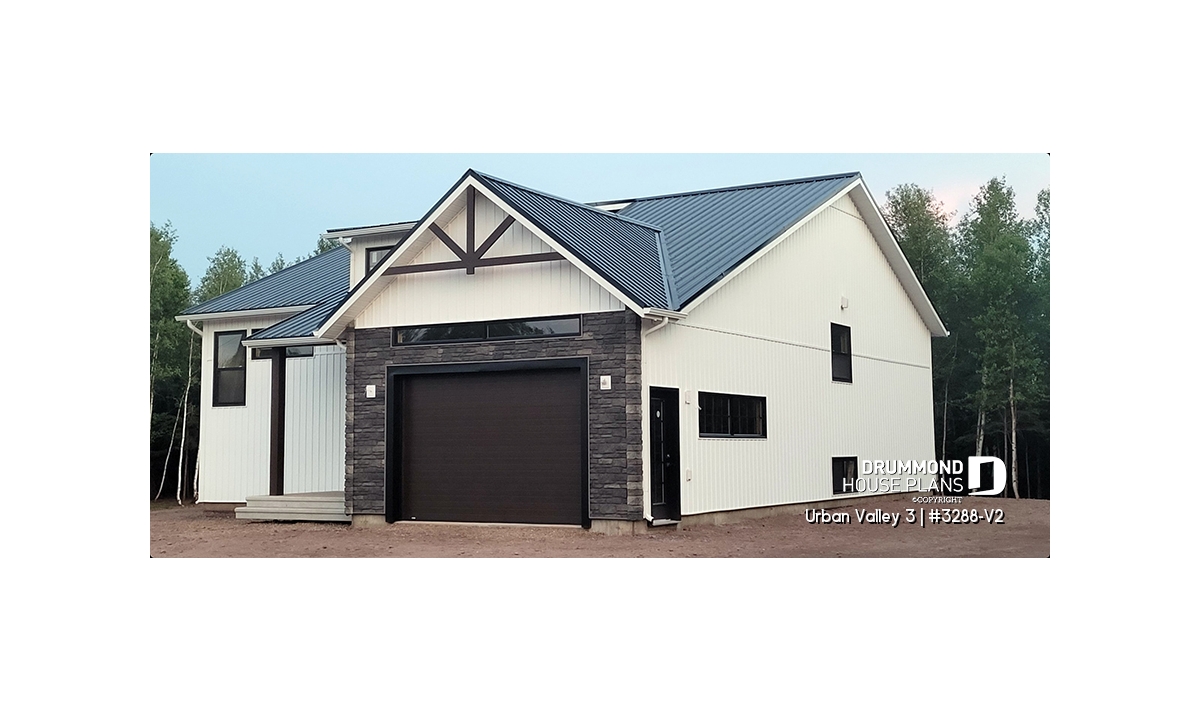

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

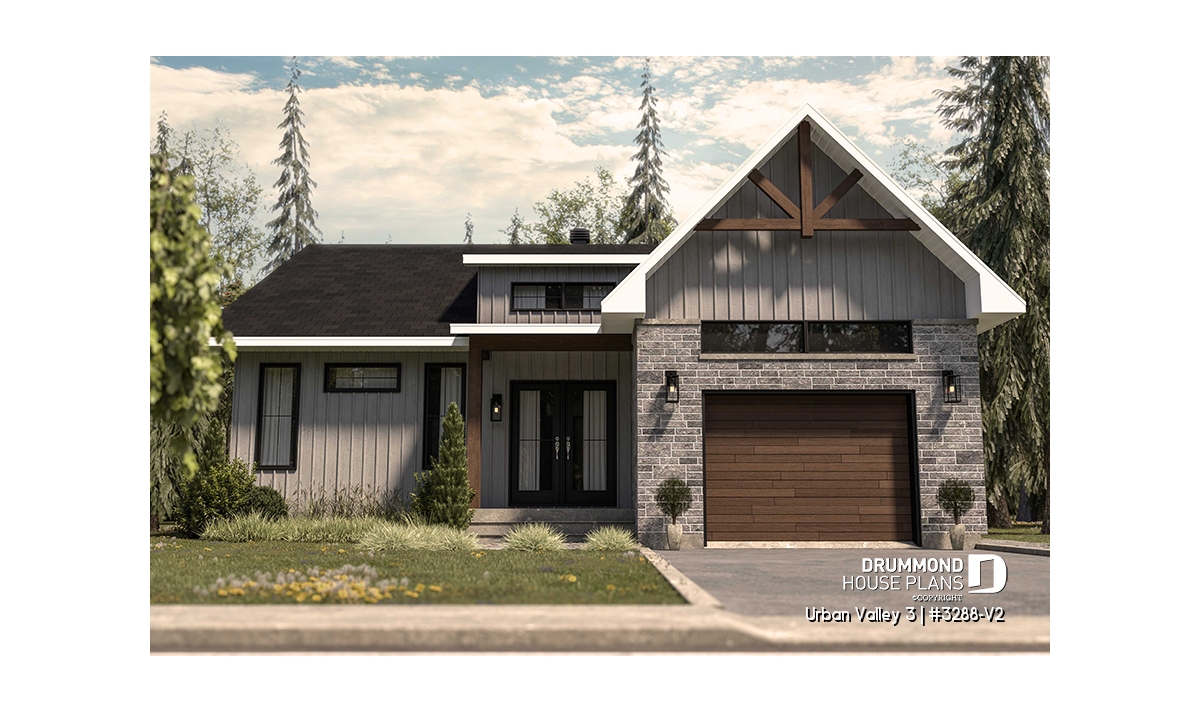

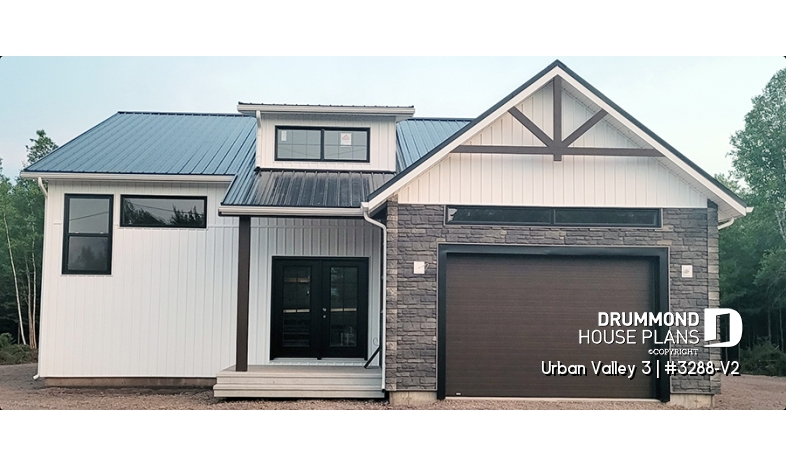

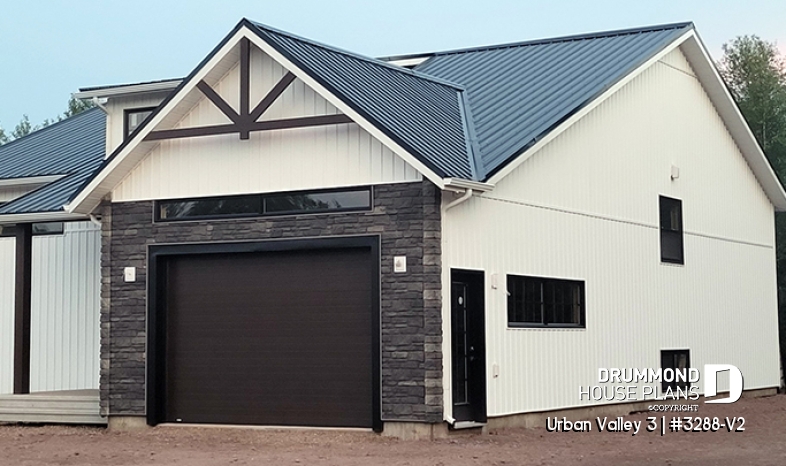

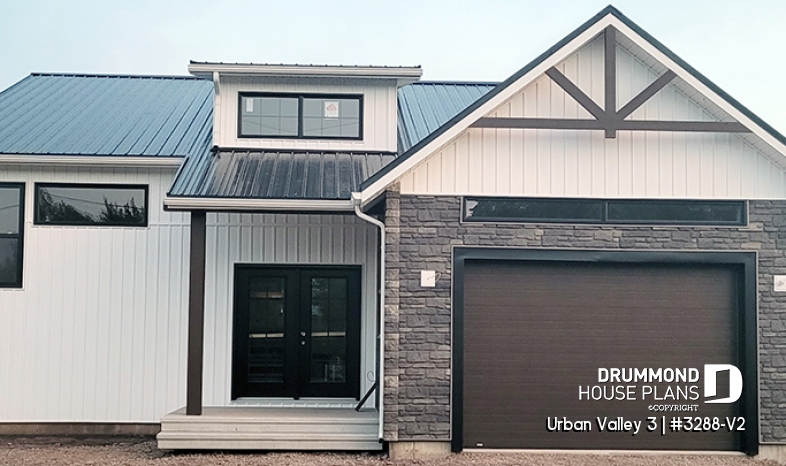

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Charming Modern Craftsman style single storey house plan with garage and 2 bedrooms.

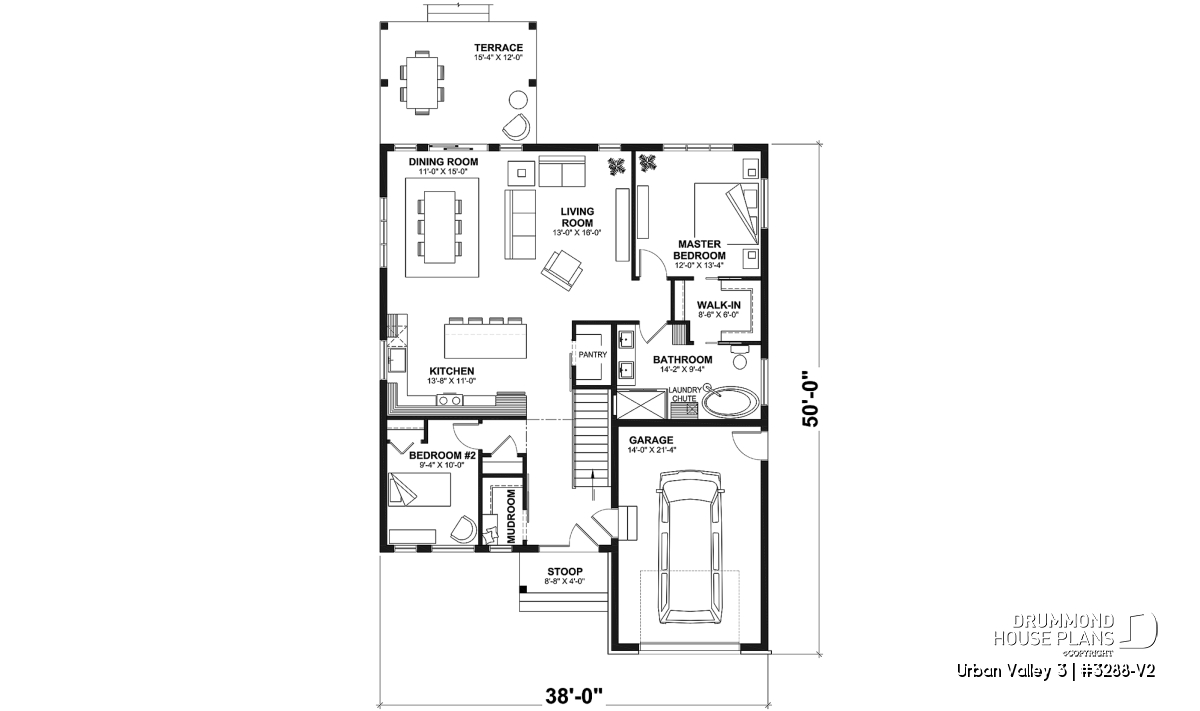

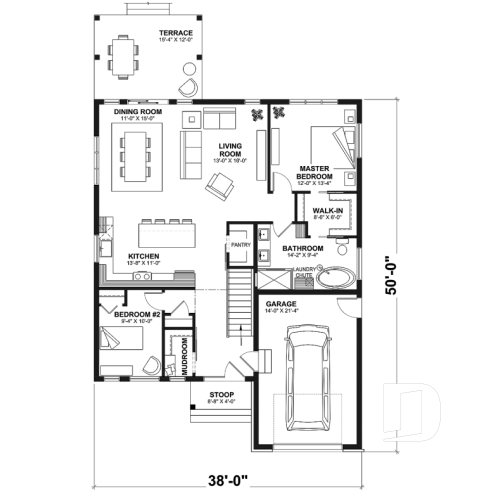

The URBAN VALLEY 3 house plan (# 3288-V2) offers 1339 of heated square feet laid out on the ground floor. A full unfinished basement is included in the plan.
The floor brings together 2 bedrooms, including the parents' bedroom with a walk-in closet and private access to the bathroom. The secondary bedroom could also serve as an office, sewing or reading room.
The full family bathroom has 2 sinks, as well as a separate bath and shower and a laundry chute (towards the basement).
At the entrance of the house there is a mud room and access to the garage.

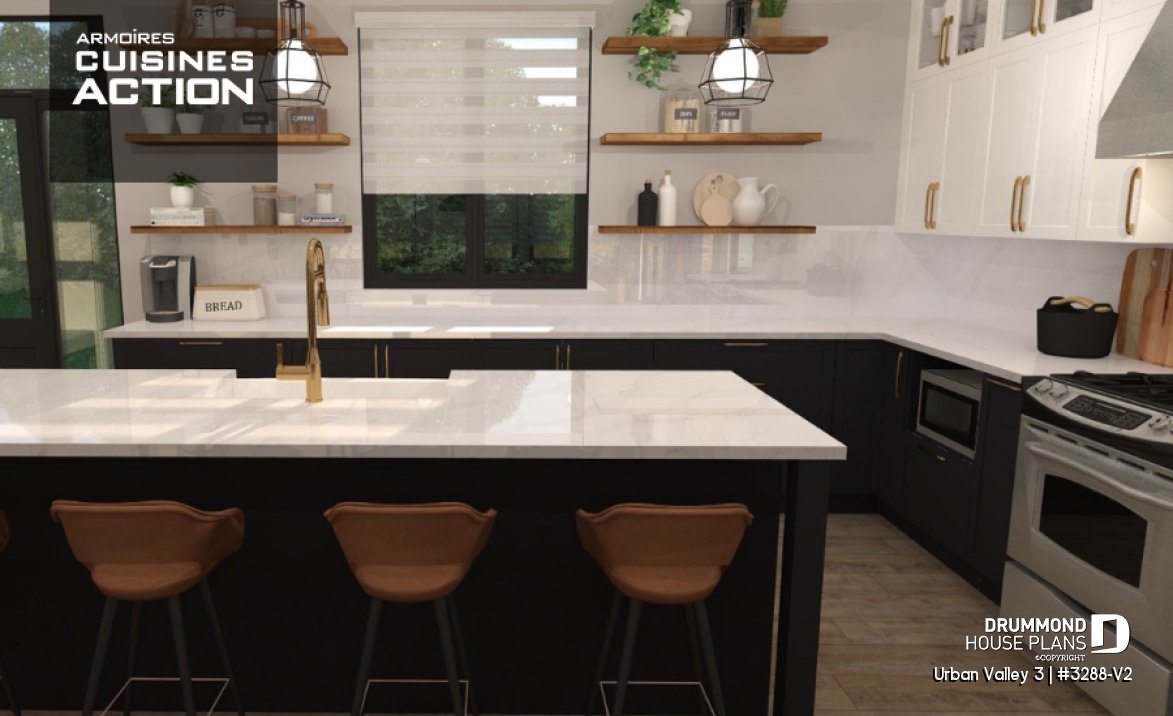

The kitchen is well appointed with its good size pantry and island large enough to accommodate 4 guests.
The kitchen, dining room and living room area is open concept and opens onto a large covered terrace of 15'4 '' x 12 '.

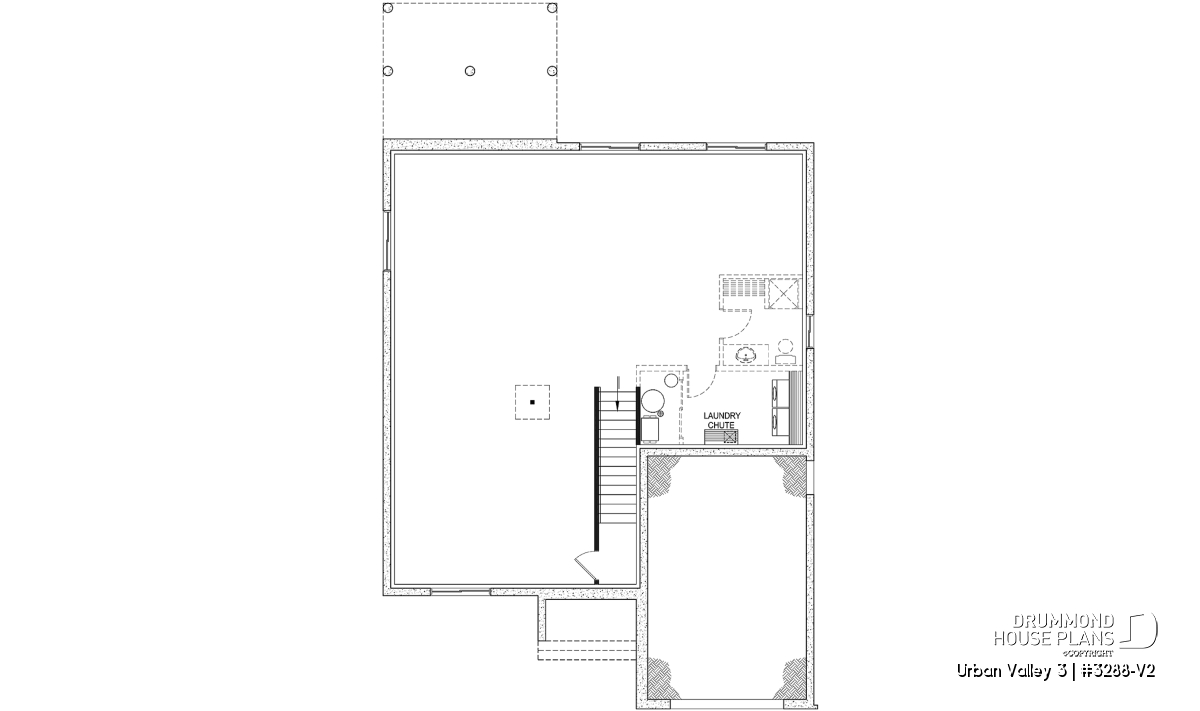

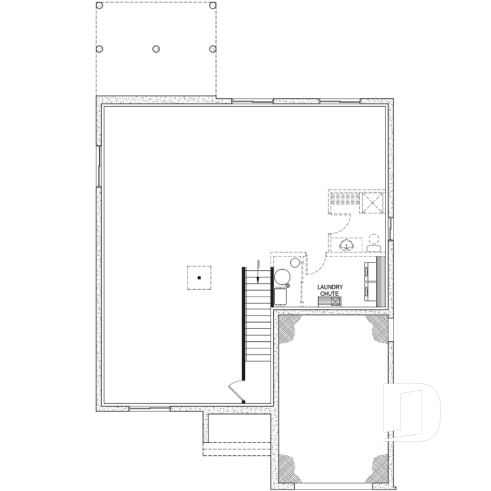

The basement is unfinished, to be fitted out according to your current or future needs.
Distinctive elements
Modern Craftsman style house with a very warm look.
2 bedrooms.
Unfinished basement.
Entrance with mudroom.
Kitchen with pantry and island.
Open concept kitchen, dining room and living room.
Sheltered terrace.
Several foundation options are available for this plan.
Plan feature(s)
Pantry, Mud room, Open floor layout, Ceiling over 8', Deck, Separate bath and shower, Double sinks, Laundry chute, Walk-in master bed., Island, Builder, Self-Build
Plan architectural style(s)
Modern Craftsman, . Mountain, . Rustic, Modern farmhouse, . Transitional, . Country, . Craftsman / Northwest
