Ferguson (3067)
Duplex plan with large master suite, open floor plan kitchen, dining and living room, guest bedroom with bath
Bedrooms
2
Bathroom(s)
2
Living area
2252 sq.ft.
Garage type
-
Color version 1 - Front
front - BASE MODEL
rear elevation
interior view
Color version 3 - Front
Color version 5 - Front
Color version 6 - Front
View by floor
-
1st level
-
1st level (Optional $)
-

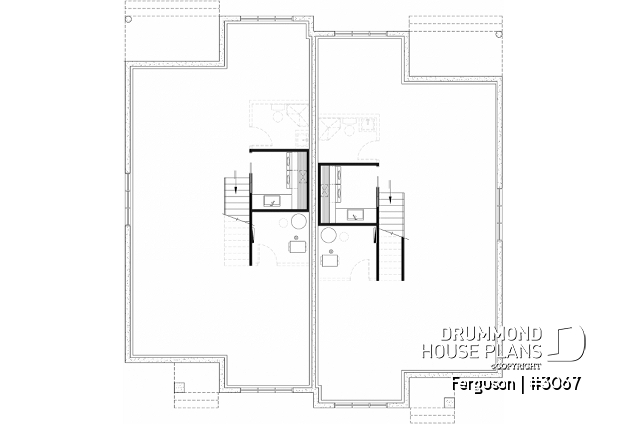

Unfinished basement (Optional $)
| 1st level | ||||
| Rooms | Sizes | Ceiling | ||
| Master suite | 11'5" x 14'0" | ~ 9'0" | ||
| Walk-in closet | 7'9" x 7'0" | ~ 9'0" | ||
| Full bathroom | 7'7" x 8'8" | ~ 9'0" | ||
| Master suite | 11'3" x 14'0" | ~ 9'0" | ||
| Walk-in closet | 7'7" x 7'0" | ~ 9'0" | ||
| Full bathroom | 7'5" x 8'8" | ~ 9'0" | ||
| Bedroom | 11'5" x 10'0" | ~ 9'0" | ||
| Closet | 5'3" x 2'0" | ~ 9'0" | ||
| Bedroom | 11'3" x 10'0" | ~ 9'0" | ||
| Closet | 5'1" x 2'0" | ~ 9'0" | ||
| Living room | 12'0" x 15'0" | ~ 9'0" | ||
| Living room | 12'0" x 15'0" | ~ 9'0" | ||
| Dining room | 12'0" x 12'0" | ~ 9'0" | ||
| Dining room | 12'0" x 12'0" | ~ 9'0" | ||
| Kitchen | 12'0" x 11'8" | ~ 9'0" | ||
| Kitchen | 12'2" x 11'8" | ~ 9'0" | ||
| Bathroom | 7'7" x 5'0" | ~ 9'0" | ||
| Linen | 2'2" x 2'0" | ~ 9'0" | ||
| Bathroom | 7'9" x 5'0" | ~ 9'0" | ||
| Linen | 2'2" x 2'0" | ~ 9'0" | ||
| Covered porch | 12'4" x 6'0" | ~ 0'0" | ||
| Covered porch | 12'6" x 6'0" | ~ 0'0" | ||
| Covered porch | 6'0" x 4'0" | ~ 0'0" | ||
| Covered porch | 6'0" x 4'0" | ~ 0'0" | ||
| Laundry space | 3'4" x 6'0" | ~ 9'0" | ||
| Laundry space | 3'4" x 6'0" | ~ 9'0" | ||
| Storage | 3'4" x 4'3" | ~ 9'0" | ||
| Storage | 3'4" x 4'3" | ~ 9'0" | ||
| Linen | 2'2" x 2'0" | ~ 9'0" | ||
| Unfinished basement (Optional $) | ||||
| 1st level (Optional $) | ||||
| Total living area | 2252 sq.ft. |
| 1st level | 2252 sq.ft. |
| Unfinished basement (Optional $) | 0 sq.ft. |
| 1st level (Optional $) | 0 sq.ft. |
| Width | 50'0" |
| Depth | 52'0" |
| Ridge height from top of foundation | 17'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
Description
BASE PLAN Main Floor: Kitchen, dining room, living room, master suite with walk-in closet and private bathroom, secondary bedroom, second bathroom, washer and dryer in closet, storage. Slab foundation. --- *OPTION #1 A staircase to the unfinished basement has been added from the dining room, and the laundry room has been relocated to the basement. --- *Unfinished Basement (optional $): If you wish to purchase the unfinished basement plan option ($), please select this option in the shopping cart, in the "Select your foundation" section. If you do not select this option, you will receive a floating slab as your foundation, at no extra cost.
Other useful information on this plan
Full description
Duplex house plan with master suite!
Here is an American-style duplex home design, our new duplex plan # 3067 by Drummond House Plans, offering you beautiful spaces and comfort! The Ferguson duplex home plan was designed for a couple or a family wishing to have no basement which allowed us to use the space that would have been reserved for a staircase (leading to the basement) and maximize the overall square footage. It should be noted that the ceiling height of the entire main floor is 9 feet high, which gives significant amplitude to the rooms.
The kitchen is good in size and features a lunch counter, convenient for chatting with guests while preparing meals. In addition, a covered balcony is accessible from the kitchen making it easy to access a BBQ, for example. The dining room area and living room (lounge) are very open. The space is large enough to accommodate a table of 6 to 8 people and good size living room furniture.
The master bedroom suite receives natural light from a large window overlooking the back yard. There is also a large walk-in wardrobe. A private bathroom with shower and double vanity, as well as a linen room complete the "private" area of the parents or owners. A secondary bedroom is located on the front of the house and is adjacent to a full bathroom. This flex room could easily convert into a study or home gym. A washer and dryer closet along with a storage area are also included in the BASE model, while in the version with an *unfinished basement, the laundry room is located downstairs.
---
*OPTION #1
A staircase to the unfinished basement has been added from the dining room, and the laundry room has been relocated to the basement.
---
*Unfinished Basement (optional $):
If you wish to purchase the unfinished basement plan option ($), please select this option in the shopping cart, in the "Select your foundation" section. If you do not select this option, you will receive a floating slab as your foundation, at no extra cost.
Distinctive elements
Modern Rustic Style Semi-Detached Model.
9-foot ceilings throughout the main floor.
Covered rear balcony.
Spacious kitchen with breakfast counter and patio door.
Open-concept dining room and living room.
Large, bright master bedroom with a walk-in closet and private bathroom.
Secondary bedroom can also serve as a home office or gym, with direct access to a full bathroom.
Both front and rear balconies are covered.
Designed for a concrete slab foundation, with other foundation options available.
---
*OPTION #1
A staircase to the unfinished basement has been added from the dining room, and the laundry room has been relocated to the basement.
---
*Unfinished Basement (optional $):
If you wish to purchase the unfinished basement plan option ($), please select this option in the shopping cart, in the "Select your foundation" section. If you do not select this option, you will receive a floating slab as your foundation, at no extra cost.
