Jolain (3850)
Affordable Narrow lot Tudor house plan, mezzanine, laundry on 2nd floor, open floor plan
Bedrooms
3
Bathroom(s)
2
Living area
1584 sq.ft.
Garage type
One-car garage

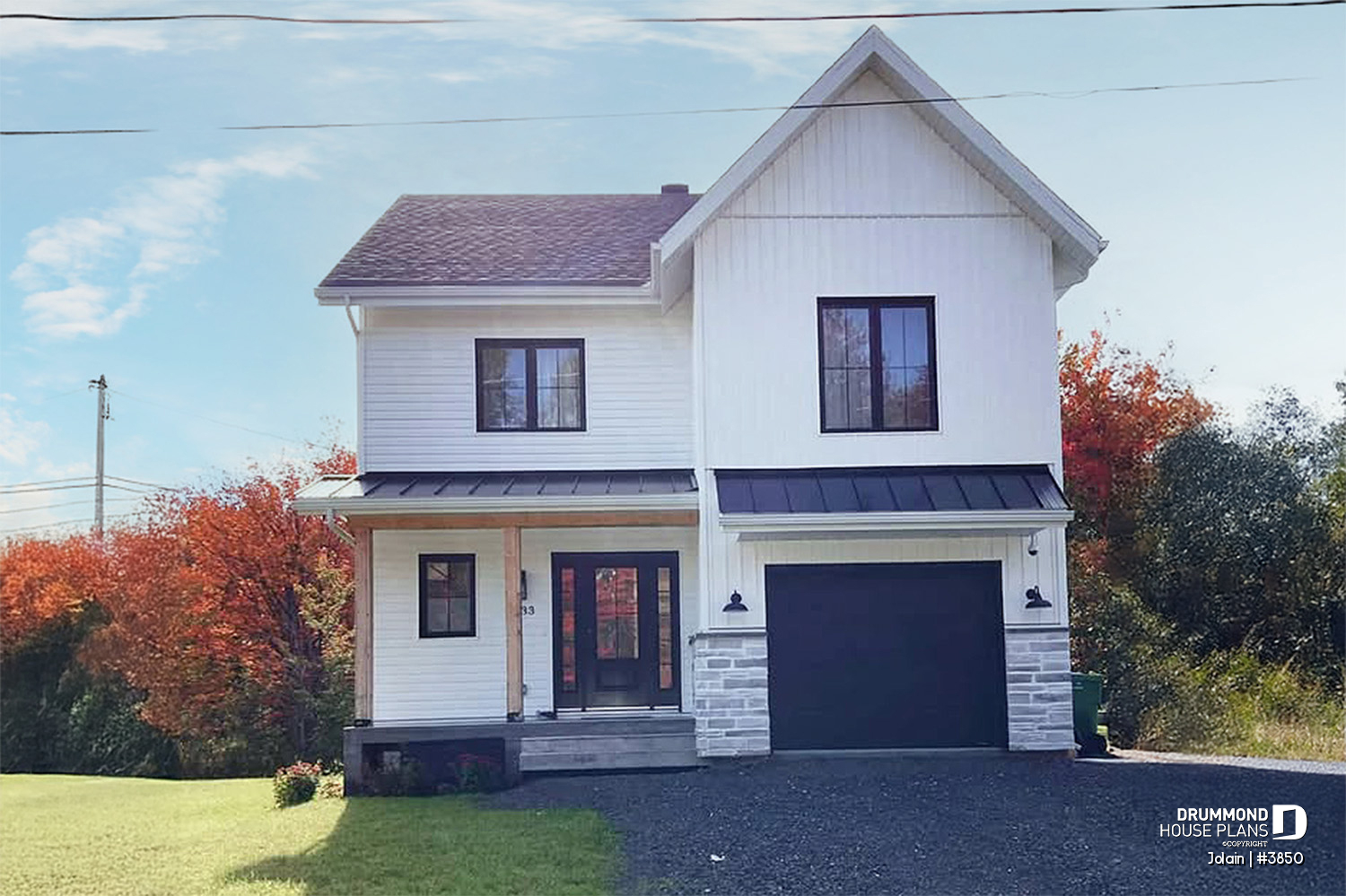

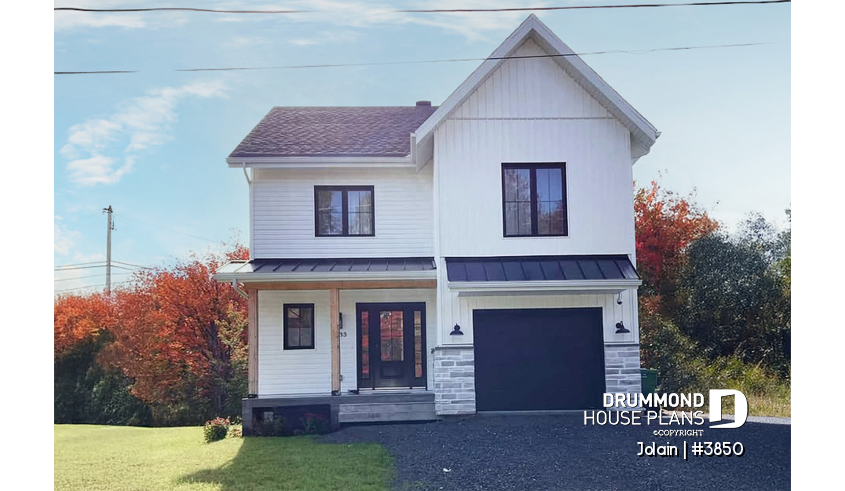

front - BASE MODEL
rear elevation
Color version 2 - Front
Color version 3 - Front
Color version 4 - Front
Color version 5 - Front
View by floor
-
1st level
-
2nd level
| 2nd level | ||||
| Rooms | Sizes | Ceiling | ||
| Full bathroom | 9'0" x 9'4" | ~ 8'0" | ||
| Bedroom | 12'6" x 14'0" | ~ 8'0" | ||
| Bedroom | 10'8" x 9'4" | ~ 8'0" | ||
| Bedroom | 10'8" x 9'4" | ~ 8'0" | ||
| Utility room | 6'10" x 5'10" | ~ 8'0" | ||
| Linen | 1'4" x 2'0" | ~ 8'0" | ||
| 1st level | ||||
| Rooms | Sizes | Ceiling | ||
| Full bathroom | 5'8" x 8'0" | ~ 8'0" | ||
| Kitchen | 13'6" x 12'8" | ~ 8'0" | ||
| Dining room | 14'2" x 10'0" | ~ 8'0" | ||
| Living room | 12'6" x 16'4" | ~ 15'2" | ||
| Foyer | 7'4" x 8'0" | ~ 8'0" | ||
| Garage | 12'6" x 20'0" | ~ 9'8" | ||
| Porch | 8'6" x 3'4" | ~ 0'0" | ||
| Deck | 14'2" x 4'8" | ~ 0'0" | ||
| Total living area | 1584 sq.ft. |
| 2nd level | 820 sq.ft. |
| 1st level | 764 sq.ft. |
| Width | 28'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 32'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
Description
1st level: Foyer, half-bath with shower, kitchen / dinette, dining room, family room. 2nd level: Three bedrooms, bathroom, laundry facilities. Garage. Unfinished basement.
