Ataglance (2938)
Simple 3 bedrooms vacation style cottage house plan, lots of natural light, fireplace, mezzanine, cathedral
Bedrooms
3
Bathroom(s)
2
Living area
1544 sq.ft.
Garage type
-

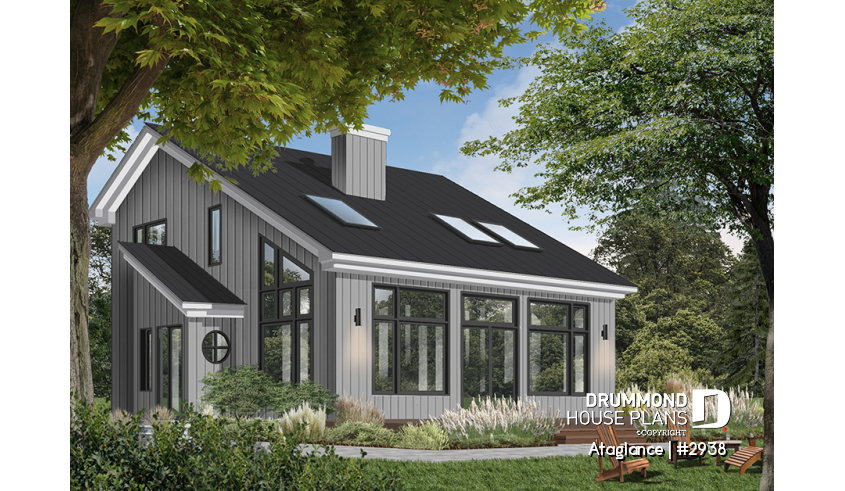

Color version 1 - Front

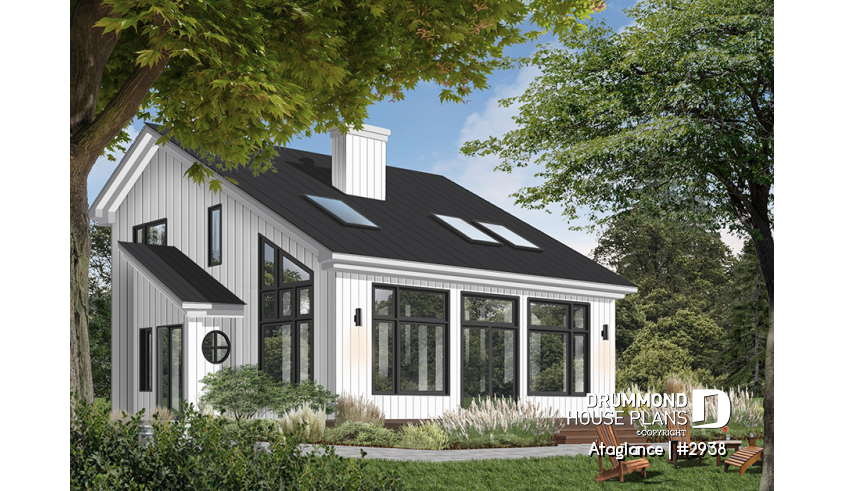

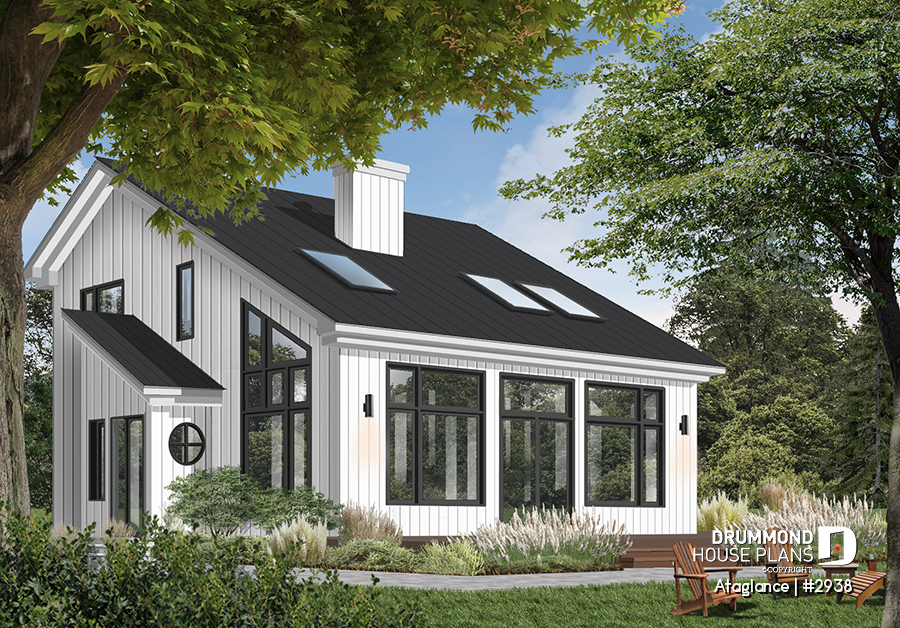

front - BASE MODEL

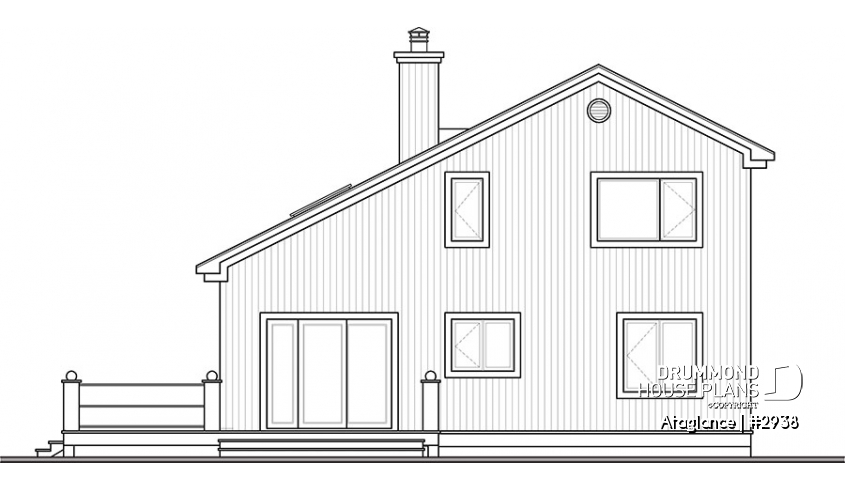

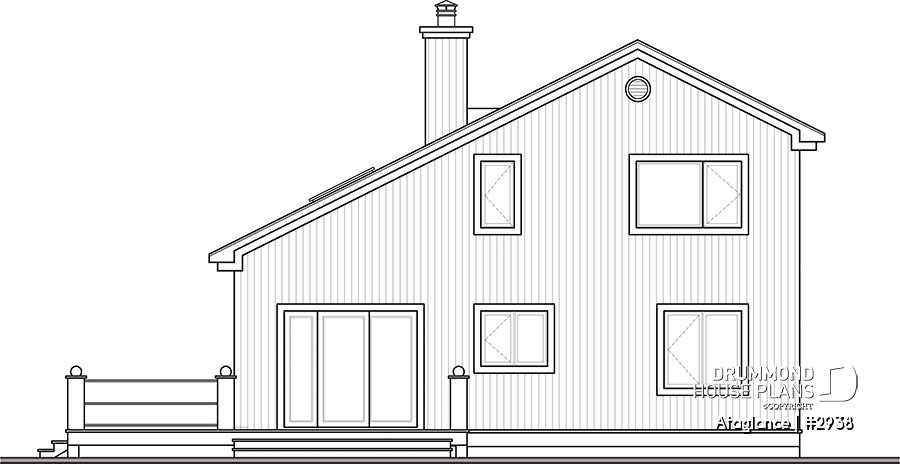

rear elevation

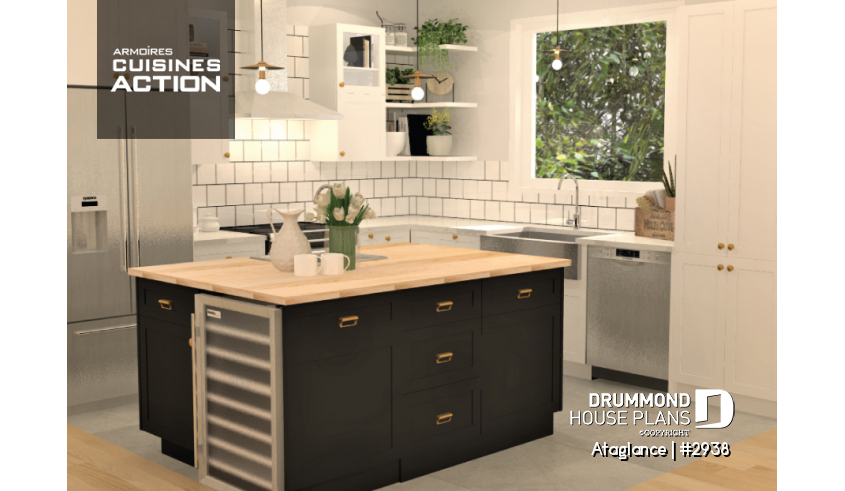

interior view

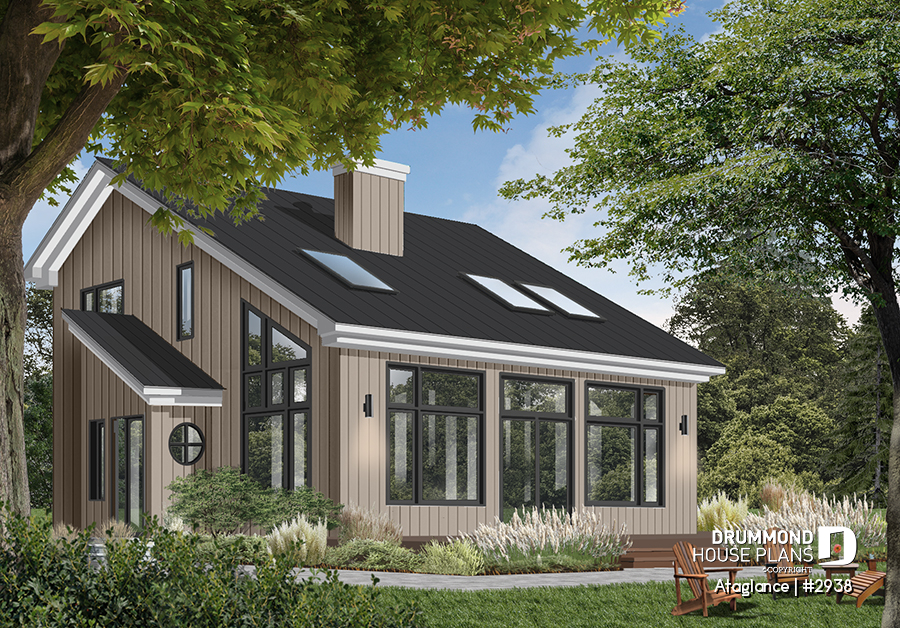

Color version 2 - Front
Color version 3 - Front
View by floor
-
1st level
-
2nd level
| 1st level | ||||
| Rooms | Sizes | Ceiling | ||
| Full bathroom | 12'4" x 8'6" | ~ 8'0" | ||
| Kitchen | 10'0" x 10'0" | ~ 8'0" | ||
| Pantry | 2'0" x 1'6" | ~ 0'0" | ||
| Dining room | 11'8" x 12'4" | ~ 16'4" | ||
| Living room | 13'0" x 14'4" | ~ 16'4" | ||
| Bedroom | 10'8" x 12'4" | ~ 8'0" | ||
| Foyer | 7'4" x 3'4" | ~ 8'0" | ||
| Closet | 4'8" x 2'0" | ~ 8'0" | ||
| Porch | 24'0" x 10'0" | ~ 0'0" | ||
| Porch | 10'0" x 28'0" | ~ 0'0" | ||
| Laundry room | 6'10" x 2'8" | ~ 8'0" | ||
| 2nd level | ||||
| Rooms | Sizes | Ceiling | ||
| Full bathroom | 9'0" x 7'6" | ~ 8'0" | ||
| Bedroom | 12'4" x 10'0" | ~ 8'0" | ||
| Bedroom | 12'4" x 8'6" | ~ 8'0" | ||
| Linen | 1'2" x 2'2" | ~ 8'0" | ||
| Total living area | 1544 sq.ft. |
| 1st level | 984 sq.ft. |
| 2nd level | 560 sq.ft. |
| Width | 34'0" |
| Depth | 31'8" |
| Ridge height from top of foundation | 24'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |

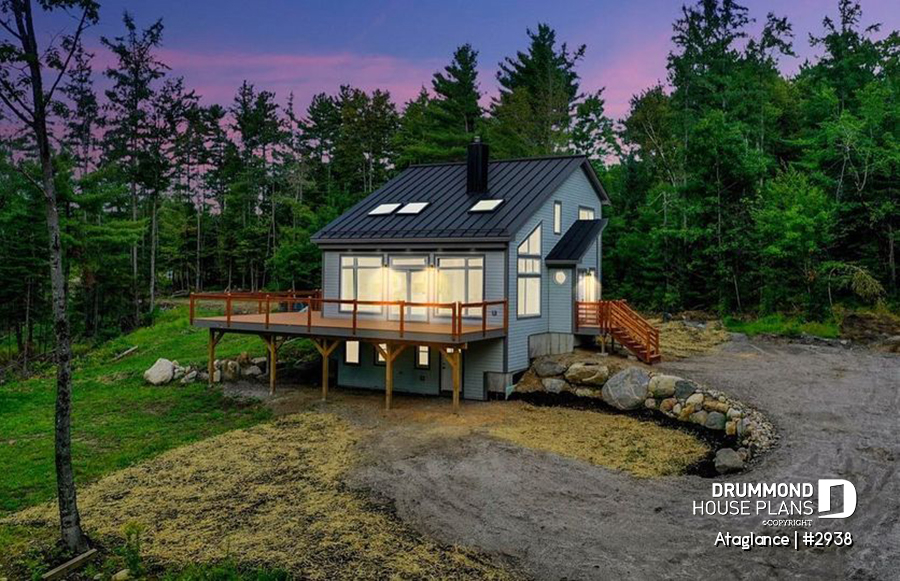

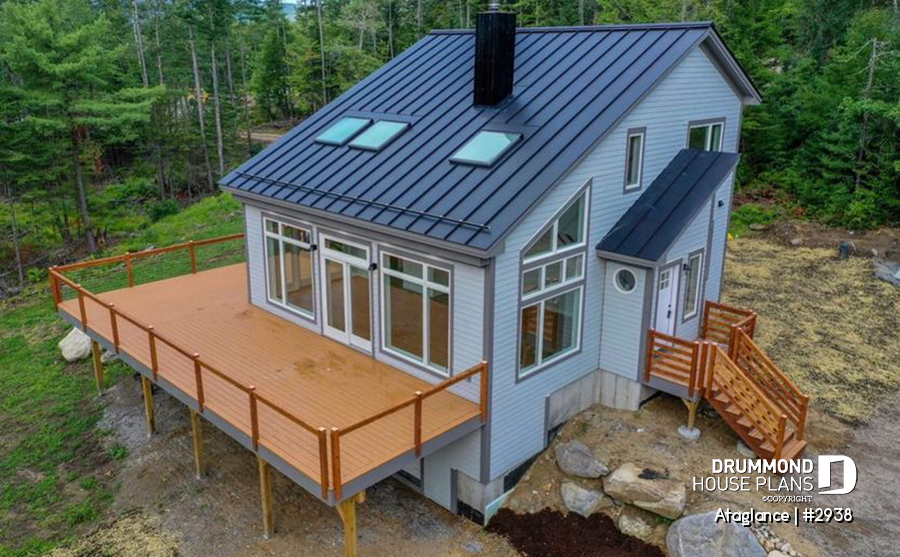

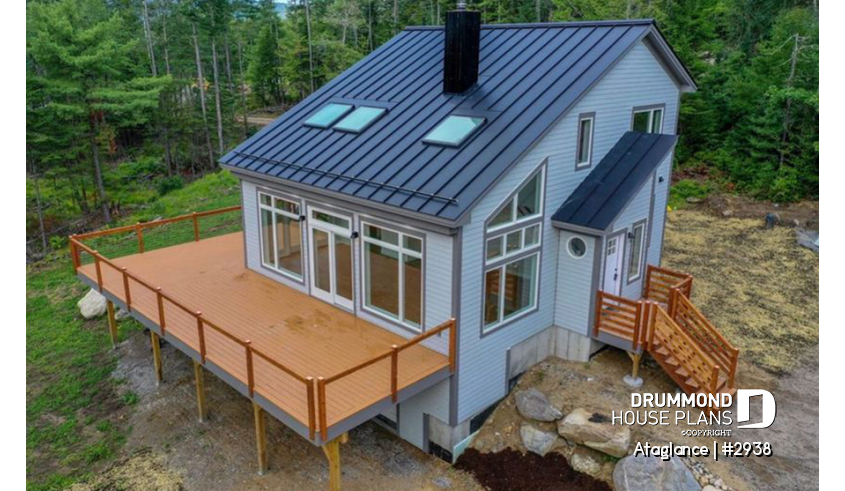

front
This color version might have decorative elements that are not available on base plan.

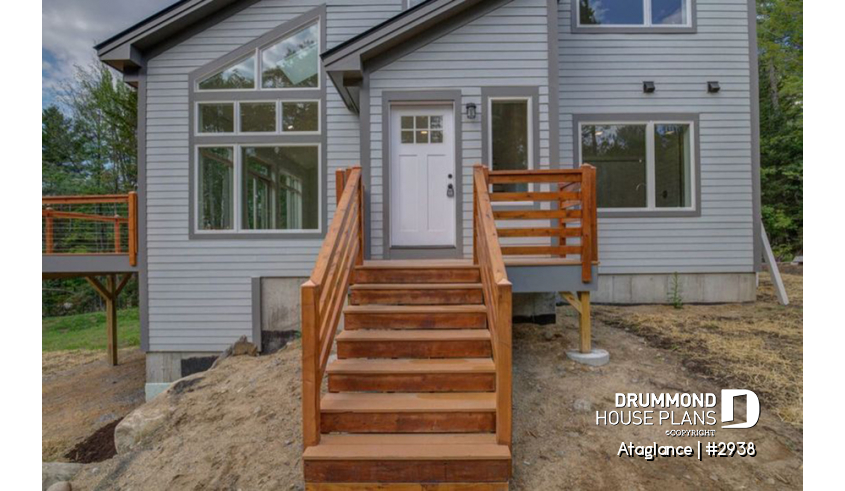

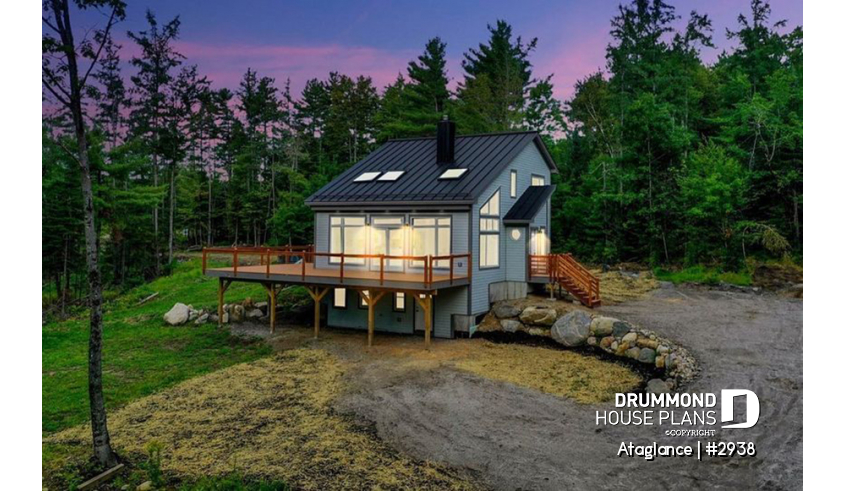

front
This color version might have decorative elements that are not available on base plan.

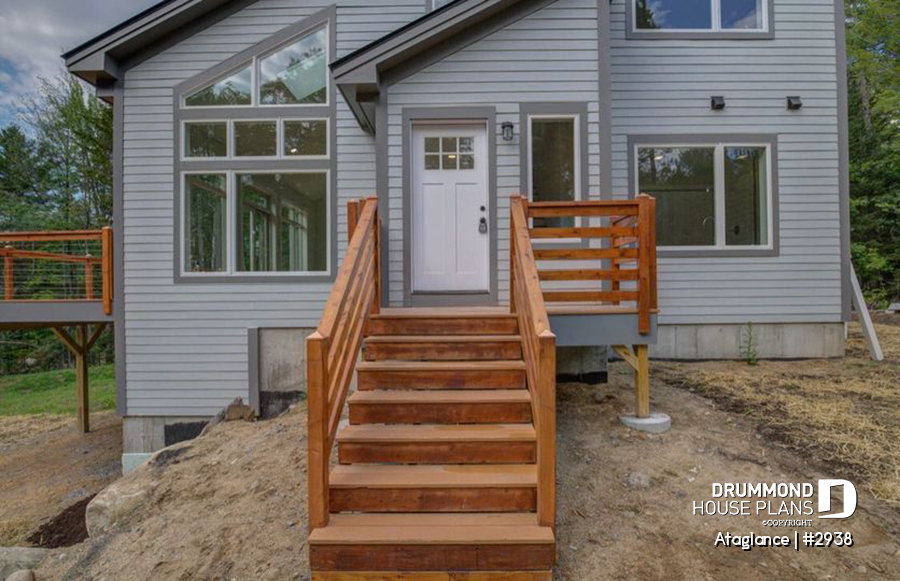

front
This color version might have decorative elements that are not available on base plan.

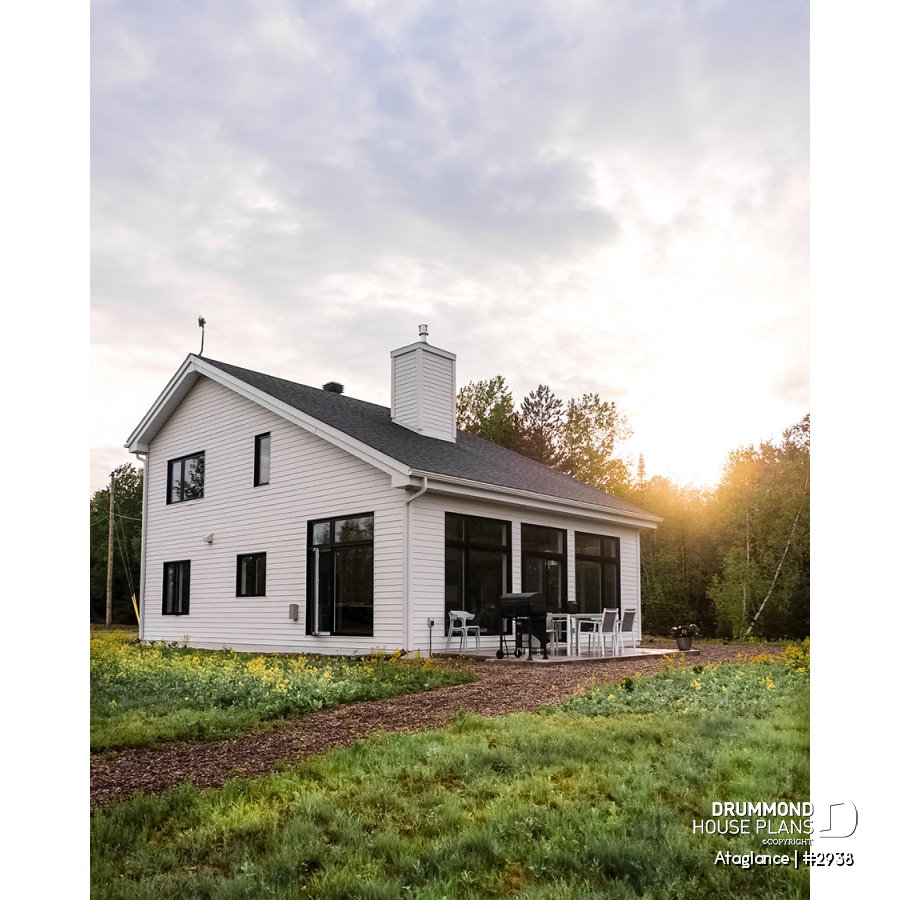

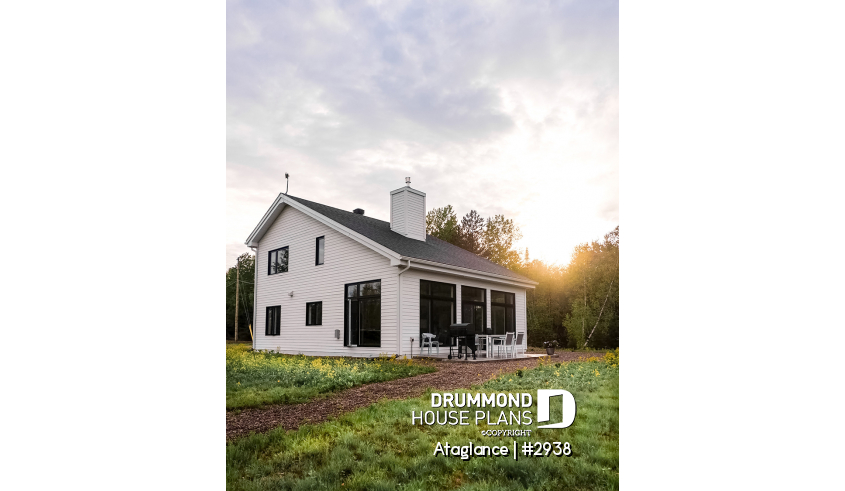

back
This color version might have decorative elements that are not available on base plan.

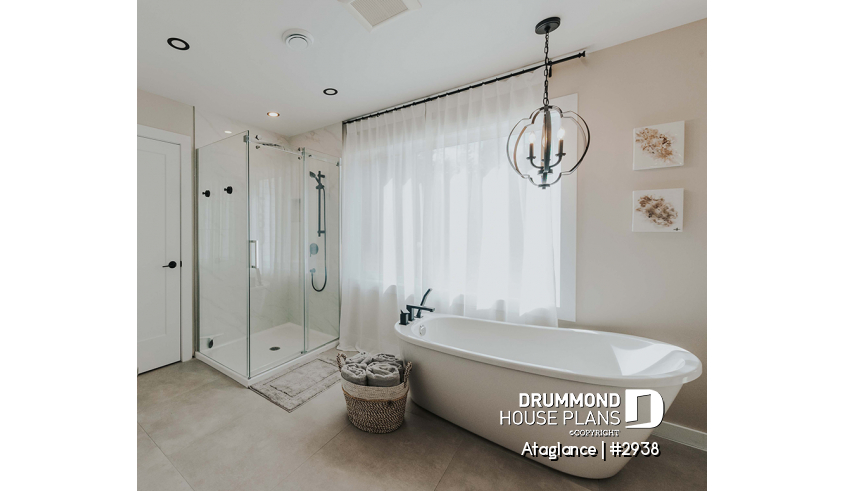

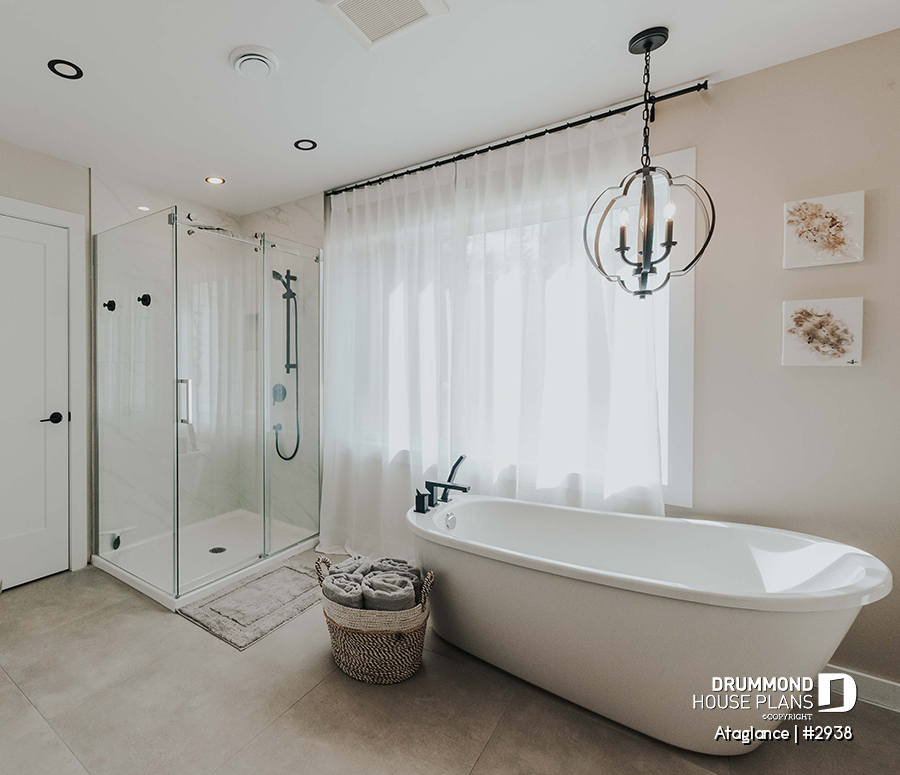

Bathroom
This color version might have decorative elements that are not available on base plan.

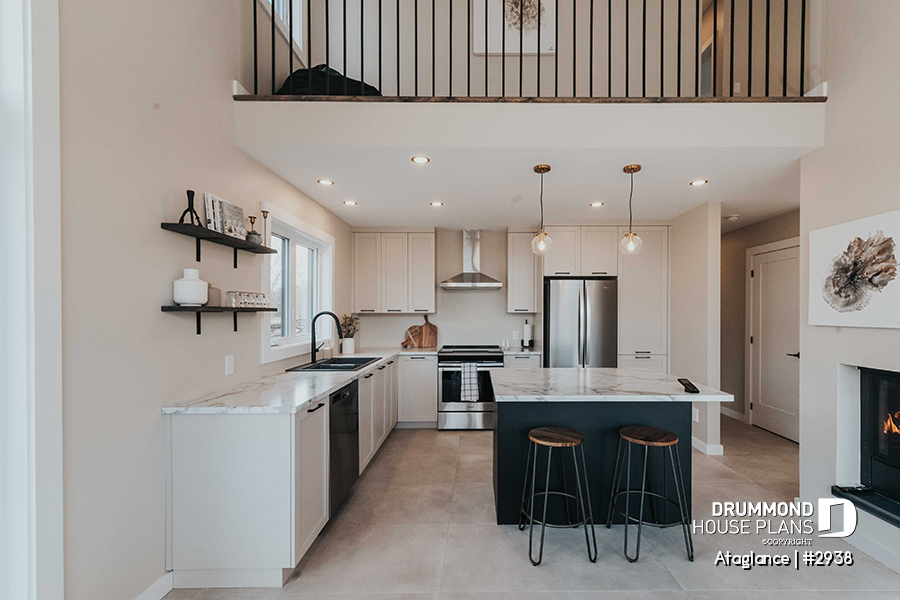

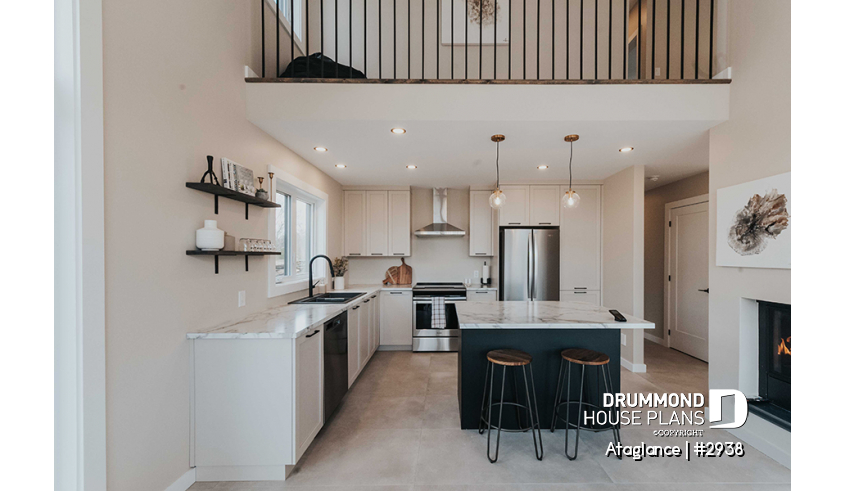

Kitchen
This color version might have decorative elements that are not available on base plan.

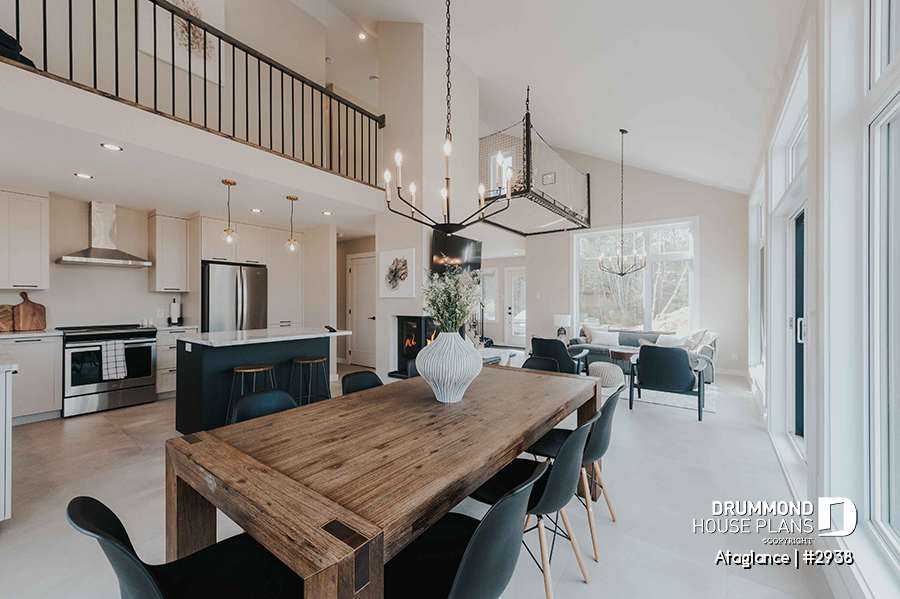

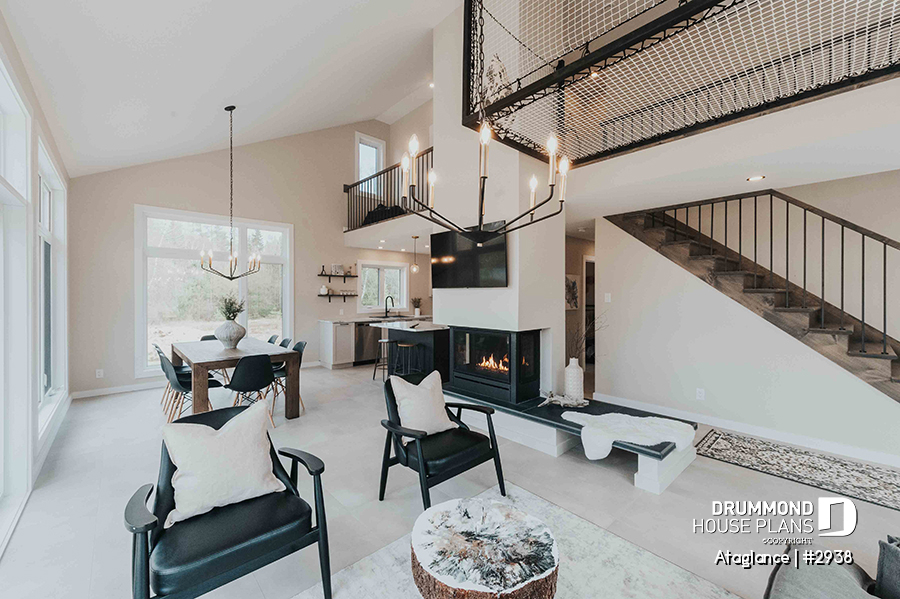

Dining room
This color version might have decorative elements that are not available on base plan.

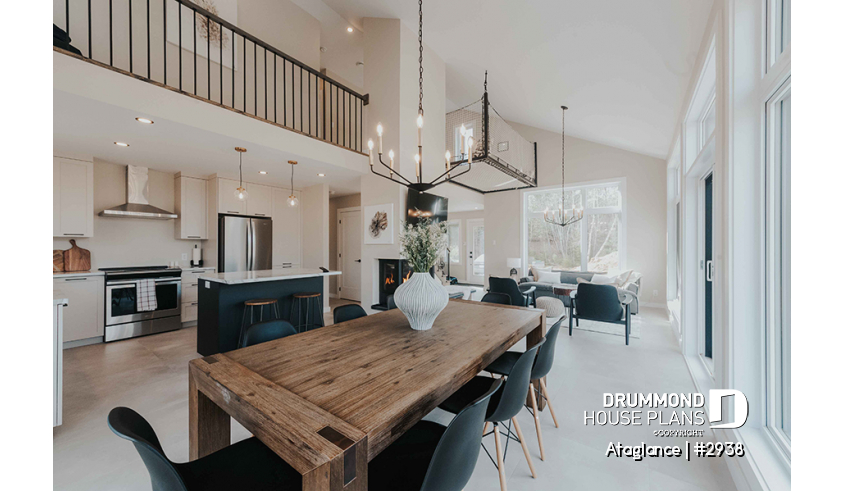

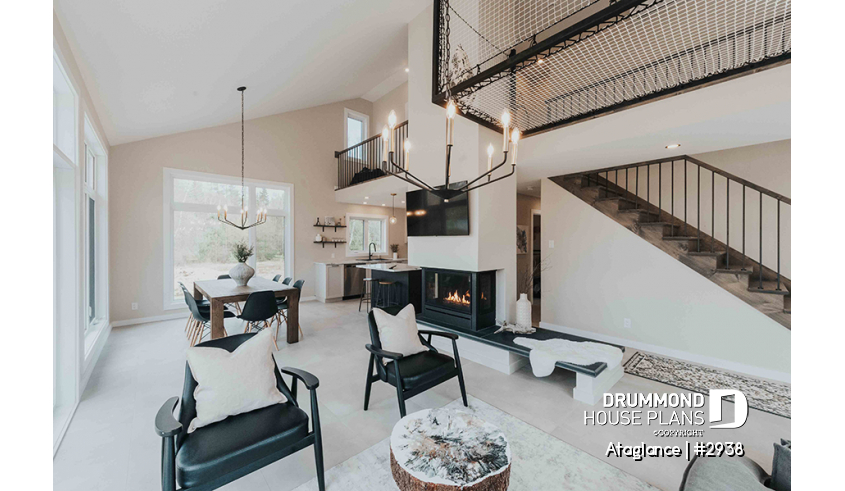

Dining room
This color version might have decorative elements that are not available on base plan.

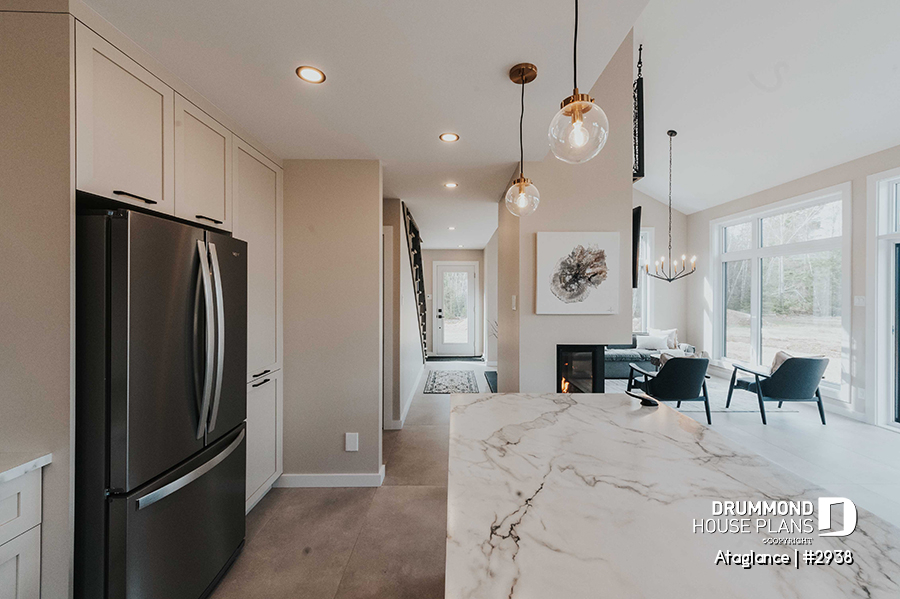

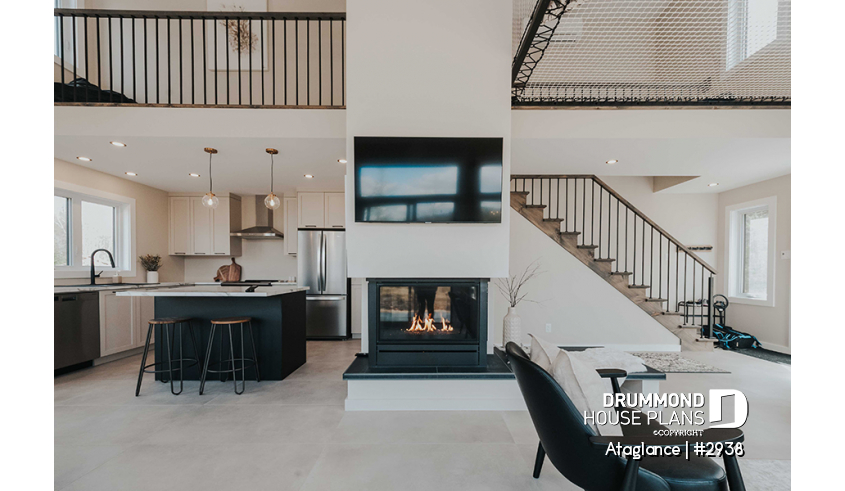

Activity sector
This color version might have decorative elements that are not available on base plan.

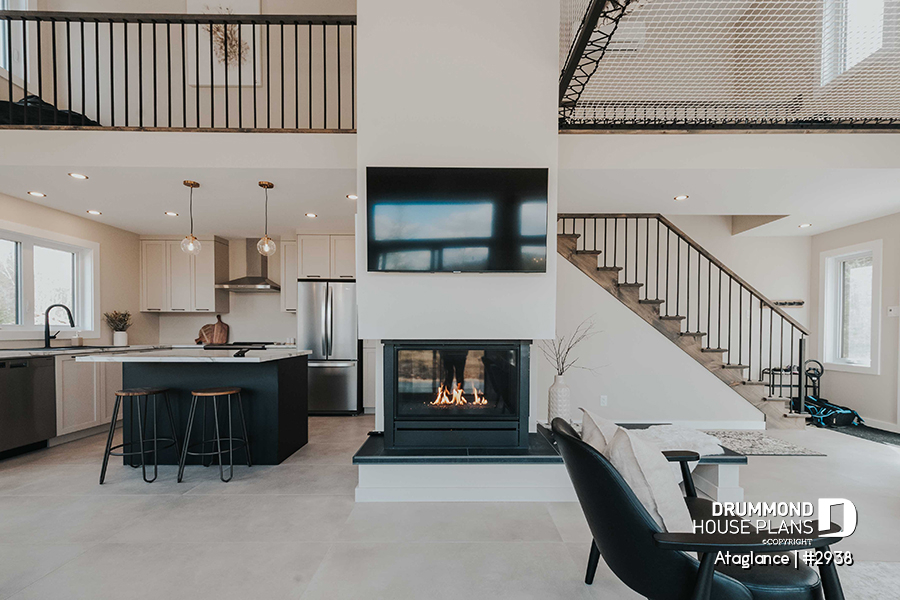

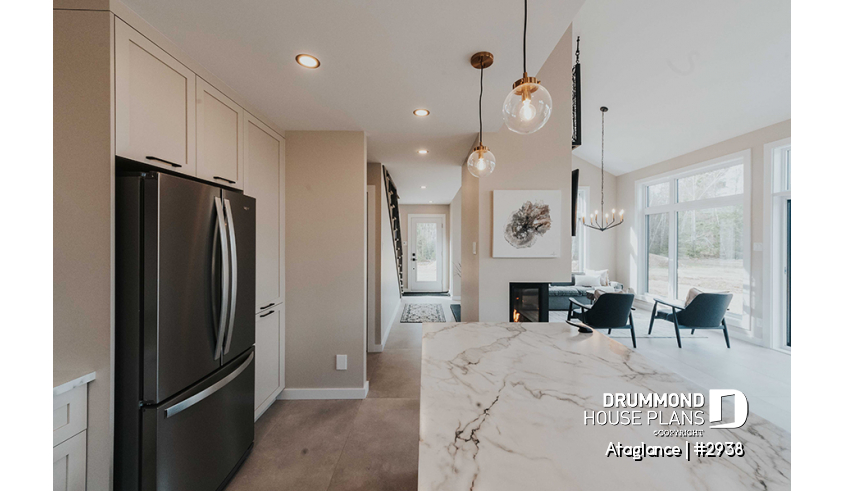

Activity sector
This color version might have decorative elements that are not available on base plan.
Description
Main level: Closed foyer, family room with fireplace, dining room, kitchen with island/lunch counter, bathroom with laundry area. 2nd level: 2 bedrooms, bathroom, mezzanine.
Other useful information on this plan
Full description
Small waterfront cottage house plan with 3 bedrooms, mezzanine and skylights.
Small 3 bedroom modern waterfront cottage or cabin plan. Master bedroom on main floor. Great central fireplace and
open kitchen, dining and living room concept. XLarge main floor full bathroom. Mezzanine, 2 good size bedrooms and
a full bathroom are on the second floor. Home with lots of natural light.
